Siemens 7KT5814
Mechanical pulse counter 230V, 50Hz
- MPN
- 7KT5814
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 7KT5814?
mechanical pulse counter 230V, 50Hz
Specifications
Model
| product brand name | SENTRON |
| product designation | Mechanical pulse counter |
General technical data
| electrical input frequency — minimum | 60 Hz |
| electrical input frequency — maximum | 60 Hz |
| principle of operation of the operating hours counter | analog |
| reset function | no |
| type of voltage of the operating voltage | AC |
| input voltage | 230 V |
Protection class
| protection class IP | IP20 |
Number
| number of characters that can be displayed | 7 |

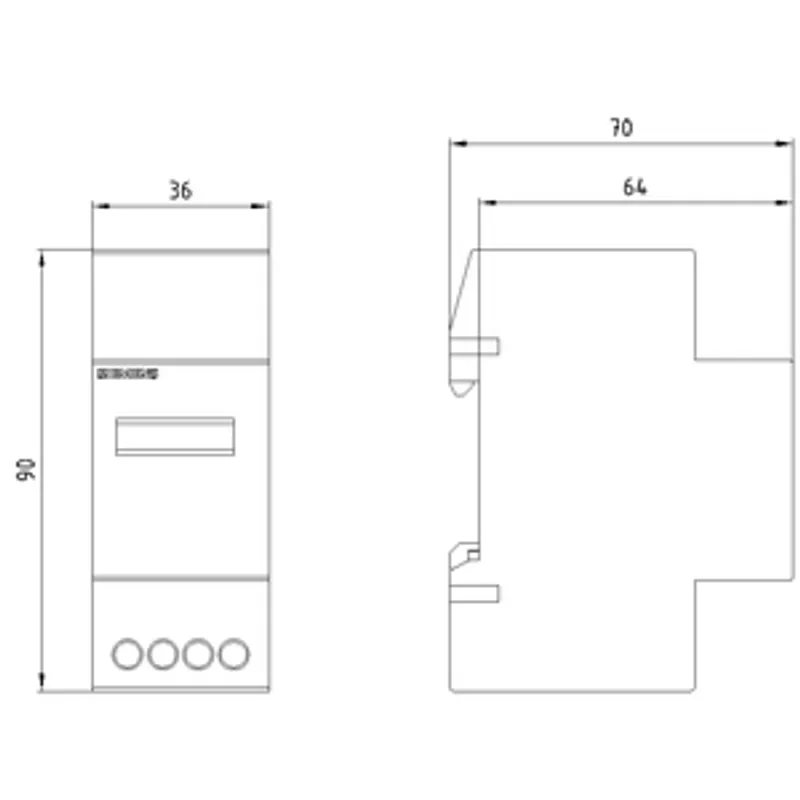

Mechanical Design
| height | 90 mm |
| height of the front plate | 45 mm |
| width | 36 mm |
| width of the front plate | 36 mm |
| installation depth | 64 mm |
| number of modular width units | 2 |
| fastening method | DIN rail |
| Net Weight | 94 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
7KT5814: frequently asked questions
When can 7KT5814 be shipped?
7KT5814 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 7KT5814 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 7KT5814 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 7KT5814, subject to availability and destination.
