Time and Pulse Counters for Standard Rail Mounting Parts

Siemens

Time counter, mechanical, 230V, 50Hz

Siemens

Time counter, mechanical, 115V, 50Hz

Siemens

Time counter, mechanical, 24V, 50Hz

Siemens

Mechanical pulse counter 230V, 50Hz

Siemens

Mechanical pulse counter 24V, 50Hz

Siemens

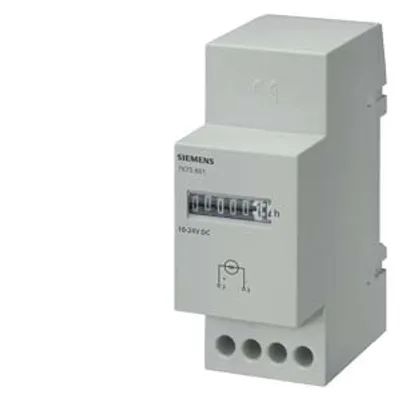

Mechanical pulse counter 24 VDC

Compare Time and Pulse Counters for Standard Rail Mounting

Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.

MPN	product designation	electrical input frequency — minimum	type of voltage of the operating voltage	input voltage	Net Weight
7KT5804	Mechanical time counter	50 Hz	AC	230 V	94 g
7KT5803	Mechanical time counter	50 Hz	AC	115 V	92 g
7KT5802	Mechanical time counter	50 Hz	AC	24 V	92 g
7KT5814	Mechanical pulse counter	60 Hz	AC	230 V	94 g
7KT5812	Mechanical pulse counter	60 Hz	AC	24 V	94 g
7KT5811	Mechanical pulse counter	—	DC	24 V	92 g

principle of operation of the operating hours counter	analog
reset function	no
protection class IP	IP20
number of characters that can be displayed	7
height	90 mm
height of the front plate	45 mm
width	36 mm
width of the front plate	36 mm
