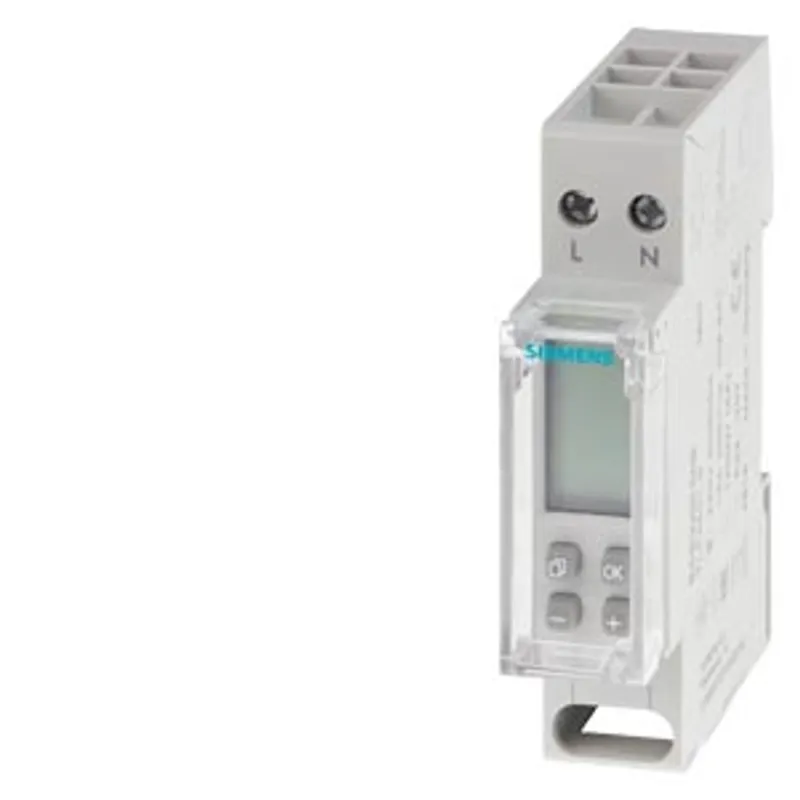

Siemens 7LF4501-5
Weekly time switch mini digital 230 V AC, 1 channel, 1 MW
- MPN
- 7LF4501-5
- Category
- 7LF4 Digital Time Switches
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 7LF4501-5?
weekly time switch mini digital 230 V AC, 1 channel, 1 MW
Specifications
Model
| product brand name | SENTRON |
| product designation | Digital time switch |
| design of the product | Mini |
| design of the switching function | NO contact |
General technical data
| principle of operation radio-controlled | No |
| principle of operation line-synchronous | No |
| principle of operation quartz-controlled | No |
| accuracy per day | 1 s |
| shortest switching time interval of channel 1 | 60 s |
Voltage
| control voltage at AC rated value — minimum | 250 V |
| control voltage at AC rated value — maximum | 250 V |
| overvoltage category according to IEC 61010-1 | III |
Supply voltage
| operating voltage at AC rated value | 250 V |
| type of voltage of the supply voltage | AC |
| supply voltage frequency maximum | 60 Hz |
Protection class
| protection class IP | IP20 |
Breaking Capacity
| switching capacity current at AC at 250 V rated value | 16 A |
Product details
| product feature external switch input | No |
| product feature floating switching contact | Yes |
Product function
| product function — 60 min time program | Yes |
| product function — Astro program | No |
| product function — automatic daylight-saving adjustment | Yes |
| product function — operating hours counter | No |
| product function — direct operation | Yes |
| product function — holiday time program | No |
| product function — pulse program | No |
| product function — annual time program | No |
| product function — switching preselection | Yes |
| product function — 24 hr time program | Yes |
| product function — text guidance in display | Yes |
| product function — weekly time program | Yes |
| product function — random time program | No |
| product function — cyclical time program | No |
Number
| number of terminals with cross-head screw | 1 |
| number of channels | 1 |
| number of memory slots | 28 |
| connectable conductor cross-section in main circuit for rigid conductor — minimum | 1.5 mm² |
| connectable conductor cross-section in main circuit for rigid conductor — maximum | 4 mm² |
| connectable conductor cross-section in main circuit for flexible conductor with core end processing maximum | 2.5 mm² |
Mechanical Design
| height | 83 mm |
| width | 18 mm |
| depth | 64 mm |
| number of modular width units | 1 |
| fastening method | DIN rail |
| Net Weight | 94 g |
Environmental conditions
| ambient temperature during operation — minimum | -20 °C |
| ambient temperature during operation — maximum | 55 °C |
| ambient temperature during storage — minimum | -20 °C |
| ambient temperature during storage — maximum | 60 °C |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
7LF4501-5: frequently asked questions
When can 7LF4501-5 be shipped?
7LF4501-5 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 7LF4501-5 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 7LF4501-5 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 7LF4501-5, subject to availability and destination.
