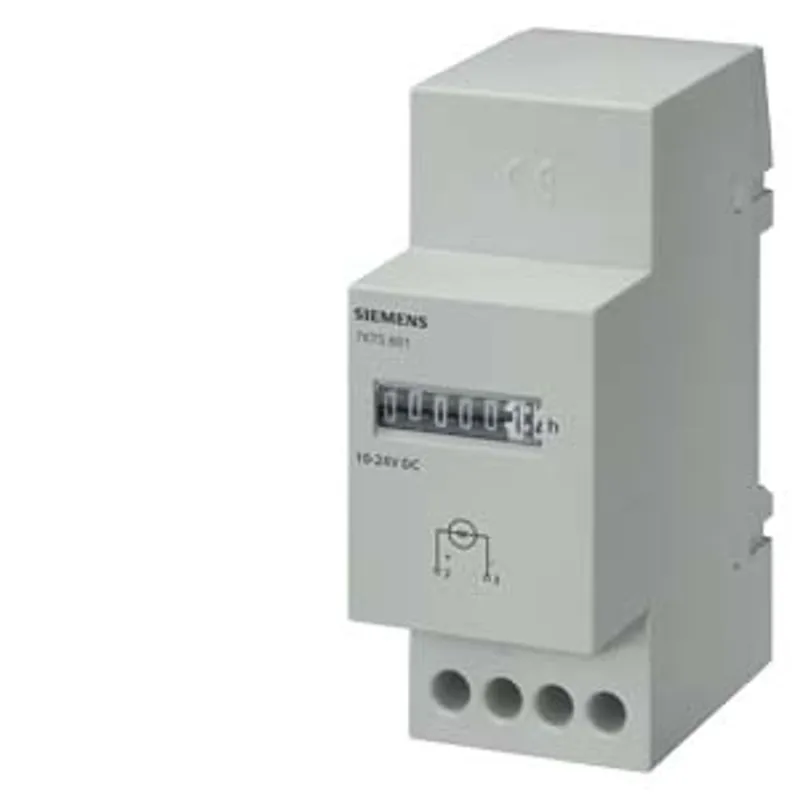

Siemens 7KT5811
Mechanical pulse counter 24 VDC
- MPN
- 7KT5811
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 7KT5811?
mechanical pulse counter 24 VDC
Specifications
Model
| product brand name | SENTRON |
| product designation | Mechanical pulse counter |
General technical data
| principle of operation of the operating hours counter | analog |
| reset function | no |
| type of voltage of the operating voltage | DC |
| input voltage | 24 V |
Protection class
| protection class IP | IP20 |
Number
| number of characters that can be displayed | 7 |

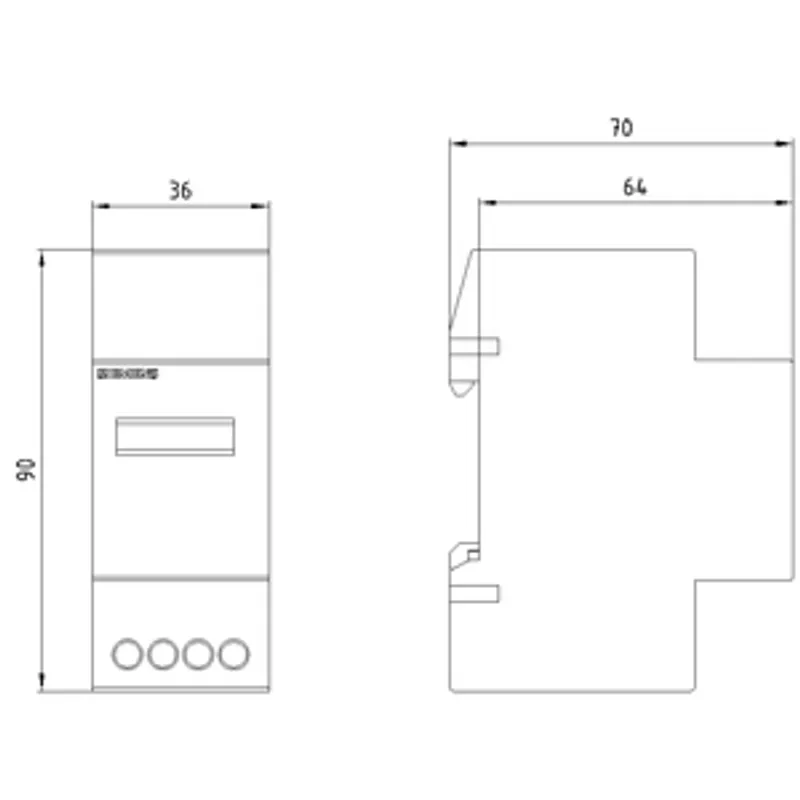

Mechanical Design
| height | 90 mm |
| height of the front plate | 45 mm |
| width | 36 mm |
| width of the front plate | 36 mm |
| installation depth | 64 mm |
| number of modular width units | 2 |
| fastening method | DIN rail |
| Net Weight | 92 g |
