Siemens 6GT2791-6AH20

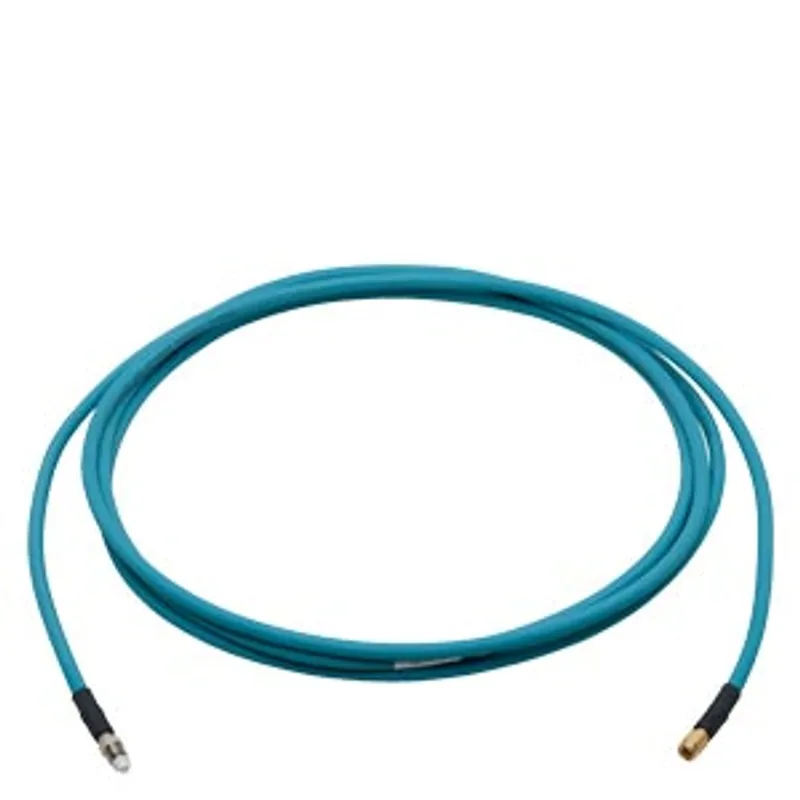

SIMATIC RTLS accessory, antenna cable FME-F / RSMA-M, length 2 m.

MPN: 6GT2791-6AH20

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6GT2791-6AH20?

SIMATIC RTLS accessory, antenna cable FME-F / RSMA-M, length 2 m.

Specifications

General

product brand name	SIMATIC RF
Technical Product Detail Page	https://i.siemens.com/1P6GT2791-6AH20
suitability for use	Plug-in cable for connecting a FME antenna to a transponder or gateway
cable designation	SIMATIC NET Antenna Cable FRNC * 16AWG, E116441 CL3
wire length	2 m

electrical data

number of electrical connections	2
type of electrical connection	FME (female, straight) / R-SMA (male, straight)
attenuation factor per length — at 2.4 GHz / typical	0.053 dB/m
impedance — rated value	50 Ω

mechanical data

design of the shield	Braided shield made of tin-plated copper wires
outer diameter — of cable sheath	6.3 mm
symmetrical tolerance of the outer diameter / of cable sheath	0.2 mm
material — of cable sheath	Thermoplastic copolymer (FRNC) TQ
color — of cable sheath	RAL 6034
bending radius — with single bend / minimum permissible	31.5 mm
bending radius — with multiple bends / minimum permissible	44 mm
weight per length	75 kg/km

ambient conditions

ambient temperature — during operation	-40 ... +80 °C
ambient temperature — during storage	-40 ... +80 °C
ambient temperature — during transport	-40 ... +80 °C
ambient temperature — during installation	-25 ... +80 °C
chemical resistance — to mineral oil	conditional resistance
chemical resistance — to grease	Conditional resistance
radiological resistance / to UV radiation	resistant

product features, product functions, product components / general

product feature — halogen-free	Yes
product feature — silicon-free	Yes

standards, specifications, approvals

certificate of suitability — RoHS conformity	Yes
standard / for fire behavior / flame resistance	UL 1685 (vertical tray), UL 1581, sec. 1090 (H), ECE-R 118:2019-06, § 6.2.6 acc. ISO 6722-1 § 5.22

further information / internet links

internet link — to website: Selection guide for cables and connectors	https://support.industry.siemens.com/cs/ww/en/view/109766358
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to web page: SiePortal	https://sieportal.siemens.com/
internet link — to website: Image database	https://www.automation.siemens.com/bilddb
internet link — to website: CAx-Download-Manager	https://www.siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6GT2791-6AH20PDF

6GT2791-6AH20: frequently asked questions
