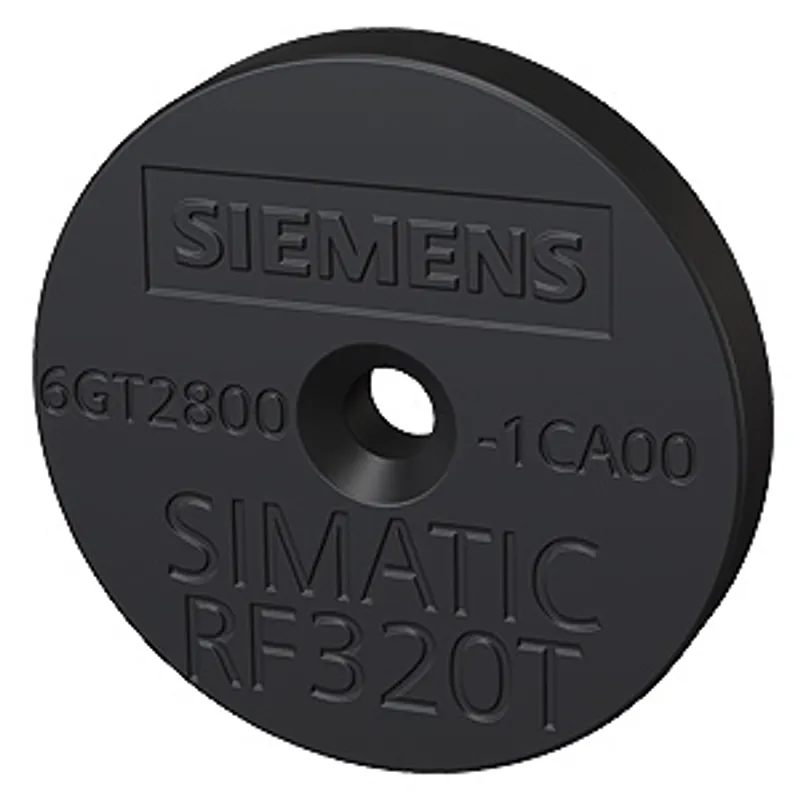

Siemens 6GT2800-1CA00
SIMATIC RF300 transponder RF320T button, 20 byte EEPROM, IP67, -25 to +125 °C, D= 27x 4 mm
- MPN
- 6GT2800-1CA00
- Category
- RF320T
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GT2800-1CA00?
SIMATIC RF300 transponder RF320T button, 20 byte EEPROM, IP67, -25 to +125 °C, D= 27x 4 mm, minimum order quantity 20 units
Specifications
General
| product brand name | SIMATIC RF |
| Technical Product Detail Page | https://i.siemens.com/1P6GT2800-1CA00 |
radio frequencies
| operating frequency / rated value | 13.56 MHz |
| range / maximum | 60 mm; range is reader dependent: observe http://support.automation.siemens.com/WW/view/en/67384964 |
| protocol / with radio transmission | RF300-specific |
| transfer rate / with radio transmission / maximum | 106 kbit/s |
| product feature / multitag-capable | Yes |
electrical data
| product component / backup battery | No |
memory
| type of memory | EEPROM |
| storage capacity / of the user memory | 20 byte |
| type of memory organization | UID (fixed code) 4 bytes, user memory 20 bytes, |
| number of read cycles / at ambient temperature < 40 °C / maximum | 1E+14 |
| number of write cycles / at ambient temperature < 40 °C / maximum | 100000 |
| data retention time / at ambient temperature < 40 °C / not less than | 10 a |
| property of memory | Block-by-block write protection of the user memory |
mechanical data
| material | Epoxy resin |
| color | black |
| mounting distance / relating to metal surfaces / recommended / minimum | 20 mm |
ambient conditions
| ambient temperature — during read/write access | -25 ... +125 °C |
| ambient temperature — outside the read/write area | -40 ... +140 °C |
| ambient temperature — during storage | -40 ... +140 °C |
| protection class IP | IP67/IPx9K |
| shock resistance | According to DIN EN 60721-3-7 Class 7 M3 |
| shock acceleration | 1000 m/s² |
| vibrational acceleration | 200 m/s² |

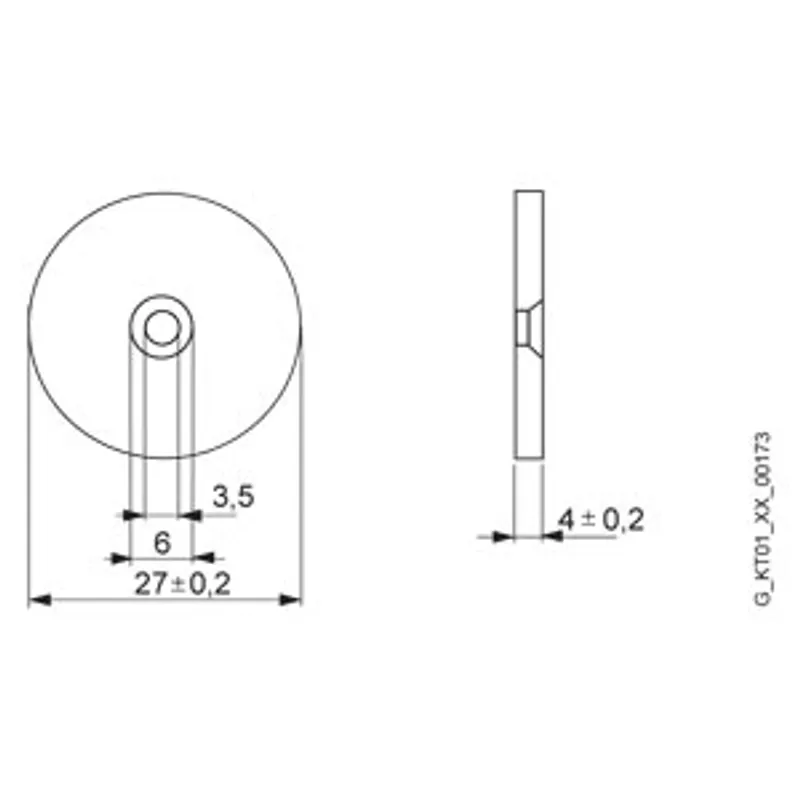

design, dimensions and weights
| height | 4 mm |
| diameter | 27 mm |
| net weight | 5 g |
| fastening method | M3 screw, gluing |
product features, product functions, product components / general
| product feature — silicon-free | Yes |
| product feature — printable | No |
standards, specifications, approvals
| certificate of suitability — IECEx | No |
| certificate of suitability — cULus approval | Yes |
| MTBF | 1800 a |
standards, specifications, approvals / Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 0.93 kg |
| global warming potential [CO2 eq] — during manufacturing | 0.88 kg |
| global warming potential [CO2 eq] — during operation | 0.00041 kg |
| global warming potential [CO2 eq] — after end of life | 0.05 kg |
accessories
| accessories | Mounting support and spacer |
further information / internet links
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: identification and localization systems | https://www.siemens.com/ident |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
