Siemens 6GT2791-2AH50
SIMATIC RTLS accessory Plug-in cable for 24 V supply of anchor/gateway, 3-core, Bulgin plug and bare end
- MPN
- 6GT2791-2AH50
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GT2791-2AH50?

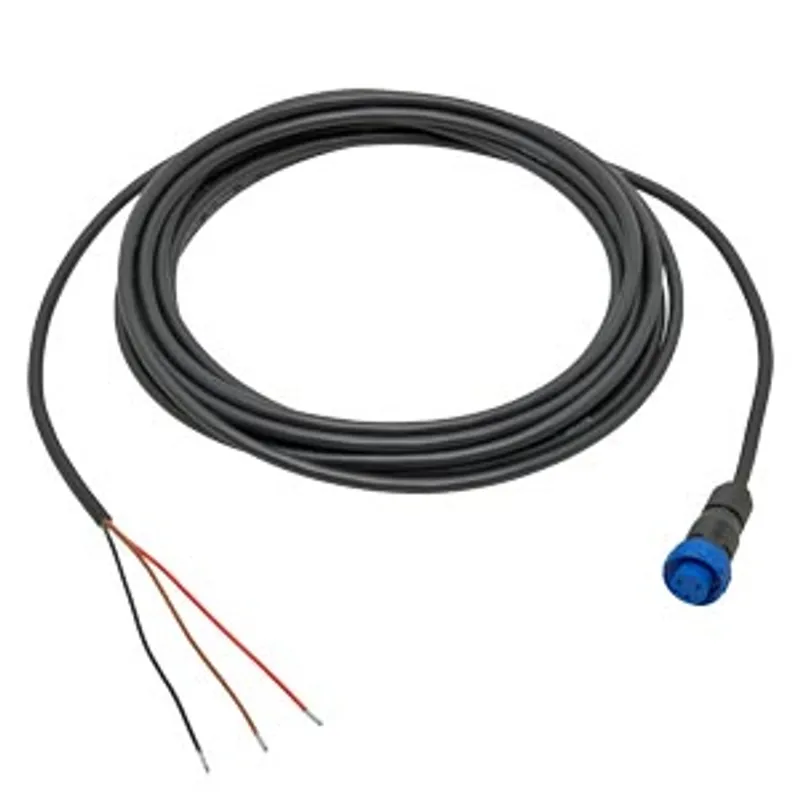

SIMATIC RTLS accessory Plug-in cable for 24 V supply of anchor/gateway, 3-core, Bulgin plug and bare end, length: 5 m minimum order quantity: 5 units.
Specifications
General
| product brand name | SIMATIC RTLS |
| Technical Product Detail Page | https://i.siemens.com/1P6GT2791-2AH50 |
| suitability for use | Plug-in cable for connecting RTLS4000 Gateway/Anchor to the power supply unit and sensor technology |
| cable designation | LiYY 3x0.56, AWG20 |
| wire length | 5 m |
electrical data
| number of electrical connections | 2 |
| type of electrical connection | End sleeves / Bulgin 400 (female, 3-pin, straight) |
mechanical data
| number of electrical cores | 3 |
| outer diameter — of cable sheath | 4.8 mm |
| material — of the wire insulation | PVC |
| material — of cable sheath | PVC |
| color — of the insulation of data wires | Red, black, brown, orange, yellow, green, blue, violet |
| color — of cable sheath | Black |
| bending radius — with single bend / minimum permissible | 36 mm |
| bending radius — with multiple bends / minimum permissible | 72 mm |
| weight per length | 14.6 kg/km |
ambient conditions
| ambient temperature — during operation | -20 ... +80 °C |
| ambient temperature — during storage | -20 ... +80 °C |
| ambient temperature — during transport | -20 ... +80 °C |
| ambient temperature — during installation | -10 ... +80 °C |
| chemical resistance — to mineral oil | resistant |
| chemical resistance — to grease | resistant |
| radiological resistance / to UV radiation | not resistant |
product features, product functions, product components / general
| product feature — halogen-free | No |
| product feature — silicon-free | Yes |
standards, specifications, approvals
| UL/ETL listing / 300 V Rating | Yes; UL Style 2464 |
| certificate of suitability — RoHS conformity | Yes |
| standard / for fire behavior / flame resistance | UL VW-1, CSA FT1 |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
