Siemens 6GT2791-1AH30
SIMATIC RTLS accessory, connecting cable for transponders RTLS4060T, 8-core, open ends, for 24 V, CAN bus, IO
- MPN
- 6GT2791-1AH30
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GT2791-1AH30?

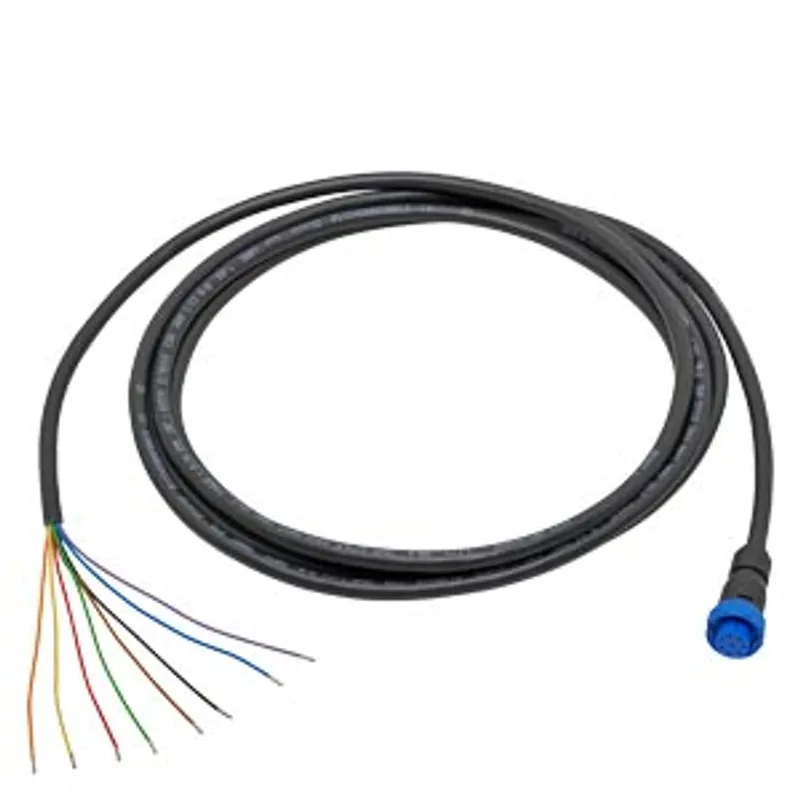

SIMATIC RTLS accessory, connecting cable for transponders RTLS4060T, 8-core, open ends, for 24 V, CAN bus, IO, length 3 m.
Specifications
General
| product brand name | SIMATIC RTLS |
| Technical Product Detail Page | https://i.siemens.com/1P6GT2791-1AH30 |
| suitability for use | Plug-in cable for connecting RTLS4060T to the power supply unit and sensor technology |
| cable designation | LiYY 10x0.34, AWG22 |
| wire length | 3 m |
electrical data
| number of electrical connections | 2 |
| type of electrical connection | End sleeves / Bulgin 400 (female, 8-pin, straight) |
mechanical data
| number of electrical cores | 10 |
| outer diameter — of cable sheath | 6.5 mm |
| material — of the wire insulation | PVC |
| material — of cable sheath | PVC |
| color — of the insulation of data wires | Black, brown, red |
| color — of cable sheath | Black |
| bending radius — with single bend / minimum permissible | 48.8 mm |
| bending radius — with multiple bends / minimum permissible | 98 mm |
| weight per length | 32.5 kg/km |
ambient conditions
| ambient temperature — during operation | -20 ... +80 °C |
| ambient temperature — during storage | -20 ... +80 °C |
| ambient temperature — during transport | -20 ... +80 °C |
| ambient temperature — during installation | -10 ... +80 °C |
| chemical resistance — to mineral oil | resistant |
| chemical resistance — to grease | resistant |
| radiological resistance / to UV radiation | not resistant |
product features, product functions, product components / general
| product feature — halogen-free | No |
| product feature — silicon-free | Yes |
standards, specifications, approvals
| UL/ETL listing / 300 V Rating | Yes; UL Style 2464 |
| certificate of suitability — RoHS conformity | Yes |
| standard / for fire behavior / flame resistance | UL VW-1, CSA FT1 |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6GT2791-1AH30: frequently asked questions
When can 6GT2791-1AH30 be shipped?
6GT2791-1AH30 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6GT2791-1AH30 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6GT2791-1AH30 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6GT2791-1AH30, subject to availability and destination.
