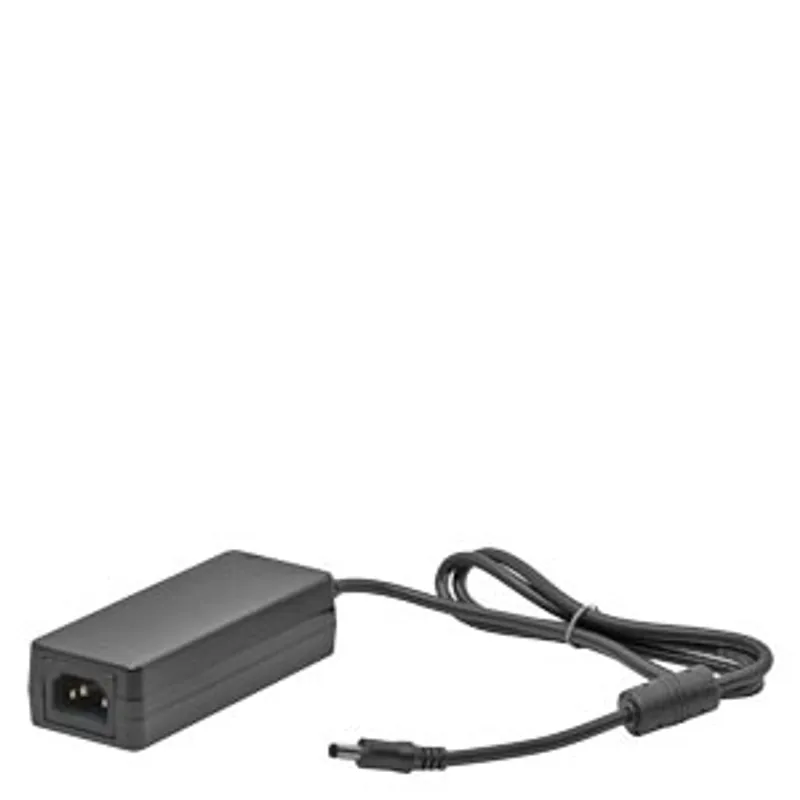

Siemens 6GT2790-0DD40
SIMATIC RTLS accessory, power supply unit for charging cradle, 6GT2790-0DD10, with IEC plug-in connector C14
- MPN
- 6GT2790-0DD40
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GT2790-0DD40?
SIMATIC RTLS accessory, power supply unit for charging cradle, 6GT2790-0DD10, with IEC plug-in connector C14, without power supply cable, in: AC: 100-240 V, 1.4 A, out: DC: 5 V, 6 A, hollow plug 2.1 / 5.5 mm.
Specifications
General
| product brand name | SIMATIC RF |
| type of current supply | Input: 90 to 264 V AC, output: 5 V DC / 6 A |
| Technical Product Detail Page | https://i.siemens.com/1P6GT2790-0DD40 |
| suitability for use | For connecting to the charging cradle for RF4083T |
| suitability for operation | For connecting to suitable power grids; for the operation of an RTLS charging cradle |
electrical data / input
| voltage curve / at input | 1-phase AC or DC |
| supply voltage / 1 / rated value | 230 V |
| supply voltage / 1 / rated value — supply voltage / 1 / rated value | 90 ... 264 V |
| supply voltage / 1 / rated value — type of voltage / 1 / of the supply voltage | AC/DC |
| line frequency — 50 Hz | Yes |
| line frequency — 60 Hz | Yes |
electrical data / output
| voltage curve / at output | DC |
| output voltage — 1 / at DC / rated value | 5 V |
| output current — rated value | 6 A |
| output current — rated range | 0 A |
| supplied active power / typical | 30 W |
| efficiency in percent | 85.5 % |
electrical data / closed-loop control
| relative overall tolerance / of the voltage | 5 % |
| residual ripple / maximum | 0.15 V |
electrical data / protection and monitoring
| property of the output / short-circuit proof | Yes |
| design of short-circuit protection | Permanent |
| enduring short circuit current / RMS value / maximum | 9 A |
electrical data / safety
| galvanic isolation / between input and output | Yes |
| galvanic isolation | I/P-O/P, I/P-FG, O/P-FG:100 MOhm / 500 V DC / 25°C / 70% RH |
| operating resource protection class | Class I |
interfaces
| number of electrical connections — for power supply | 2 |
| type of electrical connection — at input | Schuko socket CEE 7/7 with 2 m connecting cable, at power supply IEC320-C14 AC Inlet |
| type of electrical connection — at output | P1J: ID 2.1 x OD 5.5 with 1 m cable |
| display version | LED for Power ON |
signal inputs/outputs
| product component / signaling contact | No |
design, dimensions and weights
| width | 50 mm |
| height | 31.5 mm |
| depth | 125 mm |
| net weight | 0.305 kg |
| fastening method | Desktop design |
ambient conditions
| ambient temperature — during operation | -30 ... +70 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| ambient temperature — during transport | -40 ... +85 °C |
| protection class IP | IP20 |
standards, specifications, approvals
| standard — for safety / from CSA and UL | UL60950-1, TUV EN60950-1, BSMI CNS14336, CCC GB4943, J60950-1 approved |
| standard — for emitted interference | EN55022 class B, EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CNS13438 class B, GB9254, GB17625.1 |
| standard — for interference immunity | EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A |
| MTBF | 80 a; MIL-HDBK-217F(25°C) |
standards, specifications, approvals / Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 854.05 kg |
| global warming potential [CO2 eq] — during manufacturing | 32.29 kg |
| global warming potential [CO2 eq] — during operation | 820.78 kg |
| global warming potential [CO2 eq] — after end of life | 0.98 kg |
accessories
| accessories | Connection cable for US or UK with IEC320-C14 connector, can be ordered directly via electronic retailer |
| accessories / included | Connecting cable for EU |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
