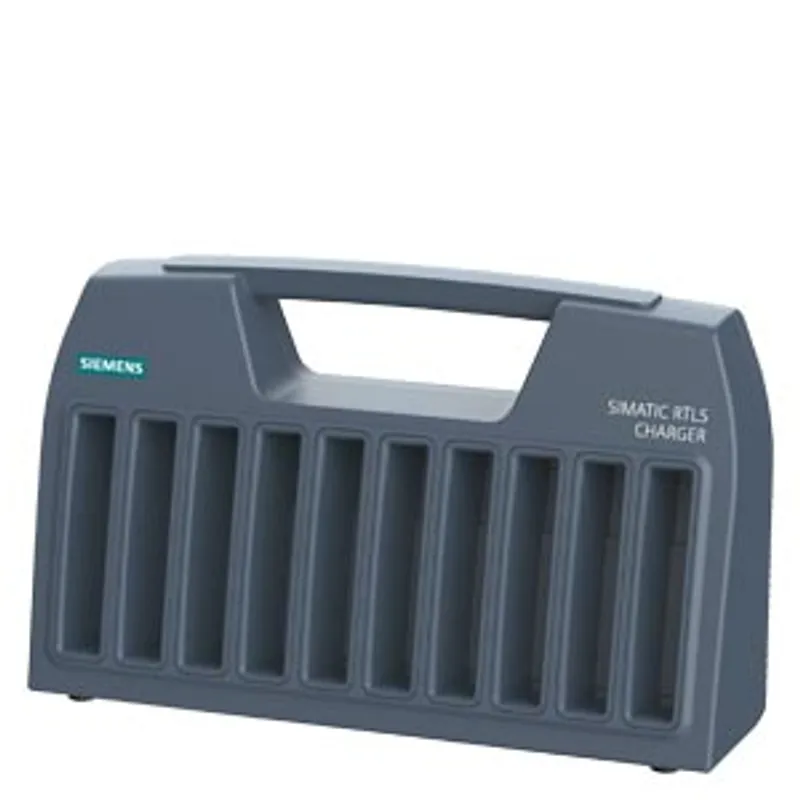

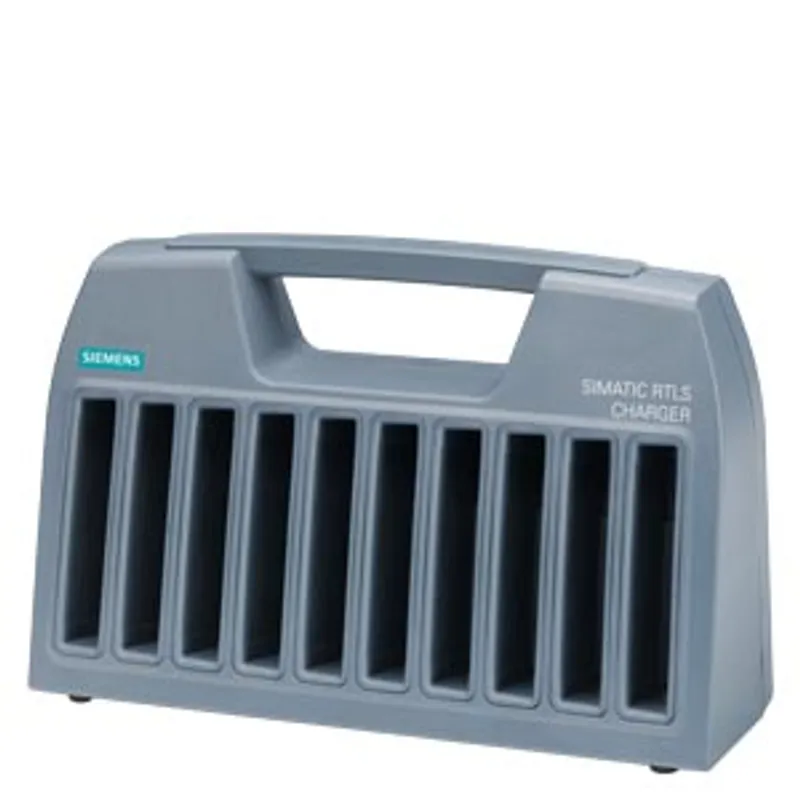

Siemens 6GT2790-0DD20
SIMATIC RTLS accessory charging cradle for transponder
- MPN
- 6GT2790-0DD20
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GT2790-0DD20?
SIMATIC RTLS accessory charging cradle for transponder, without power supply unit for parallel charging of 10 tags, type RTLS4083T, plus.
Specifications
General
| product brand name | SIMATIC RTLS |
| Technical Product Detail Page | https://i.siemens.com/1P6GT2790-0DD20 |
| suitability for use | For parallel charging of up to 10 transponders in the housing type of the RTLS4083T, Plus, via spring contacts with magnetic retainer |
| suitability for operation | for transponders RTLS4083T, Plus and power supply unit 6GT2790-0DD40 |
supply voltage, current consumption, power loss
| type of voltage / of the supply voltage | DC |
| supply voltage / at DC | 5 V |
| consumed current / maximum | 6000 mA |
electrical data
| number of electrical connections | 11 |
| type of electrical connection | P1J: ID 2.1 x OD 5.5 / 10 charging contacts for transponders |
mechanical data
| material | Plastic enclosure (PC 10 GF) |
| color | Ti gray |
ambient conditions
| ambient temperature — during operation | -10 ... +50 °C |
| ambient temperature — during storage | -10 ... +50 °C |
| ambient temperature — during transport | -10 ... +50 °C |
| protection class IP | IP00 |

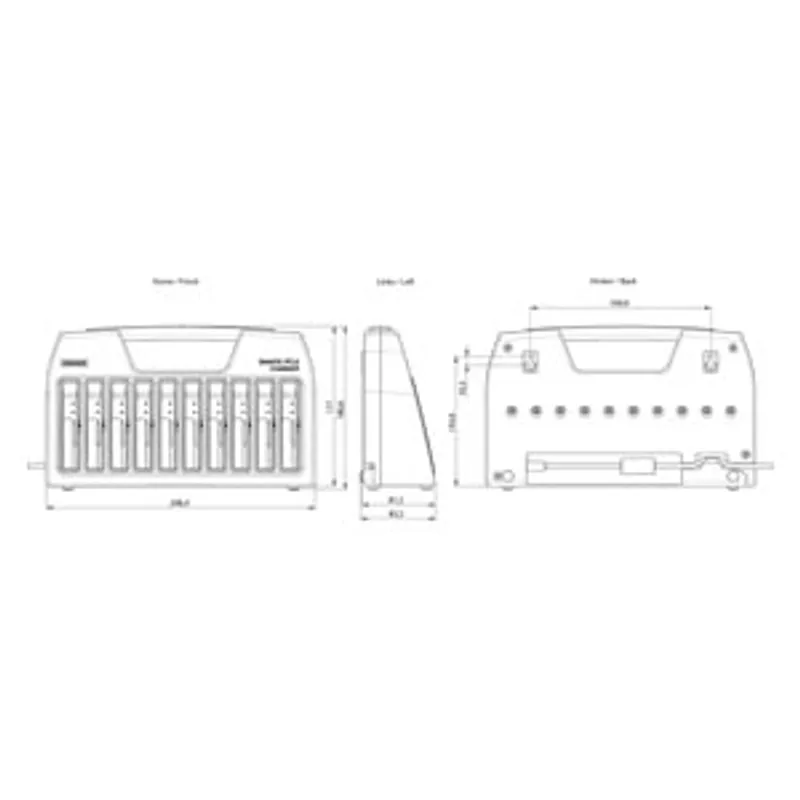

design, dimensions and weights
| design | Desktop unit |
| width | 298.4 mm |
| height | 83.2 mm |
| depth | 180.6 mm |
| net weight | 1092 g |
| installation or assembly note | Table device or wall mounting |
standards, specifications, approvals / Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 854.05 kg |
| global warming potential [CO2 eq] — during manufacturing | 32.29 kg |
| global warming potential [CO2 eq] — during operation | 820.78 kg |
| global warming potential [CO2 eq] — after end of life | 0.98 kg |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
