Siemens 6GT2790-0DD03
SIMATIC RTLS accessory charging station for US transponder, In: AC: 100-240 V
- MPN
- 6GT2790-0DD03
- Category
- Accessories
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GT2790-0DD03?

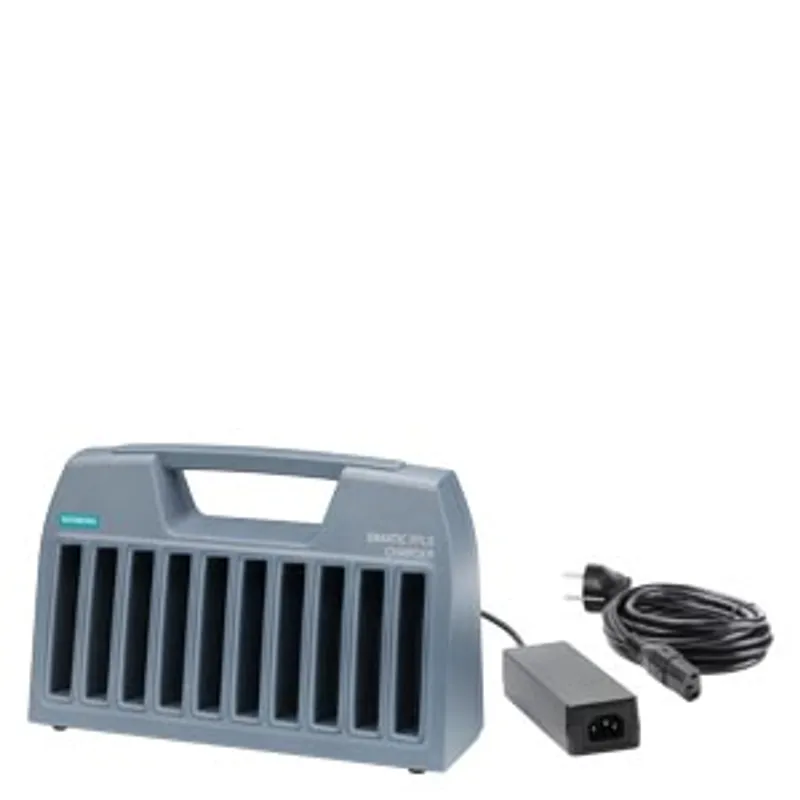

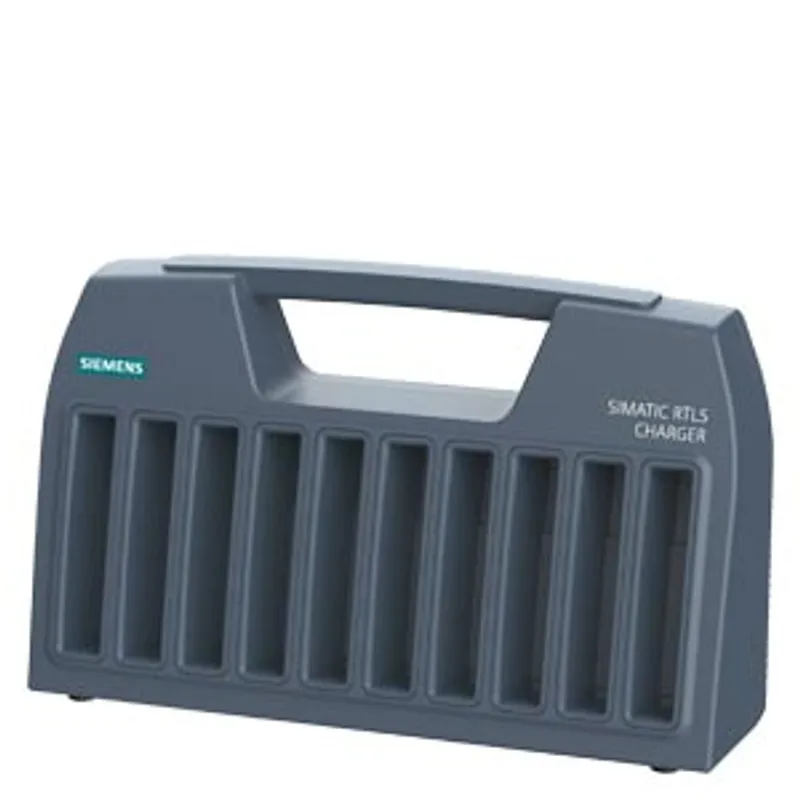

SIMATIC RTLS accessory charging station for US transponder, In: AC: 100-240 V, with power plug C13 for parallel charging of 10 tags, type RTLS4083T, plus.
Specifications
General
| product brand name | SIMATIC RTLS |
| Technical Product Detail Page | https://i.siemens.com/1P6GT2790-0DD03 |
| suitability for use | For parallel charging of up to 10 transponders in the housing type of the RTLS4083T, Plus, FCC, via spring contacts with magnetic retainer |
| suitability for operation | consisting of charging cradle for RTLS4083T, Plus (6GT2090-0DD20), power pack (6GT2090-0DD40) and power supply cord for US (6ES7900-0DA00-0XA0) |
supply voltage, current consumption, power loss
| type of voltage / of the supply voltage | DC |
| supply voltage / at DC | 5 V |
| consumed current / maximum | 6000 mA |
electrical data
| number of electrical connections | 11 |
| type of electrical connection | P1J: ID 2.1 x OD 5.5 / 10 charging contacts for transponders |
mechanical data
| material | Plastic enclosure (PC 10 GF) |
| color | Ti gray |
ambient conditions
| ambient temperature — during operation | -10 ... +50 °C |
| ambient temperature — during storage | -10 ... +50 °C |
| ambient temperature — during transport | -10 ... +50 °C |
| protection class IP | IP00 |

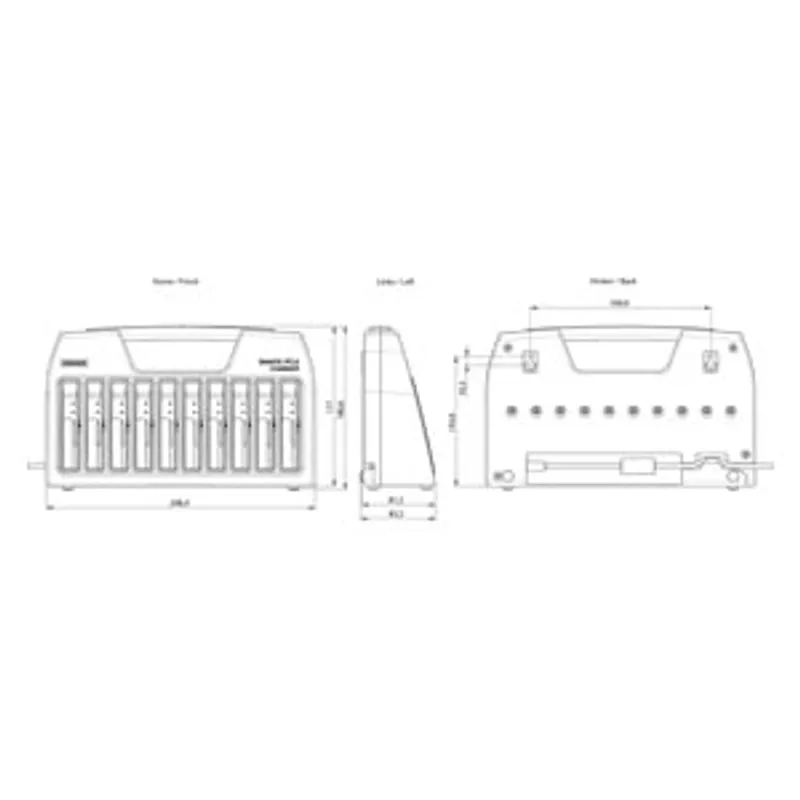

design, dimensions and weights
| design | Desktop unit |
| width | 298.4 mm |
| height | 83.2 mm |
| depth | 180.6 mm |
| net weight | 1092 g |
| installation or assembly note | Table device or wall mounting |
standards, specifications, approvals / Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 854.05 kg |
| global warming potential [CO2 eq] — during manufacturing | 32.29 kg |
| global warming potential [CO2 eq] — during operation | 820.78 kg |
| global warming potential [CO2 eq] — after end of life | 0.98 kg |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
Security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6GT2790-0DD03: frequently asked questions
When can 6GT2790-0DD03 be shipped?
6GT2790-0DD03 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6GT2790-0DD03 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6GT2790-0DD03 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6GT2790-0DD03, subject to availability and destination.
