Siemens 6GK5897-1NY00-0AA0
ANT897-1NY mobile wireless antenna for public and private 5G/4G/3G/2G mobile networks with 2 antenna elements
- MPN
- 6GK5897-1NY00-0AA0
- Category
- Mobile network antennas
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GK5897-1NY00-0AA0?

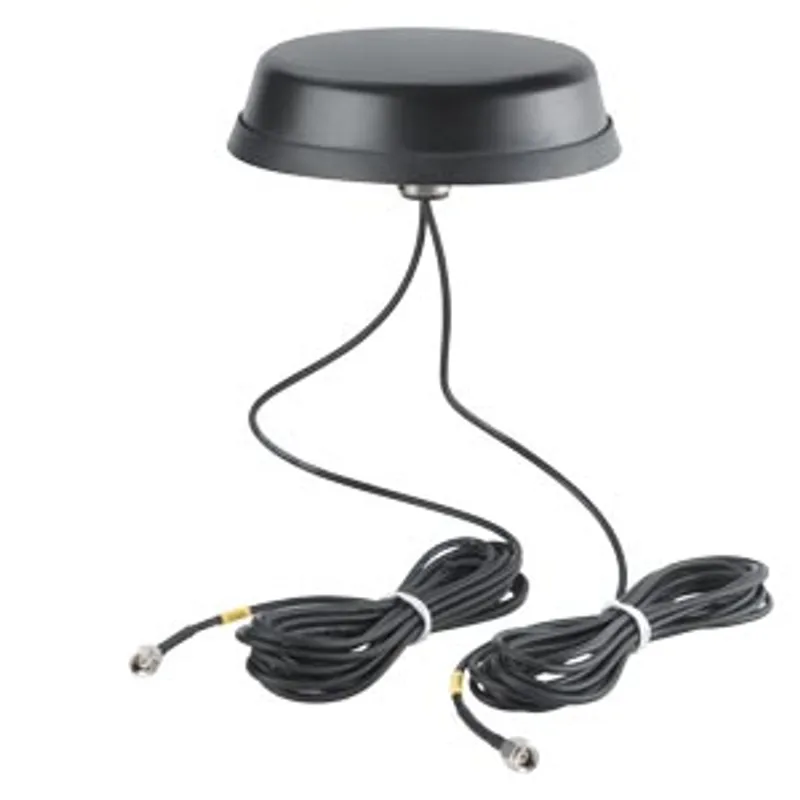

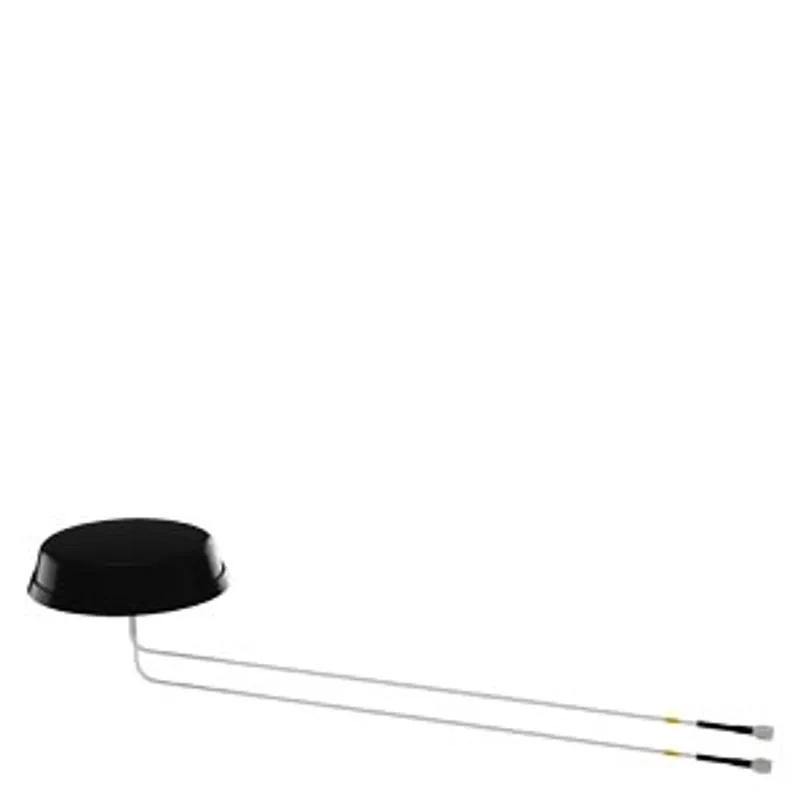

ANT897-1NY mobile wireless antenna for public and private 5G/4G/3G/2G mobile networks with 2 antenna elements; omnidirectional characteristic 700..4200 MHz; antenna gain: 0-2 dBi, including 2x 3 m cable with SMA male connection, color: black IP69K; -30..+70 °C; observe national approvals; mounting on non-conducting surface on roof and vehicle information sheet as hard copy German/English.
Specifications
General
| product brand name | SCALANCE |
| Technical Product Detail Page | https://i.siemens.com/1P6GK5897-1NY00-0AA0 |
| suitability for operation | antenna for 5G/4G/3G/2G networks |
radio frequencies
| type of wireless network / is supported | 5G public networks, 5G private networks, LTE, UMTS, GSM |
| operating frequency / 1 | 700 ... 960 MHz |
| operating frequency / 2 | 1700 ... 4200 MHz |
electrical data
| antenna gain compared to spherical radiator — with linear radiation | measured in open space with 0.5 m cable |
| antenna gain compared to spherical radiator — with linear radiation / in operating frequency area 1 / typical | 0 dB |
| antenna gain compared to spherical radiator — with linear radiation / in operating frequency area 2 / typical | 2 dB |
| impedance | 50 Ω |
| polarization | Linear |
| radiation characteristic | omnidirectional |
| standing wave ratio (VSWR) / maximum | 3 |
| number of electrical connections / of the antenna | 2 |
| type of electrical connection / of the antenna | SMA Connector |
| design of plug-in connection | male |
mechanical data
| material — of outer shell | Lexan EXL 9330 |
| color | black |
| color / of cable sheath | Black |
ambient conditions
| ambient temperature — during operation | -30 ... +70 °C |
| ambient temperature — during storage | -40 ... +80 °C |
| protection class IP | IP69K; with correct installation |

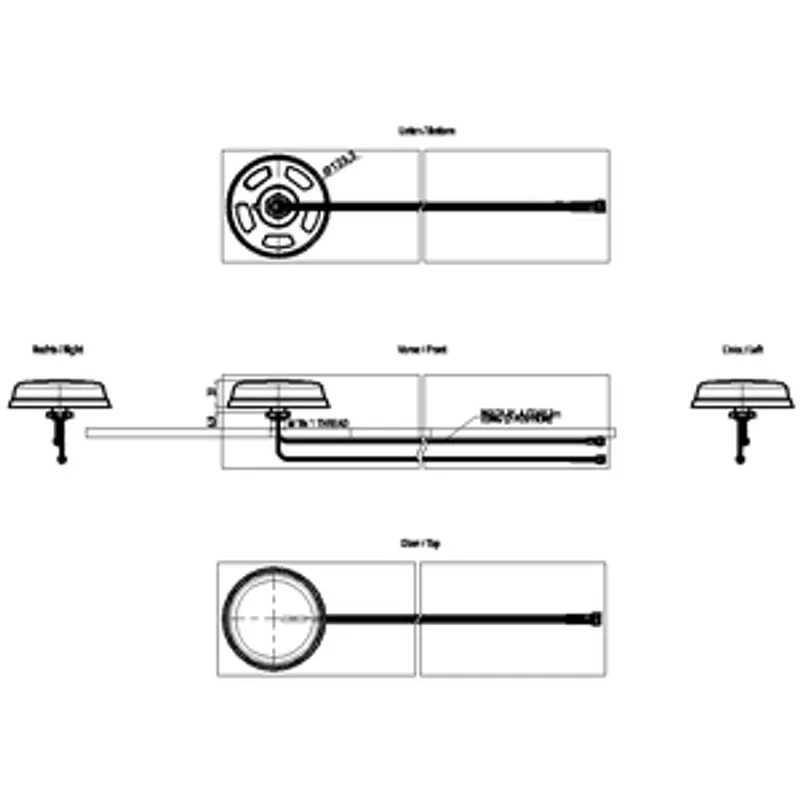

design, dimensions and weights
| height | 30 mm |
| diameter | 115 mm |
| fastening method | from outside in 19 mm drill hole, one stainless steel nut |
| fastening method — mast mounting | No |
| fastening method — flat roof mounting | Yes |
| fastening method — wall mounting | No |
| fastening method — roof mounting | Yes |
| fastening method — directly on the device | No |
| cable designation | RG174 |
| wire length / of antenna cable | 3 m |
product features, product functions, product components / general
| product feature / silicon-free | Yes |
standards, specifications, approvals
| certificate of suitability — RoHS conformity | Yes |
| wireless approval | Current national approvals can be found on the Internet under www.siemens.com/mobilfunkzulassungen |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Mobile radio national approval | https://www.siemens.com/mobile-approvals |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
