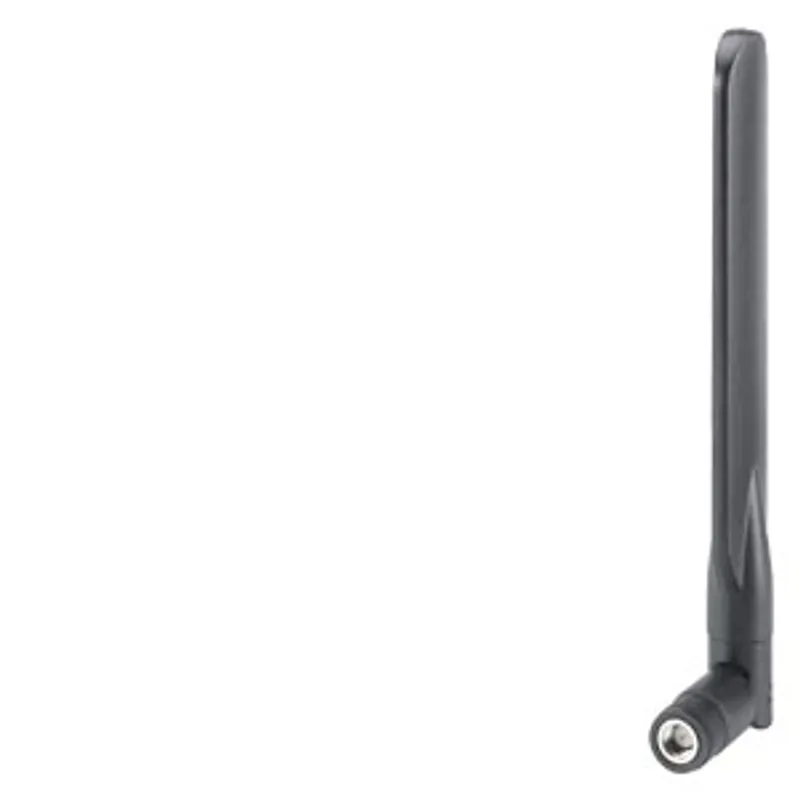

Siemens 6GK5897-4MA00-0AA3
ANT897-4MA mobile wireless antenna for public 3G/4G/5G mobile wireless networks and private 5G networks…
- MPN
- 6GK5897-4MA00-0AA3
- Category
- Mobile network antennas
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GK5897-4MA00-0AA3?
ANT897-4MA mobile wireless antenna for public 3G/4G/5G mobile wireless networks and private 5G networks worldwide; omnidirectional characteristic; 600..5000 MHz antenna gain: 1..2dBi, incl. SMA male connection, radial rotatable with additional joint, IP65 (-20... +65 °C), observe national approvals; for direct installation with SMA connection system scope of delivery: 1x ANT 897-4MA, compact instructions as hard copy German/English
Specifications
General
| product brand name | SCALANCE |
| Technical Product Detail Page | https://i.siemens.com/1P6GK5897-4MA00-0AA3 |
| suitability for operation | antenna for 5G/4G/3G/2G networks |
radio frequencies
| type of wireless network / is supported | 5G public networks, 5G private networks, LTE, UMTS, GSM |
| operating frequency / 1 | 617 ... 960 MHz |
| operating frequency / 2 | 1452 ... 1576 MHz |
| operating frequency / 3 | 1710 ... 2690 MHz |
| operating frequency / 4 | 3300 ... 4200 MHz |
| operating frequency / 5 | 4400 ... 5000 MHz |
electrical data
| antenna gain compared to spherical radiator — with linear radiation | typical maximum gain |
| antenna gain compared to spherical radiator — with linear radiation / in operating frequency area 1 / typical | 1 dB |
| antenna gain compared to spherical radiator — with linear radiation / in operating frequency area 2 / typical | 2 dB |
| antenna gain compared to spherical radiator — with linear radiation / in operating frequency area 3 / typical | 2 dB |
| antenna gain compared to spherical radiator — with linear radiation / in operating frequency area 4 / typical | 2 dB |
| antenna gain compared to spherical radiator — with linear radiation / in operating frequency area 5 / typical | 2 dB |
| impedance | 50 Ω |
| polarization | Linear Vertical |
| radiation characteristic | omnidirectional |
| standing wave ratio (VSWR) / maximum | 3.5 |
| number of electrical connections / of the antenna | 1 |
| type of electrical connection / of the antenna | N-Connector |
| design of plug-in connection | male, variable 0-90° |
mechanical data
| material — of outer shell | PC |
| color | black |
ambient conditions
| ambient temperature — during operation | -20 ... +65 °C |
| ambient temperature — during storage | -30 ... +70 °C |
| protection class IP | IP65 |

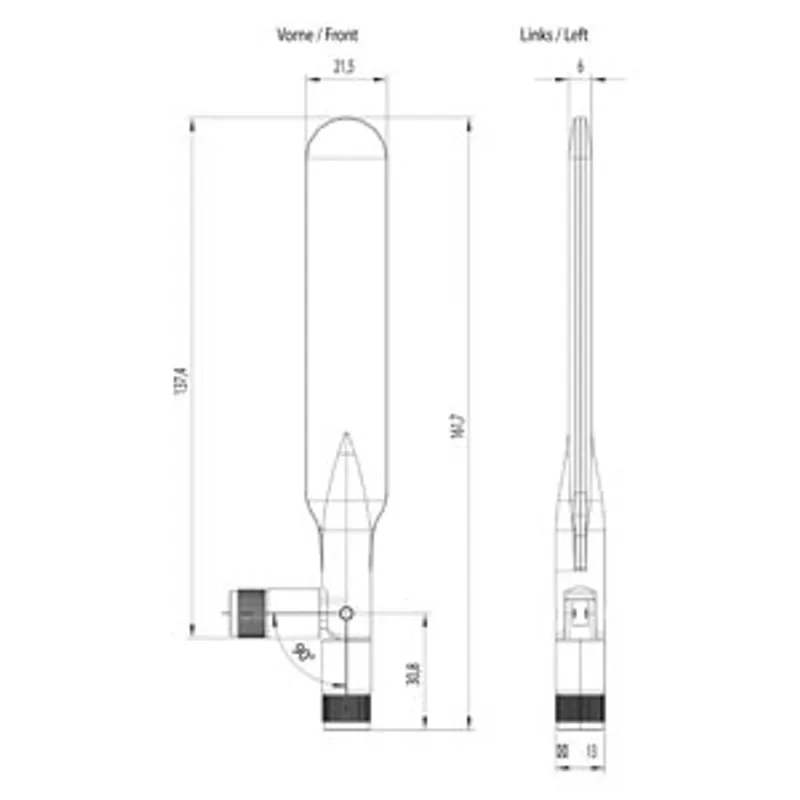

design, dimensions and weights
| width | 35 mm |
| height | 160 mm |
| depth | 13 mm |
| net weight | 27 g |
| fastening method — mast mounting | No |
| fastening method — flat roof mounting | No |
| fastening method — wall mounting | No |
| fastening method — roof mounting | No |
| fastening method — directly on the device | Yes |
product features, product functions, product components / general
| product feature / silicon-free | Yes |
standards, specifications, approvals
| certificate of suitability — RoHS conformity | Yes |
| wireless approval | Current national approvals can be found on the Internet under www.siemens.com/mobilfunkzulassungen |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Mobile radio national approval | https://www.siemens.com/mobile-approvals |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6GK5897-4MA00-0AA3: frequently asked questions
When can 6GK5897-4MA00-0AA3 be shipped?
6GK5897-4MA00-0AA3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6GK5897-4MA00-0AA3 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6GK5897-4MA00-0AA3 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6GK5897-4MA00-0AA3, subject to availability and destination.
