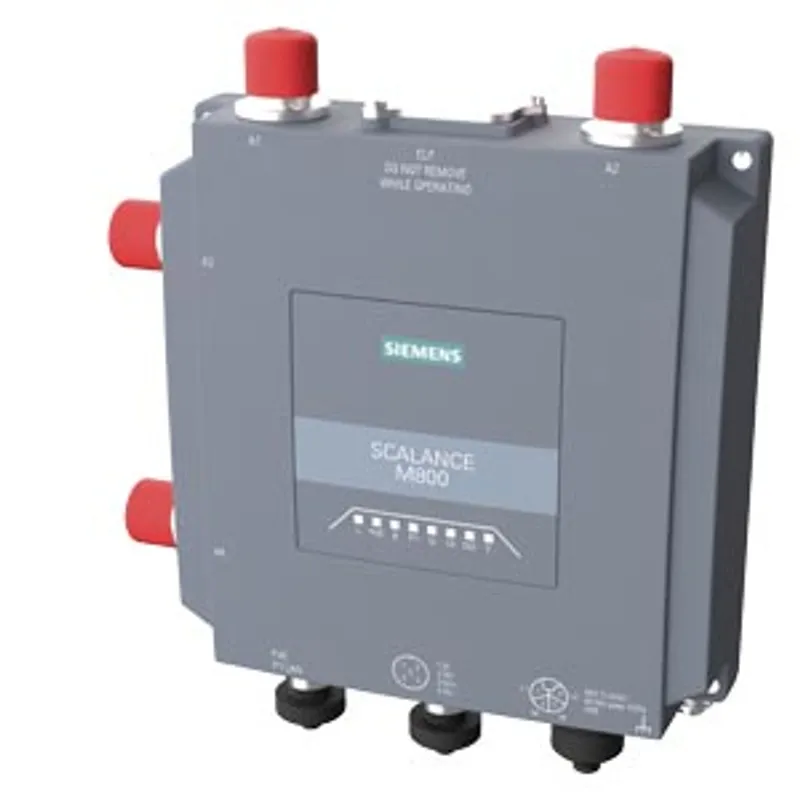

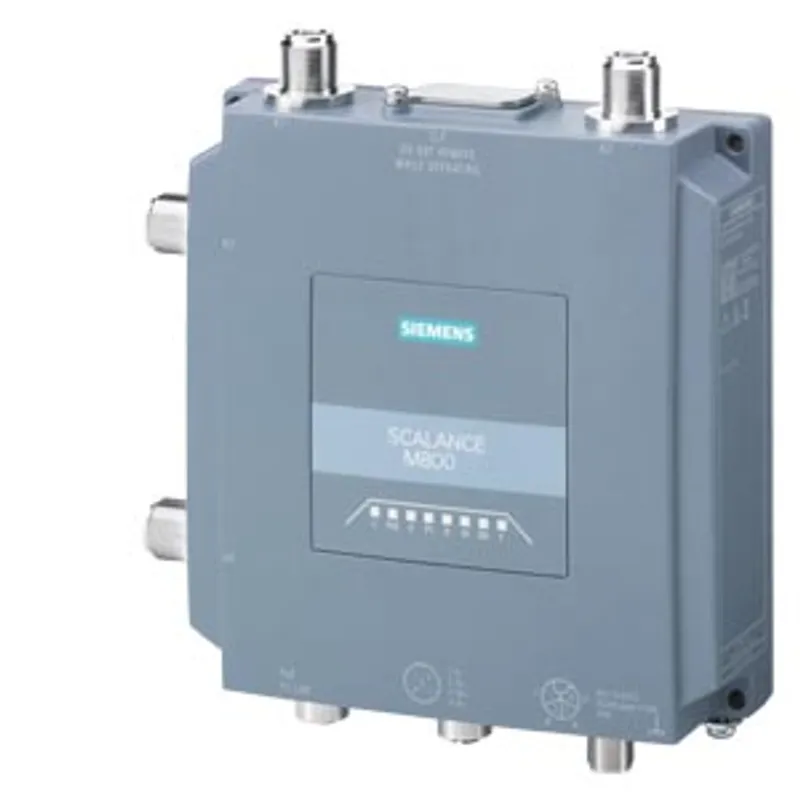

Siemens 6GK5856-2EA10-3AA1
SCALANCE MUM856-1 (A1) 5G router
- MPN
- 6GK5856-2EA10-3AA1
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GK5856-2EA10-3AA1?
SCALANCE MUM856-1 (A1) 5G router, IP65, for wireless IP communication from Ethernet-based applications via public 3/4/5G mobile radio networks and private 5G networks, VPN, firewall, NAT, IPv6, connection to SINEMA RC via CLP, 4 N- Connect connections, 1x micro SIM slot, eSIM, 1x10/100/1000 Mbps M12 socket, redundant DC 24 V, M12 L-encoded, PoE, -30… +70 °C, CLP slot, 1x DI and 1x DO, A-coded, observe national approvals: siemens.com/mobile-approvals CERT ID: MS5G16R-65-M1-M12-E4-1
Specifications
General
| product brand name | SCALANCE |
| Technical Product Detail Page | https://i.siemens.com/1P6GK5856-2EA10-3AA1 |
transfer rate
| transfer rate / for Industrial Ethernet | 10, 100, 1000 Mbit/s |
| transfer rate — with UMTS transmission / with downlink / maximum | 42 Mbit/s |
| transfer rate — with UMTS transmission / with uplink / maximum | 5.76 Mbit/s |
| transfer rate — for LTE transmission / with downlink / maximum | 1000 Mbit/s |
| transfer rate — for LTE transmission / with uplink / maximum | 200 Mbit/s |
| transfer rate — for 5G transmission / with downlink / maximum | 1000 Mbit/s |
| transfer rate — for 5G transmission / with uplink / maximum | 500 Mbit/s |
interfaces
| number of electrical/optical connections / for network components or terminal equipment / maximum | 1 |
| number of electrical/optical connections / for gigabit Ethernet / maximum | 1 |
| number of electrical connections — for network components or terminal equipment | 1 |
| number of electrical connections — for external antenna(s) | 4 |
| number of electrical connections — for power supply | 1 |
| number of electrical connections — for redundant voltage supply | 1 |
| type of electrical connection — for network components or terminal equipment | M12 (8-pin, X-coded), PoE |
| type of electrical connection — for external antenna(s) | N-Connect (socket) |
| type of electrical connection — for redundant voltage supply | M12 (4-pin, L-coded) |
memory
| number of slots / for Micro-SIM card | 1 |
| product component / eSIM integrated | Yes |
| design of the removable storage / CLP | Yes |
signal inputs/outputs
| number of digital inputs | 1 |
| number of digital outputs | 1 |
| type of electrical connection / at the digital inputs/outputs | M12 (4-pin, A-coded) |
| input voltage / at digital input / at DC | -30 ... +30 V |
| output voltage / at digital output / at DC / maximum | 24 V; 0,5 A |
| operational current / of the signaling contacts / at DC / at 30 V / maximum | 0.008 A |
WAN connection
| type of wireless network / is supported | 5G public networks, 5G private networks, LTE, UMTS |
| type of mobile wireless service / is supported | HSDPA, HSUPA, HSPA+ |
| frequency band / is supported — 5G Standalone (SA) | n1, n2, n3, n5, n7, n8, n20, n25, n28, n30, n38, n40, n41, n48, n66, n71, n75(DL), n77, n78, n79 |
| frequency band / is supported — 5G Non-Standalone (NSA) | n1, n2, n3, n5, n7, n8, n20, n25, n28, n30, n38, n40, n41, n66, n71, n77, n78, n79 |
| frequency band / is supported — LTE | B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29(DL), B30, B32(DL), B34, B38, B39, B40, B41, B42, B43, B46(DL), B48, B66, B71 |
| frequency band / is supported — UMTS | B1, B2, B4, B5, B6, B8, B19 |
supply voltage, current consumption, power loss
| supply voltage / from Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af | 48 V |
| consumed current — at DC / at 24 V | 0.55 A |
| consumed current — at DC / at 24 V / sleep mode / maximum | 0.013 A |
| consumed current — with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical | 0.27 A |
| power loss [W] — at DC / at 24 V / typical | 13.2 W |
| power loss [W] — with Power-over-Ethernet according to IEEE802.3at for type 1 and IEEE802.3af / typical | 12.96 W |
| supply voltage / 1 / rated value | 24 V |
| supply voltage / 1 / rated value — type of voltage | redundant 24 V DC power supply, M12, L-coded |
| supply voltage / 1 / rated value — type of voltage / 1 / of the supply voltage | DC |
| supply voltage / 2 / rated value | 24 V |
| supply voltage / 2 / rated value — type of voltage / 2 / of the supply voltage | DC |
| supply voltage / 3 / rated value | 48 V |
| supply voltage / 3 / rated value — type of voltage / 3 / of the supply voltage | DC, PoE |
ambient conditions
| ambient temperature — during operation | -30 ... +70 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| relative humidity / at 25 °C / during operation / maximum | 95 % |
| protection class IP | IP65 |

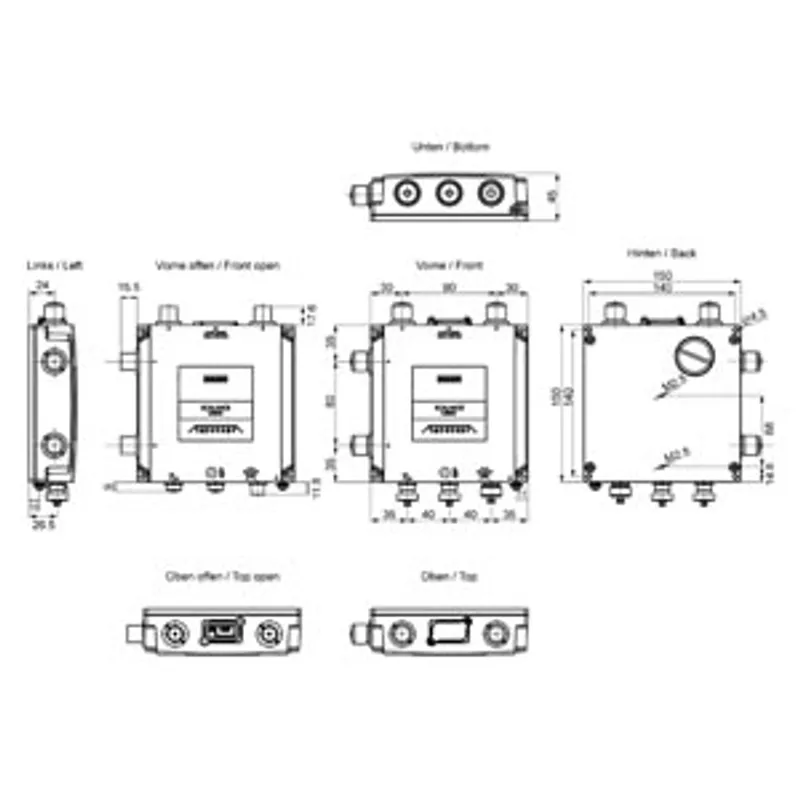

design, dimensions and weights
| depth | 45 mm |
| height | 179 mm |
| width | 166 mm |
| net weight | 1300 g |
| fastening method | Wall mounting, mounting on a DIN rail with a separate mounting adapter |
| fastening method — 35 mm DIN-rail mounting | Yes |
| fastening method — wall mounting | Yes |
product features, product functions, product components / general
| product function — DynDNS client | Yes |
| product function — no-ip.com client | Yes |
product functions / management, configuration, engineering
| product function — CLI | Yes |
| product function — web-based management | Yes |
| product function — MIB support | Yes |
| product function — TRAPs via email | Yes |
| protocol / is supported — Telnet | Yes |
| protocol / is supported — HTTP | Yes |
| protocol / is supported — HTTPS | Yes |
| type of configuration | Web-based management |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
product functions / diagnostics
| protocol / is supported — SNMP v1 | Yes |
| protocol / is supported — SNMP v2 | Yes |
| protocol / is supported — SNMP v2c | Yes |
| protocol / is supported — SNMP v3 | Yes |
| product function — statistics Packet Size | No |
| product function — statistics packet type | No |
| product function — error statistics | No |
| product function — SysLog | Yes |
| product function — packet filter log | Yes |
product functions / DHCP
| product function — DHCP client | Yes |
| product function — DHCP server - internal network | Yes |
product functions / routing
| router function — NAT (IP masquerading) | Yes |
| router function — port forwarding | Yes |
| router function — NAT traversal | Yes |
| router function — 1:1 NAT | Yes |
| router function — DNS cache | Yes |
product functions / security
| suitability for operation / Virtual Private Network | Yes |
| firewall version | Statefull Inspection |
| product function — password protection | Yes |
| product function — packet filter | Yes |
| product function — broadcast/multicast/unicast limiter | No |
| product function — broadcast blocking | No |
| product function — with VPN connection | IPsec, OpenVPN (as Client) |
| number of possible connections / with VPN connection | 20 |
| type of authentication / with Virtual Private Network / PSK | Yes |
| protocol / is supported — IPsec tunnel and transport mode | Yes |
| key length — 1 / with IPsec AES / with Virtual Private Network | 128 bit |
| key length — 2 / with IPsec AES / with Virtual Private Network | 192 bit |
| key length — 3 / with IPsec AES / with Virtual Private Network | 256 bit |
| key length — with IPsec 3DES / with Virtual Private Network | 168 bit |
| type of internet key exchange / with Virtual Private Network — main mode | Yes |
| type of internet key exchange / with Virtual Private Network — quick mode | Yes |
| type of packet authentication / with Virtual Private Network | MD5, SHA-1, SHA-256, SHA-384, SHA-512 |
| IETF profile / with Virtual Private Network / X.509v3 certificate | Yes |
product functions / time
| protocol / is supported — NTP | Yes |
| protocol / is supported — SNTP | Yes |
standards, specifications, approvals
| standard — for EMC | ETSI EN 301 489-1, ETSI EN 301 489-19, ETSI EN 301 489-52, EN 55011, NAMUR NE21 |
| standard — for emitted interference | CISPR 32, ETSI EN 55032 Class A / Class B, EN IEC 61000-6-3, EN IEC 61000-6-4 |
| standard — for interference immunity | CISPR 35, EN 55035, EN IEC 61000-6-1, EN IEC 61000-6-2 |
| certificate of suitability — EC Declaration of Conformity | Yes |
| certificate of suitability — CE marking | Yes |
| certificate of suitability — Power-over-Ethernet according IEEE802.3at for type 1 and IEEE802.3af | Yes |
| certificate of suitability — railway application in accordance with EN 50121-3-2 | Yes |
| certificate of suitability — railway application in accordance with EN 50121-4 | Yes |
| certificate of suitability — railway application in accordance with EN 50155 | Yes; no coated printed-circuit boards, EMC: trackside unit/vehicle unit, climate: use in the vehicle within equipment boxes/cabinets, mechanical system: class B: in equipment housing |
| certificate of suitability — fire protection in accordance with EN 45545-2 | Yes |
standards, specifications, approvals / Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 394.89 kg |
| global warming potential [CO2 eq] — during manufacturing | 33.7 kg |
| global warming potential [CO2 eq] — during operation | 361 kg |
| global warming potential [CO2 eq] — after end of life | 0.19 kg |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Mobile radio national approval | https://www.siemens.com/mobile-approvals |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
