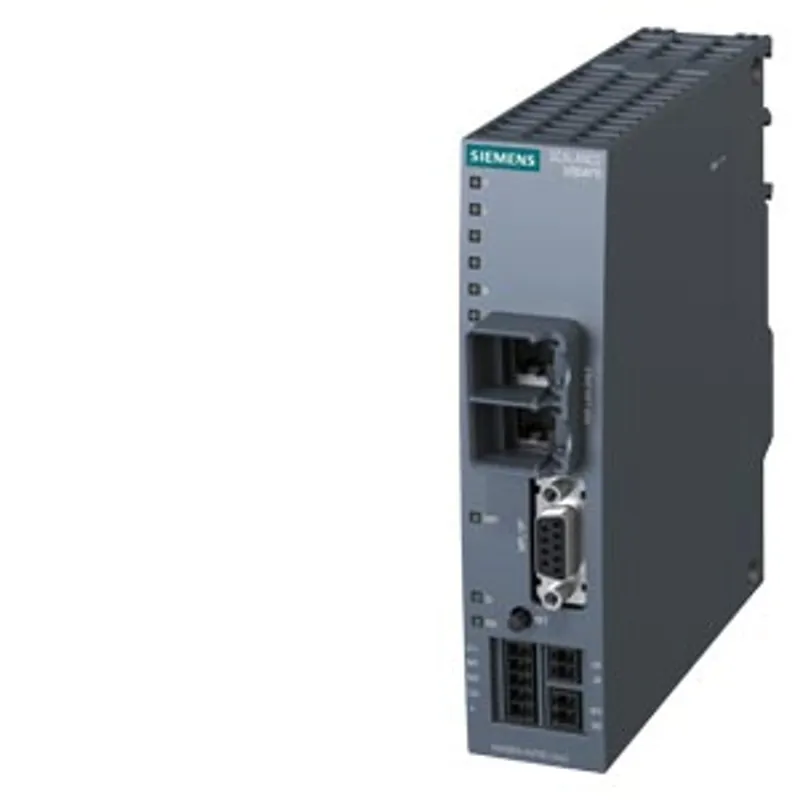

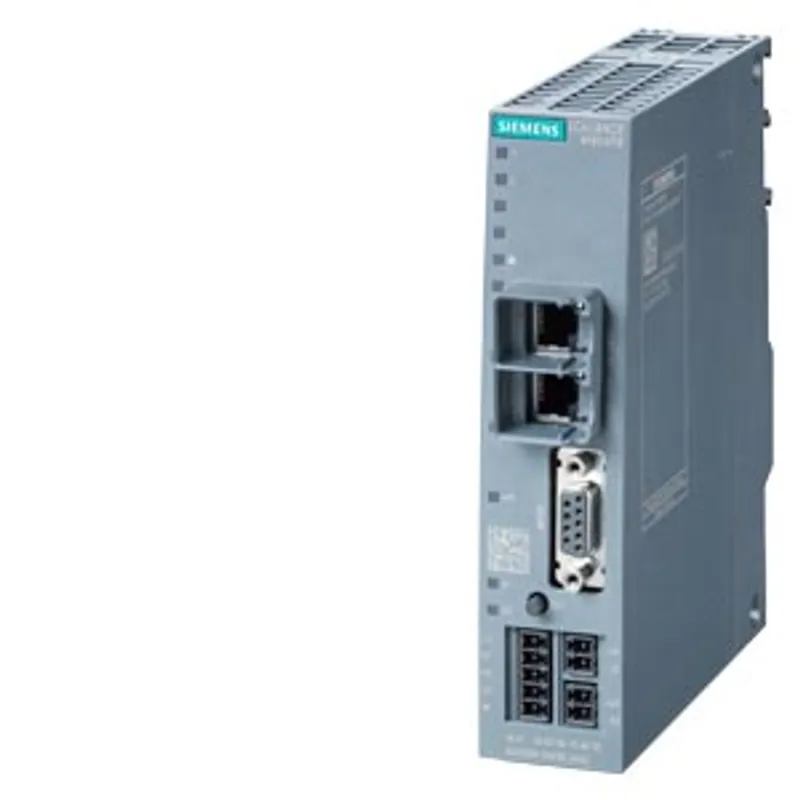

Siemens 6GK5804-0AP00-2AA2
SCALANCE M804PB; Router for secure remote connection of PROFIBUS / MPI programmable controllers at Ethernet…
- MPN
- 6GK5804-0AP00-2AA2
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GK5804-0AP00-2AA2?
SCALANCE M804PB; Router for secure remote connection of PROFIBUS / MPI programmable controllers at Ethernet networks by means of VPN and firewall. Further functions: address conversion (NAT/NAPT), connection to SINEMA RC, 2-port switch; 1x digital input, 1x digital output.
Specifications
General
| product brand name | SCALANCE |
| Technical Product Detail Page | https://i.siemens.com/1P6GK5804-0AP00-2AA2 |
transfer rate
| transfer rate / for Industrial Ethernet | 10, 100 Mbit/s |
interfaces
| number of electrical connections — for internal network | 2 |
| number of electrical connections — for external network | 1 |
| number of interfaces / according to RS 485 | 1 |
| number of electrical connections — for power supply | 2 |
| type of electrical connection — for internal network | RJ45 port (10/100 Mbit/s, TP, autocrossover), SUB-D |
| type of electrical connection — for external network | RJ45 port (10/100 Mbit/s, TP, autocrossover) |
| type of electrical connection — for power supply | Terminal strip |
supply voltage, current consumption, power loss
| supply voltage / rated value | 10.8 ... 28.8 |
| consumed current — at DC / at 24 V / typical | 0.25 A |
| power loss [W] — maximum | 8 W |
| supply voltage / 1 / rated value | 24 V |
| supply voltage / 1 / rated value — type of voltage / 1 / of the supply voltage | DC |
ambient conditions
| ambient temperature — during operation | -20 ... +60 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| relative humidity / at 25 °C / during operation / maximum | 95 % |
| protection class IP | IP20 |

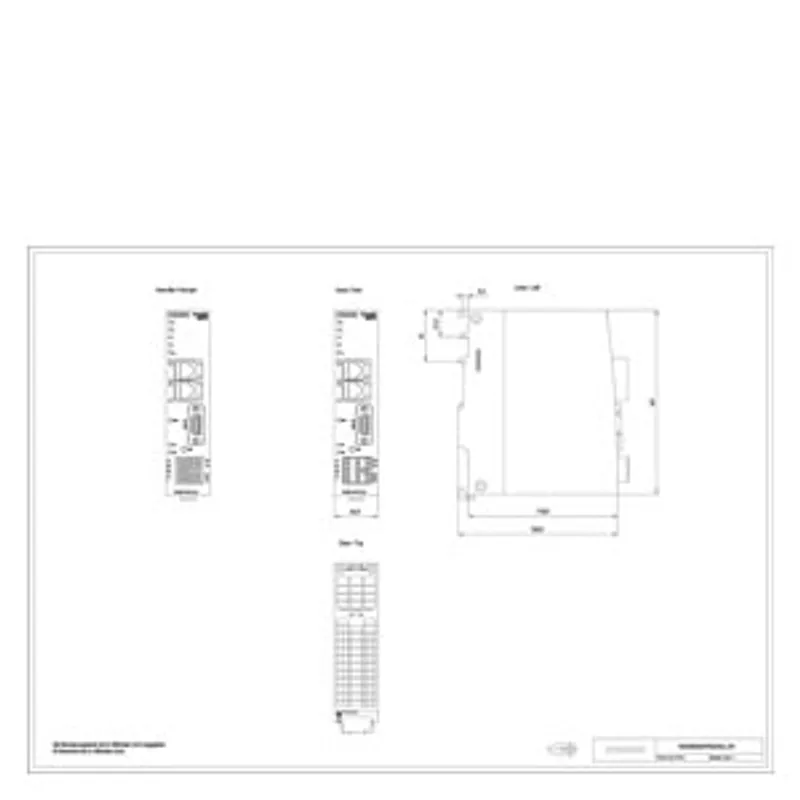

design, dimensions and weights
| design | compact |
| depth | 127 mm |
| height | 147 mm |
| width | 35 mm |
| net weight | 350 g |
| fastening method — 35 mm DIN-rail mounting | Yes |
| fastening method — S7-300 rail mounting | Yes |
| fastening method — S7-1500 rail mounting | Yes |
| fastening method — wall mounting | Yes |
product features, product functions, product components / general
| product function — DynDNS client | Yes |
| product function — no-ip.com client | Yes |
product functions / management, configuration, engineering
| product function — CLI | Yes |
| product function — web-based management | Yes |
| product function — MIB support | Yes |
| product function — TRAPs via email | Yes |
| protocol / is supported — Telnet | Yes |
| protocol / is supported — HTTP | Yes |
| protocol / is supported — HTTPS | Yes |
| type of configuration | Web-based management |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
product functions / diagnostics
| protocol / is supported — SNMP v1 | Yes |
| protocol / is supported — SNMP v2 | Yes |
| protocol / is supported — SNMP v2c | Yes |
| protocol / is supported — SNMP v3 | Yes |
| product function — statistics Packet Size | No |
| product function — statistics packet type | No |
| product function — error statistics | No |
| product function — SysLog | Yes |
| product function — packet filter log | Yes |
product functions / DHCP
| product function — DHCP client | Yes |
| product function — DHCP server - internal network | Yes |
product functions / routing
| router function — NAT (IP masquerading) | Yes |
| router function — port forwarding | Yes |
| router function — NAT traversal | Yes |
| router function — 1:1 NAT | Yes |
| router function — DNS cache | Yes |
product functions / security
| suitability for operation / Virtual Private Network | Yes |
| firewall version | Statefull Inspection |
| product function — password protection | Yes |
| product function — packet filter | Yes |
| product function — broadcast/multicast/unicast limiter | No |
| product function — broadcast blocking | No |
| product function — with VPN connection | IPsec, OpenVPN (as Client) |
| number of possible connections / with VPN connection | 20 |
| type of authentication / with Virtual Private Network / PSK | Yes |
| protocol / is supported — IPsec tunnel and transport mode | Yes |
| key length — 1 / with IPsec AES / with Virtual Private Network | 128 bit |
| key length — 2 / with IPsec AES / with Virtual Private Network | 192 bit |
| key length — 3 / with IPsec AES / with Virtual Private Network | 256 bit |
| key length — with IPsec 3DES / with Virtual Private Network | 168 bit |
| type of internet key exchange / with Virtual Private Network — main mode | Yes |
| type of internet key exchange / with Virtual Private Network — quick mode | Yes |
| type of packet authentication / with Virtual Private Network | MD5, SHA-1, SHA-256, SHA-384, SHA-512 |
| IETF profile / with Virtual Private Network / X.509v3 certificate | Yes |
product functions / time
| protocol / is supported — NTP | Yes |
| protocol / is supported — SNTP | Yes |
standards, specifications, approvals / Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 280.14 kg |
| global warming potential [CO2 eq] — during manufacturing | 29.35 kg |
| global warming potential [CO2 eq] — during operation | 250.33 kg |
| global warming potential [CO2 eq] — after end of life | 0.46 kg |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
