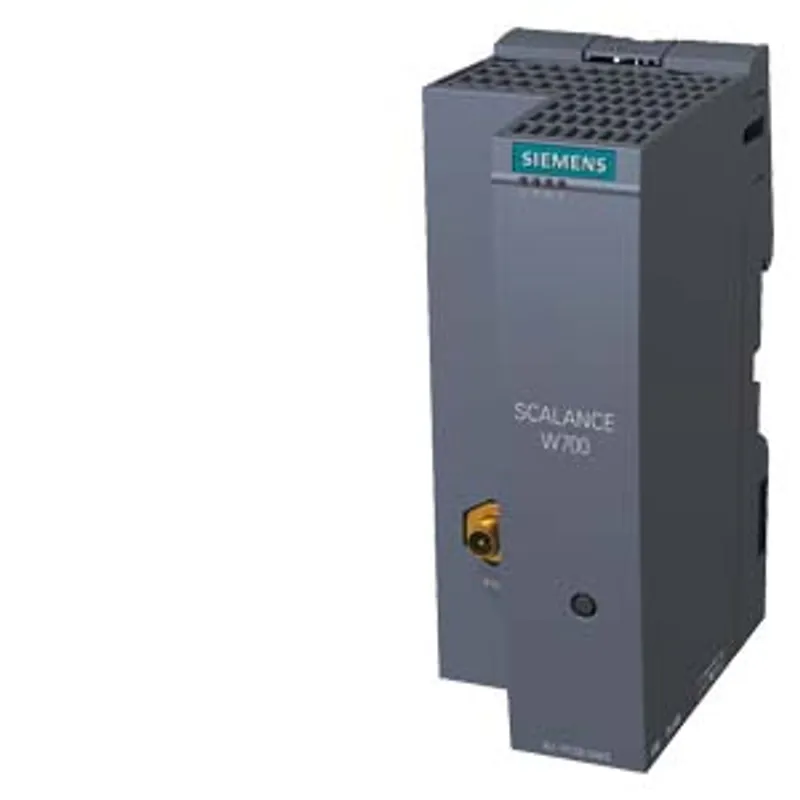

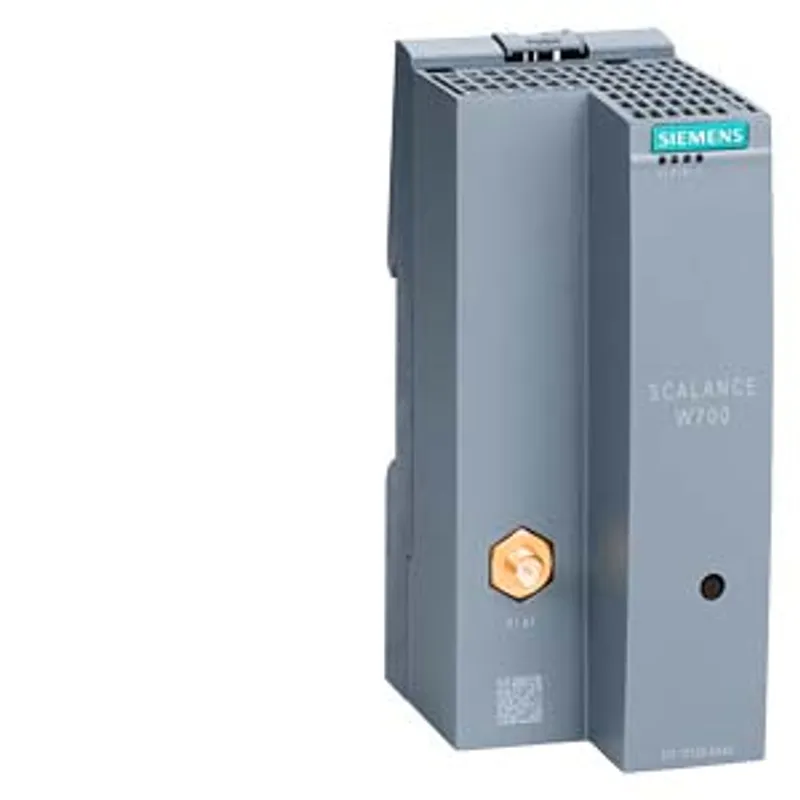

Siemens 6GK5761-1FC00-0AB0
IWLAN Access Point, SCALANCE W761-1 RJ45, 1 radio, 1 R-SMA antenna port, IEEE 802.11a/b/g/h/n, 2.4/5 GHz
- MPN
- 6GK5761-1FC00-0AB0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GK5761-1FC00-0AB0?
IWLAN Access Point, SCALANCE W761-1 RJ45, 1 radio, 1 R-SMA antenna port, IEEE 802.11a/b/g/h/n, 2.4/5 GHz, gross data rate 150 Mbps, 1x RJ45 max. 100 Mbps, 24 V DC, joint block, IP20, 0... +55 °C, WPA2/802.11i/e, observe national approvals! CERT ID: ELN-W1-RJ-E1, FCC ID: LYHELN1V1 scope of delivery: manuals on CD-ROM German/English, 1x joint block; only for operation in the USA.
Specifications
General
| product brand name | SCALANCE |
| Technical Product Detail Page | https://i.siemens.com/1P6GK5761-1FC00-0AB0 |
transfer rate
| transfer rate — with WLAN / maximum | 150 Mbit/s |
| transfer rate — for Industrial Ethernet | 10, 100 Mbit/s |
interfaces
| number of electrical connections — for network components or terminal equipment | 1 |
| number of electrical connections — for power supply | 1 |
| number of electrical connections — for redundant voltage supply | 0 |
| type of electrical connection — for network components or terminal equipment | RJ45 socket |
| type of electrical connection — for power supply | 3-pole screw terminal |
memory
| design of the removable storage — C-PLUG | No |
| design of the removable storage — KEY-PLUG | No |
interfaces / wireless
| number of radio cards / permanently installed | 1 |
| number of electrical connections / for external antenna(s) | 1 |
| type of electrical connection / for external antenna(s) | R-SMA (socket) |
| product feature / external antenna can be mounted directly on device | Yes |
supply voltage, current consumption, power loss
| type of voltage / of the supply voltage | DC |
| consumed current — at DC / at 24 V / typical | 0.15 A |
| power loss [W] — at DC / at 24 V / typical | 3.6 W |
| supply voltage / 1 — from terminal block | 19.2 V |
| supply voltage / 2 — from terminal block | 28.8 V |
ambient conditions
| ambient temperature — during operation | 0 ... 55 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| ambient temperature — during transport | -40 ... +85 °C |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % |
| ambient condition / for operation | When used under hazardous conditions (Zone 2), the SCALANCE W761-1 RJ45 or W72x-1 RJ45 product must be installed in an enclosure. To comply with EN 50021, this enclosure must meet the requirements of at least IP 54 in compliance with EN 60529. |
| protection class IP | IP20 |

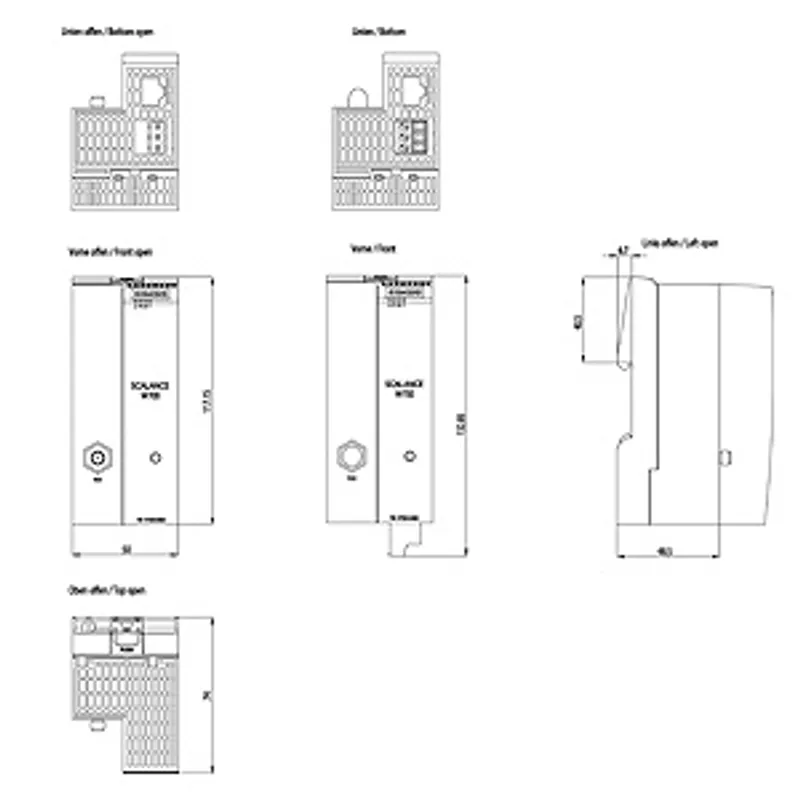

design, dimensions and weights
| width | 50 mm |
| height | 114 mm |
| depth | 74 mm |
| width / of the enclosure / without antenna | 50 mm |
| height / of the enclosure / without antenna | 114 mm |
| depth / of the enclosure / without antenna | 74 mm |
| net weight | 0.13 kg |
| fastening method — S7-300 rail mounting | No |
| fastening method — S7-1500 rail mounting | No |
| fastening method — 35 mm DIN-rail mounting | Yes |
| fastening method — wall mounting | No |
radio frequencies
| operating frequency — for WLAN in 2.4 GHz frequency band | 2.41 ... 2.48 GHz; depending on the country approvals |
| operating frequency — for WLAN in 5 GHz frequency band | 4.9 ... 5.8 GHz; depending on the country approvals |
product features, product functions, product components / general
| product function / Access Point Mode | Yes |
| product function / client Mode | Yes |
| number of SSIDs | 1 |
| product function — iPCF Access Point | No |
| product function — iPCF client | No |
| product function — iPCF-MC Access Point | No |
| product function — iPCF-MC client | No |
| product function / iREF | No |
| product function / iPRP | No |
product functions / management, configuration, engineering
| number of manageable IP addresses / in client | 4 |
| product function — CLI | Yes |
| product function — web-based management | Yes |
| product function — MIB support | Yes |
| product function — TRAPs via email | Yes |
| product function — configuration with STEP 7 | Yes |
| product function — configuration with STEP 7 in the TIA Portal | Yes |
| product function — operation with IWLAN controller | No |
| product function — operation with Enterasys WLAN controller | No |
| product function — forced roaming on IP down with IWLAN | Yes |
| product function — forced roaming on link down with IWLAN | Yes |
| product function — WDS | Yes |
| protocol / is supported — Address Resolution Protocol (ARP) | Yes |
| protocol / is supported — ICMP | Yes |
| protocol / is supported — Telnet | Yes |
| protocol / is supported — HTTP | Yes |
| protocol / is supported — HTTPS | Yes |
| protocol / is supported — TFTP | Yes |
| protocol / is supported — DCP | Yes |
| protocol / is supported — LLDP | Yes |
| identification & maintenance function — I&M0 - device-specific information | Yes |
| identification & maintenance function — I&M1 - higher level designation/location designation | Yes |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
product functions / diagnostics
| product function — PROFINET IO diagnosis | No |
| product function — link check | No |
| product function — connection monitoring IP-Alive | No |
| product function — localization via Aeroscout | No |
| product function — SysLog | Yes |
| protocol / is supported — SNMP v1 | Yes |
| protocol / is supported — SNMP v2 | Yes |
| protocol / is supported — SNMP v3 | Yes |
product functions / VLAN
| product function — function VLAN with IWLAN | Yes |
product functions / DHCP
| product function — DHCP client | Yes |
| product function — DHCP server | Yes |
| product function — DHCP Option 82 | Yes |
product functions / redundancy
| protocol / is supported — STP/RSTP | Yes |
| protocol / is supported — MSTP | Yes |
| protocol / is supported — RSTP | Yes |
product functions / security
| product function — ACL - MAC-based | Yes |
| product function — management security, ACL-IP based | Yes |
| product function — IEEE 802.1x (radius) | Yes |
| product function — NAT/NAPT | Yes |
| product function — access protection according to IEEE802.11i | Yes |
| product function — WPA/WPA2 | Yes |
| product function — TKIP/AES | Yes |
| protocol / is supported — SSH | Yes |
| protocol / is supported — RADIUS | Yes |
product functions / time
| protocol / is supported — NTP | Yes |
| protocol / is supported — SNTP | Yes |
| protocol / is supported — SIMATIC time synchronization (SIMATIC Time) | Yes |
standards, specifications, approvals
| standard — for FM | FM 3611: Class I, Division 2, Groups A,B,C,D, T4 / Class 1, Zone 2, Group IIC, T4, FM16US0205X |
| standard — for safety / from CSA and UL | UL 60950-1 E115352, CSA C22.2 No. 60950-1 |
| certificate of suitability — EC Declaration of Conformity | Yes |
| certificate of suitability — CE marking | Yes |
| certificate of suitability — C-Tick | Yes |
| certificate of suitability — E1 approval | No |
| certificate of suitability — railway application in accordance with EN 50155 | No |
| certificate of suitability — railway application in accordance with EN 50121-4 | No |
| certificate of suitability — NEMA TS2 | No |
| certificate of suitability — IEC 61375 | No |
| certificate of suitability — IEC 61850-3 | No |
| certificate of suitability — NEMA4X | No |
| certificate of suitability — Power-over-Ethernet according IEEE802.3at for type 1 and IEEE802.3af | No |
| certificate of suitability — Power-over-Ethernet according to IEEE802.3at for type 2 | No |
| standard for wireless communication — IEEE 802.11a | Yes |
| standard for wireless communication — IEEE 802.11b | Yes |
| standard for wireless communication — IEEE 802.11e | Yes |
| standard for wireless communication — IEEE 802.11g | Yes |
| standard for wireless communication — IEEE 802.11h | Yes |
| standard for wireless communication — IEEE 802.11i | Yes |
| standard for wireless communication — IEEE 802.11n | Yes |
| wireless approval | You will find the current list of countries at: www.siemens.de/funkzulassungen |
standards, specifications, approvals / marine classification
| Marine classification association — American Bureau of Shipping Europe Ltd. (ABS) | No |
| Marine classification association — French marine classification society (BV) | No |
| Marine classification association — DNV GL | No |
| Marine classification association — Korean Register of Shipping (KRS) | No |
| Marine classification association — Lloyds Register of Shipping (LRS) | No |
| Marine classification association — Nippon Kaiji Kyokai (NK) | No |
| Marine classification association — Polski Rejestr Statkow (PRS) | No |
| Marine classification association — Royal Institution of Naval Architects (RINA) | No |
standards, specifications, approvals / hazardous environments
| standard / for hazardous zone | EN 60079-15:2005, EN 60079-0:2006, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X |
| standard / for hazardous zone — from CSA and UL | ANSI/ISA 12.12.01-2013, CAN/CSA C22.2 No.213-M1987, Cl. 1, div. 2, GP. A, B, C, D, T4 / Cl. 1, Zone 2, GP IIC E240480 |
| certificate of suitability / CCC / for hazardous zone according to GB standard | Yes; GB3836.1, GB3836.8 |
| certificate of suitability / CCC / for hazardous zone according to GB standard — as marking | Ex nA IIC T4 Gc |
standards, specifications, approvals / Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 125.8 kg |
| global warming potential [CO2 eq] — during manufacturing | 12.97 kg |
| global warming potential [CO2 eq] — during operation | 112.66 kg |
| global warming potential [CO2 eq] — after end of life | 0.17 kg |
accessories
| accessories | 24 V DC screw terminal included in scope of delivery |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: WLAN country approval | https://www.siemens.com/wireless-approvals |
| internet link — to the website: IWLAN | https://www.siemens.com/iwlan |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
