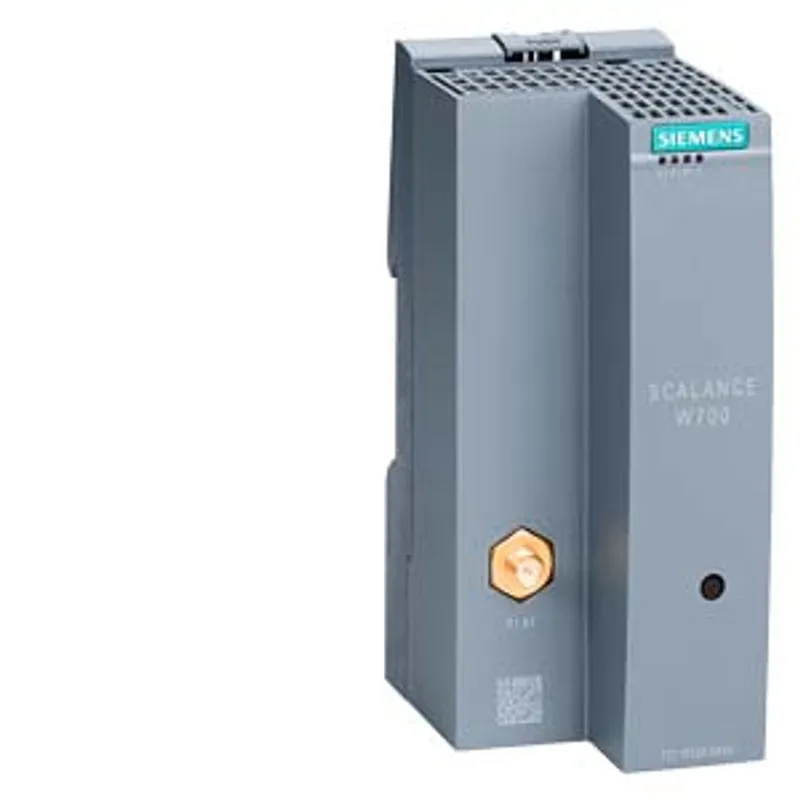

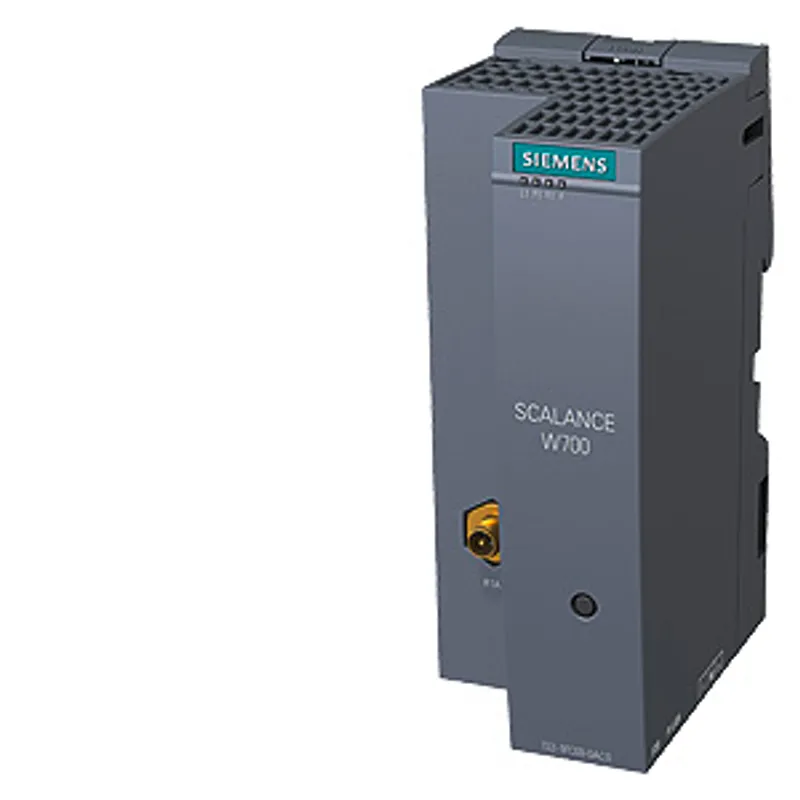

Siemens 6GK5722-1FC00-0AC0

IWLAN client, SCALANCE W722-1, RJ45, 1 radio, 1 R-SMA antenna port, iFeatures support IEEE 802.11a/b/g/h/n

MPN: 6GK5722-1FC00-0AC0
Category: SCALANCE W722 RJ45 for the control cabinet

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6GK5722-1FC00-0AC0?

IWLAN client, SCALANCE W722-1, RJ45, 1 radio, 1 R-SMA antenna port, iFeatures support IEEE 802.11a/b/g/h/n, 2.4/5GHz, gross data rate 150 Mbit/s, 1x RJ45 max. 100 Mbit/s, 24 V DC, joint block, IP20, 0... +55 °C, WPA2/802.11i/e, observe national approvals! CERT ID: ELN-W1-RJ-E1, scope of delivery: Manuals on CD-ROM, German/English, 1x joint block; only for operation in Israel.

Specifications

General

product brand name	SCALANCE
Technical Product Detail Page	https://i.siemens.com/1P6GK5722-1FC00-0AC0

transfer rate

transfer rate — with WLAN / maximum	150 Mbit/s
transfer rate — for Industrial Ethernet	10, 100 Mbit/s

interfaces

number of electrical connections — for network components or terminal equipment	1
number of electrical connections — for power supply	1
number of electrical connections — for redundant voltage supply	0
type of electrical connection — for network components or terminal equipment	RJ45 socket
type of electrical connection — for power supply	3-pole screw terminal

memory

design of the removable storage — C-PLUG	No
design of the removable storage — KEY-PLUG	No

interfaces / wireless

number of radio cards / permanently installed	1
number of electrical connections / for external antenna(s)	1
type of electrical connection / for external antenna(s)	R-SMA (socket)
product feature / external antenna can be mounted directly on device	Yes

supply voltage, current consumption, power loss

type of voltage / of the supply voltage	DC
consumed current — at DC / at 24 V / typical	0.15 A
power loss [W] — at DC / at 24 V / typical	3.6 W
supply voltage / 1 — from terminal block	19.2 V
supply voltage / 2 — from terminal block	28.8 V

ambient conditions

ambient temperature — during operation	0 ... 55 °C
ambient temperature — during storage	-40 ... +85 °C
ambient temperature — during transport	-40 ... +85 °C
relative humidity / at 25 °C / without condensation / during operation / maximum	95 %
ambient condition / for operation	When used under hazardous conditions (Zone 2), the SCALANCE W761-1 RJ45 or W72x-1 RJ45 product must be installed in an enclosure. To comply with EN 50021, this enclosure must meet the requirements of at least IP 54 in compliance with EN 60529.
protection class IP	IP20

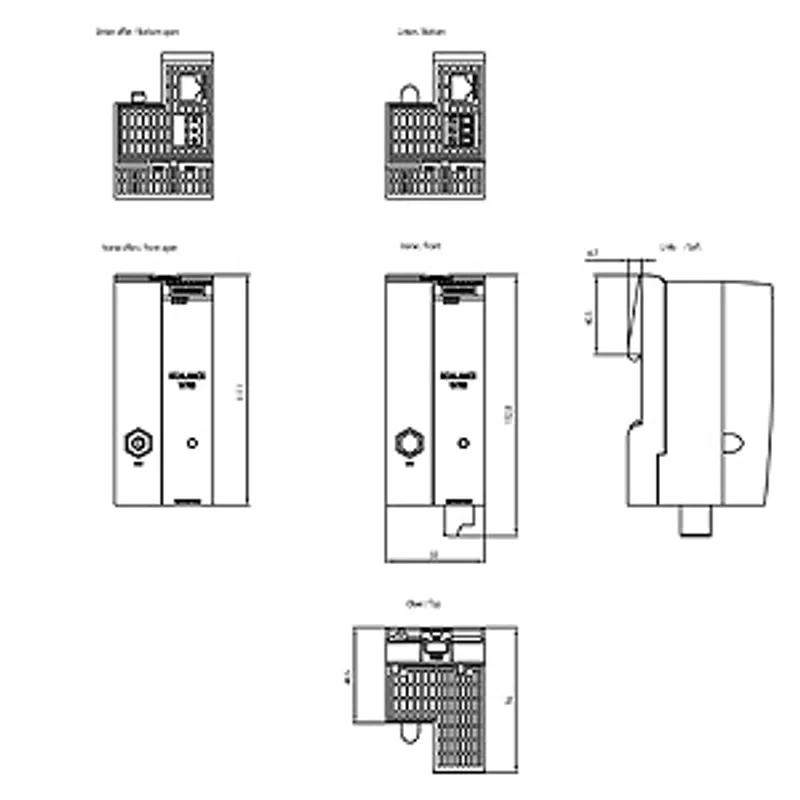

design, dimensions and weights

width	50 mm
height	114 mm
depth	74 mm
width / of the enclosure / without antenna	50 mm
height / of the enclosure / without antenna	114 mm
depth / of the enclosure / without antenna	74 mm
net weight	0.13 kg
fastening method — S7-300 rail mounting	No
fastening method — S7-1500 rail mounting	No
fastening method — 35 mm DIN-rail mounting	Yes
fastening method — wall mounting	No

radio frequencies

operating frequency — for WLAN in 2.4 GHz frequency band	2.41 ... 2.48 GHz; depending on the country approvals
operating frequency — for WLAN in 5 GHz frequency band	5.15 ... 5.35 GHz; depending on the country approvals

product features, product functions, product components / general

product function / Access Point Mode	No
product function / client Mode	Yes
product function — iPCF client	Yes
product function — iPCF-MC client	Yes
number of iPCF-capable radio modules	1
product function / iPRP	Yes

product functions / management, configuration, engineering

number of manageable IP addresses / in client	4
product function — CLI	Yes
product function — web-based management	Yes
product function — MIB support	Yes
product function — TRAPs via email	Yes
product function — configuration with STEP 7	Yes
product function — configuration with STEP 7 in the TIA Portal	Yes
product function — WDS	No
protocol / is supported — Address Resolution Protocol (ARP)	Yes
protocol / is supported — ICMP	Yes
protocol / is supported — Telnet	Yes
protocol / is supported — HTTP	Yes
protocol / is supported — HTTPS	Yes
protocol / is supported — TFTP	Yes
protocol / is supported — DCP	Yes
protocol / is supported — LLDP	No
identification & maintenance function — I&M0 - device-specific information	Yes
identification & maintenance function — I&M1 - higher level designation/location designation	Yes
product function / is supported / identification link	Yes; acc. to IEC 61406-1:2022

product functions / diagnostics

product function — PROFINET IO diagnosis	Yes
product function — link check	No
product function — connection monitoring IP-Alive	No
product function — SysLog	Yes
protocol / is supported — SNMP v1	Yes
protocol / is supported — SNMP v2	Yes
protocol / is supported — SNMP v3	Yes

product functions / VLAN

product function — function VLAN with IWLAN

product functions / DHCP

product function — DHCP client	Yes
product function — DHCP server	Yes
product function — DHCP Option 82	Yes

product functions / redundancy

protocol / is supported — STP/RSTP	Yes
protocol / is supported — MSTP	Yes
protocol / is supported — RSTP	Yes

product functions / security

product function — ACL - MAC-based	Yes
product function — management security, ACL-IP based	Yes
product function — IEEE 802.1x (radius)	Yes
product function — NAT/NAPT	Yes
product function — access protection according to IEEE802.11i	Yes
product function — WPA/WPA2	Yes
product function — TKIP/AES	Yes
protocol / is supported — SSH	Yes
protocol / is supported — RADIUS	Yes

product functions / time

protocol / is supported — NTP	Yes
protocol / is supported — SNTP	Yes
protocol / is supported — SIMATIC time synchronization (SIMATIC Time)	Yes

standards, specifications, approvals

standard — for FM	FM 3611: Class I, Division 2, Groups A,B,C,D, T4 / Class 1, Zone 2, Group IIC, T4, FM16US0205X
standard — for safety / from CSA and UL	UL 60950-1 E115352, CSA C22.2 No. 60950-1
certificate of suitability — EC Declaration of Conformity	No
certificate of suitability — CE marking	No
certificate of suitability — C-Tick	Yes
certificate of suitability — E1 approval	No
certificate of suitability — railway application in accordance with EN 50155	No
certificate of suitability — NEMA TS2	No
certificate of suitability — IEC 61375	No
certificate of suitability — IEC 61850-3	No
certificate of suitability — NEMA4X	No
certificate of suitability — Power-over-Ethernet according IEEE802.3at for type 1 and IEEE802.3af	No
certificate of suitability — Power-over-Ethernet according to IEEE802.3at for type 2	No
standard for wireless communication — IEEE 802.11a	Yes
standard for wireless communication — IEEE 802.11b	Yes
standard for wireless communication — IEEE 802.11e	Yes
standard for wireless communication — IEEE 802.11g	Yes
standard for wireless communication — IEEE 802.11h	Yes
standard for wireless communication — IEEE 802.11i	Yes
standard for wireless communication — IEEE 802.11n	Yes
wireless approval	You will find the current list of countries at: www.siemens.de/funkzulassungen

standards, specifications, approvals / marine classification

Marine classification association — American Bureau of Shipping Europe Ltd. (ABS)	No
Marine classification association — French marine classification society (BV)	No
Marine classification association — DNV GL	No
Marine classification association — Korean Register of Shipping (KRS)	No
Marine classification association — Lloyds Register of Shipping (LRS)	No
Marine classification association — Nippon Kaiji Kyokai (NK)	No
Marine classification association — Polski Rejestr Statkow (PRS)	No
Marine classification association — Royal Institution of Naval Architects (RINA)	No

standards, specifications, approvals / hazardous environments

standard / for hazardous zone	EN 60079-15:2005, EN 60079-0:2006, II 3 G Ex nA II T4 KEMA 07 ATEX 0145X
standard / for hazardous zone — from CSA and UL	ANSI/ISA 12.12.01-2013, CAN/CSA C22.2 No.213-M1987, Cl. 1, div. 2, GP. A, B, C, D, T4 / Cl. 1, Zone 2, GP IIC E240480

standards, specifications, approvals / Environmental Product Declaration

Environmental Product Declaration	Yes
global warming potential [CO2 eq] — total	200.91 kg
global warming potential [CO2 eq] — during manufacturing	12.97 kg
global warming potential [CO2 eq] — during operation	187.77 kg
global warming potential [CO2 eq] — after end of life	0.17 kg

accessories

24 V DC screw terminal included in scope of delivery

further information / internet links

internet link — to website: Selection guide for cables and connectors	https://support.industry.siemens.com/cs/ww/en/view/109766358
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to web page: WLAN country approval	https://www.siemens.com/wireless-approvals
internet link — to the website: IWLAN	https://www.siemens.com/iwlan
internet link — to website: Industrial communication	https://www.siemens.com/simatic-net
internet link — to web page: SiePortal	https://sieportal.siemens.com/
internet link — to website: Image database	https://www.automation.siemens.com/bilddb
internet link — to website: CAx-Download-Manager	https://www.siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
