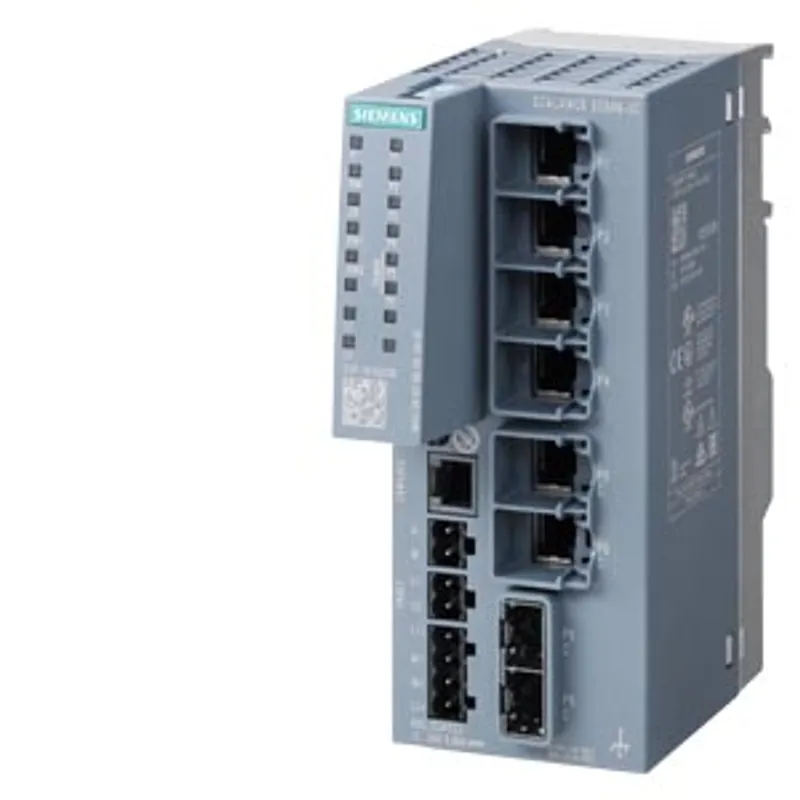

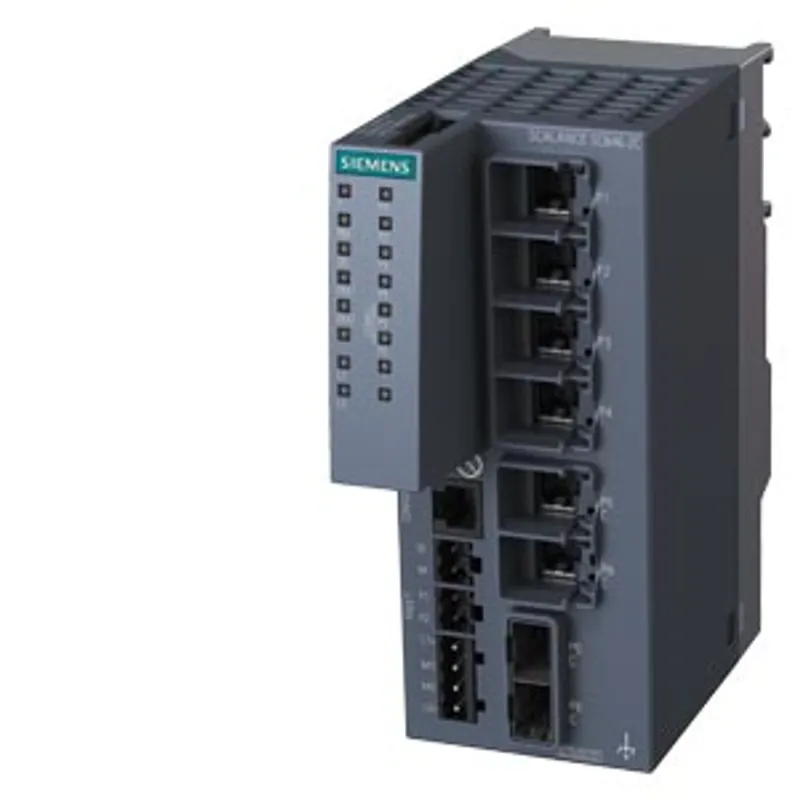

Siemens 6GK5646-2GS00-2AC2
SCALANCE SC646-2C Industrial Security Appliance
- MPN
- 6GK5646-2GS00-2AC2
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GK5646-2GS00-2AC2?
SCALANCE SC646-2C Industrial Security Appliance; For protection of devices and networks in discrete manufacturing and the process industry for protection of the industrial communication with firewall and VPN; Further functions: address conversion (NAT/NAPT); Connection to SINEMA RC; 4x ports electrical 10/100/1000 Mbit/s RJ45 and 2x combo port electrical or optical; 10/100/1000 Mbit/s RJ45 or 100 Mbit/s SFP or 1000 Mbit/s SFP.
Specifications
General
| product brand name | SCALANCE |
| Technical Product Detail Page | https://i.siemens.com/1P6GK5646-2GS00-2AC2 |
transfer rate
| transfer rate | 10, 100, 1000 Mbit/s |
interfaces
| number of electrical/optical connections / for network components or terminal equipment / maximum | 6 |
| number of 10/100/1000 Mbit/s RJ45 ports / integrated / with securing collar | 6 |
| number of electrical connections / for SFP+ / integrated | 2 |
| number of combo ports / with RJ45 interface for optical plug-in transceiver | 2 |
| number of electrical connections — for signaling contact | 1 |
| number of electrical connections — for power supply | 1 |
| number of electrical connections — for redundant voltage supply | 1 |
| type of electrical connection — for signaling contact | 2-pole terminal block |
| type of electrical connection — for power supply | 4-pole terminal block |
| design of the removable storage / C-PLUG | Yes |
signal inputs/outputs
| number of electrical connections — for digital input signals | 1 |
| type of electrical connection — for digital input signals | 2-pole terminal block |
| type of electrical connection — for digital output signals | 2-pole terminal block |
| operating voltage / of the signaling contacts / at DC / rated value | 24 V |
| operational current / of the signaling contacts / at DC / maximum | 0.1 A |
supply voltage, current consumption, power loss
| type of voltage / 1 / of the supply voltage | DC; (with plugged-in SFPs) |
| type of voltage / 1 / of the supply voltage — supply voltage / 1 / rated value | 24 V |
| type of voltage / 1 / of the supply voltage — power loss [W] / 1 / rated value | 9.6 W |
| type of voltage / 1 / of the supply voltage — supply voltage / 1 / rated value | 9.6 ... 31.2 V |
| type of voltage / 1 / of the supply voltage — consumed current / 1 / maximum | 0.4 A |
| type of voltage / 2 / of the supply voltage | DC |
| type of voltage / 2 / of the supply voltage — supply voltage / 2 / rated value | 24 V |
| type of voltage / 2 / of the supply voltage — power loss [W] / 2 / rated value | 9.6 W |
| type of voltage / 2 / of the supply voltage — supply voltage / 2 / rated value / minimum | 9.6 V |
| type of voltage / 2 / of the supply voltage — supply voltage / 2 / rated value / maximum | 31.2 V |
| type of voltage / 2 / of the supply voltage — consumed current / 2 / maximum | 0.4 A |
ambient conditions
| ambient temperature — during operation | -40 ... +70 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| ambient temperature — during transport | -40 ... +85 °C |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |
design, dimensions and weights
| design | compact |
| width | 60 mm |
| height | 145 mm |
| depth | 125 mm |
| net weight | 0.58 kg |
| fastening method | Fixing bolt with additional screw protection |
| fastening method — 35 mm DIN-rail mounting | Yes |
| fastening method — S7-300 rail mounting | Yes |
| fastening method — S7-1500 rail mounting | Yes |
| fastening method — wall mounting | Yes |
product features, product functions, product components / general
| product function / DynDNS client | Yes |
product functions / management, configuration, engineering
| product function — CLI | Yes |
| product function — web-based management | Yes |
| product function — MIB support | Yes |
| protocol / is supported — Telnet | No |
| protocol / is supported — HTTP | No |
| protocol / is supported — HTTPS | Yes |
| protocol / is supported — TFTP | Yes |
| protocol / is supported — FTP | Yes |
| protocol / is supported — SFTP | Yes |
| protocol / is supported — DCP | Yes |
| protocol / is supported — LLDP | Yes |
| protocol / is supported — SNMP v1 | Yes |
| protocol / is supported — SNMP v2 | Yes |
| protocol / is supported — SNMP v3 | Yes |
| product function — RMON | Yes |
| product function — port mirroring | Yes |
| product function — multiport mirroring | Yes |
| product function — CoS | Yes |
| type of configuration | WBM, CLI, SNMP |
| PROFINET conformity class | A |
product functions / diagnostics
| product function — SysLog | Yes |
| product function — packet filter log | Yes |
| product function — audit log | Yes |
| product function — system log | Yes |
| product function — port diagnostics | Yes |
| product function — statistics Packet Size | Yes |
| product function — statistics packet type | Yes |
| product function — error statistics | Yes |
product functions / VLAN
| product function — VLAN - port based | Yes |
| product function — VLAN - protocol-based | No |
| product function — VLAN - IP-based | No |
| product function — VLAN dynamic | No |
| number of VLANs / maximum | 257 |
product functions / DHCP
| product function — DHCP client | Yes |
| product function — DHCP server - internal network | Yes |
| product function — DHCP Option 66 | Yes |
| product function — DHCP Option 67 | Yes |
product functions / routing
| product function / static IP routing | Yes |
| protocol / is supported / VRRP | Yes |
| product function / static IP routing IPv6 | Yes |
| protocol / is supported / OSPFv2 | Yes |
| protocol / is supported / OSPFv3 for IPv6 | Yes |
product functions / security
| firewall version | stateful inspection |
| product function / with VPN connection | IPsec, OpenVPN |
| type of encryption algorithms / with VPN connection | AES-256, AES-192, AES-128, 3DES-168, DES-56 |
| type of authentication procedure / with VPN connection | Preshared key (PSK), X.509v3 certificates |
| type of hashing algorithms / with VPN connection | MD5, SHA-1, SHA-256, SHA-384, SHA-512 |
| number of possible connections / with VPN connection | 200 |
| product function — password protection | Yes |
| product function — bandwidth limitation | No |
| product function — NAT/NAPT | Yes |
| product function — IEEE 802.1x (radius) | Yes |
| product function — RADIUS client | Yes |
| product function — broadcast/multicast/unicast limiter | Yes |
| product function — broadcast blocking | Yes |
| protocol / is supported / SSH | Yes |
product functions / redundancy
| product function — ring redundancy | Yes |
| product function — standby redundancy | Yes |
| product function — High Speed Redundancy Protocol (HRP) | Yes |
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
| product function — redundancy procedure STP | Yes |
| product function — redundancy procedure RSTP | Yes |
| product function — passive listening | Yes |
product functions / time
| protocol / is supported / NTP | Yes |
| product function — NTP-client | Yes |
| product function — NTP-server | Yes |
| protocol / is supported / SNTP | Yes |
| product function — SNTP client | Yes |
| product function — SNTP server | Yes |
| product function — IEEE 1588 v2 master | Yes |
| product feature / hardware real time clock w. battery backup | Yes |
standards, specifications, approvals
| standard / for FM | FM19US0167X |
| certificate of suitability — UKCA marking | Yes |
| standard — for safety / from CSA and UL | UL 60950 E115352 / CSA C22.2 no. 60950-1-03, CSA C22.2 no. 213-M1987 (available soon) |
| standard — for emitted interference | EN 61000-6-4: 2007 |
| standard — for interference immunity | EN 61000-6-2: 2005 |
| certificate of suitability | AS/NZS 2064 (Class A), EN 61000-6-2, EN 61000-6-4 |
| certificate of suitability — CE marking | Yes |
| certificate of suitability — C-Tick | Yes |
| certificate of suitability — CCC | Yes |
| MTBF | 31.64 a |
| standard | EN/IEC 61709 |
| reference temperature | 40 °C |
| IT security for industrial automation systems / according to IEC 62443-4-2:2019 | Yes |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
standards, specifications, approvals / marine classification
| Marine classification association — American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| Marine classification association — French marine classification society (BV) | Yes |
| Marine classification association — DNV GL | Yes |
| Marine classification association — Lloyds Register of Shipping (LRS) | Yes |
| Marine classification association — Nippon Kaiji Kyokai (NK) | Yes |
| Marine classification association — Polski Rejestr Statkow (PRS) | Yes |
| Marine classification association — Royal Institution of Naval Architects (RINA) | Yes |
standards, specifications, approvals / hazardous environments
| standard / for hazardous zone | EN 60079-0: 2006, EN60079-15: 2005, II 3 G Ex nA IIC T4 Gc, KEMA 07ATEX0145 X |
| certificate of suitability / CCC / for hazardous zone according to GB standard | Yes; GB3836.1, GB3836.8 |
| certificate of suitability / CCC / for hazardous zone according to GB standard / as marking | Ex nA IIC T4 Gc |
standards, specifications, approvals / Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 261.7 kg |
| global warming potential [CO2 eq] — during manufacturing | 31.33 kg |
| global warming potential [CO2 eq] — during operation | 229.9 kg |
| global warming potential [CO2 eq] — after end of life | 0.47 kg |
accessories
| product extension / optional — C-PLUG | Yes |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
