Siemens 6GK5762-1AJ00-2AA0
IWLAN client, SCALANCE WUB762-1 iFeatures, 1 radio, 1 R-SMA antenna port, iFeatures support IEEE 802.11ax
- MPN
- 6GK5762-1AJ00-2AA0
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via

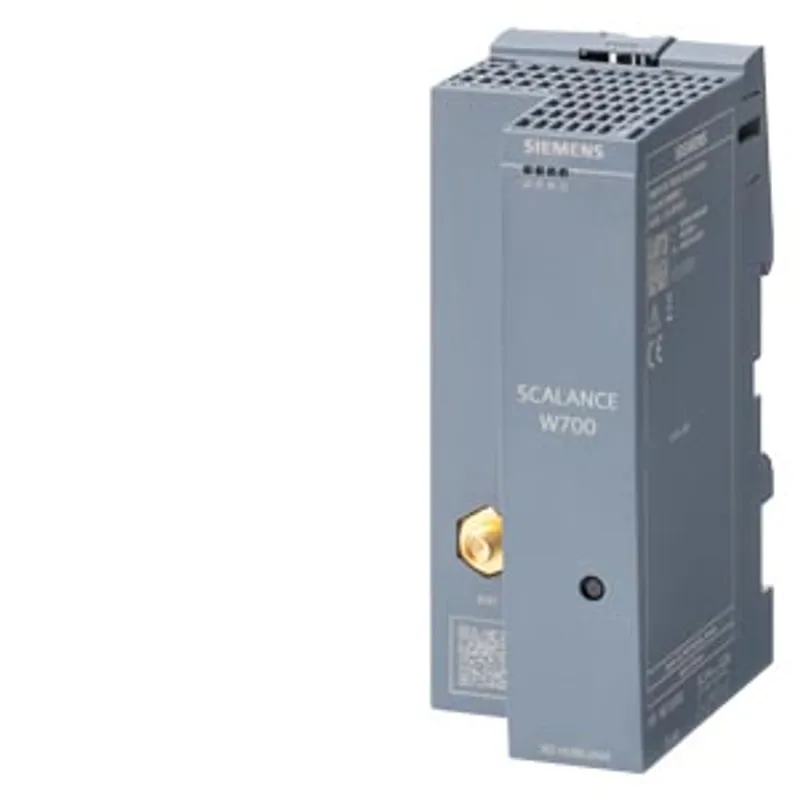

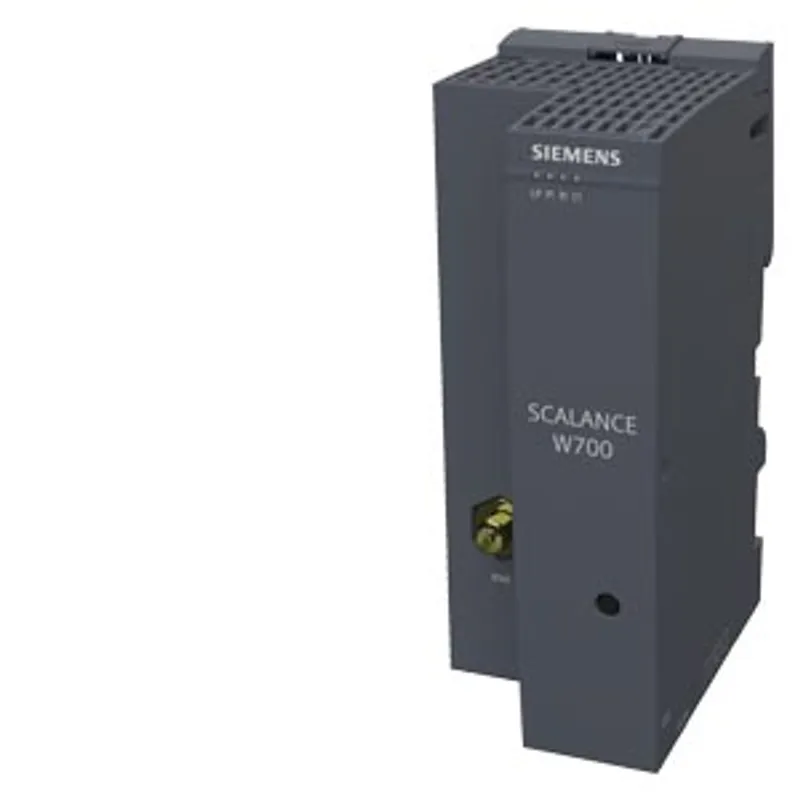

What is the Siemens 6GK5762-1AJ00-2AA0?
IWLAN client, SCALANCE WUB762-1 iFeatures, 1 radio, 1 R-SMA antenna port, iFeatures support IEEE 802.11ax, 2.4/5 GHz, gross data rate 601 Mbps, 1x RJ45 max. 1000 Mbps, 24 V DC, joint block, IP20, 0... +55 °C, , observe national approvals! CERT ID: ELAX-W1-RJ-E1, scope of supply: safety instructions German/English, 1x joint block; for operation outside of USA/Israel
Specifications
General
| product brand name | SCALANCE |
| Technical Product Detail Page | https://i.siemens.com/1P6GK5762-1AJ00-2AA0 |
| suitability for use | www.siemens.com/iwlan |
transfer rate
| transfer rate — with WLAN / maximum | 601 Mbit/s |
| transfer rate — for Industrial Ethernet | 10, 100, 1000 Mbit/s |
interfaces
| number of electrical/optical connections / for network components or terminal equipment / maximum / note | 1 |
| number of electrical/optical connections / for gigabit Ethernet / maximum | 1 |
| number of electrical connections — for network components or terminal equipment | 1 |
| number of electrical connections — for power supply | 1 |
| number of electrical connections — for redundant voltage supply | 0 |
| type of electrical connection — for network components or terminal equipment | RJ45 socket |
| type of electrical connection — for power supply | 3-pole terminal block |
memory
| design of the removable storage — CLP | No |
| design of the removable storage — CLP iFeatures | No |
interfaces / wireless
| number of radio cards / permanently installed | 1 |
| transmission mode / for multiple input multiple output (MIMO) | 1x1 |
| number of spatial streams | 1 |
| number of electrical connections / for external antenna(s) | 1 |
| type of electrical connection / for external antenna(s) | R-SMA (socket) |
| product feature / external antenna can be mounted directly on device | Yes |
signal inputs/outputs
| number of digital inputs | 0 |
| number of digital outputs | 0 |
supply voltage, current consumption, power loss
| consumed current — at DC / at 24 V | 0.4 A |
| consumed current — at DC / at 24 V / typical | 0.2 A |
| power loss [W] — at DC / at 24 V | 8 W |
| power loss [W] — at DC / at 24 V / typical | 4.8 W |
| supply voltage / 1 / rated value | 24 V |
| supply voltage / 1 / rated value — supply voltage / 1 / rated value | 19.2 ... 28.8 V |
| supply voltage / 1 / rated value — type of voltage / 1 / of the supply voltage | DC |
ambient conditions
| ambient temperature — during operation | 0 ... 55 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| ambient temperature — during transport | -40 ... +85 °C |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP20 |

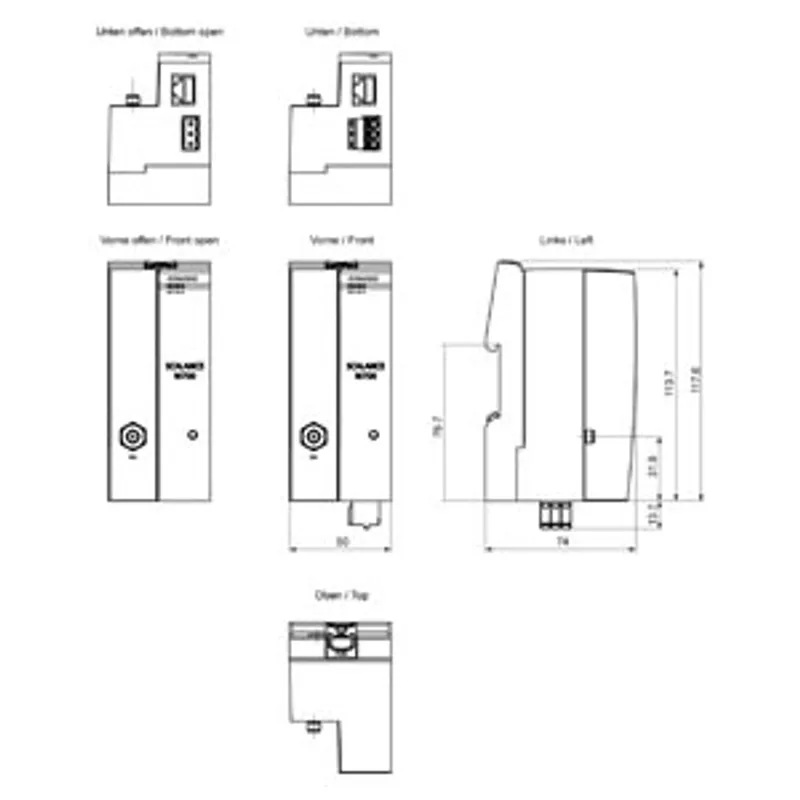

design, dimensions and weights
| width | 50 mm |
| height | 114 mm |
| depth | 74 mm |
| width / of the enclosure / without antenna | 50 mm |
| height / of the enclosure / without antenna | 114 mm |
| depth / of the enclosure / without antenna | 74 mm |
| net weight | 0.145 kg |
| fastening method — S7-300 rail mounting | No |
| fastening method — S7-1500 rail mounting | No |
| fastening method — 35 mm DIN-rail mounting | Yes |
| fastening method — wall mounting | No |
radio frequencies
| operating frequency — for WLAN in 2.4 GHz frequency band | 2.41 ... 2.48 GHz |
| operating frequency — for WLAN in 5 GHz frequency band | 4.9 ... 5.8 GHz |
product features, product functions, product components / general
| product function / Access Point Mode | No |
| product function / client Mode | Yes |
| product function — iPCF Access Point | No |
| product function — iPCF-2 access point | No |
| product function — iPCF client | No |
| product function — iPCF-2 client | Yes |
| product function — iPCF-MC Access Point | No |
| product function / iPRP | Yes |
product functions / management, configuration, engineering
| product function — CLI | Yes |
| product function — web-based management | Yes |
| product function — MIB support | Yes |
| product function — TRAPs via email | Yes |
| product function — configuration with STEP 7 | Yes |
| product function — configuration with STEP 7 in the TIA Portal | Yes |
| product function — WDS | No |
| protocol / is supported — Address Resolution Protocol (ARP) | Yes |
| protocol / is supported — ICMP | Yes |
| protocol / is supported — Telnet | Yes |
| protocol / is supported — HTTP | Yes |
| protocol / is supported — HTTPS | Yes |
| protocol / is supported — TFTP | Yes |
| protocol / is supported — DCP | Yes |
| protocol / is supported — LLDP | Yes |
| identification & maintenance function — I&M0 - device-specific information | Yes |
| identification & maintenance function — I&M1 - higher level designation/location designation | Yes |
| product function / is supported / identification link | Yes |
product functions / diagnostics
| product function — PROFINET IO diagnosis | Yes |
| product function — SysLog | Yes |
| protocol / is supported — SNMP v1 | Yes |
| protocol / is supported — SNMP v2 | Yes |
| protocol / is supported — SNMP v3 | Yes |
product functions / VLAN
| product function — function VLAN with IWLAN | Yes |
| number of VLANs / maximum | 24 |
product functions / DHCP
| product function — DHCP client | Yes |
product functions / redundancy
| protocol / is supported — STP/RSTP | Yes |
| protocol / is supported — MSTP | Yes |
| protocol / is supported — RSTP | Yes |
| product function — redundancy procedure MSTP | Yes |
product functions / security
| product function — management security, ACL-IP based | No |
| product function — IEEE 802.1x (radius) | Yes |
| product function — NAT/NAPT | Yes |
| product function — access protection according to IEEE802.11i | Yes |
| product function — WPA/WPA2 | Yes |
| product function — WPA3 | Yes |
| product function — TKIP/AES | Yes |
| product function — RADIUS client | Yes |
| protocol / is supported — SSH | Yes |
| key length — with SSL | 4096 bit |
product functions / time
| protocol / is supported — NTP | Yes |
| protocol / is supported — SNTP | Yes |
| protocol / is supported — SIMATIC time synchronization (SIMATIC Time) | Yes |
standards, specifications, approvals
| certificate of suitability — EC Declaration of Conformity | Yes |
| certificate of suitability — CE marking | Yes |
| standard for wireless communication — IEEE 802.11a | Yes |
| standard for wireless communication — IEEE 802.11b | Yes |
| standard for wireless communication — IEEE 802.11e | Yes |
| standard for wireless communication — IEEE 802.11g | Yes |
| standard for wireless communication — IEEE 802.11h | Yes |
| standard for wireless communication — IEEE 802.11i | Yes |
| standard for wireless communication — IEEE 802.11n | Yes |
| standard for wireless communication — IEEE 802.11ac | Yes |
| standard for wireless communication — IEEE 802.11ax | Yes |
| standard for wireless communication — IEEE 802.11r | Yes |
standards, specifications, approvals / Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 200.91 kg |
| global warming potential [CO2 eq] — during manufacturing | 12.97 kg |
| global warming potential [CO2 eq] — during operation | 187.77 kg |
| global warming potential [CO2 eq] — after end of life | 0.17 kg |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: WLAN country approval | https://www.siemens.com/wireless-approvals |
| internet link — to the website: IWLAN | https://www.siemens.com/iwlan |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
