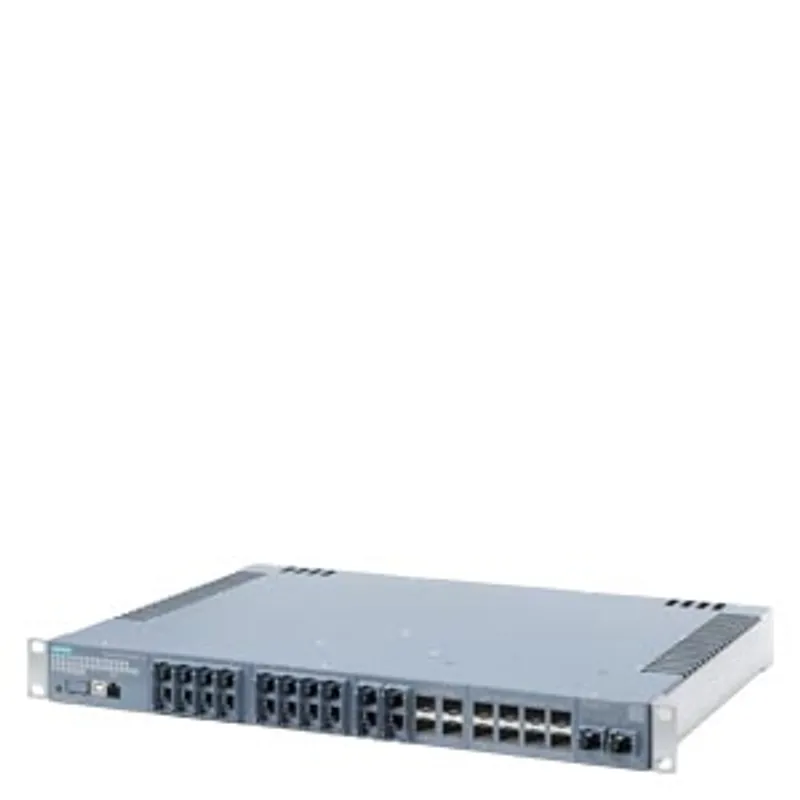

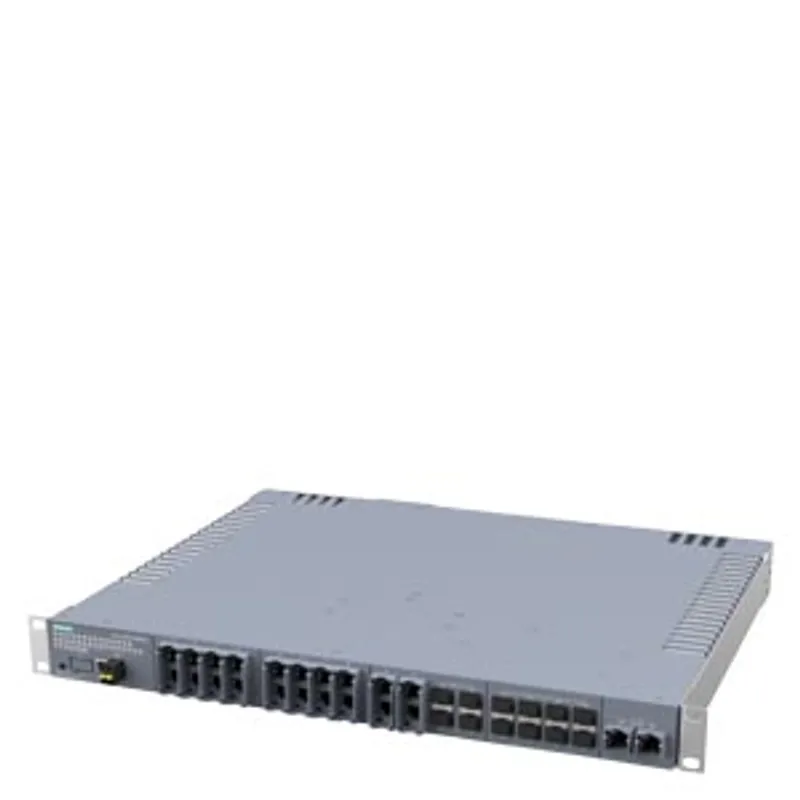

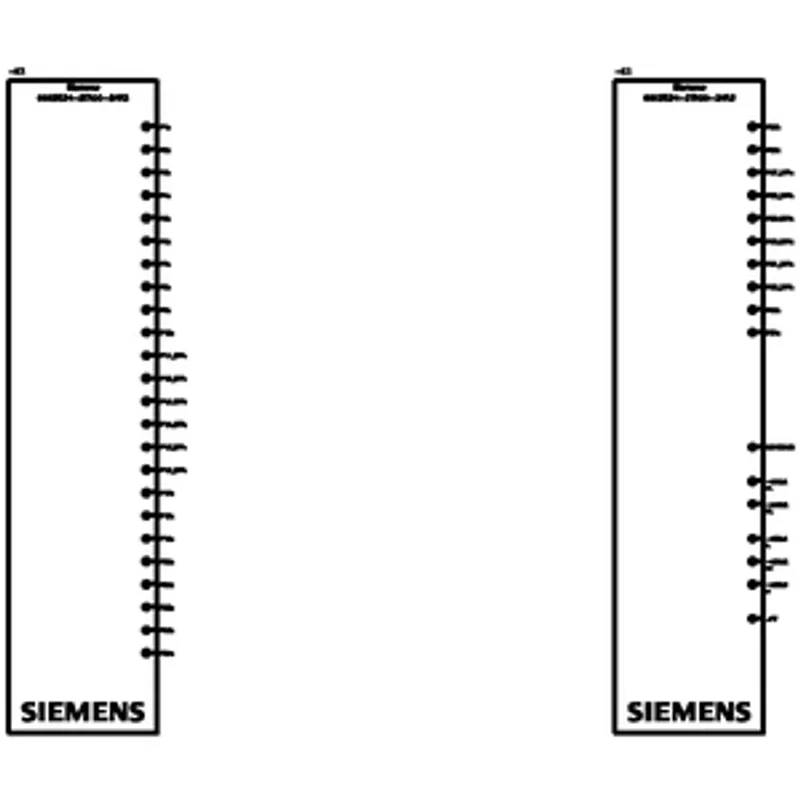

What is the Siemens 6GK5534-3TR00-3AR3?
SCALANCE XR522-12; managed layer 3 IE switch, 19" rack; 20x 100/1000 Mbps RJ45 port; 2x 1G/2.5G/5G/10 Gbps RJ45 port 4x 100M/1G SFP port; 8x 1G/10G SFP+ port; LED diagnostics; error signaling contact; select/set button; PROFINET IO device; network management; integrated redundancy manager; office features (RSTP, VLAN, IGMP,..); CLP included in scope of supply; power supply 1x 230 V AC;
Specifications
product type designation
| product brand name | SCALANCE |
| product type designation | XR522-12 |
| Technical Product Detail Page | https://i.siemens.com/1P6GK5534-3TR00-3AR3 |
transfer rate
| transfer rate | 10, 100, 1000 Mbit/s |
| transfer rate | 2.5, 5, 10 Gbit/s |
interfaces / for communication / integrated
| number of electrical connections — for network components or terminal equipment | 22; RJ45 with securing collar |
| number of 10/100/1000 Mbit/s RJ45 ports — with securing collar | 20 |
| number of 1000/2500/5000/10000 Mbps RJ45 ports / with securing collar | 2 |
| number of electrical connections — for SFP | 4; 100 Mbps and 1000 Mbps SFP usable |
| number of electrical connections — for SFP+ | 8; 1000 Mbps and 10000 Mbps SFP usable |
interfaces / other
| number of electrical connections — for operator console | 1 |
| number of electrical connections — for signaling contact | 1 |
| number of electrical connections — for power supply | 1 |
| type of electrical connection — for operator console | USB (2.0 type B, USB-to-serial adapter) |
| type of electrical connection — for signaling contact | 2-pole terminal block |
| type of electrical connection — for power supply | IEC plug C14 AC supply or 2-pole terminal block for DC supply |
| design of the removable storage — CLP | Yes |
| operating voltage / of the signaling contacts — at DC / rated value | 24 V |
| operational current / of the signaling contacts — at DC / maximum | 0.1 A |
supply voltage, current consumption, power loss
| product component / connection for redundant voltage supply | No |
| type of voltage supply / redundant power supply unit | No |
| type of voltage / 1 / of the supply voltage | DC |
| type of voltage / 1 / of the supply voltage — supply voltage / 1 / rated value | 100 V ... 250 V DC |
| type of voltage / 1 / of the supply voltage — power loss [W] / 1 / rated value | 99 W |
| type of voltage / 1 / of the supply voltage — supply voltage / 1 / voltage range | 77 ... 300 |
| type of voltage / 1 / of the supply voltage — consumed current / 1 / maximum | 0.8 A |
| type of voltage / 1 / of the supply voltage — type of electrical connection / 1 / for power supply | 2-pole terminal block |
| type of voltage / 1 / of the supply voltage — product component / 1 / fusing at power supply input | Yes |
| type of voltage / 1 / of the supply voltage — fuse protection type / 1 / at input for supply voltage | F 4 A / 250 V |
| type of voltage / 2 / of the supply voltage | AC (50 / 60 Hz) |
| type of voltage / 2 / of the supply voltage — supply voltage / 2 / rated value | 240 V; 100V ... 240V AC |
| type of voltage / 2 / of the supply voltage — power loss [W] / 2 / rated value | 99 W |
| type of voltage / 2 / of the supply voltage — supply voltage / 2 / voltage range | 85 ... 264 |
| type of voltage / 2 / of the supply voltage — consumed current / 2 / maximum | 0.8 A |
| type of voltage / 2 / of the supply voltage — type of electrical connection / 2 / for power supply | IEC plug C14 |
| type of voltage / 2 / of the supply voltage — fuse protection type / 2 / at input for supply voltage | F 4 A / 250 V |
ambient conditions
| ambient temperature / in horizontal mounting position / during operation | -25 ... +60 °C; Starting at -25 °C; The maximum ambient temperature during operation depends on the operating height and the plug-in transceivers, see also manual. |
| installation altitude / at height above sea level / maximum | 3000 m |
| relative humidity — at 25 °C / without condensation / during operation / maximum | 95 % |
| operating condition / fanless operation | Yes |
| protection class IP | IP20 |

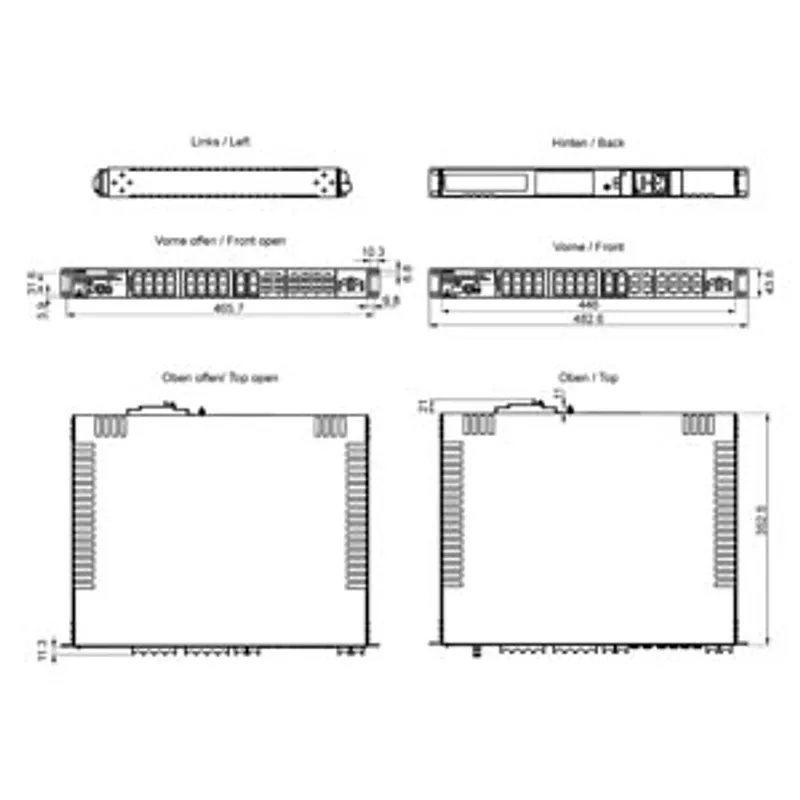

design, dimensions and weights
| design | 19-inch rack |
| number of modular height units / relating to 19-inch cabinet | 1 |
| width | 446 mm |
| height | 43.6 mm |
| depth | 374.8 mm |
| net weight | 8.2 kg |
| material / of the enclosure | metal |
| fastening method — 19-inch installation | Yes |
product features, product functions, product components / general
| cascading in the case of a redundant ring / at reconfiguration time of <\~0.3\~s | 50 |
| cascading in cases of star topology | any (depending only on signal propagation time) |
| number of automatically learnable MAC addresses | 16382 |
| number of QoS queues / per port | 8 |
| product function — QoS according to IEEE 802.1Q | Yes |
| product feature — Store & Forward switching method | Yes |
product functions / management, configuration, engineering
| product function — CLI | Yes |
| product function — web-based management | Yes |
| product function — MIB support | Yes |
| product function — TRAPs via email | Yes |
| product function — configuration with STEP 7 | Yes |
| product function — RMON | Yes |
| product function — port mirroring | Yes |
| product function — multiport mirroring | Yes |
| product function — CoS | Yes |
| product function — PROFINET IO diagnosis | Yes |
| product function — switch-managed | Yes |
| PROFINET conformity class | B |
| network load class / according to PROFINET | III |
| telegram length / for Ethernet / maximum | 9194 byte |
| protocol / is supported — Telnet | Yes |
| protocol / is supported — HTTP | Yes |
| protocol / is supported — HTTPS | Yes |
| protocol / is supported — TFTP | Yes |
| protocol / is supported — FTP | Yes |
| protocol / is supported — SFTP | Yes |
| protocol / is supported — BOOTP | Yes |
| protocol / is supported — NETCONF | No |
| protocol / is supported — GMRP | Yes |
| protocol / is supported — DCP | Yes |
| protocol / is supported — LLDP | Yes |
| protocol / is supported — EtherNet/IP | Yes |
| protocol / is supported — SNMP v1 | Yes |
| protocol / is supported — SNMP v2 | Yes |
| protocol / is supported — SNMP v3 | Yes |
| protocol / is supported — IGMP (snooping/querier) | Yes |
| identification & maintenance function — I&M0 - device-specific information | Yes |
| identification & maintenance function — I&M1 - higher level designation/location designation | Yes |
product functions / diagnostics
| product function — port diagnostics | Yes |
| product function — statistics Packet Size | Yes |
| product function — statistics packet type | Yes |
| product function — error statistics | Yes |
| product function — SysLog | Yes |
product functions / VLAN
| product function — VLAN - port based | Yes |
| product function — VLAN - protocol-based | No |
| product function — VLAN - IP-based | No |
| product function — VLAN dynamic | Yes |
| number of VLANs / maximum | 257 |
| number of VLANs - dynamic / maximum | 257 |
| number of VLANs / at ring redundancy (HRP; MRP; standby link) | 257 |
| product function / VXLAN according to RFC 7348 | Yes |
product functions / DHCP
| product function — DHCP server | Yes |
| product function — DHCP client | Yes |
| product function — DHCP Option 82 | Yes |
| product function — DHCP Option 66 | Yes |
| product function — DHCP Option 67 | Yes |
product functions / routing
| service / routing / note | IP routing integrated |
| product function — static IP routing | Yes |
| product function — static IP routing IPv6 | No |
| product function — dynamic IP routing | Yes |
| product function — dynamic IP routing IPv6 | No |
| protocol / is supported — RIPv2 | Yes |
| protocol / is supported — RIPnG for IPv6 | No |
| protocol / is supported — OSPFv2 | Yes |
| protocol / is supported — OSPFv3 for IPv6 | No |
| protocol / is supported — VRRP | Yes |
| protocol / is supported — VRRP for IPv6 | No |
product functions / redundancy
| protocol / is supported / Media Redundancy Protocol (MRP) | Yes |
| product function — media redundancy protocol (MRP) with redundancy manager | Yes |
| product function — Media Redundancy Protocol Interconnection (MRP-I) | Yes; LC mode |
| product function — of the PROFINET IO device / is supported / PROFINET system redundancy | Yes |
| product function — ring redundancy | Yes |
| product function — high speed redundancy protocol (HRP) with redundancy manager | Yes |
| product function — high speed redundancy protocol (HRP) with standby redundancy | Yes |
| product function — redundancy procedure STP | Yes |
| product function — redundancy procedure RSTP | Yes |
| product function — redundancy procedure RSTP+ | Yes |
| product function — redundancy procedure MSTP | Yes |
| product function — High-availability Seamless Redundancy (HSR) | Yes |
| product function — Parallel Redundancy Protocol (PRP)/operation in the PRP-network | Yes |
| product function — Parallel Redundancy Protocol (PRP)/Redundant Network Access (RNA) | Yes |
| product function — passive listening | Yes |
| protocol / is supported — STP/RSTP | Yes |
| protocol / is supported — STP | Yes |
| protocol / is supported — RSTP | Yes |
| protocol / is supported — MSTP | Yes |
| protocol / is supported — RSTP big network support | Yes |
| protocol / is supported — LACP | Yes |
system modification during operation
| product function / configuration in RUN via CiR/H-CiR | Yes |
product functions / security
| product function — IEEE 802.1x (radius) | Yes |
| product function — broadcast/multicast/unicast limiter | Yes |
| product function — broadcast blocking | Yes |
| protocol / is supported — SSH | Yes |
| protocol / is supported — SSL | Yes |
product functions / time
| product function — SICLOCK support | Yes |
| product function — NTP-client | Yes |
| product function — SNTP client | Yes |
| product function — IEEE 1588 v2 transparent forwarding | Yes |
| protocol / is supported — NTP | Yes |
| protocol / is supported — SNTP | Yes |
| accuracy / at IEEE 1588 v2 — not less than | 100 ns |
| accuracy / at IEEE 1588 v2 — typical | 50 ns |
standards, specifications, approvals
| certificate of suitability — CE marking | Yes |
| certificate of suitability — UKCA marking | Yes |
| certificate of suitability — EC Declaration of Conformity EN 61010, IEC 61010-1, UL 61010A-1 | Yes |
| certificate of suitability — KC approval | Yes |
| certificate of suitability — Regulatory Compliance Mark (RCM) | Yes |
| product conformity / according to EMC-guideline | 2014/30/EU |
| standard — for EMC interference emission | EN 61000-6-4, EN 50121-9 |
| standard — for immunity to EMC | EN 61000-6-2, EN 50121-4 |
| standard — for safety / from CSA and UL | UL 62368-1, UL 61010 - 2 |
standards, specifications, approvals / other
| certificate of suitability — railway application in accordance with EN 50121-4 | Yes; use only in areas not accessible to the public |
| certificate of suitability — railway application in accordance with EN 50125-3 | Yes; Section 4.2: Class AX (up to 2000m); section 4.3: T1: Containers N.T.C and T.C. / Buildings N.C.C and C.C, T2: Containers N.T.C and T.C. / Buildings N.C.C and C.C, TX: Containers N.T.C and T.C. / Buildings N.C.C and C.C., derating according to the manual must be observed when SFP/SFP+ transceivers are used; section 4.4: T1: Containers C.C. / Buildings N.C.C and C.C., T2: Containers C.C. / Buildings N.C.C and C.C, T3: Containers C.C. / Buildings N.C.C and C.C; section 4.11: C1: Indoor, C2: Indoor (except condensation), C3: Indoor (except condensation), 4B1, 4S10, UL 62368-1, UL 61010-2-10; section 4.13: partially, Test Fc: Vibration EN 60068-2-6; IEC 60068-2-6, Test Ea: Shock EN 60068-2-27; IEC 60068-2-27, Test Ec: Rough handling, shocks EN 60068-2-31; IEC 60068-2-31; section 4.14: yes; section 4.15: yes, according to manual. |
| certificate of suitability — RoHS conformity | Yes |
| resistance to air pollution / conformity according to ANSI/ISA-71.04 | Yes; G3 |
| IT security for industrial automation systems / according to IEC 62443-4-2:2019 | Yes |
standards, specifications, approvals / marine classification
| certificate of suitability / shipbuilding approval / note | Certifications marked 'No' are currently under renewal. |
| Marine classification association — American Bureau of Shipping Europe Ltd. (ABS) | No |
| Marine classification association — French marine classification society (BV) | No |
| Marine classification association — Chinese Classification Society (CCS) | No |
| Marine classification association — Det Norske Veritas (DNV) | No |
| Marine classification association — Korean Register of Shipping (KRS) | No |
| Marine classification association — Lloyds Register of Shipping (LRS) | No |
| Marine classification association — Nippon Kaiji Kyokai (NK) | No |
| Marine classification association — Polski Rejestr Statkow (PRS) | No |
| Marine classification association — Royal Institution of Naval Architects (RINA) | No |
standards, specifications, approvals / Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 1274.81 kg |
| global warming potential [CO2 eq] — during manufacturing | 225.96 kg |
| global warming potential [CO2 eq] — during operation | 1048 kg |
| global warming potential [CO2 eq] — after end of life | 0.85 kg |
product functions / general
| MTBF | 8.6 a |
| reference temperature / for MTBF determination | 40 °C |
| warranty period | 5 a |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
Approvals / Certificates
| global warming potential [CO2 eq] / during manufacturing | 225.96 kg |
| global warming potential [CO2 eq] / during operation | 1048 kg |
| global warming potential [CO2 eq] / after end of life | 0.85 kg |
| global warming potential [CO2 eq] / total | 1274.81 kg |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6GK5534-3TR00-3AR3: frequently asked questions
When can 6GK5534-3TR00-3AR3 be shipped?
6GK5534-3TR00-3AR3 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6GK5534-3TR00-3AR3 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6GK5534-3TR00-3AR3 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6GK5534-3TR00-3AR3, subject to availability and destination.
More Siemens parts
Siemens 6GK5534-3TR00-3AR3Price and lead time confirmed within 1 business day
Request a Quote
