Siemens 6GK1503-3CD00
PROFIBUS OLM/G12-EEC V4.0 optical link module with 1 RS 485 and 2 glass fiber optic cable interfaces
- MPN
- 6GK1503-3CD00
- Category
- OLM optical link module
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

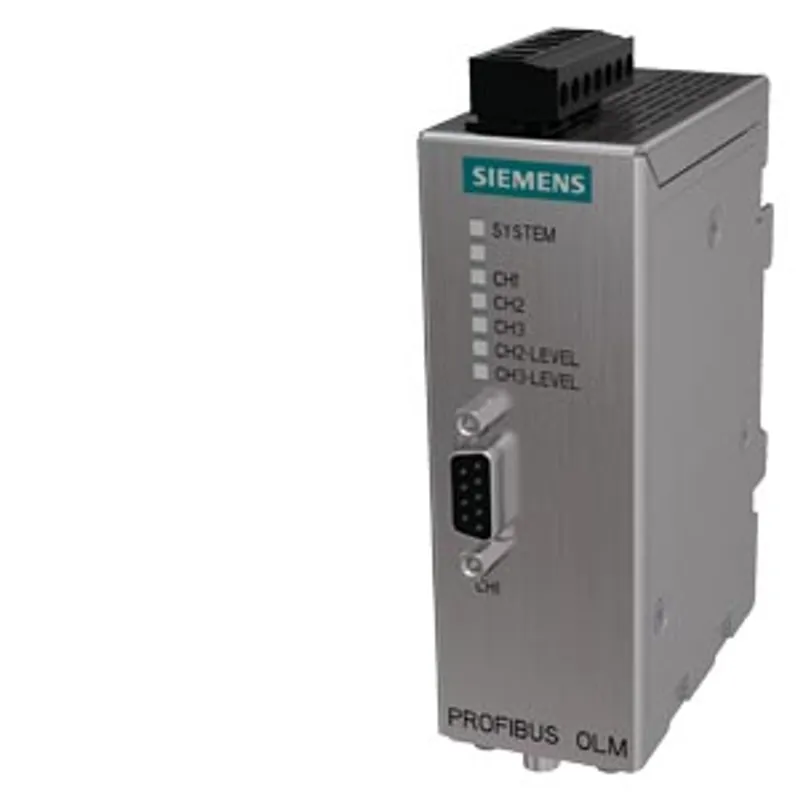

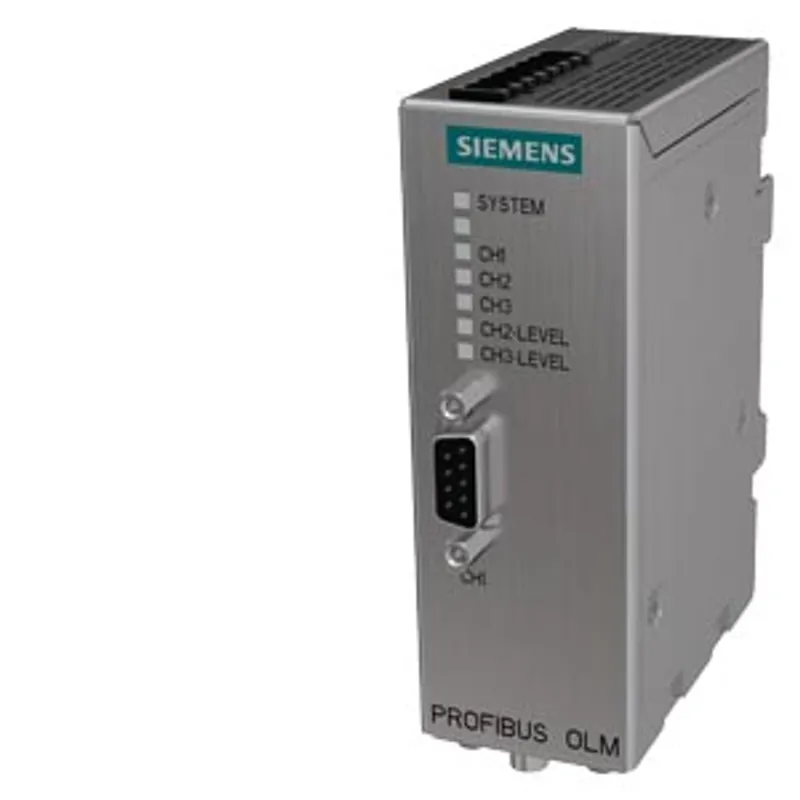

What is the Siemens 6GK1503-3CD00?
PROFIBUS OLM/G12-EEC V4.0 optical link module with 1 RS 485 and 2 glass fiber optic cable interfaces (4 BFOC sockets) for extended temperature range -20...+60 °C.
Specifications
General
| product brand name | SIMATIC NET |
| Technical Product Detail Page | https://i.siemens.com/1P6GK1503-3CD00 |
transfer rate
| transfer rate / with PROFIBUS | 9.6 kbit/s ... 12 Mbit/s |
| transfer rate / with PROFIBUS PA | 45.45 kbit/s |
interfaces
| number of electrical/optical connections / for network components or terminal equipment / maximum | 3 |
| number of electrical connections — for network components or terminal equipment | 1 |
| number of electrical connections — for measuring device | 1 |
| number of electrical connections — for signaling contact | 1 |
| number of electrical connections — for power supply | 1 |
| number of electrical connections — for redundant voltage supply | 1 |
| type of electrical connection — for network components or terminal equipment | 9-pin Sub-D socket |
| type of electrical connection — for measuring device | 2-pole terminal block |
| type of electrical connection — for power supply and signaling contact | 5-pole terminal block |
| number of optical interfaces / for fiber optic cable | 2 |
| design of the optical interface / for fiber optic cable | BFOC port |
optical data
| attenuation factor / of the FOC transmission link — for glass FOC with 50/125 µm / at 3 dB/km / maximum | 10 dB |
| attenuation factor / of the FOC transmission link — for glass FOC with 62.5/125 µm / at 3.5 dB/km / maximum | 12 dB |
| propagation delay [bit] | 6.5 bit |
| connectable optical power relative to 1 mW — for glass FOC with 50/125 µm / at 3 dB/km | -16 dB |
| connectable optical power relative to 1 mW — for glass FOC with 62.5/125 µm / at 3.5 dB/km | -13 dB |
| optical sensitivity relating to 1 mW — for glass FOC with 50/125 µm / at 3 dB/km | -28 dB |
| optical sensitivity relating to 1 mW — for glass FOC with 62.5/125 µm / at 3.5 dB/km | -28 dB |
| wavelength / of the optical interface / note | 860 nm, multimode |
| wire length — for glass FOC with 50/125 µm / at 3 dB/km / maximum | 3 km |
| wire length — for glass FOC with 62.5/125 µm / at 3.5 dB/km / maximum | 3 km |
signal inputs/outputs
| operating voltage / of the signaling contacts / at DC / rated value | 24 V |
| operational current / of the signaling contacts / at DC / maximum | 0.1 A |
supply voltage, current consumption, power loss
| type of voltage / of the supply voltage | DC |
| supply voltage / at DC / rated value | 24 V |
| supply voltage / at DC | 18.8 ... 28.8 V |
| product component / fusing at power supply input | Yes |
| consumed current / at DC / at 24 V / maximum | 0.2 A |
ambient conditions
| ambient temperature — during operation | -20 ... +60 °C |
| ambient temperature — during storage | -40 ... +70 °C |
| ambient temperature — during transport | -40 ... +70 °C |
| relative humidity — at 25 °C / without condensation / during operation / maximum | 95 % |
| protection class IP | IP40 |

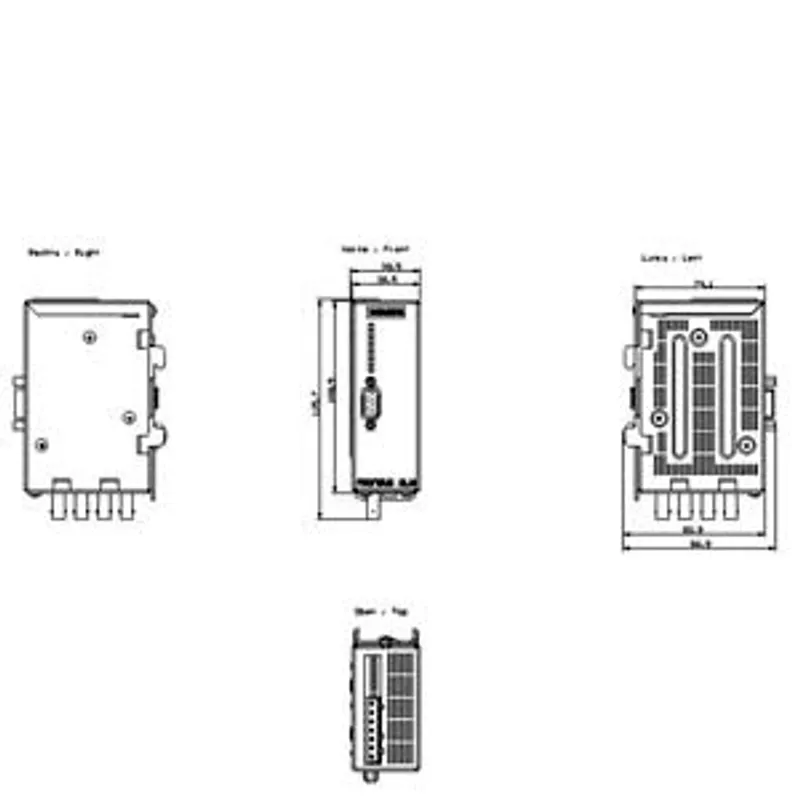

design, dimensions and weights
| design | compact |
| width | 39.5 mm |
| height | 112 mm |
| depth | 74.5 mm |
| net weight | 340 g |
| fastening method — 35 mm DIN-rail mounting | Yes |
| fastening method — wall mounting | Yes |
product functions / redundancy
| product function / ring redundancy | Yes |
standards, specifications, approvals
| standard — for safety / from CSA and UL | UL 60950-1, CSA C22.2 Nr. 60950-1 |
| standard — for emitted interference | EN 61000-6-4 (Class A) |
| standard — for interference immunity | EN 61000-6-2 |
| certificate of suitability | EN 61000-6-2, EN 61000-6-4 |
| certificate of suitability — CE marking | Yes |
| certificate of suitability — C-Tick | Yes |
| Marine classification association — American Bureau of Shipping Europe Ltd. (ABS) | Yes |
| Marine classification association — French marine classification society (BV) | Yes |
| Marine classification association — Det Norske Veritas (DNV) | Yes |
| Marine classification association — Germanische Lloyd (GL) | Yes |
| Marine classification association — Lloyds Register of Shipping (LRS) | Yes |
| Marine classification association — Nippon Kaiji Kyokai (NK) | Yes |
| product function / is supported / identification link | Yes; acc. to IEC 61406-1:2022 |
standards, specifications, approvals / hazardous environments
| certificate of suitability / CCC / for hazardous zone according to GB standard | No |
standards, specifications, approvals / Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 165.41 kg |
| global warming potential [CO2 eq] — during manufacturing | 15.09 kg |
| global warming potential [CO2 eq] — during operation | 150.26 kg |
| global warming potential [CO2 eq] — after end of life | 0.06 kg |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://siemens.com/industrial-communication |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
