Siemens 6GK1562-3AA01

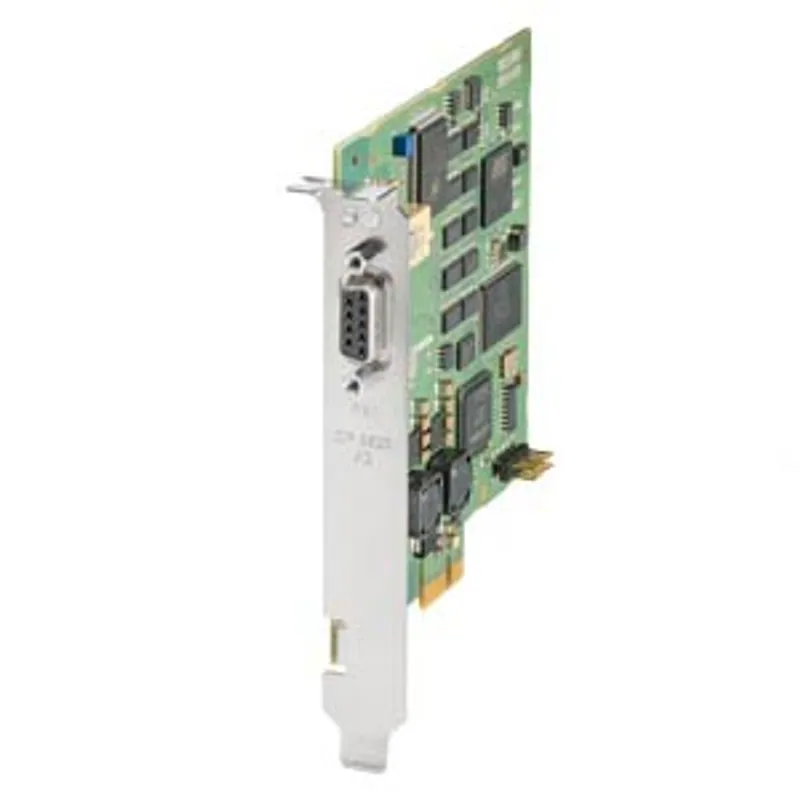

Communications processor CP 5623 A2 PCI Express X1 (3. 3 V) for connection to PROFIBUS
- MPN
- 6GK1562-3AA01
- Category
- CP 5623 A2
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6GK1562-3AA01?
Communications processor CP 5623 A2 PCI Express X1 (3. 3 V) for connection to PROFIBUS; incl. configuration tool and DP-Base software: DP-RAM interface for DP master incl. PG and FDL protocol, single license for 1 installation, runtime software, class A; software and electronic manual on DVD, 2 languages (de, en) ; operating system support see SIMATIC NET software.
Specifications
General
| product brand name | SIMATIC NET |
| Technical Product Detail Page | https://i.siemens.com/1P6GK1562-3AA01 |
transfer rate
| transfer rate — at the 1st interface / according to PROFIBUS | 9.6 kbit/s ... 12 Mbit/s |
interfaces
| number of electrical connections — at the 1st interface / according to PROFIBUS | 1 |
| type of electrical connection — at the 1st interface / according to PROFIBUS | 9-pin Sub-D socket (RS 485) |
| type of electrical connection — of the backplane bus | PCI Express x1 |
supply voltage, current consumption, power loss
| type of voltage / of the supply voltage | DC |
| supply voltage — 1 / from backplane bus | 3.3 V |
| supply voltage — 2 / from backplane bus | 12 V |
| relative symmetrical tolerance / at DC — at 3.3 V | 9 % |
| relative symmetrical tolerance / at DC — at 12 V | 8 % |
| consumed current — 1 / from backplane bus / at DC / maximum | 0.3 A |
| consumed current — 2 / from backplane bus / at DC / maximum | 0.25 A |
| power loss [W] | 4 W |
ambient conditions
| ambient temperature — during operation | 5 ... 55 °C |
| ambient temperature — during storage | -20 ... +60 °C |
| ambient temperature — during transport | -20 ... +60 °C |
| relative humidity / at 25 °C / without condensation / during operation / maximum | 85 % |
| protection class IP | IP00 |
design, dimensions and weights
| module format | PCI Express x1 (half length) |
| width | 18 mm |
| height | 112 mm |
| depth | 101 mm |
| net weight | 0.088 kg |
product features, product functions, product components / general
| number of plug-in cards of same design / plug-in / per PC station | 4 |
| number of units / note | - |
performance data / open communication
| software / for open communication / by means of SEND/RECEIVE / required | FDL driver included in scope of delivery of the CP |
| number of possible connections / for open communication / by means of SEND/RECEIVE / maximum | 80 |
performance data / PROFIBUS DP
| software / for DP master function / required | No |
| service / as DP master — DPV0 | Yes |
| service / as DP master — DPV1 | Yes |
| service / as DP master — DPV2 | Yes |
| number of DP devices / on DP master / operable | 124 |
| data volume — of the address range of the inputs / as DP master / total | 30256 byte |
| data volume — of the address range of the outputs / as DP master / total | 30256 byte |
| data volume — of the address range of the inputs / per DP device | 244 byte |
| data volume — of the address range of the outputs / per DP device | 244 byte |
| data volume — of the address range of the diagnostic data / per DP device | 244 byte |
| software / for DP device function / required | No |
| service / as DP device — DPV0 | Yes |
| service / as DP device — DPV1 | Yes |
| data volume — of the address range of the inputs / as DP device / total | 244 byte |
| data volume — of the address range of the outputs / as DP device / total | 244 byte |
performance data / S7 communication
| software / for S7 communication / required | yes, HARDNET-PB S7 |
| number of possible connections / for S7/PG communication / maximum | 50 |
performance data / multi-protocol mode
| number of active connections / with multi-protocol mode | 50 |
| number of configurable connections / per PC station | 207 |
product functions / management, configuration, engineering
| configuration software / required | Included in scope of supply |
product functions / diagnostics
| product function — port diagnostics | Yes |
standards, specifications, approvals / Environmental Product Declaration
| Environmental Product Declaration | Yes |
| global warming potential [CO2 eq] — total | 127.99 kg |
| global warming potential [CO2 eq] — during manufacturing | 18.9 kg |
| global warming potential [CO2 eq] — during operation | 109 kg |
| global warming potential [CO2 eq] — after end of life | 0.09 kg |
further information / internet links
| internet link — to website: Selection guide for cables and connectors | https://support.industry.siemens.com/cs/ww/en/view/109766358 |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to website: Industrial communication | https://www.siemens.com/simatic-net |
| internet link — to web page: SiePortal | https://sieportal.siemens.com/ |
| internet link — to website: Image database | https://www.automation.siemens.com/bilddb |
| internet link — to website: CAx-Download-Manager | https://www.siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
