Siemens 6GK1561-4AA02

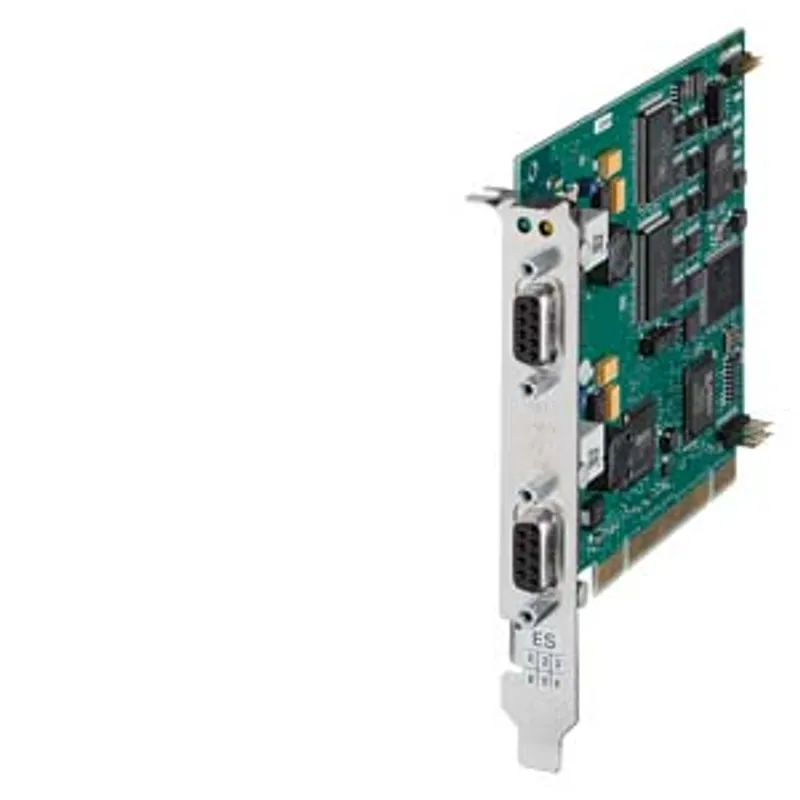

Communications processor CP 5614 A3, PCI card (32-bit; 3.3/5V; 33/66 MHz)

MPN: 6GK1561-4AA02
Category: CP 5614 A3

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6GK1561-4AA02?

Communications processor CP 5614 A3, PCI card (32-bit; 3.3/5V; 33/66 MHz); with master and slave interface for connection to PROFIBUS; including configuration tool and DP-Base software: DP-RAM interface for DP master; including PG and FDL protocol; Single License for 1 installation of runtime software, class A; software+electr. manuals on DVD; 2 languages (de, en); operating system support see SIMATIC NETsoftware.

Specifications

General

product brand name	SIMATIC NET
Technical Product Detail Page	https://i.siemens.com/1P6GK1561-4AA02

transfer rate

transfer rate — at the 1st interface / according to PROFIBUS	9.6 kbit/s ... 12 Mbit/s
transfer rate — at the 2nd interface / according to PROFIBUS	9.6 kbit/s ... 12 Mbit/s

interfaces

number of electrical connections — at the 1st interface / according to PROFIBUS	1
number of electrical connections — at the 2nd interface / according to PROFIBUS	1

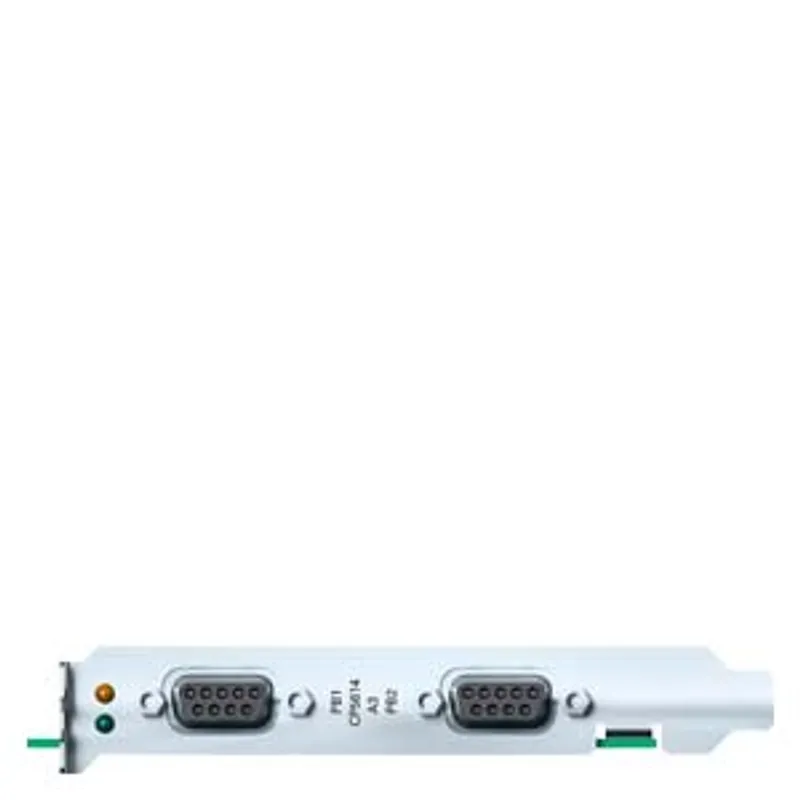

type of electrical connection — at the 1st interface / according to PROFIBUS	9-pin Sub-D socket (RS 485)
type of electrical connection — at the 2nd interface / according to PROFIBUS	9-pin Sub-D socket (RS 485)
type of electrical connection — of the backplane bus	PCI (32Bit 3,3V/5V UniversalKey 33/66MHz)

supply voltage, current consumption, power loss

type of voltage / of the supply voltage	DC
supply voltage — 1 / from backplane bus	3.3 V
supply voltage — 2 / from backplane bus	12 V
relative symmetrical tolerance / at DC — at 3.3 V	9 %
relative symmetrical tolerance / at DC — at 12 V	8 %
consumed current — 1 / from backplane bus / at DC / maximum	0.15 A
consumed current — 2 / from backplane bus / at DC / maximum	0.3 A
power loss [W]	4 W

ambient conditions

ambient temperature — during operation	5 ... 55 °C
ambient temperature — during storage	-20 ... +60 °C
ambient temperature — during transport	-20 ... +60 °C
relative humidity / at 25 °C / without condensation / during operation / maximum	85 %
protection class IP	IP00

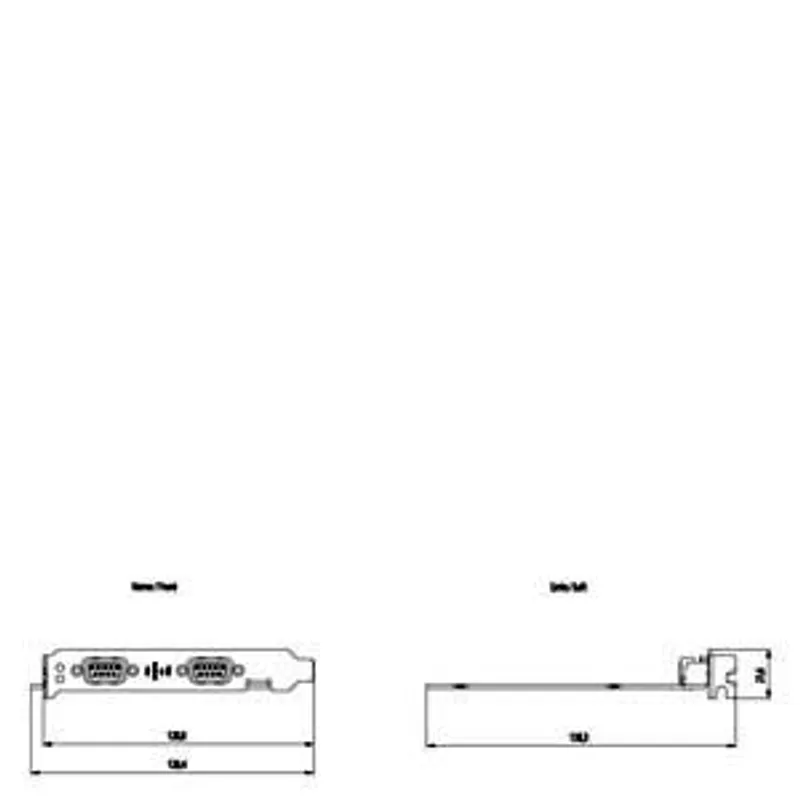

design, dimensions and weights

module format	PCI
width	18 mm
height	107 mm
depth	125 mm
net weight	0.113 kg

product features, product functions, product components / general

number of plug-in cards of same design / plug-in / per PC station	4
number of units / note	-

performance data / open communication

software / for open communication / by means of SEND/RECEIVE / required	FDL driver included in scope of delivery of the CP
number of possible connections / for open communication / by means of SEND/RECEIVE / maximum	80

performance data / PROFIBUS DP

software / for DP master function / required	No
service / as DP master — DPV0	Yes
service / as DP master — DPV1	Yes
service / as DP master — DPV2	Yes
number of DP devices / on DP master / operable	124
data volume — of the address range of the inputs / as DP master / total	30256 byte
data volume — of the address range of the outputs / as DP master / total	30256 byte
data volume — of the address range of the inputs / per DP device	244 byte
data volume — of the address range of the outputs / per DP device	244 byte
data volume — of the address range of the diagnostic data / per DP device	244 byte
software / for DP device function / required	No
service / as DP device — DPV0	Yes
service / as DP device — DPV1	Yes
data volume — of the address range of the inputs / as DP device / total	244 byte
data volume — of the address range of the outputs / as DP device / total	244 byte

performance data / S7 communication

software / for S7 communication / required	Yes, HARDNET-PB S7 (S7-5613)
number of possible connections / for S7/PG communication / maximum	50

performance data / multi-protocol mode

number of active connections / with multi-protocol mode	50
number of configurable connections / per PC station	207

product functions / management, configuration, engineering

configuration software / required

Included in scope of supply

product functions / diagnostics

product function — port diagnostics

Yes

standards, specifications, approvals / Environmental Product Declaration

Environmental Product Declaration	Yes
global warming potential [CO2 eq] — total	142.3181 kg
global warming potential [CO2 eq] — during manufacturing	33.2 kg
global warming potential [CO2 eq] — during operation	109 kg
global warming potential [CO2 eq] — after end of life	0.056 kg

further information / internet links

internet link — to website: Selection guide for cables and connectors	https://support.industry.siemens.com/cs/ww/en/view/109766358
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to website: Industrial communication	https://www.siemens.com/simatic-net
internet link — to web page: SiePortal	https://sieportal.siemens.com/
internet link — to website: Image database	https://www.automation.siemens.com/bilddb
internet link — to website: CAx-Download-Manager	https://www.siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)
