OLM optical link module Parts
Compare OLM optical link module
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Technical Product Detail Page | number of electrical/optical connections / for network components or terminal equipment / maximum | number of optical interfaces / for fiber optic cable | wavelength / of the optical interface / note | ambient temperature — during operation |
|---|---|---|---|---|---|
| 6GK1503-2CC00 | https://i.siemens.com/1P6GK1503-2CC00 | 2 | 1 | 1310 nm, single-mode | 0 ... 60 °C |
| 6GK1503-2CB00 | https://i.siemens.com/1P6GK1503-2CB00 | 2 | 1 | 860 nm, multimode | 0 ... 60 °C |
| 6GK1503-3CD00 | https://i.siemens.com/1P6GK1503-3CD00 | 3 | 2 | 860 nm, multimode | -20 ... +60 °C |
| 6GK1503-3CC00 | https://i.siemens.com/1P6GK1503-3CC00 | 3 | 2 | 1310 nm, single-mode | 0 ... 60 °C |

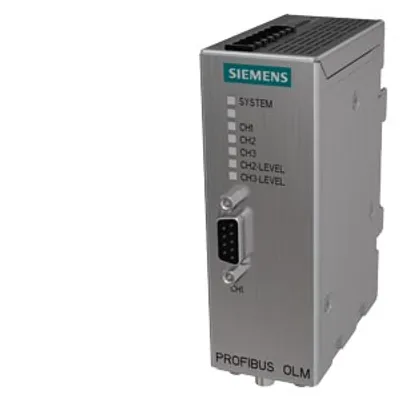

| 6GK1503-3CB00 | https://i.siemens.com/1P6GK1503-3CB00 | 3 | 2 | 860 nm, multimode | 0 ... 60 °C |
Common to all listed parts
| transfer rate / with PROFIBUS | 9.6 kbit/s ... 12 Mbit/s |
| transfer rate / with PROFIBUS PA | 45.45 kbit/s |
| number of electrical connections — for network components or terminal equipment | 1 |
| number of electrical connections — for measuring device | 1 |
| number of electrical connections — for signaling contact | 1 |
| number of electrical connections — for power supply | 1 |
| number of electrical connections — for redundant voltage supply | 1 |
| type of electrical connection — for network components or terminal equipment | 9-pin Sub-D socket |
