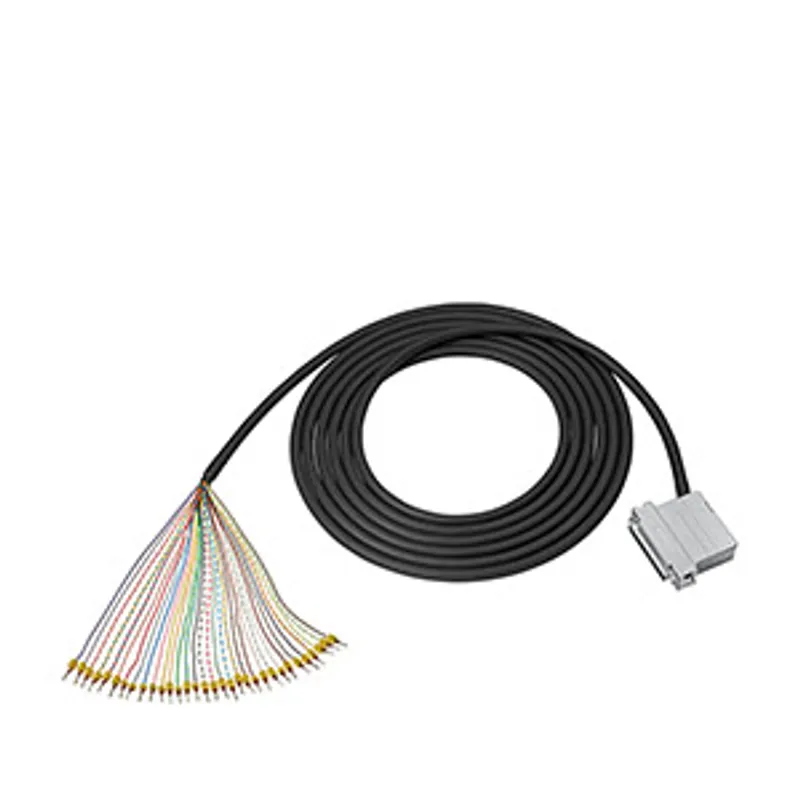

Siemens 6ES7923-3BF00-0HB0

Connection cable shielded f

MPN: 6ES7923-3BF00-0HB0
Category: Flexible connection

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6ES7923-3BF00-0HB0?

connection cable shielded f. SIMATIC ET200 SP HA from 37-pole D-sub to bare ends w. wire end sleeve labeled 32 channels L = 5 m, 0.14mm2

Specifications

General

Technical Product Detail Page	https://i.siemens.com/1P6ES7923-3BF00-0HB0
target system	SIMATIC ET 200SP HA
suitability for use	I/O modules
suitability for interaction — input card PLC	Yes
suitability for interaction — PLC output card	Yes
suitability for use — digital signal transmission	Yes
suitability for use — analog signal transmission	Yes
product brand name	SIMATIC Top connect
product type designation	Modular connection
product designation	Pre-assembled round cable

electrical data

operating voltage / at DC — rated value	24 V
operating voltage / at DC — maximum	60 V

connection method

design of cable	Round cable
number of channels	32
wire length	5 m
conductor cross section / rated value	0.14 mm²
Product component / with shield	Yes
design of the shield	braided shield
number of poles	32
number of poles — at the 1st interface	37; control page
number of poles — at the 2nd interface	32; numbered
connector type	D-Sub connector
type of electrical connection / on enclosure	Female header
type of electrical connection / in the field	End sleeve

standards, specifications, approvals

certificate of suitability — cULus approval

ambient conditions

ambient temperature — during operation	-25 ... +60 °C
ambient temperature — during storage	-30 ... +70

mechanical data

outer diameter / of cable sheath	9 mm
material / of the connection cable sheath	PVC
color / of cable sheath	Black
net weight	0.8 kg

internet links

internet link — to website: Industry Online Support

https://support.industry.siemens.com

additional information

other information

technical specifications apply to rated input voltage values and +25 °C ambient temperature (if not otherwise specified)

marketing text

The 32-pole round cable (shielded) with a length of 5.0m represents the link between the control and field. This pre-assembled cable enables a trouble-free and safe signal flow. Even complex installations remain manageable and can be checked in the shortest possible time, which makes maintenance and expansion affordable. This pre-assembled connecting cable is part of the modular SIMATIC TOP connect connection for the fastest and safest system cabling. In addition to low wiring costs, error sources in cabling can be significantly reduced.

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6ES7923-3BF00-0HB0PDF

6ES7923-3BF00-0HB0: frequently asked questions

When can 6ES7923-3BF00-0HB0 be shipped?

6ES7923-3BF00-0HB0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 6ES7923-3BF00-0HB0 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 6ES7923-3BF00-0HB0 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7923-3BF00-0HB0, subject to availability and destination.
