Siemens 6ES7923-3BB00-0HC0

Connection cable shielded f

MPN: 6ES7923-3BB00-0HC0
Category: Flexible connection

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6ES7923-3BB00-0HC0?

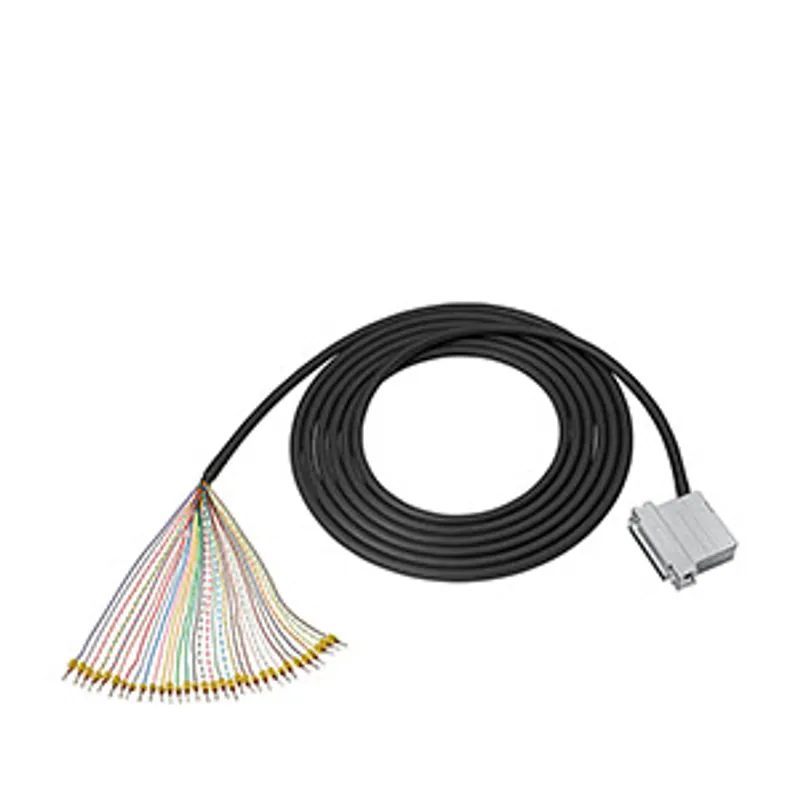

connection cable shielded f. SIMATIC ET200 SP HA from 37-pole D-sub to bare ends with wire end sleeve labeled 32 channels L = 1 m, 0.34 mm2

Specifications

General

Technical Product Detail Page	https://i.siemens.com/1P6ES7923-3BB00-0HC0
target system	SIMATIC ET 200SP HA
suitability for use	I/O modules
suitability for interaction — input card PLC	Yes
suitability for interaction — PLC output card	Yes
suitability for use — digital signal transmission	Yes
suitability for use — analog signal transmission	Yes
product brand name	SIMATIC Top connect
product type designation	Modular connection
product designation	Pre-assembled round cable

electrical data

operating voltage / at DC — rated value	24 V
operating voltage / at DC — maximum	60 V

connection method

design of cable	Round cable
number of channels	32
wire length	1 m
conductor cross section / rated value	0.34 mm²
Product component / with shield	Yes
design of the shield	braided shield
number of poles	32
number of poles — at the 1st interface	37; control page
number of poles — at the 2nd interface	32; numbered
marking / of cores	label clip
connector type	D-Sub connector
type of electrical connection / on enclosure	Female header
type of electrical connection / in the field	End sleeve

standards, specifications, approvals

certificate of suitability — cULus approval

ambient conditions

ambient temperature — during operation	-30; without vibrations and oscillations -40 °C ... +70 °C
ambient temperature — during storage	-30 ... +70

mechanical data

outer diameter / of cable sheath	11 mm
material / of the connection cable sheath	PVC
color / of cable sheath	Black
net weight	0.4 kg

internet links

internet link — to website: Industry Mall	https://mall.industry.siemens.com
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to web page: system cabling	https://siemens.com/simatic-top-connect
internet link — to website: Industry Online Support	https://support.industry.siemens.com

additional information

other information

technical specifications apply to rated input voltage values and +25 °C ambient temperature (if not otherwise specified)

marketing text

The 32-pole round cable, 0.34 mm2 (shielded) with a length of 1 m represents the link between the control and the field. This preassembled cable enables an interference-free and reliable signal flow. In this way, even complex installations remain manageable and can be checked in the shortest possible time, which is particularly valuable when it comes to maintenance and expansion. This preassembled connecting cable is part of the modular connection of SIMATIC TOP connect for the fastest and safest system cabling. In addition to low wiring workload, sources of error during cabling can be significantly reduced.

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6ES7923-3BB00-0HC0PDF
