Flexible connection Parts
Compare Flexible connection
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | suitability for interaction — input card PLC | wire length | conductor cross section / rated value | outer diameter / of cable sheath | net weight |
|---|---|---|---|---|---|

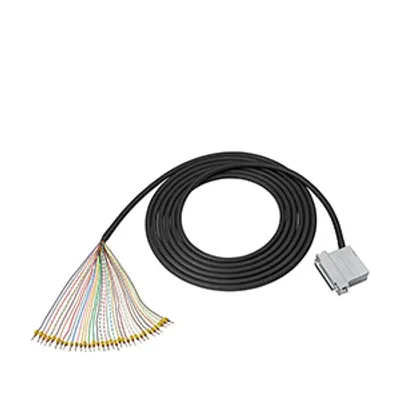

| 6ES7923-3BF00-0HB0 | Yes | 5 m | 0.14 mm² | 9 mm | 0.8 kg |
| 6ES7923-3BD00-0HC0 | Yes | 3 m | 0.34 mm² | 11 mm | 0.5 kg |
| 6ES7923-3BD00-0HB0 | Yes | 3 m | 0.14 mm² | 9 mm | 0.5 kg |
| 6ES7923-3BB00-0HC0 | Yes | 1 m | 0.34 mm² | 11 mm | 0.4 kg |

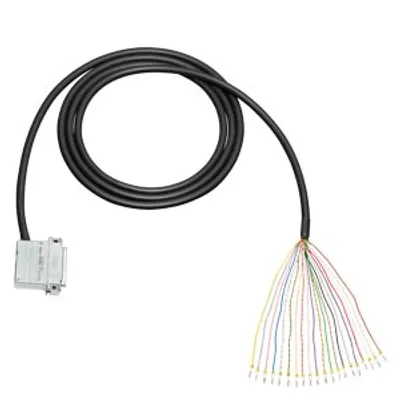

| 6ES7923-1BJ00-0HD0 | No | 8 m | 0.56 mm² | 10 mm | 0.7 kg |
| 6ES7923-1BF00-0HD0 | No | 5 m | 0.56 mm² | 10 mm | 0.6 kg |
Common to all listed parts
| target system | SIMATIC ET 200SP HA |
| suitability for use | I/O modules |
| suitability for interaction — PLC output card | Yes |
| suitability for use — digital signal transmission | Yes |
| product type designation | Modular connection |
| product designation | Pre-assembled round cable |
| operating voltage / at DC — rated value | 24 V |
| operating voltage / at DC — maximum | 60 V |
