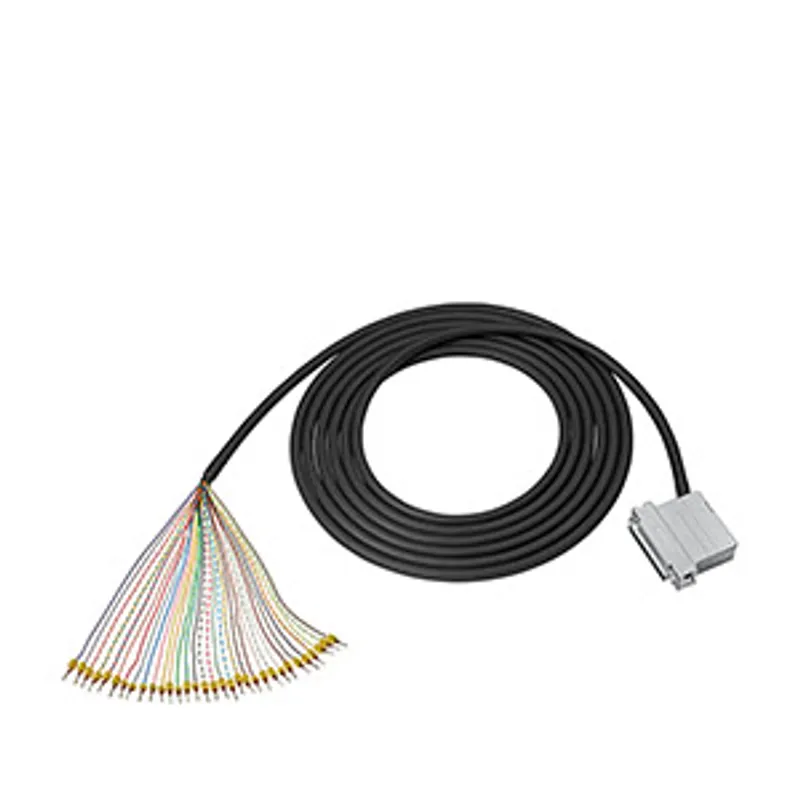

Siemens 6ES7923-3BD00-0HC0
Connection cable shielded f
- MPN
- 6ES7923-3BD00-0HC0
- Category
- Flexible connection
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7923-3BD00-0HC0?
connection cable shielded f. SIMATIC ET200 SP HA from 37-pole D-sub to bare ends with wire end sleeve labeled 32 channels L = 3 m, 0.34 mm2
Specifications
General
| Technical Product Detail Page | https://i.siemens.com/1P6ES7923-3BD00-0HC0 |
| target system | SIMATIC ET 200SP HA |
| suitability for use | I/O modules |
| suitability for interaction — input card PLC | Yes |
| suitability for interaction — PLC output card | Yes |
| suitability for use — digital signal transmission | Yes |
| suitability for use — analog signal transmission | Yes |
| product brand name | SIMATIC Top connect |
| product type designation | Modular connection |
| product designation | Pre-assembled round cable |
electrical data
| operating voltage / at DC — rated value | 24 V |
| operating voltage / at DC — maximum | 60 V |
connection method
| design of cable | Round cable |
| number of channels | 32 |
| wire length | 3 m |
| conductor cross section / rated value | 0.34 mm² |
| Product component / with shield | Yes |
| design of the shield | braided shield |
| number of poles | 32 |
| number of poles — at the 1st interface | 37; control page |
| number of poles — at the 2nd interface | 32; numbered |
| marking / of cores | label clip |
| connector type | D-Sub connector |
| type of electrical connection / on enclosure | Female header |
| type of electrical connection / in the field | End sleeve |
standards, specifications, approvals
| certificate of suitability — cULus approval | No |
ambient conditions
| ambient temperature — during operation | -30; without vibrations and oscillations -40 °C ... +70 °C |
| ambient temperature — during storage | -30 ... +70 |
mechanical data
| outer diameter / of cable sheath | 11 mm |
| material / of the connection cable sheath | PVC |
| color / of cable sheath | Black |
| net weight | 0.5 kg |
internet links
| internet link — to website: Industry Mall | https://mall.industry.siemens.com |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: system cabling | https://siemens.com/simatic-top-connect |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
additional information
| other information | technical specifications apply to rated input voltage values and +25 °C ambient temperature (if not otherwise specified) |
| marketing text | The 32-pole round cable, 0.34 mm2 (shielded) with a length of 3 m represents the link between the control and the field. This preassembled cable enables an interference-free and reliable signal flow. In this way, even complex installations remain manageable and can be checked in the shortest possible time, which is particularly valuable when it comes to maintenance and expansion. This preassembled connecting cable is part of the modular connection of SIMATIC TOP connect for the fastest and safest system cabling. In addition to low wiring workload, sources of error during cabling can be significantly reduced. |
