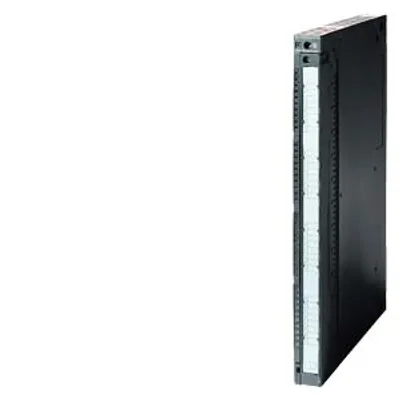

SM 422 digital output module Parts
Compare SM 422 digital output module
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | from backplane bus 5 V DC, max. | Power loss, typ. | Switching capacity of the outputs — on lamp load, max. | Total current of the outputs (per group) — all mounting positions — up to 40 °C, max. | Potential separation digital outputs — between the channels, in groups of |
|---|---|---|---|---|---|
| 6ES7422-7BL00-0AB0 | 200 mA | 8 W | 5 W | 4 A | 8 |
| 6ES7422-1HH00-0AA0 | 1 A | 4.5 W | 60 W | 10 A; 10 A with fan subassembly | 2 |
| 6ES7422-1FH00-0AA0 | 400 mA | 16 W | 50 W | 4 A; 6 A with fan assembly | 4 |
| 6ES7422-1BL00-0AA0 | 200 mA | 4 W | 5 W | 4 A | 32 |
| 6ES7422-1BH11-0AA0 | 160 mA | 5 W | 10 W | 3 A | 8 |
Common to all listed parts
| Controlling a digital input | Yes; possible |
| Cable length — shielded, max. | 1 000 m |
| Cable length — unshielded, max. | 600 m |
| Potential separation digital outputs — between the channels and backplane bus | Yes |
| Width | 25 mm |
| Height | 290 mm |
| Depth | 210 mm |
