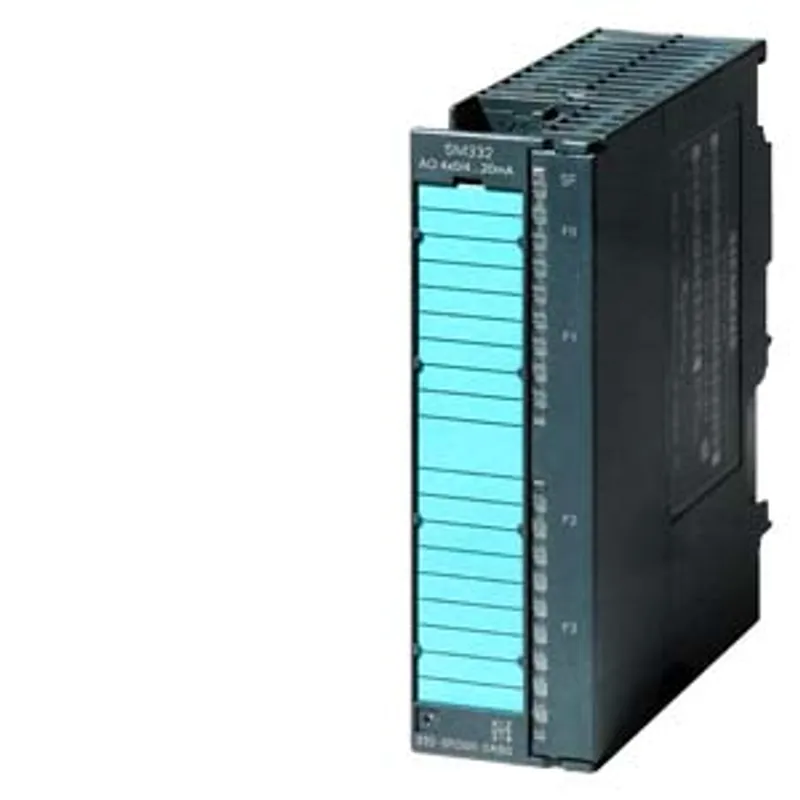

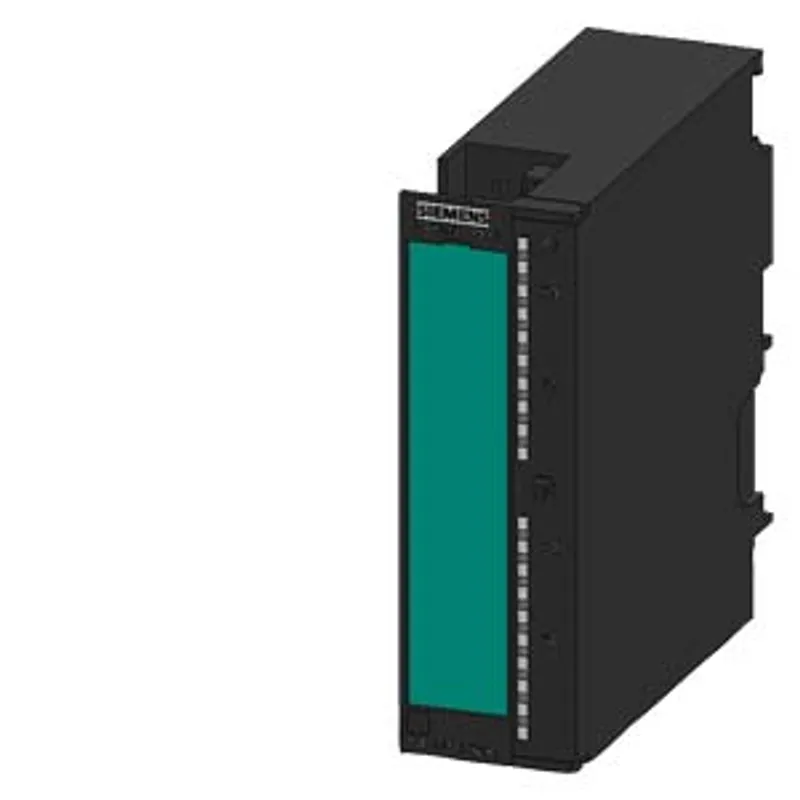

Siemens 6ES7332-5RD00-0AB0
Spare part ********* SIMATIC S7, analog output SM 332, isolated, 4 AO; 0/4 to 20 mA, 20-pole
- MPN
- 6ES7332-5RD00-0AB0
- Category
- Ex digital/analog modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7332-5RD00-0AB0?
********** spare part ********* SIMATIC S7, analog output SM 332, isolated, 4 AO; 0/4 to 20 mA, 20-pole, for signals from the hazardous area, diagnostics-capable, PTB tested
Specifications
Supply voltage
| Load voltage L+ — Rated value (DC) | 24 V |
| Load voltage L+ — Reverse polarity protection | Yes |
Input current
| from load voltage L+ (without load), max. | 200 mA |
| from backplane bus 5 V DC, max. | 80 mA |
Power loss
| Power loss, typ. | 4 W |
Analog outputs
| Number of analog outputs | 4 |
| Voltage output, short-circuit protection | Yes |
| Voltage output, short-circuit current, max. | 70 mA |
| Current output, no-load voltage, max. | 14 V |
| Output ranges, current — 0 to 20 mA | Yes |
| Output ranges, current — 4 mA to 20 mA | Yes |
| Connection of actuators — for current output two-wire connection | Yes |
| Load impedance (in rated range of output) — with current outputs, max. | 500 Ω |
| Cable length — shielded, max. | 200 m |
Analog value generation for the outputs
| Integration and conversion time/resolution per channel — Resolution with overrange (bit including sign), max. | 15 bit |
Errors/accuracies
| Operational error limit in overall temperature range — Current, relative to output range, (+/-) | 0.55 % |
| Basic error limit (operational limit at 25 °C) — Current, relative to output range, (+/-) | 0.2 % |
Interrupts/diagnostics/status information
| Diagnostics function | Yes |
| Diagnoses — Overrange | Yes |
| Diagnoses — Wire-break in actuator cable | Yes |
| Diagnostics indication LED — Group error SF (red) | Yes |
| Diagnostics indication LED — Channel fault indicator F (red) | Yes |
Ex(i) characteristics
| Module for Ex(i) protection | Yes |
| maximum values for connecting terminals for gas group IIC — Uo (no-load voltage), max. | 14 V |
| maximum values for connecting terminals for gas group IIC — Io (short-circuit current), max. | 70 mA |
| maximum values for connecting terminals for gas group IIC — Po (power output), max. | 440 mW |
| maximum values for connecting terminals for gas group IIC — Co (permissible external capacity), max. | 850 nF |
| maximum values for connecting terminals for gas group IIC — Lo (permissible external inductivity), max. | 6.6 mH |
Potential separation
| Potential separation analog outputs — between the channels | Yes |
| Potential separation analog outputs — between the channels and backplane bus | Yes |
| Potential separation analog outputs — Between the channels and load voltage L+ | Yes |
Standards, approvals, certificates
| Use in hazardous areas — ATEX marking | [EEx ib] IIC |
| Use in hazardous areas — FM marking | Class I, Division 2, Group A, B, C, D T4 |
| Use in hazardous areas — Test number PTB | Ex-96.D.2026X |
Ambient conditions
| Ambient temperature during operation — max. | 60 °C |
Connection method
| required front connector | 20-pin |

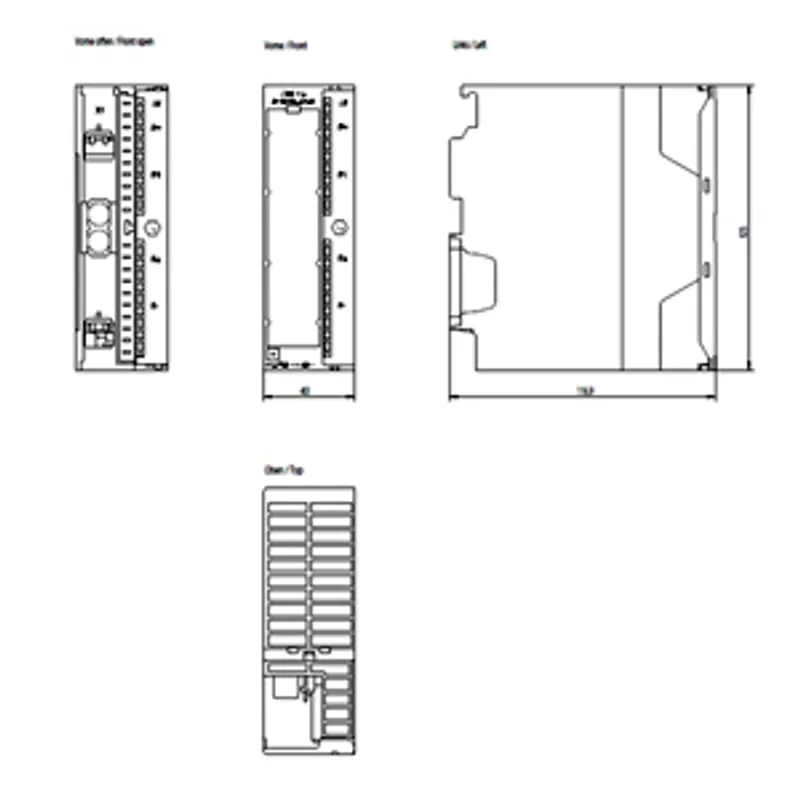

Dimensions
| Width | 40 mm |
| Height | 125 mm |
| Depth | 120 mm |
Weights
| Weight, approx. | 280 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6ES7332-5RD00-0AB0: frequently asked questions
When can 6ES7332-5RD00-0AB0 be shipped?
6ES7332-5RD00-0AB0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6ES7332-5RD00-0AB0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6ES7332-5RD00-0AB0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7332-5RD00-0AB0, subject to availability and destination.
