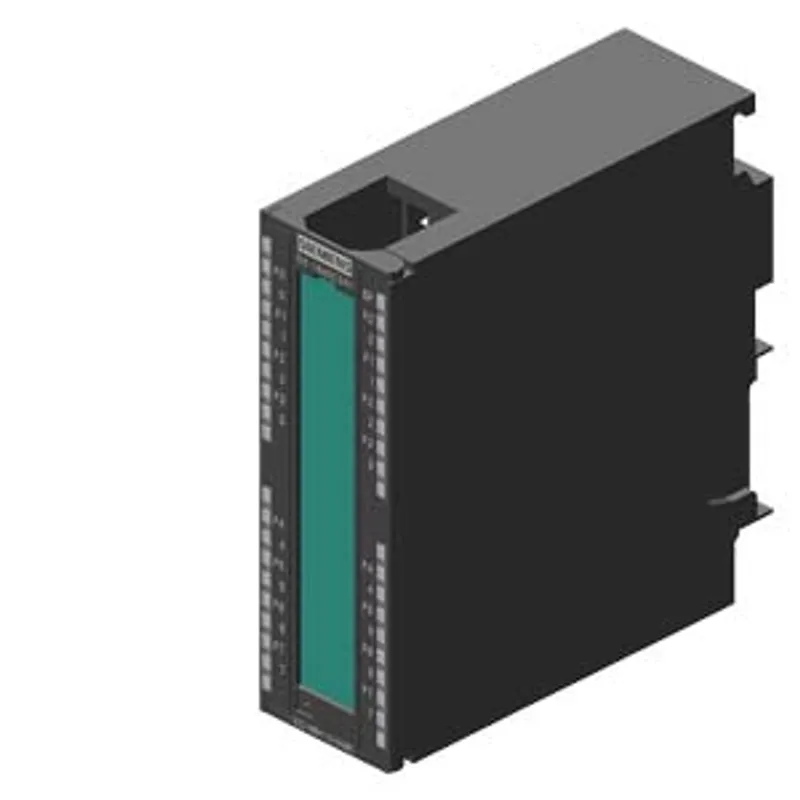

Siemens 6ES7322-8BH10-0AB0
Spare part ********* SIMATIC S7/PCS7, digital output SM 322, 16 DO; 24 V DC / 0.5 A, diagnostics-capable
- MPN
- 6ES7322-8BH10-0AB0
- Category
- Digital modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7322-8BH10-0AB0?
********** spare part ********* SIMATIC S7/PCS7, digital output SM 322, 16 DO; 24 V DC / 0.5 A, diagnostics-capable, wire break detection with 0 and 1 signal, 1 x 40-pole, connection IM 153-X HF required
Specifications
Supply voltage
| Load voltage L+ — Rated value (DC) | 24 V |
| Load voltage L+ — permissible range, lower limit (DC) | 20.4 V |
| Load voltage L+ — permissible range, upper limit (DC) | 28.8 V |
Input current
| from load voltage L+ (without load), max. | 100 mA |
| from backplane bus 5 V DC, max. | 100 mA |
Power loss
| Power loss, typ. | 6 W |
Digital outputs
| Number of digital outputs | 16 |
| Short-circuit protection | Yes |
| Short-circuit protection — Response threshold, typ. | 1.4 A; per channel |
| Limitation of inductive shutdown voltage to | L+ (-68 V) |
| Switching capacity of the outputs — on lamp load, max. | 5 W |
| Load resistance range — lower limit | 48 Ω |
| Load resistance range — upper limit | 4 kΩ |
| Output voltage — for signal "1", min. | L+ (-0.7 V) |
| Output current — for signal "1" rated value | 0.5 A |
| Output current — for signal "1" permissible range, min. | 5 mA |
| Output current — for signal "1" permissible range, max. | 0.6 A |
| Output current — for signal "0" residual current, max. | 0.7 mA |
| Output delay with resistive load — "0" to "1", max. | 3 ms |
| Output delay with resistive load — "1" to "0", max. | 3 ms |
| Parallel switching of two outputs — for uprating | No |
| Parallel switching of two outputs — for redundant control of a load | Yes |
| Switching frequency — with resistive load, max. | 100 Hz |
| Switching frequency — with inductive load (acc. to IEC 60947-5-1, DC13), max. | 2 Hz |
| Switching frequency — on lamp load, max. | 10 Hz |
| Total current of the outputs (per group) — horizontal installation — up to 60 °C, max. | 2 A |
| Total current of the outputs (per group) — vertical installation — up to 40 °C, max. | 2 A |
| Cable length — shielded, max. | 1 000 m |
| Cable length — unshielded, max. | 600 m |
Interrupts/diagnostics/status information
| Alarms | Yes |
| Diagnostics function | Yes |
| Alarms — Diagnostic alarm | Yes |
| Diagnoses — Diagnostic information readable | Yes |
| Diagnoses — Wire break | Yes |
| Diagnoses — Short-circuit | Yes |
| Diagnoses — missing load voltage | Yes |
| Diagnostics indication LED — Rated load voltage PWR (green) | No |
| Diagnostics indication LED — Group error SF (red) | Yes |
| Diagnostics indication LED — Status indicator digital output (green) | Yes |
| Diagnostics indication LED — Channel fault indicator F (red) | Yes |
Potential separation
| Potential separation digital outputs — between the channels | No |
| Potential separation digital outputs — between the channels, in groups of | 4 |
| Potential separation digital outputs — between the channels and backplane bus | Yes |
| Potential separation digital outputs — between the channels and the power supply of the electronics | No |
Isolation
| Isolation tested with | 500 V DC |
Connection method
| required front connector | 1x 40-pin |
Dimensions
| Width | 40 mm |
| Height | 125 mm |
| Depth | 120 mm |
Weights
| Weight, approx. | 350 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6ES7322-8BH10-0AB0: frequently asked questions
When can 6ES7322-8BH10-0AB0 be shipped?
6ES7322-8BH10-0AB0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6ES7322-8BH10-0AB0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6ES7322-8BH10-0AB0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7322-8BH10-0AB0, subject to availability and destination.
