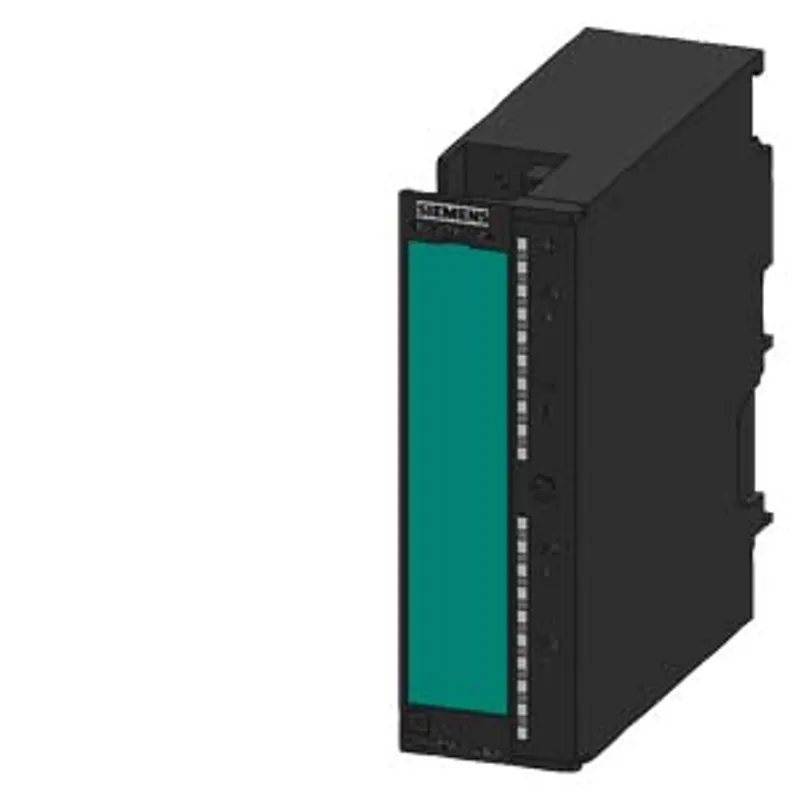

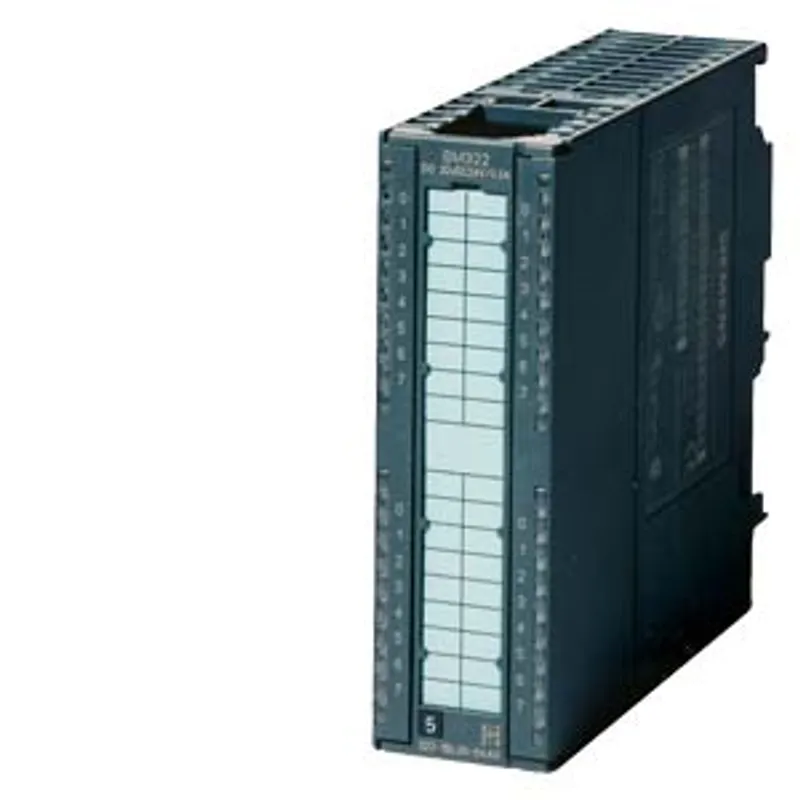

What is the Siemens 6ES7322-5SD00-0AB0?
********** spare part ********* SIMATIC S7, digital output SM 322, isolated, 4 DO; 24 V DC, 10 mA, 1 x 20-pole, for signals from the hazardous area, diagnostics-capable, PTB tested
Specifications
Supply voltage
| Load voltage L+ — Rated value (DC) | 24 V |
| Load voltage L+ — Reverse polarity protection | Yes |
Input current
| from load voltage L+ (without load), max. | 160 mA |
| from backplane bus 5 V DC, max. | 85 mA |
Power loss
| Power loss, typ. | 3 W |
Digital outputs
| Number of digital outputs | 4 |
| Short-circuit protection | Yes; Electronic |
| Short-circuit protection — Response threshold, typ. | Output current with short-circuit protection, min. 10 mA + 10 % |
| Load resistance range — upper limit | 390 Ω; Two-wire connection |
| Output voltage — Rated value (DC) | 24 V |
| Output current — for signal "1" permissible range for 0 to 60 °C, max. | 10 mA; ±10 % |
| Switching frequency — with resistive load, max. | 100 Hz |
| Cable length — unshielded, max. | 200 m |
Interrupts/diagnostics/status information
| Diagnostics function | Yes |
| Diagnoses — Diagnostic information readable | Yes |
| Diagnoses — Short-circuit | Yes |
| Diagnostics indication LED — Group error SF (red) | Yes |
| Diagnostics indication LED — Status indicator digital output (green) | Yes |
| Diagnostics indication LED — Channel fault indicator F (red) | Yes |
Ex(i) characteristics
| Module for Ex(i) protection | Yes |
| maximum values for connecting terminals for gas group IIC — Uo (no-load voltage), max. | 25.2 V |
| maximum values for connecting terminals for gas group IIC — Io (short-circuit current), max. | 70 mA |
| maximum values for connecting terminals for gas group IIC — Po (power output), max. | 440 mW |
| maximum values for connecting terminals for gas group IIC — Co (permissible external capacity), max. | 90 nF |
| maximum values for connecting terminals for gas group IIC — Lo (permissible external inductivity), max. | 6.7 mH |
Potential separation
| Potential separation digital outputs — between the channels | Yes; 60 V DC/30 V AC when used in the hazardous area; 400 V DC/250 V AC when used in NON-hazardous area |
| Potential separation digital outputs — between the channels, in groups of | 1 |
| Potential separation digital outputs — between the channels and backplane bus | Yes; 60 V DC/30 V AC when used in the hazardous area; 400 V DC/250 V AC when used in NON-hazardous area |
| Potential separation digital outputs — Between the channels and load voltage L+ | Yes; 60 V DC/30 V AC when used in the hazardous area; 400 V DC/250 V AC when used in NON-hazardous area |
Standards, approvals, certificates
| Use in hazardous areas — ATEX marking | [EEx ib] IIC |
| Use in hazardous areas — FM marking | AIS CL.1, DIV 1, GP A, B, C, D; CL.I, DIV 2, GP A, B, C, D T4 |
| Use in hazardous areas — Test number PTB | Ex-96.D.2093X |
Ambient conditions
| Ambient temperature during operation — max. | 60 °C |
Connection method
| required front connector | 20-pin |

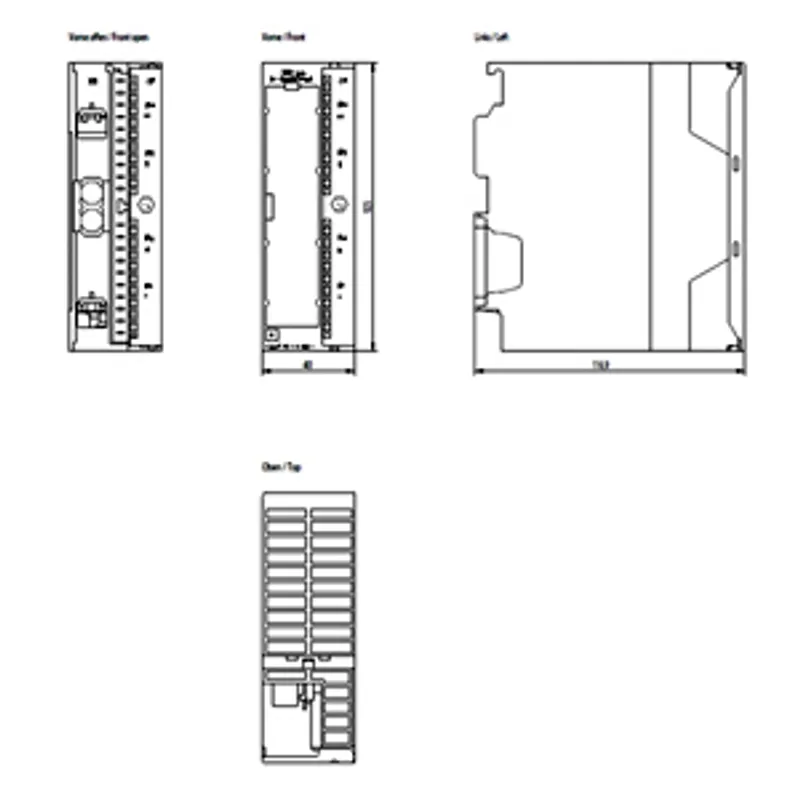

Dimensions
| Width | 40 mm |
| Height | 125 mm |
| Depth | 120 mm |
Weights
| Weight, approx. | 230 g |
