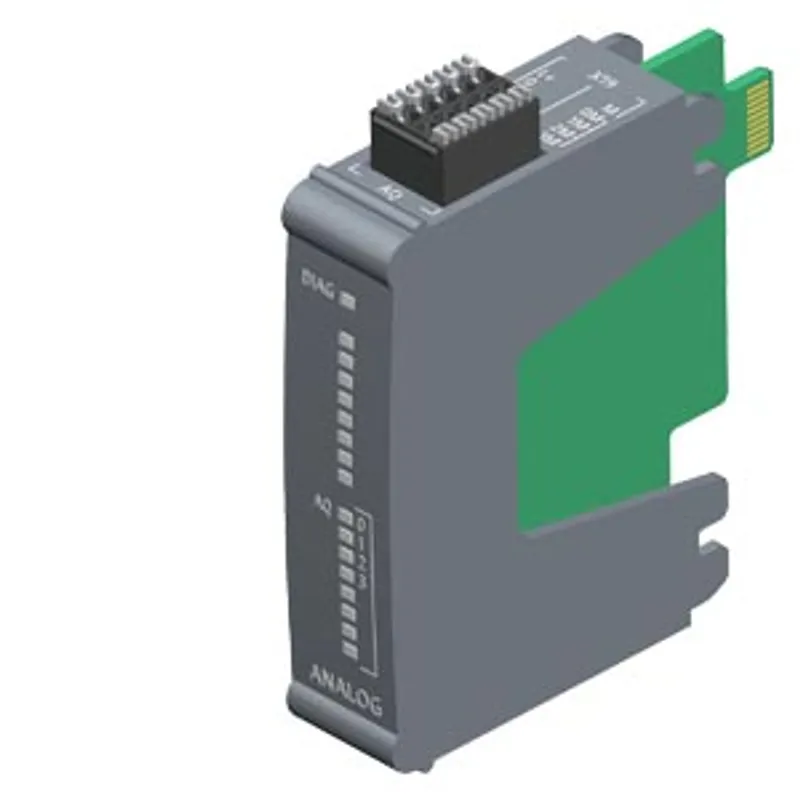

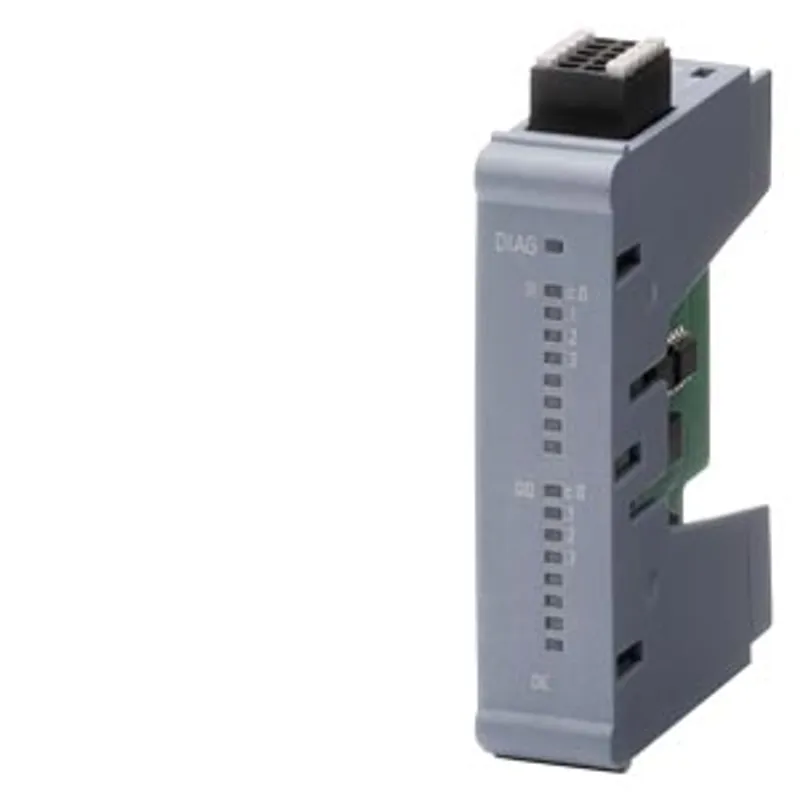

Siemens 6ES7232-4HD50-0XB0
SIMATIC S7-1200 G2: SB 1232 analog output, 4 AO, outputs: 4 x AQ 14 bit DAC (+/-10 V, 0-20 mA or 4-20 mA)
- MPN
- 6ES7232-4HD50-0XB0
- Category
- SB 1232 analog output modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7232-4HD50-0XB0?
SIMATIC S7-1200 G2: SB 1232 analog output, 4 AO, outputs: 4 x AQ 14 bit DAC (+/-10 V, 0-20 mA or 4-20 mA)
Specifications
General information
| Product type designation | SB 1232, AQ 4x 14 bit |
Supply voltage
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
Input current
| Current consumption, typ. | 30 mA |
| from backplane bus 5 V DC, typ. | 25 mA |
Power loss
| Power loss, typ. | 3 W |

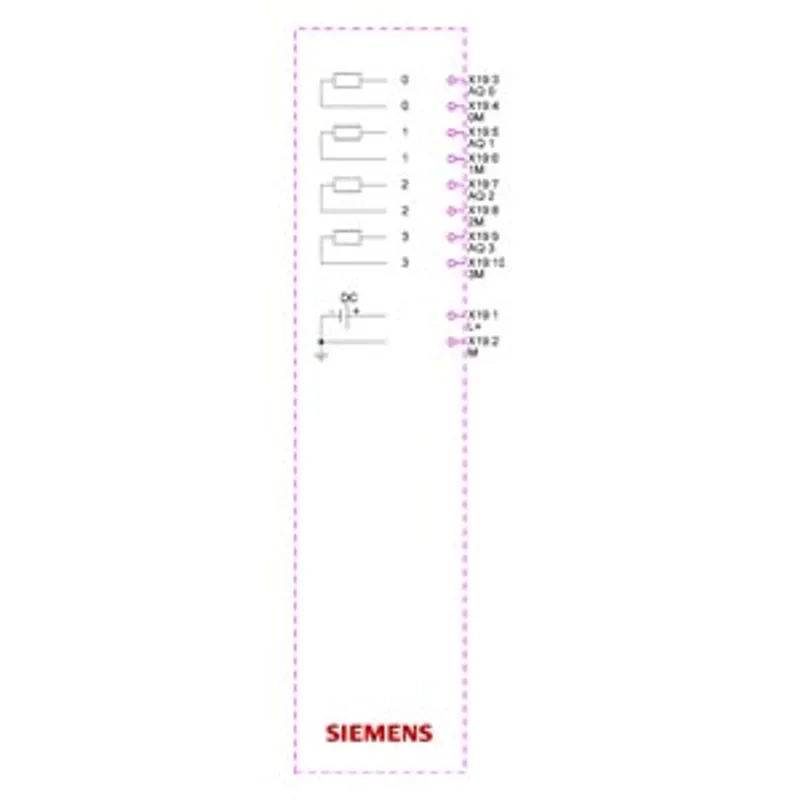

Analog outputs
| Number of analog outputs | 4; Current or voltage |
| Output ranges, voltage — 10 V to +10 V | Yes |
| Output ranges, current — 0 to 20 mA | Yes |
| Output ranges, current — 4 mA to 20 mA | Yes |
| Load impedance (in rated range of output) — with voltage outputs, min. | 1 000 Ω |
| Load impedance (in rated range of output) — with current outputs, max. | 600 Ω |
| Cable length — shielded, max. | 100 m; shielded, twisted pair |
Analog value generation for the outputs
| Integration and conversion time/resolution per channel — Resolution with overrange (bit including sign), max. | 14 bit; Voltage: 14 bit; Current : 13 bit |
Errors/accuracies
| Temperature error (relative to output range), (+/-) | 25 °C ±0.3 % / -20 °C to 60 °C ±0.6 % of the full-scale deflection |
| Basic error limit (operational limit at 25 °C) — Voltage, relative to output range, (+/-) | 0.3 % |
| Basic error limit (operational limit at 25 °C) — Current, relative to output range, (+/-) | 0.3 % |
Interrupts/diagnostics/status information
| Diagnostics function | Yes |
| Alarms — Diagnostic alarm | Yes |
| Diagnoses — Monitoring the supply voltage | Yes |
| Diagnoses — Wire break | Yes |
| Diagnoses — short-circuit | Yes |
| Diagnostics indication LED — DIAG LED | Yes |
| Diagnostics indication LED — for status of the outputs | Yes |
Degree and class of protection
| IP degree of protection | IP20 |
Standards, approvals, certificates
| Siemens Eco Profile (SEP) | Siemens EcoTech |
| CE mark | Yes |
| CSA approval | No |
| UL approval | Yes |
| cULus | Yes |
| FM approval | No |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Marine approval | No |
| Ecological footprint — environmental product declaration | Yes; type 2 acc. to ISO 14021 |
| Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq] | 16.6 kg |
| Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq] | 3.51 kg |
| Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq] | 13.3 kg |
| Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq] | -0.257 kg |
Ambient conditions
| Free fall — Fall height, max. | 0.3 m; five times, in product package |
| Ambient temperature during operation — min. | -20 °C |
| Ambient temperature during operation — max. | 40 °C; at max. voltages and max. specifications |
| Ambient temperature during operation — horizontal installation, min. | -20 °C |
| Ambient temperature during operation — horizontal installation, max. | 60 °C; at rated voltages, 50 % of max. specification and alternate IO active |
| Ambient temperature during operation — vertical installation, min. | -20 °C |
| Ambient temperature during operation — vertical installation, max. | 50 °C; at rated voltages, 50 % of max. specification and alternate IO active |
| Ambient temperature during storage/transportation — min. | -40 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |
| Air pressure acc. to IEC 60068-2-13 — Operation, min. | 540 hPa |
| Air pressure acc. to IEC 60068-2-13 — Operation, max. | 1 140 hPa |
| Air pressure acc. to IEC 60068-2-13 — Storage/transport, min. | 540 hPa |
| Air pressure acc. to IEC 60068-2-13 — Storage/transport, max. | 1 140 hPa |
| Altitude during operation relating to sea level — Installation altitude, min. | -1 000 m |
| Altitude during operation relating to sea level — Installation altitude, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Relative humidity — Operation at 25 ℃ without condensation, max. | 95 % |
| Vibrations — Vibration resistance during operation acc. to IEC 60068-2-6 | 3.5 mm from 5 - 8.4 Hz, 1g from 8.4 - 150 Hz |
| Vibrations — Operation, tested according to IEC 60068-2-6 | Yes |
| Shock testing — tested according to IEC 60068-2-27 | Yes; IEC 68, Part 2-27 half-sine: strength of the shock 15 g (peak value), duration 11 ms |
| Pollutant concentrations — SO2 at RH < 60% without condensation | S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60 % condensation-free |
Connection method
| required front connector | No |
Mechanics/material
| Enclosure material (front) — Plastic | Yes |

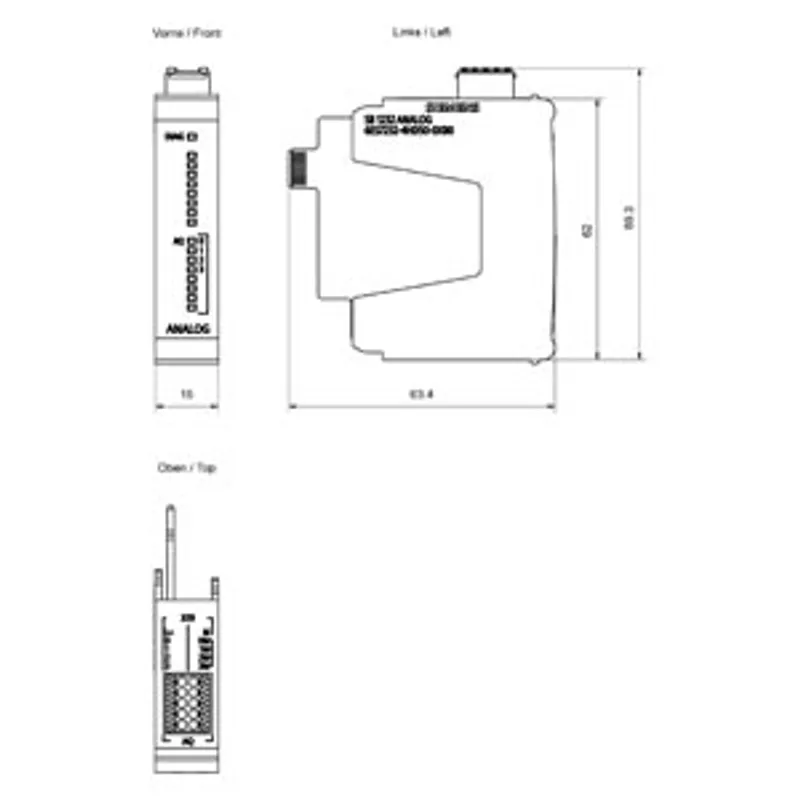

Dimensions
| Width | 15 mm |
| Height | 62 mm |
| Depth | 63 mm |
Weights
| Weight, approx. | 28 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6ES7232-4HD50-0XB0: frequently asked questions
When can 6ES7232-4HD50-0XB0 be shipped?
6ES7232-4HD50-0XB0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6ES7232-4HD50-0XB0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6ES7232-4HD50-0XB0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7232-4HD50-0XB0, subject to availability and destination.
