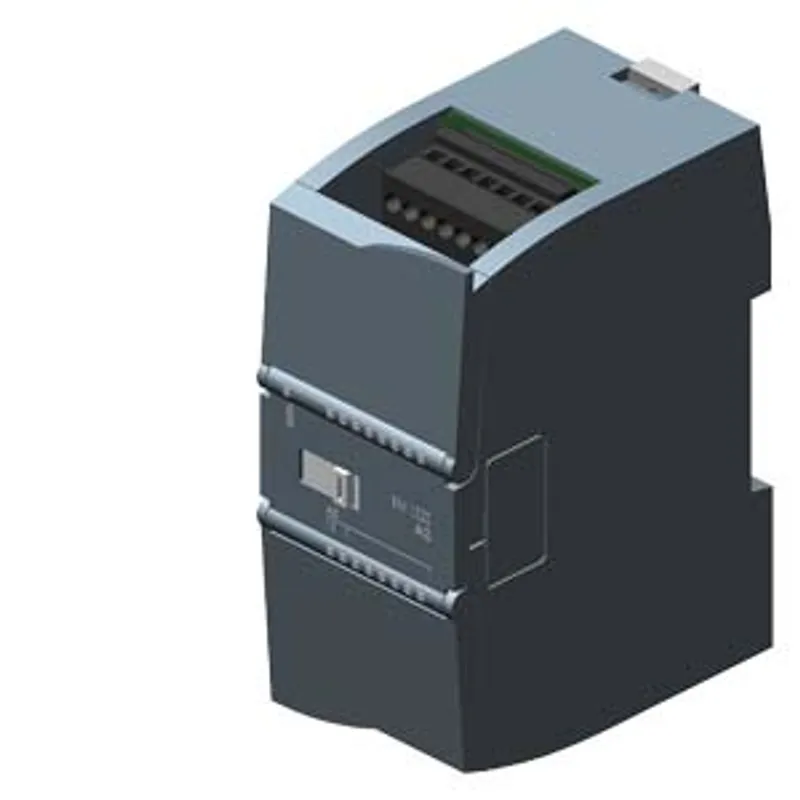

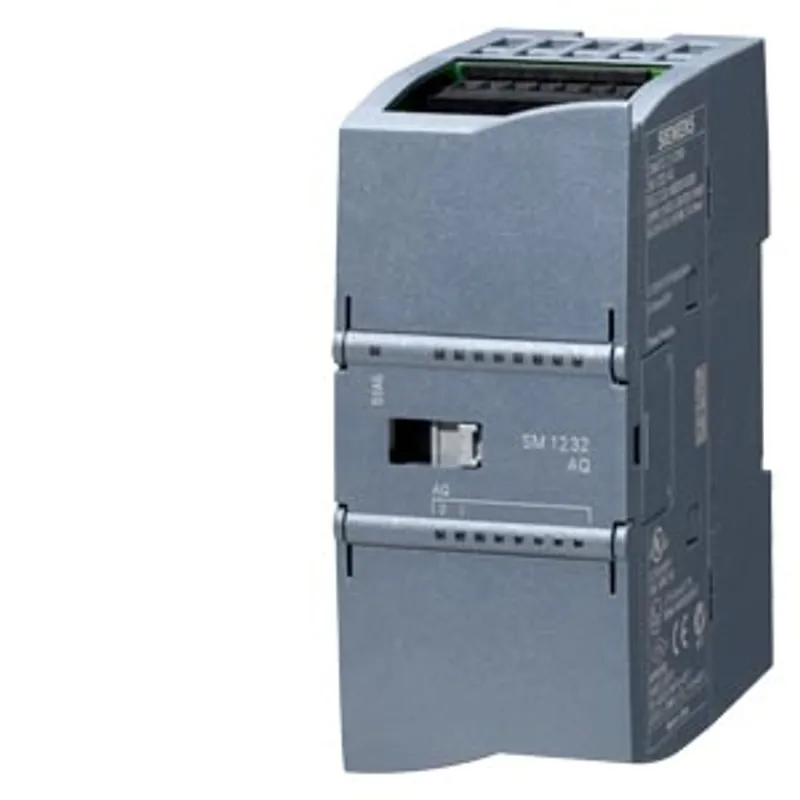

Siemens 6ES7232-4HB32-0XB0
SIMATIC S7-1200, Analog output, SM 1232, 2 AO, +/-10 V, 14-bit resolution, or 0-20 mA/4-20 mA
- MPN
- 6ES7232-4HB32-0XB0
- Category
- SM 1232 analog output modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7232-4HB32-0XB0?
SIMATIC S7-1200, Analog output, SM 1232, 2 AO, +/-10 V, 14-bit resolution, or 0-20 mA/4-20 mA, 13-bit resolution
Specifications
General information
| Product type designation | SM 1232, AQ 2x14 bit |
Supply voltage
| Rated value (DC) | 24 V |
Input current
| Current consumption, typ. | 45 mA |
| from backplane bus 5 V DC, typ. | 80 mA |
Power loss
| Power loss, typ. | 1.5 W |
Analog outputs
| Number of analog outputs | 2; Current or voltage |
| Output ranges, voltage — 10 V to +10 V | Yes |
| Output ranges, current — 0 to 20 mA | Yes |
| Load impedance (in rated range of output) — with voltage outputs, min. | 1 000 Ω |
| Load impedance (in rated range of output) — with current outputs, max. | 600 Ω |
| Cable length — shielded, max. | 100 m; shielded, twisted pair |
Analog value generation for the outputs
| Integration and conversion time/resolution per channel — Resolution with overrange (bit including sign), max. | 14 bit; Voltage: 14 bit; Current : 13 bit |
Errors/accuracies
| Temperature error (relative to output range), (+/-) | 25 °C ±0.3%, to 55 °C ±0.6% total measurement range |
| Basic error limit (operational limit at 25 °C) — Voltage, relative to output range, (+/-) | 0.3 % |
| Basic error limit (operational limit at 25 °C) — Current, relative to output range, (+/-) | 0.3 % |
| Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency — Common mode voltage, max. | 12 V |
Interrupts/diagnostics/status information
| Alarms | Yes |
| Diagnostics function | Yes |
| Alarms — Diagnostic alarm | Yes |
| Diagnoses — Monitoring the supply voltage | Yes |
| Diagnoses — Wire break | Yes |
| Diagnoses — Short-circuit | Yes |
| Diagnostics indication LED — for status of the outputs | Yes |
| Diagnostics indication LED — for maintenance | Yes |
Degree and class of protection
| IP degree of protection | IP20 |
Standards, approvals, certificates
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Marine approval | Yes |
| Ecological footprint — environmental product declaration | Yes |
| Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq] | 36.4 kg |
| Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq] | 7.46 kg |
| Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq] | 29.1 kg |
| Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq] | -0.18 kg |
Ambient conditions
| Free fall — Fall height, max. | 0.3 m; five times, in product package |
| Ambient temperature during operation — min. | -20 °C |
| Ambient temperature during operation — max. | 60 °C |
| Ambient temperature during operation — horizontal installation, min. | -20 °C |
| Ambient temperature during operation — horizontal installation, max. | 60 °C |
| Ambient temperature during operation — vertical installation, min. | -20 °C |
| Ambient temperature during operation — vertical installation, max. | 50 °C |
| Ambient temperature during storage/transportation — min. | -40 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |
| Air pressure acc. to IEC 60068-2-13 — Operation, min. | 795 hPa |
| Air pressure acc. to IEC 60068-2-13 — Operation, max. | 1 080 hPa |
| Air pressure acc. to IEC 60068-2-13 — Storage/transport, min. | 660 hPa |
| Air pressure acc. to IEC 60068-2-13 — Storage/transport, max. | 1 080 hPa |
| Relative humidity — Operation at 25 ℃ without condensation, max. | 95 % |
| Pollutant concentrations — SO2 at RH < 60% without condensation | S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60 % condensation-free |
| Pollutant concentrations — SO2 at RH < 60% without condensation | S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60 % condensation-free |

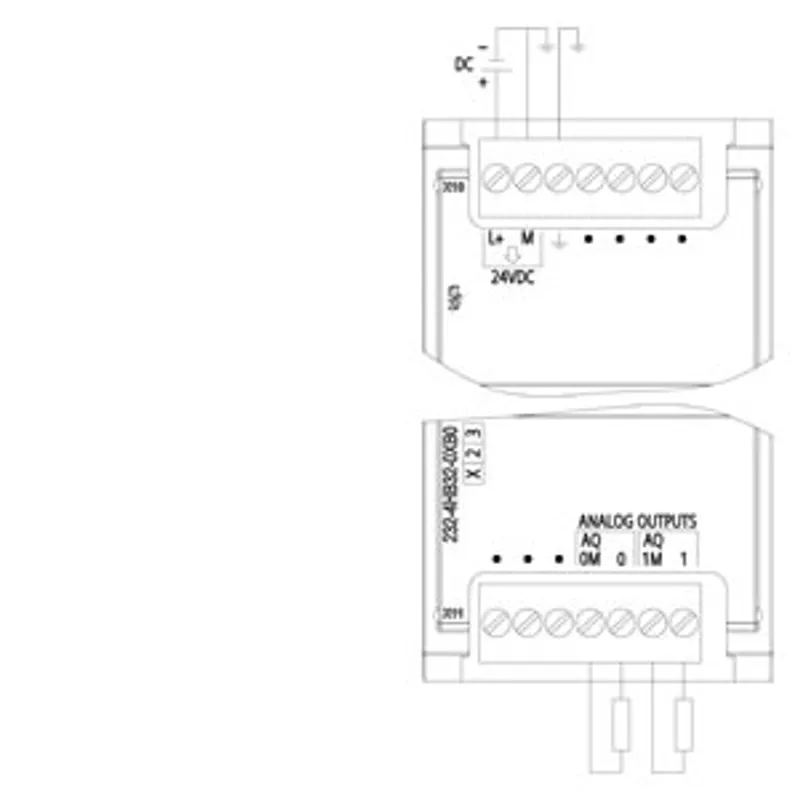

Connection method
| required front connector | Yes |
Mechanics/material
| Enclosure material (front) — Plastic | Yes |

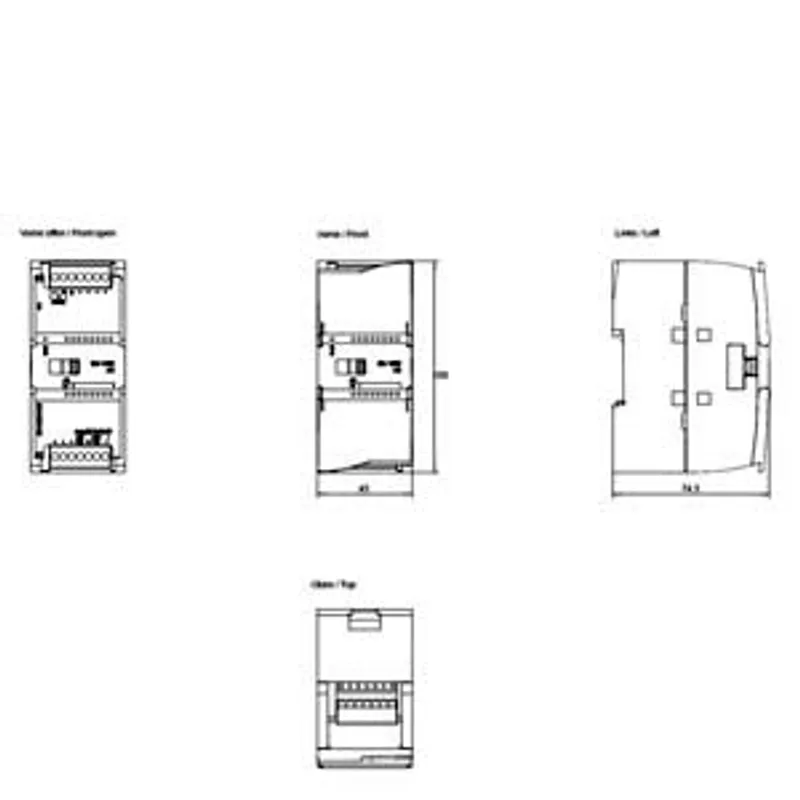

Dimensions
| Width | 45 mm |
| Height | 100 mm |
| Depth | 75 mm |
Weights
| Weight, approx. | 180 g |
