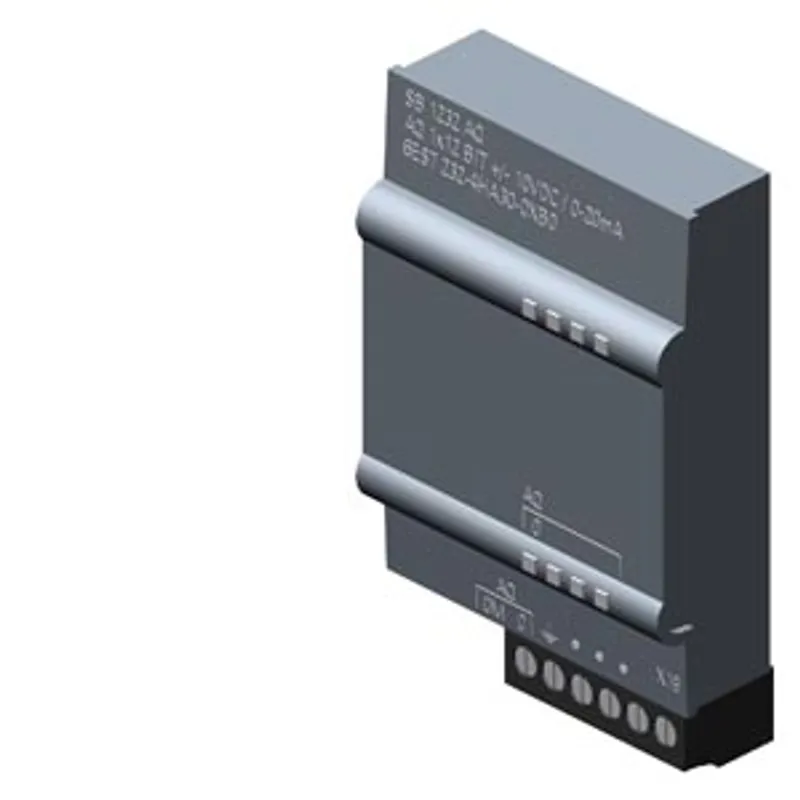

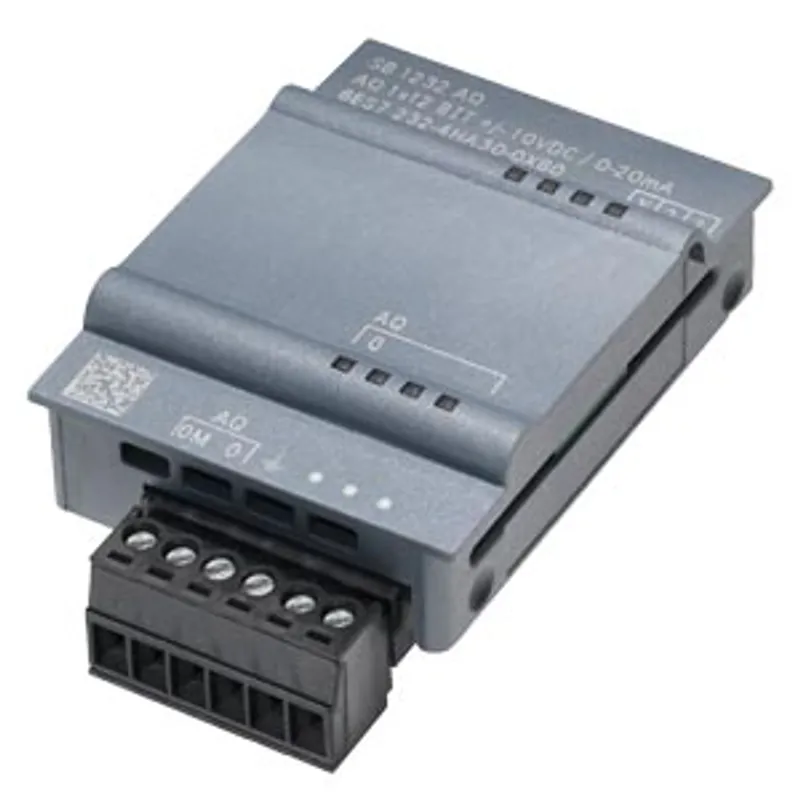

Siemens 6ES7232-4HA30-0XB0
SIMATIC S7-1200, Analog output, SB 1232, 1 AO, +/-10 V DC (12 bit resol.) or 0-20mA (11 bit resol.)
- MPN
- 6ES7232-4HA30-0XB0
- Category
- SB 1232 analog output modules
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

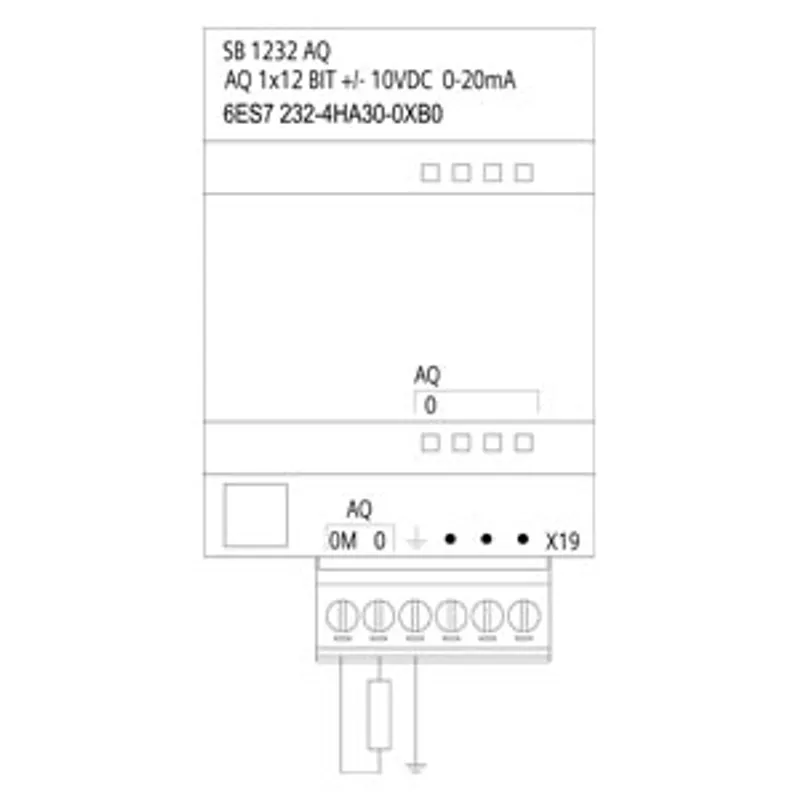

What is the Siemens 6ES7232-4HA30-0XB0?
SIMATIC S7-1200, Analog output, SB 1232, 1 AO, +/-10 V DC (12 bit resol.) or 0-20mA (11 bit resol.)
Specifications
General information
| Product type designation | SB 1232, AQ 1x12 bit |
Input current
| from backplane bus 5 V DC, typ. | 15 mA |
Output voltage
| Power supply to the transmitters — Supply current, max. | 25 mA |
Power loss
| Power loss, typ. | 1.5 W |
Analog inputs
| Number of analog inputs | 0 |
Analog outputs
| Number of analog outputs | 1 |
| Cycle time (all channels) max. | Voltage: 300 μS (R), 750 μS (1 uF) Current: 600 ms (1 mH); 2 ms (10 mH) |
| Output ranges, voltage — 10 V to +10 V | Yes |
| Output ranges, current — 0 to 20 mA | Yes |
| Load impedance (in rated range of output) — with voltage outputs, min. | 1 000 Ω |
| Load impedance (in rated range of output) — with current outputs, max. | 600 Ω |
| Cable length — shielded, max. | 100 m; shielded, twisted pair |
Analog value generation for the outputs
| Conversion principle | Differential |
| Integration and conversion time/resolution per channel — Resolution with overrange (bit including sign), max. | 12 bit |
Errors/accuracies
| Temperature error (relative to output range), (+/-) | 25 °C ±0.5%, to 55 °C ±1% |
Interrupts/diagnostics/status information
| Alarms | Yes |
| Diagnostics function | Yes |
| Diagnostics indication LED — for status of the outputs | Yes |
Standards, approvals, certificates
| CE mark | Yes |
| CSA approval | Yes |
| UL approval | Yes |
| cULus | Yes |
| FM approval | Yes |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Marine approval | Yes |
Ambient conditions
| Free fall — Fall height, max. | 0.3 m; five times, in product package |
| Ambient temperature during operation — min. | -20 °C |
| Ambient temperature during operation — max. | 60 °C |
| Ambient temperature during operation — horizontal installation, min. | -20 °C |
| Ambient temperature during operation — horizontal installation, max. | 60 °C |
| Ambient temperature during operation — vertical installation, min. | -20 °C |
| Ambient temperature during operation — vertical installation, max. | 50 °C |
| Ambient temperature during storage/transportation — min. | -40 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |
| Air pressure acc. to IEC 60068-2-13 — Storage/transport, min. | 660 hPa |
| Air pressure acc. to IEC 60068-2-13 — Storage/transport, max. | 1 080 hPa |
| Relative humidity — Operation at 25 ℃ without condensation, max. | 95 % |
| Pollutant concentrations — SO2 at RH < 60% without condensation | S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60 % condensation-free |
| Pollutant concentrations — SO2 at RH < 60% without condensation | S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60 % condensation-free |
Mechanics/material
| Enclosure material (front) — Plastic | Yes |

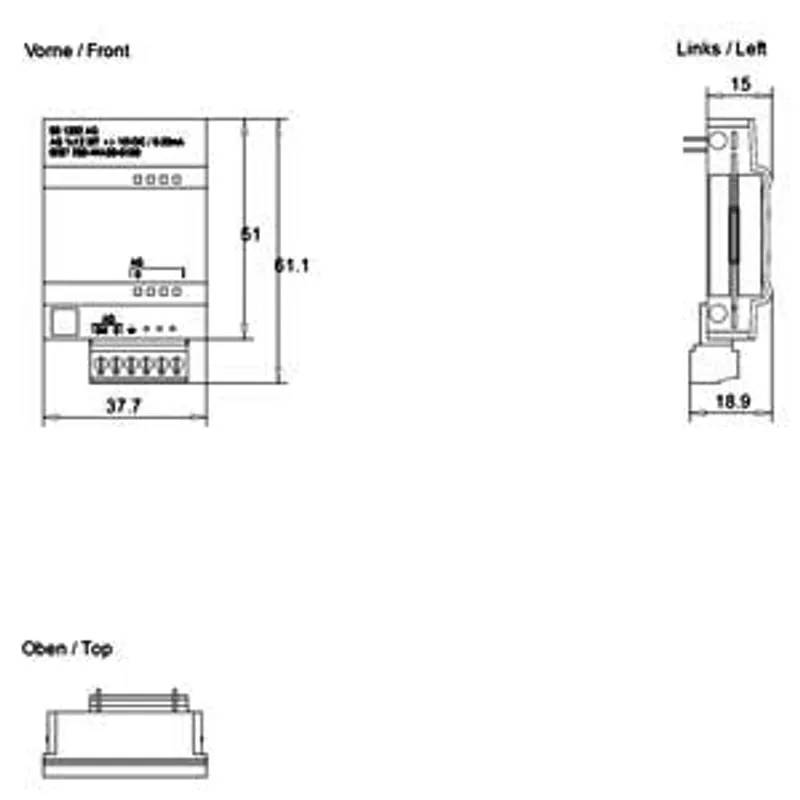

Dimensions
| Width | 38 mm |
| Height | 62 mm |
| Depth | 21 mm |
Weights
| Weight, approx. | 40 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6ES7232-4HA30-0XB0: frequently asked questions
When can 6ES7232-4HA30-0XB0 be shipped?
6ES7232-4HA30-0XB0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6ES7232-4HA30-0XB0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6ES7232-4HA30-0XB0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7232-4HA30-0XB0, subject to availability and destination.
