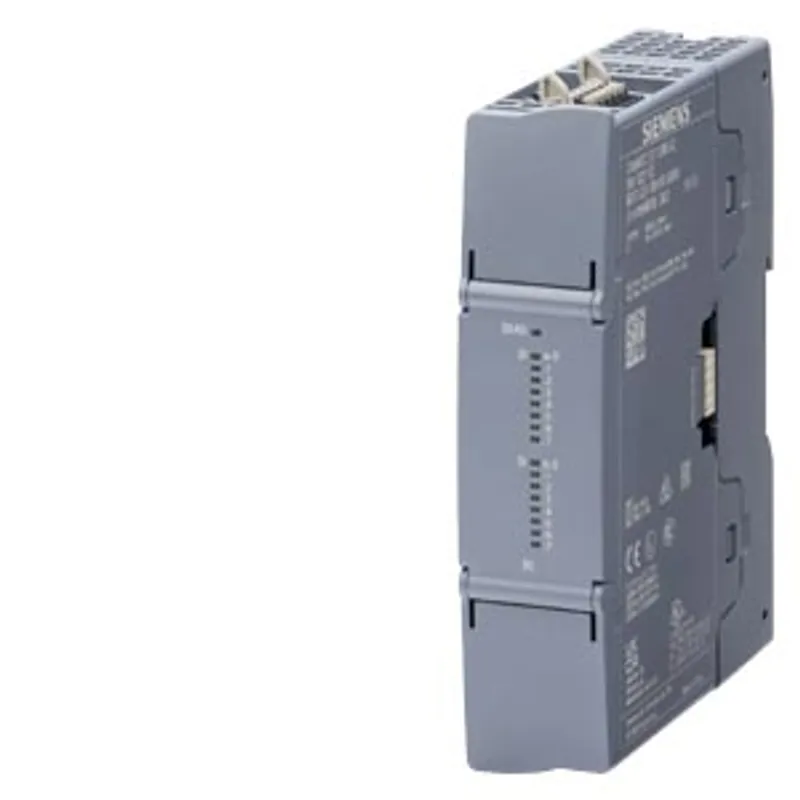

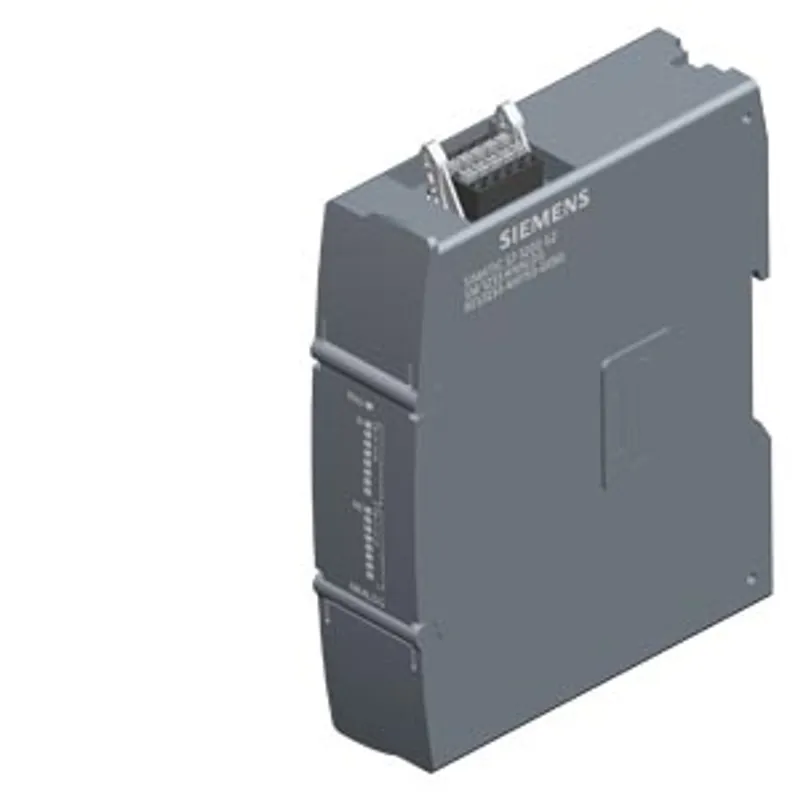

Siemens 6ES7233-4HF50-0XB0
SIMATIC S7-1200 G2: SM 1233 analog I/O, 4 AI/4 AO; inputs: 4x AI 14 bit ADC
- MPN
- 6ES7233-4HF50-0XB0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback

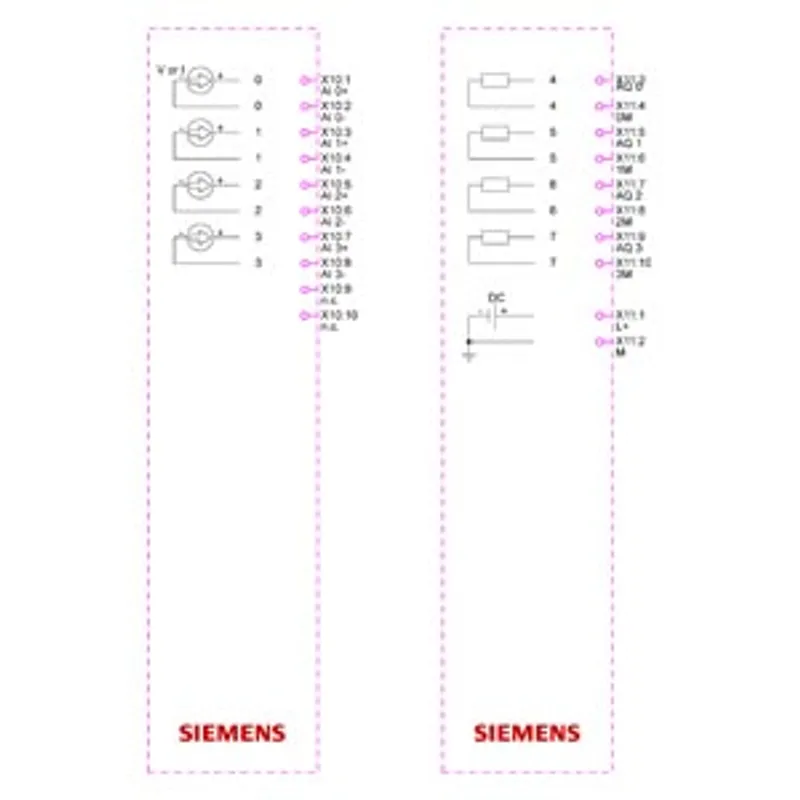

What is the Siemens 6ES7233-4HF50-0XB0?
SIMATIC S7-1200 G2: SM 1233 analog I/O, 4 AI/4 AO; inputs: 4x AI 14 bit ADC (+/-10 V, +/-5 V, +/-2.5 V or 0-20 mA/4-20 mA); outputs: 4x AQ 14 bit DAC (+/-10 V, 0-20 mA or 4-20 mA)
Specifications
General information
| Product type designation | SM 1233, AI 4x 14 bit/AQ 4x 14 bit |
Supply voltage
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
Input current
| Current consumption, typ. | 40 mA |
| from backplane bus 5 V DC, typ. | 80 mA |
Power loss
| Power loss, typ. | 4.7 W |
Analog inputs
| Number of analog inputs | 4; Current or voltage differential inputs |
| permissible input voltage for voltage input (destruction limit), max. | 35 V |
| permissible input current for current input (destruction limit), max. | 40 mA |
| Cycle time (all channels) max. | 0.625 ms; at 400 Hz rejection |
| Input ranges — Voltage | Yes; ±10V, ±5V, ±2.5V |
| Input ranges — Current | Yes; 4 to 20 mA, 0 to 20 mA |
| Input ranges (rated values), voltages — 10 V to +10 V | Yes |
| Input ranges (rated values), voltages — 10 V to +10 V — Input resistance (-10 V to +10 V) | ≥1 MOhm |
| Input ranges (rated values), voltages — 2.5 V to +2.5 V | Yes |
| Input ranges (rated values), voltages — 2.5 V to +2.5 V — Input resistance (-2.5 V to +2.5 V) | ≥1 MOhm |
| Input ranges (rated values), voltages — 5 V to +5 V | Yes |
| Input ranges (rated values), voltages — 5 V to +5 V — Input resistance (-5 V to +5 V) | ≥1 MOhm |
| Input ranges (rated values), currents — 0 to 20 mA | Yes |
| Input ranges (rated values), currents — 0 to 20 mA — Input resistance (0 to 20 mA) | < 290 Ω, > 270 Ω |
| Input ranges (rated values), currents — 4 mA to 20 mA | Yes |
| Input ranges (rated values), currents — 4 mA to 20 mA — Input resistance (4 mA to 20 mA) | < 290 Ω, > 270 Ω |
| Cable length — shielded, max. | 100 m; shielded, twisted pair |
Analog outputs
| Number of analog outputs | 4; Current or voltage |
| Output ranges, voltage — 10 V to +10 V | Yes |
| Output ranges, current — 0 to 20 mA | Yes |
| Output ranges, current — 4 mA to 20 mA | Yes |
| Load impedance (in rated range of output) — with voltage outputs, min. | 1 000 Ω |
| Load impedance (in rated range of output) — with current outputs, max. | 600 Ω |
| Cable length — shielded, max. | 100 m; shielded, twisted pair |
Analog value generation for the inputs
| Measurement principle | successive approximation |
| Integration and conversion time/resolution per channel — Resolution with overrange (bit including sign), max. | 13 bit; + sign |
| Integration and conversion time/resolution per channel — Integration time, parameterizable | Yes |
| Integration and conversion time/resolution per channel — Interference voltage suppression for interference frequency f1 in Hz | 40 dB, DC to 60 Hz |
| Smoothing of measured values — Parameterizable | Yes |
| Smoothing of measured values — Step: None | Yes |
| Smoothing of measured values — Step: low | Yes |
| Smoothing of measured values — Step: Medium | Yes |
| Smoothing of measured values — Step: High | Yes |
Analog value generation for the outputs
| Integration and conversion time/resolution per channel — Resolution with overrange (bit including sign), max. | 14 bit; Voltage: 14 bit; Current : 13 bit |
Errors/accuracies
| Temperature error (relative to input range), (+/-) | 25 °C ±0.1 % / -20 °C to 60 °C ±0.2 % of the full-scale deflection |
| Temperature error (relative to output range), (+/-) | 25 °C ±0.3 % / -20 °C to 60 °C ±0.6 % of the full-scale deflection |
| Basic error limit (operational limit at 25 °C) — Voltage, relative to input range, (+/-) | 0.1 % |
| Basic error limit (operational limit at 25 °C) — Current, relative to input range, (+/-) | 0.1 % |
| Basic error limit (operational limit at 25 °C) — Voltage, relative to output range, (+/-) | 0.3 % |
| Basic error limit (operational limit at 25 °C) — Current, relative to output range, (+/-) | 0.3 % |
| Interference voltage suppression for f = n x (f1 +/- 1 %), f1 = interference frequency — Common mode voltage, max. | 2 V |
Interrupts/diagnostics/status information
| Diagnostics function | Yes |
| Alarms — Diagnostic alarm | Yes |
| Diagnoses — Monitoring the supply voltage | Yes |
| Diagnoses — Wire break | Yes |
| Diagnoses — short-circuit | Yes |
| Diagnostics indication LED — DIAG LED | Yes |
| Diagnostics indication LED — for status of the inputs | Yes |
| Diagnostics indication LED — for status of the outputs | Yes |
Potential separation
| Potential separation analog inputs — between the channels and the power supply of the electronics | No |
| Potential separation analog outputs — between the channels and the power supply of the electronics | No |
Degree and class of protection
| IP degree of protection | IP20 |
Standards, approvals, certificates
| Siemens Eco Profile (SEP) | Siemens EcoTech |
| CE mark | Yes |
| CSA approval | No |
| UL approval | Yes |
| cULus | Yes |
| FM approval | No |
| RCM (formerly C-TICK) | Yes |
| KC approval | Yes |
| Marine approval | No |
| Ecological footprint — environmental product declaration | Yes; type 2 acc. to ISO 14021 |
| Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq] | 32.2 kg |
| Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq] | 7.96 kg |
| Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq] | 24.5 kg |
| Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq] | -0.358 kg |
Ambient conditions
| Free fall — Fall height, max. | 0.3 m; five times, in product package |
| Ambient temperature during operation — min. | -20 °C |
| Ambient temperature during operation — max. | 40 °C; at max. voltages and max. specifications |
| Ambient temperature during operation — horizontal installation, min. | -20 °C |
| Ambient temperature during operation — horizontal installation, max. | 60 °C; at rated voltages, 50 % of max. specification and alternate IO active |
| Ambient temperature during operation — vertical installation, min. | -20 °C |
| Ambient temperature during operation — vertical installation, max. | 50 °C; at rated voltages, 50 % of max. specification and alternate IO active |
| Ambient temperature during storage/transportation — min. | -40 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |
| Air pressure acc. to IEC 60068-2-13 — Operation, min. | 540 hPa |
| Air pressure acc. to IEC 60068-2-13 — Operation, max. | 1 140 hPa |
| Air pressure acc. to IEC 60068-2-13 — Storage/transport, min. | 540 hPa |
| Air pressure acc. to IEC 60068-2-13 — Storage/transport, max. | 1 140 hPa |
| Altitude during operation relating to sea level — Installation altitude, min. | -1 000 m |
| Altitude during operation relating to sea level — Installation altitude, max. | 5 000 m; Restrictions for installation altitudes > 2 000 m, see manual |
| Relative humidity — Operation at 25 ℃ without condensation, max. | 95 % |
| Vibrations — Vibration resistance during operation acc. to IEC 60068-2-6 | 3.5 mm from 5 - 8.4 Hz, 1g from 8.4 - 150 Hz |
| Vibrations — Operation, tested according to IEC 60068-2-6 | Yes |
| Shock testing — tested according to IEC 60068-2-27 | Yes; IEC 68, Part 2-27 half-sine: strength of the shock 15 g (peak value), duration 11 ms |
| Pollutant concentrations — SO2 at RH < 60% without condensation | S02: < 0.5 ppm; H2S: < 0.1 ppm; RH < 60 % condensation-free |
Connection method
| required front connector | No |
Mechanics/material
| Enclosure material (front) — plastic | Yes |

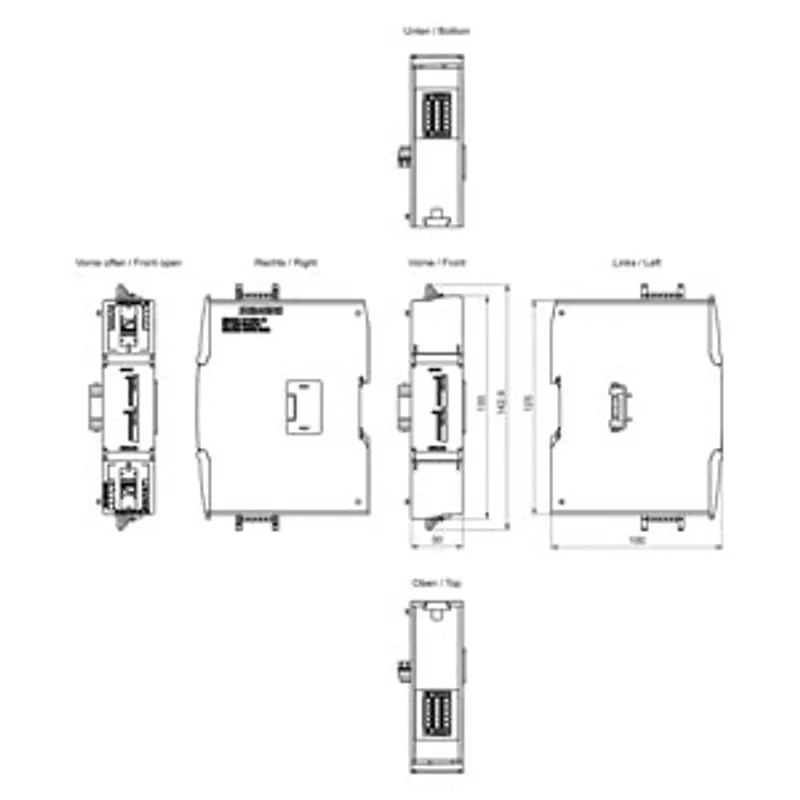

Dimensions
| Width | 30 mm |
| Height | 125 mm |
| Depth | 100 mm |
Weights
| Weight, approx. | 174 g |
