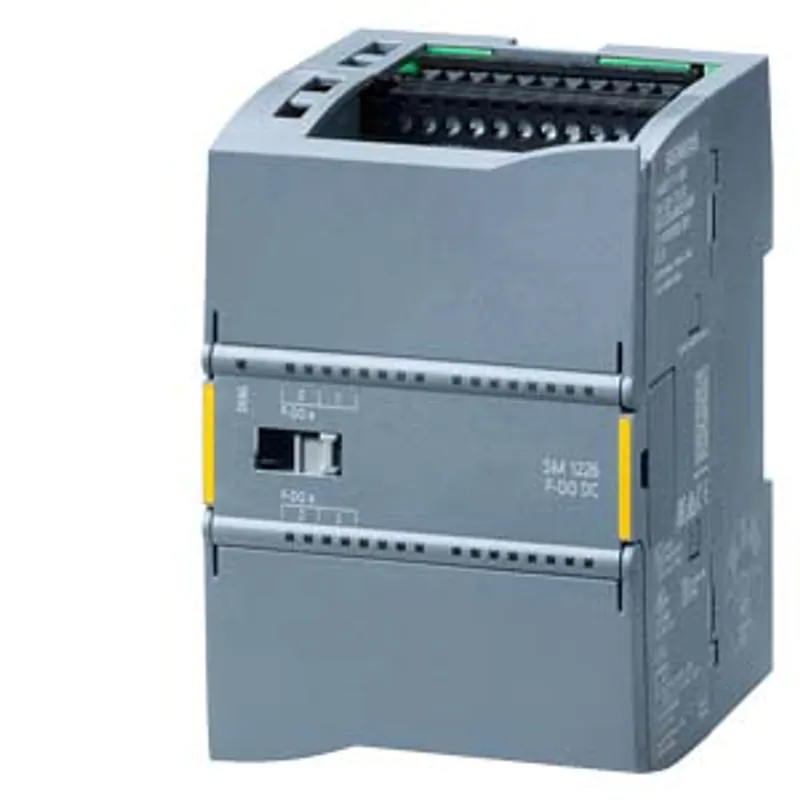

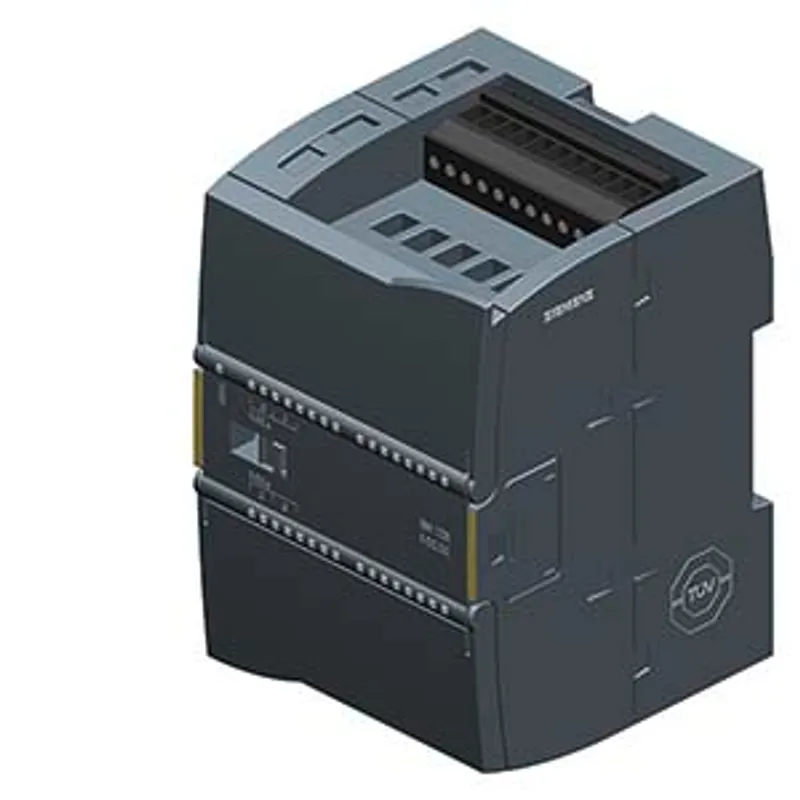

Siemens 6ES7226-6DA32-0XB0
SIMATIC S7-1200, Digital output SM 1226, F-DQ 4x 24 V DC 2A, PROFIsafe, 70 mm overall width
- MPN
- 6ES7226-6DA32-0XB0
- Category
- SM 1226 fail-safe digital output
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6ES7226-6DA32-0XB0?
SIMATIC S7-1200, Digital output SM 1226, F-DQ 4x 24 V DC 2A, PROFIsafe, 70 mm overall width, up to PL E (ISO 13849-1)/ SIL3 (IEC 61508)
Specifications
General information
| Product type designation | SM 1226 F-DQ 4x 24 VDC |
Supply voltage
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
| power supply according to NEC Class 2 required | No |
Input current
| from backplane bus 5 V DC, max. | 125 mA |
| Digital outputs — from load voltage L+, max. | 170 mA |
Power loss
| Power loss, typ. | 8 W |
Digital outputs
| Number of digital outputs | 4 |
| Number of digital outputs — in groups of | 1 |
| Short-circuit protection | Yes |
| Switching capacity of the outputs — with resistive load, max. | 30 Hz |
| Switching capacity of the outputs — on lamp load, max. | 10 Hz |
| Output voltage — Rated value (DC) | 24 V |
| Output current — for signal "1" rated value | 2 A |
| Output current — for signal "1" permissible range, max. | 10 mA to 2.4 A |
| Output current — for signal "0" residual current, max. | P-switch: 0.5 mA, maximum; M-switch: 0.5 mA, maximum |
| Cable length — shielded, max. | 200 m |
| Cable length — unshielded, max. | 200 m |
Interrupts/diagnostics/status information
| Diagnostics indication LED — for status of the outputs | Yes |
Degree and class of protection
| IP degree of protection | IP20 |
Standards, approvals, certificates
| CE mark | Yes |
| cULus | Yes |
| FM approval | Yes |
| Highest safety class achievable in safety mode — Performance level according to ISO 13849-1 | Category 4, PL e |
| Highest safety class achievable in safety mode — SIL acc. to IEC 61508 | SIL 3 |
| Highest safety class achievable in safety mode — Probability of failure (for service life of 20 years and repair time of 100 hours) — Low demand mode: PFDavg in accordance with SIL3 | < 1.00E-05 |
| Highest safety class achievable in safety mode — Probability of failure (for service life of 20 years and repair time of 100 hours) — High demand/continuous mode: PFH in accordance with SIL3 | < 4.00E-09 |
Ambient conditions
| Free fall — Fall height, max. | 0.3 m; five times, in product package |
| Ambient temperature during operation — min. | 0 °C |
| Ambient temperature during operation — max. | 55 °C |
| Ambient temperature during operation — permissible temperature change | 5°C to 55°C, 3°C / minute |
| Ambient temperature during storage/transportation — min. | -40 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |
| Air pressure acc. to IEC 60068-2-13 — Storage/transport, min. | 660 hPa |
| Air pressure acc. to IEC 60068-2-13 — Storage/transport, max. | 1 080 hPa |
| Relative humidity — Operation at 25 ℃ without condensation, max. | 95 % |
Mechanics/material
| Enclosure material (front) — plastic | Yes |

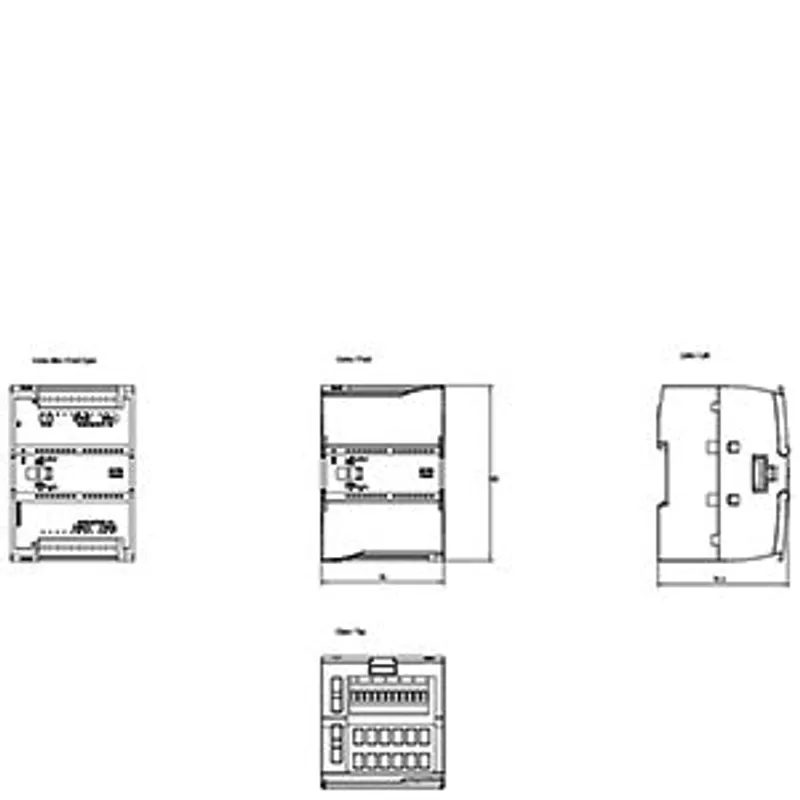

Dimensions
| Width | 70 mm |
| Height | 100 mm |
| Depth | 75 mm |
Weights
| Weight, approx. | 270 g |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6ES7226-6DA32-0XB0: frequently asked questions
When can 6ES7226-6DA32-0XB0 be shipped?
6ES7226-6DA32-0XB0 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6ES7226-6DA32-0XB0 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6ES7226-6DA32-0XB0 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6ES7226-6DA32-0XB0, subject to availability and destination.
