Siemens 6EP1437-3BA10

Q: Can I still buy the 6EP1437-3BA10 now that it is discontinued?

Yes. Siemens has discontinued the 6EP1437-3BA10, but sourcing discontinued parts is what PartnerPLC specialises in — new old stock, used and refurbished units. Request a quote and we'll confirm availability, condition and lead time.

Q: When can 6EP1437-3BA10 be shipped?

6EP1437-3BA10 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up 6EP1437-3BA10 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for 6EP1437-3BA10 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6EP1437-3BA10, subject to availability and destination.

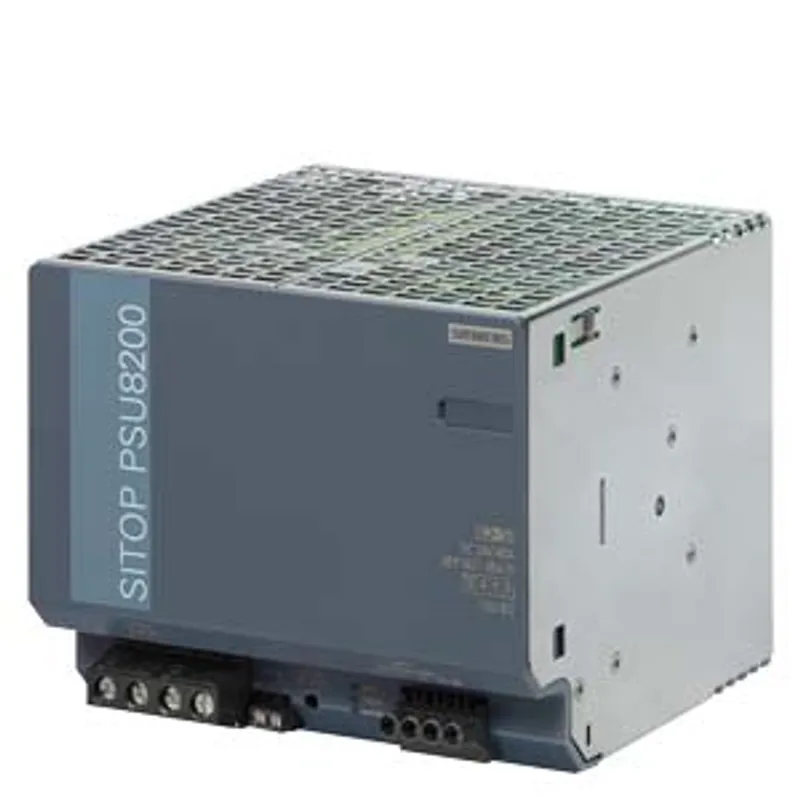

SITOP PSU8200 24 V/40 A stabilized power supply input: 400-500 V 3 AC output: 24 V DC/40 A

MPN: 6EP1437-3BA10
Category: Power Supplies

Price and lead time confirmed within 1 business day

Discontinued by Siemens — we can still source the original 6EP1437-3BA10 (new, used or refurbished, subject to availability). Request a quote below.

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Siemens 6EP1437-3BA10?

Siemens 6EP1437-3BA10: SITOP PSU8200 24 V/40 A stabilized power supply input: 400-500 V 3 AC output: 24 V DC/40 A. Sourced on request by PartnerPLC — new, surplus or refurbished, subject to availability. Request a quote for price, condition and lead time.

Specifications

General information

Technical Product Detail Page	https://i.siemens.com/1P6EP1437-3BA10
product brand name	SITOP PSU8200
product designation	Power supply SITOP modular
type of current supply	24 V/40 A

input

type of the power supply network	3-phase AC
phase number	3
voltage curve at input	AC
supply voltage at AC — minimum rated value	400 V
supply voltage at AC — maximum rated value	500 V
supply voltage at AC — initial value	320 V
supply voltage at AC — full-scale value	575 V
supply voltage — at 50 Hz	400 V
supply voltage — at 60 Hz	500 V
line frequency	50/60 Hz
line frequency	47 ... 63 Hz
wide range input	Yes
buffering time for rated value of the output current in the event of power failure minimum	15 ms
operating condition of the mains buffering	at Vin = 400 V
input current — at rated input voltage 400 V	2.6 A
input current — at rated input voltage 500 V	2.1 A
current limitation of inrush current at 25 °C maximum	56 A
I2t value maximum	2.24 A²·s
fuse protection type	none
fuse protection type in the feeder	Required: 3-pole connected miniature circuit breaker 10 ... 16 A characteristic C or circuit breaker 3RV2011-1DA10 (setting 3 A) or 3RV2711-1DD10 (UL 489)

output

voltage curve at output	Controlled, isolated DC voltage
product function output voltage controlled	Yes
product function output voltage stabilized	Yes
output voltage at DC rated value	24 V
output voltage — at output 1 at DC rated value	24 V
output voltage — at output 1 at DC	24 V
output voltage adjustable	Yes; via potentiometer
adjustable output voltage	24 ... 28.8 V; max. 960 W
relative overall tolerance of the voltage	3 %
relative control precision of the output voltage — on slow fluctuation of input voltage	0.1 %
relative control precision of the output voltage — on slow fluctuation of ohm loading	0.2 %
residual ripple — maximum	100 mV
voltage peak — maximum	200 mV
display version for normal operation	Green LED for 24 V OK
type of signal at output	Relay contact (NO contact, rating 60 V DC/ 0.3 A) for "24 V OK"
behavior of the output voltage when switching on	No overshoot of Vout (soft start)
response delay maximum	2.5 s
voltage increase time of the output voltage — maximum	500 ms
output current — rated value	40 A
output current — rated range	0 ... 40 A; +60 ... +70 °C: Derating 3.75%/K
supplied active power typical	960 W
short-term overload current — at short-circuit during operation typical	120 A
duration of overloading capability for excess current — at short-circuit during operation	25 ms
constant overload current — on short-circuiting during the start-up typical	44 A
bridging of equipment	Yes; switchable characteristic
number of parallel-switched equipment resources for increasing the power	2

efficiency

efficiency in percent	92 %
power loss [W] — at rated output voltage for rated value of the output current typical	83 W

closed-loop control

relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical	1 %
relative control precision of the output voltage load step of resistive load 50/100/50 % typical	3 %
setting time — maximum	10 ms

protection and monitoring

design of the overvoltage protection	< 35 V
property of the output short-circuit proof	Yes
design of short-circuit protection	Alternatively, constant current characteristic approx. 44 A or latching shutdown
typical	44 A
overcurrent overload capability — in normal operation	overload capability 150 % Iout rated up to 5 s/min
enduring short circuit current RMS value — typical	44 A
display version for overload and short circuit	LED yellow for "overload", LED red for "latching shutdown"

safety

galvanic isolation between input and output	Yes
galvanic isolation	Safety extra-low output voltage Uout acc. to EN 60950-1 and EN 50178
operating resource protection class	Class I
leakage current — maximum	3.5 mA
protection class IP	IP20

EMC

standard — for emitted interference	EN 55022 Class B
standard — for mains harmonics limitation	EN 61000-3-2
standard — for interference immunity	EN 61000-6-2

standards, specifications, approvals

certificate of suitability — CE marking	Yes
certificate of suitability — UL approval	Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259; cCSAus (CSA C22.2 No. 60950-1, UL 60950-1)
certificate of suitability — EAC approval	Yes
certificate of suitability — Regulatory Compliance Mark (RCM)	Yes
certificate of suitability — NEC Class 2	No
certificate of suitability — SEMI F47	Yes
type of certification — CB-certificate	Yes
MTBF at 40 °C	885 739 h

standards, specifications, approvals hazardous environments

certificate of suitability — IECEx	No
certificate of suitability — ATEX	No
certificate of suitability — ULhazloc approval	No
certificate of suitability — FM registration	No

standards, specifications, approvals marine classification

shipbuilding approval	Yes
Marine classification association — American Bureau of Shipping Europe Ltd. (ABS)	Yes
Marine classification association — French marine classification society (BV)	No
Marine classification association — Det Norske Veritas (DNV)	Yes
Marine classification association — Lloyds Register of Shipping (LRS)	No

ambient conditions

ambient temperature — during operation	-25 ... +70 °C; With natural convection; startup tested starting from -40 °C nominal voltage
ambient temperature — during transport	-40 ... +85 °C
ambient temperature — during storage	-40 ... +85 °C
environmental category according to IEC 60721	Climate class 3K3, 5 ... 95% no condensation

connection method

type of electrical connection	screw terminal
at input	L1, L2, L3, PE: 1 screw terminal each for 0.2 ... 4 mm² single-core/finely stranded
at output	+, -: 2 screw terminals each for 0.33 ... 10 mm²
for auxiliary contacts	13, 14 (alarm signal): 1 screw terminal each for 0.14 ... 1.5 mm²

mechanical data

width × height × depth of the enclosure	150 × 125 × 150 mm
installation width × mounting height	150 mm × 225 mm
required spacing — top	50 mm
required spacing — bottom	50 mm
required spacing — left	0 mm
required spacing — right	0 mm
fastening method	Snaps onto DIN rail EN 60715 35x15
DIN-rail mounting	Yes
S7 rail mounting	No
wall mounting	No
housing can be lined up	Yes
net weight	3.4 kg

accessories

electrical accessories	Buffer module
mechanical accessories	Device identification label 20 mm × 7 mm, TI-grey 3RT2900-1SB20

further information internet links

internet link — to website: Industry Online Support

https://support.industry.siemens.com

additional information

other information

Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6EP1437-3BA10PDF
