What is the Siemens 6EP1436-3BA00-8AA0?

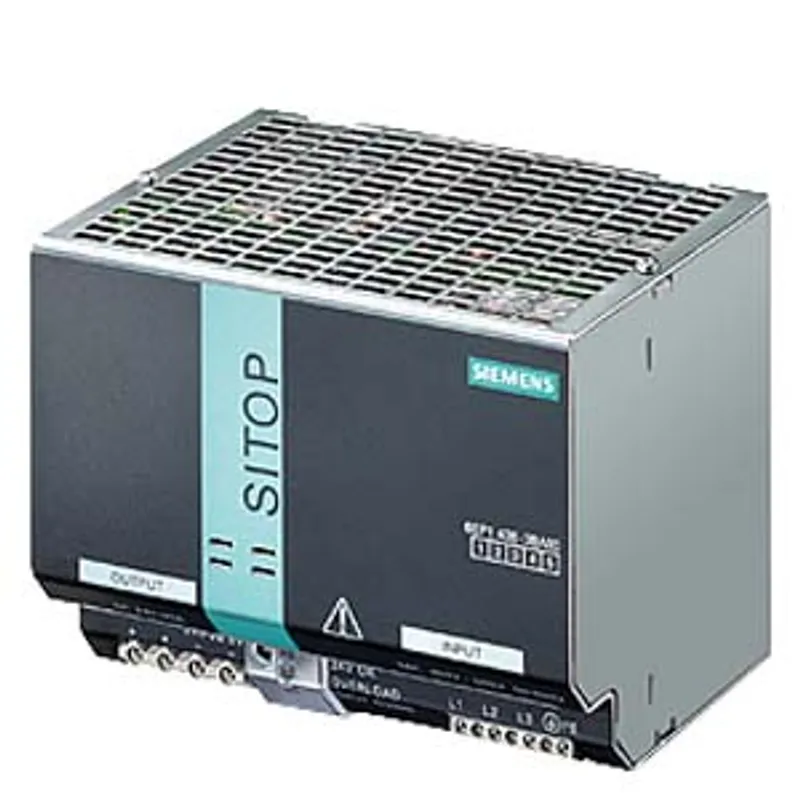

SITOP modular/3AC/24VDC/20A/CO SITOP modular plus 20 A Stabilized power supply input: 3 AC 400-500 V output: 24 V DC/20 A Option for with protective varnish

Specifications

General information

Technical Product Detail Page	https://i.siemens.com/1P6EP1436-3BA00-8AA0
Technical Product Detail Page	https://i.siemens.com/1P6EP1436-3BA00-8AA0
product brand name	SITOP
product type designation	modular
product designation	Power supply SITOP modular
type of current supply	24 V/20 A

input

type of the power supply network	3-phase AC
phase number	3
voltage curve at input	AC
supply voltage at AC — minimum rated value	400 V
supply voltage at AC — maximum rated value	500 V
supply voltage at AC — initial value	320 V
supply voltage at AC — full-scale value	550 V
supply voltage at AC	Starting from Vin > 340 V
supply voltage — at 50 Hz	400 V
supply voltage — at 60 Hz	500 V
line frequency	50/60 Hz
line frequency	47 ... 63 Hz
wide range input	Yes
overvoltage overload capability	2.3 × Vin rated, 1.3 ms
buffering time for rated value of the output current in the event of power failure minimum	6 ms
operating condition of the mains buffering	at Vin = 400 V
input current — at rated input voltage 400 V	1.1 A
input current — at rated input voltage 500 V	0.9 A
current limitation of inrush current at 25 °C maximum	35 A
I2t value maximum	0.7 A²·s
fuse protection type	none
fuse protection type in the feeder	Required: 3-pole connected miniature circuit breaker 6 ... 16 A characteristic C or circuit breaker 3RV2011-1DA10 (setting 3 A) or 3RV2711-1DD10 (UL 489)

output

voltage curve at output	Controlled, isolated DC voltage
product function output voltage controlled	Yes
product function output voltage stabilized	Yes
output voltage at DC rated value	24 V
output voltage — at output 1 at DC rated value	24 V
output voltage — at output 1 at DC	24 V
output voltage adjustable	Yes; via potentiometer
adjustable output voltage	24 ... 28.8 V; max. 480 W
relative overall tolerance of the voltage	3 %
relative control precision of the output voltage — on slow fluctuation of input voltage	0.1 %
relative control precision of the output voltage — on slow fluctuation of ohm loading	0.2 %
residual ripple — maximum	100 mV
voltage peak — maximum	200 mV
display version for normal operation	Green LED for 24 V OK
type of signal at output	via signaling module (6EP1961-3BA10)
behavior of the output voltage when switching on	No overshoot of Vout (soft start)
response delay maximum	2.5 s
voltage increase time of the output voltage — maximum	500 ms
output current — rated value	20 A
output current — rated range	0 ... 20 A; +60 ... +70 °C: Derating 2%/K
supplied active power typical	480 W
short-term overload current — at short-circuit during operation typical	60 A
duration of overloading capability for excess current — at short-circuit during operation	25 ms
constant overload current — on short-circuiting during the start-up typical	23 A
bridging of equipment	Yes; switchable characteristic
number of parallel-switched equipment resources for increasing the power	2

efficiency

efficiency in percent	90 %
power loss [W] — at rated output voltage for rated value of the output current typical	53 W

closed-loop control

relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical	1 %
relative control precision of the output voltage load step of resistive load 50/100/50 % typical	2 %
setting time — load step 50 to 100% typical	4 ms
setting time — load step 100 to 50% typical	4 ms
setting time — maximum	10 ms

protection and monitoring

design of the overvoltage protection	< 35 V
property of the output short-circuit proof	Yes
design of short-circuit protection	Alternatively, constant current characteristic approx. 23 A or latching shutdown
typical	23 A
enduring short circuit current RMS value — typical	23 A
display version for overload and short circuit	LED yellow for "overload", LED red for "latching shutdown"

safety

galvanic isolation between input and output	Yes
galvanic isolation	Output voltage: SELV, ES1 (IEC 62368-1), DVC As (IEC 61204-7)
operating resource protection class	Class I
leakage current — maximum	3.5 mA
protection class IP	IP20

EMC

standard — for emitted interference	EN 55022 Class B
standard — for mains harmonics limitation	EN 61000-3-2
standard — for interference immunity	EN 61000-6-2

standards, specifications, approvals

certificate of suitability — CE marking	Yes
certificate of suitability — UL approval	Yes; UL-Listed (UL 508), File E197259
certificate of suitability — UKCA marking	Yes
certificate of suitability — EAC approval	Yes
certificate of suitability — Regulatory Compliance Mark (RCM)	Yes
certificate of suitability — NEC Class 2	No
type of certification — CB-certificate	No
MTBF at 40 °C	711 213 h

standards, specifications, approvals hazardous environments

certificate of suitability — IECEx	No
certificate of suitability — ATEX	No
certificate of suitability — ULhazloc approval	No
certificate of suitability — FM registration	No

standards, specifications, approvals marine classification

shipbuilding approval	No
Marine classification association — American Bureau of Shipping Europe Ltd. (ABS)	No
Marine classification association — French marine classification society (BV)	No
Marine classification association — Det Norske Veritas (DNV)	No
Marine classification association — Lloyds Register of Shipping (LRS)	No

standards, specifications, approvals Environmental Product Declaration

Environmental Product Declaration	Yes
global warming potential [CO2 eq] — total	1 390.9 kg
global warming potential [CO2 eq] — during manufacturing	47.8 kg
global warming potential [CO2 eq] — during operation	1 342.1 kg
global warming potential [CO2 eq] — after end of life	0.4 kg

ambient conditions

ambient temperature — during operation	0 ... 70 °C; with natural convection
ambient temperature — during transport	-40 ... +85 °C
ambient temperature — during storage	-40 ... +85 °C
environmental category according to IEC 60721	Climate class 3K3, 5 ... 95% no condensation

connection method

type of electrical connection	screw terminal
at input	L1, L2, L3, PE: 1 screw terminal each for 0.2 ... 4 mm² single-core/finely stranded
at output	+, -: 2 screw terminals each for 0.33 ... 4 mm²
for auxiliary contacts	-

mechanical data

width × height × depth of the enclosure	160 × 125 × 125 mm
installation width × mounting height	160 mm × 225 mm
required spacing — top	50 mm
required spacing — bottom	50 mm
required spacing — left	0 mm
required spacing — right	0 mm
fastening method	Snaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mounting	Yes
S7 rail mounting	No
wall mounting	No
housing can be lined up	Yes
net weight	2 kg

accessories

electrical accessories

Buffer module, signaling module

further information internet links

internet link — to website: Industry Mall	https://mall.industry.siemens.com
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to website: CAx-Download-Manager	https://siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

additional information

other information

Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)
