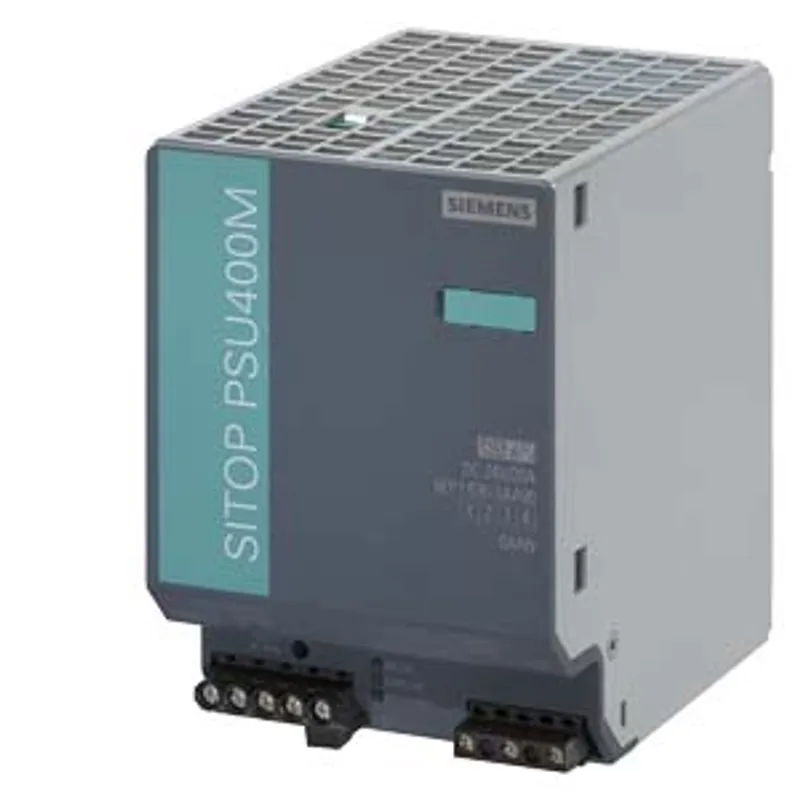

Siemens 6EP1536-3AA00

Q: When can 6EP1536-3AA00 be shipped?

6EP1536-3AA00 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Q: Can I pick up 6EP1536-3AA00 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Q: Is express delivery available?

Yes — mention it when you request a quote for 6EP1536-3AA00 and we'll include express shipping options in our reply.

Q: My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6EP1536-3AA00, subject to availability and destination.

SITOP PSU400M/DC/DC/600V/24V/20A SITOP PSU400M 20 A DC/DC converter input: 600 V DC output: 24 V DC/20 A

MPN: 6EP1536-3AA00
Category: Power Supplies

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via

What is the Siemens 6EP1536-3AA00?

SITOP PSU400M/DC/DC/600V/24V/20A SITOP PSU400M 20 A DC/DC converter input: 600 V DC output: 24 V DC/20 A

Specifications

General information

Technical Product Detail Page	https://i.siemens.com/1P6EP1536-3AA00
Technical Product Detail Page	https://i.siemens.com/1P6EP1536-3AA00
product brand name	SITOP
product type designation	PSU400M
product designation	Power supply SITOP modular
type of current supply	24 V/20 A

input

type of the power supply network	DC voltage
voltage curve at input	DC
supply voltage at AC	startup from 340 V DC; derating necessary at 300 ... 400 V DC and 824 ... 900 V DC
supply voltage at DC	600 V
input voltage at DC	300 ... 900 V
overvoltage overload capability	Shutdown at Vin > 900 V DC
input current at DC — at rated input voltage 600 V	0.85 A
current limitation of inrush current at 25 °C maximum	8 A
I2t value maximum	0.02 A²·s
fuse protection type	yes, cut-off capacity 20 kA; L/R < 2 ms ("+" and "-" input)

output

voltage curve at output	Controlled, isolated DC voltage
product function output voltage controlled	Yes
product function output voltage stabilized	Yes
output voltage at DC rated value	24 V
output voltage — at output 1 at DC rated value	24 V
output voltage — at output 1 at DC	24 V
output voltage adjustable	Yes; via potentiometer
adjustable output voltage	24 ... 28.8 V; max. 480 W
relative overall tolerance of the voltage	3 %
relative control precision of the output voltage — on slow fluctuation of input voltage	0.3 %
relative control precision of the output voltage — on slow fluctuation of ohm loading	0.3 %
residual ripple — maximum	150 mV
residual ripple — typical	30 mV
voltage peak — maximum	200 mV
voltage peak — typical	100 mV
display version for normal operation	Green LED for 24 V OK, green flashing LED for start delay
type of signal at output	Relay contact (NO contact, rating 60 V DC/ 0.3 A; 30 V DC/1 A) for 24 V OK
behavior of the output voltage when switching on	No overshoot of Vout (soft start)
response delay maximum	0.1 s; 10 s adjustable using switch
voltage increase time of the output voltage — maximum	150 ms
output current — rated value	20 A
output current — rated range	0 ... 20 A; +60 ... +70 °C: Derating 5.5%/K
supplied active power typical	480 W
short-term overload current — on short-circuiting during the start-up typical	40 A
short-term overload current — at short-circuit during operation typical	60 A
duration of overloading capability for excess current — on short-circuiting during the start-up	150 ms
duration of overloading capability for excess current — at short-circuit during operation	25 ms
constant overload current — on short-circuiting during the start-up typical	23 A
bridging of equipment	Yes; switchable characteristic
number of parallel-switched equipment resources for increasing the power	2

efficiency

efficiency in percent	95 %
power loss [W] — at rated output voltage for rated value of the output current typical	25 W

closed-loop control

relative control precision of the output voltage with rapid fluctuation of the input voltage by +/- 15% typical	1.5 %
relative control precision of the output voltage load step of resistive load 50/100/50 % typical	1.5 %
setting time — load step 50 to 100% typical	1 ms
setting time — load step 100 to 50% typical	1 ms
setting time — maximum	5 ms

protection and monitoring

design of the overvoltage protection	< 33 V
property of the output short-circuit proof	Yes
design of short-circuit protection	Alternatively, constant current characteristic approx. 22 A or latching shutdown
typical	22 A
overcurrent overload capability — in normal operation	overload capability 150 % Iout rated up to 5 s/min
enduring short circuit current RMS value — typical	22 A
display version for overload and short circuit	LED yellow for "overload", LED red for "latching shutdown", red LED flashing for "Overtemperature"

safety

galvanic isolation between input and output	Yes
galvanic isolation	Output voltage: PELV (IEC 61010-2-201)
operating resource protection class	Class I
protection class IP	IP20

EMC

standard — for emitted interference	EN 55022 Class A (emission)
standard — for mains harmonics limitation	-
standard — for interference immunity	EN 61000-6-2

standards, specifications, approvals

certificate of suitability — CE marking	Yes
certificate of suitability — UL approval	Yes; cULus-Listed (UL 508, CSA C22.2 No. 107.1), File E197259
certificate of suitability — UKCA marking	Yes
certificate of suitability — EAC approval	Yes
certificate of suitability — Regulatory Compliance Mark (RCM)	Yes
certificate of suitability — NEC Class 2	No
type of certification — CB-certificate	Yes
MTBF at 40 °C	622 277 h

standards, specifications, approvals hazardous environments

certificate of suitability — IECEx	No
certificate of suitability — ATEX	No
certificate of suitability — ULhazloc approval	No
certificate of suitability — FM registration	No

standards, specifications, approvals marine classification

shipbuilding approval	Yes
Marine classification association — American Bureau of Shipping Europe Ltd. (ABS)	No
Marine classification association — French marine classification society (BV)	No
Marine classification association — Det Norske Veritas (DNV)	Yes
Marine classification association — Lloyds Register of Shipping (LRS)	No

standards, specifications, approvals Environmental Product Declaration

Environmental Product Declaration	Yes
global warming potential [CO2 eq] — total	662.4 kg
global warming potential [CO2 eq] — during manufacturing	28.7 kg
global warming potential [CO2 eq] — during operation	633.1 kg
global warming potential [CO2 eq] — after end of life	0.24 kg

ambient conditions

ambient temperature — during operation	-25 ... +70 °C; with natural convection
ambient temperature — during transport	-40 ... +85 °C
ambient temperature — during storage	-40 ... +85 °C
environmental category according to IEC 60721	Climate class 3K3, 5 ... 95% no condensation

connection method

type of electrical connection	screw terminal
at input	DC input, +, -, PE: 1 screw terminal each for 0.2 ... 6/4 mm² single-core/finely stranded
at output	+, -: 2 screw terminals each for 0.2 ... 6/4 mm² single-core/finely stranded
for auxiliary contacts	Alarm signals: 2 screw terminals for 0.14 ... 1.5 mm² single-core/finely stranded

mechanical data

width × height × depth of the enclosure	90 × 125 × 125 mm
installation width × mounting height	90 mm × 225 mm
required spacing — top	50 mm
required spacing — bottom	50 mm
required spacing — left	0 mm
required spacing — right	0 mm
fastening method	Snaps onto DIN rail EN 60715 35x7.5/15
DIN-rail mounting	Yes
S7 rail mounting	No
wall mounting	No
housing can be lined up	Yes
net weight	1.2 kg

accessories

mechanical accessories

Device identification label 20 mm × 7 mm, pale turquoise 3RT1900-1SB20

further information internet links

internet link — to website: Industry Mall	https://mall.industry.siemens.com
internet link — to web page: selection aid TIA Selection Tool	https://www.siemens.com/tstcloud
internet link — to web page: power supplies	https://siemens.com/sitop
internet link — to website: CAx-Download-Manager	https://siemens.com/cax
internet link — to website: Industry Online Support	https://support.industry.siemens.com

additional information

other information

Specifications at rated input voltage and ambient temperature +25 °C (unless otherwise specified)

security information

Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7)

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

Product data sheet 6EP1536-3AA00PDF
