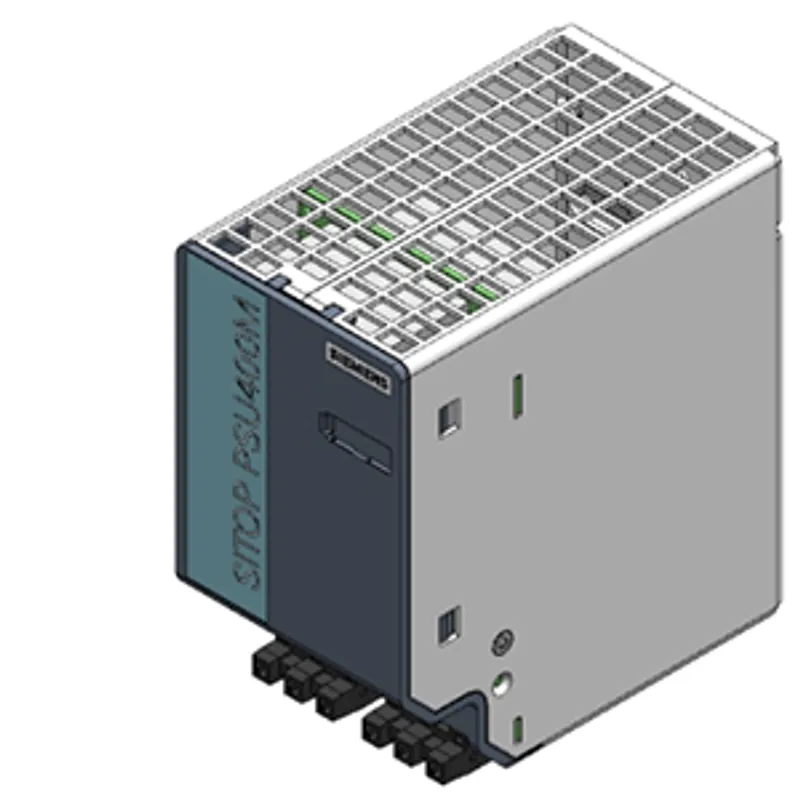

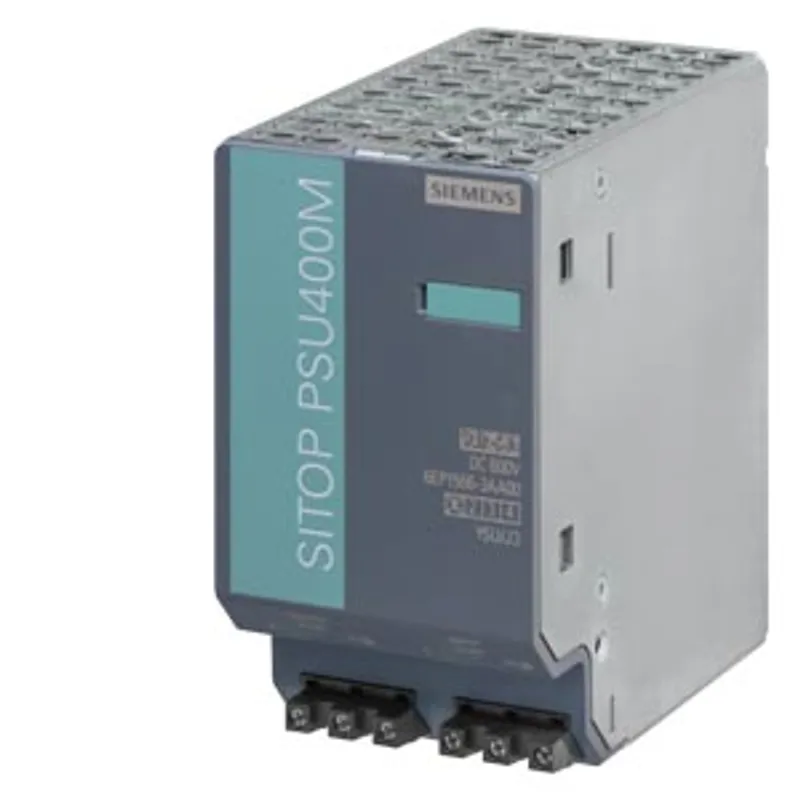

Siemens 6EP1566-3AA00
SITOP PSE400M SAB Ballast for 6EP1536-3AA00 Input: 300 to 900 V DC Output: 300 to 900 V DC
- MPN
- 6EP1566-3AA00
- Category
- Power Supplies
Price and lead time confirmed within 1 business day
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 6EP1566-3AA00?
SITOP PSE400M SAB Ballast for 6EP1536-3AA00 Input: 300 to 900 V DC Output: 300 to 900 V DC
Specifications
General information
| Technical Product Detail Page | https://i.siemens.com/1P6EP1566-3AA00 |
| product brand name | SITOP |
| product type designation | PSU400M |
| product designation | Power supply SITOP modular |
| type of current supply | 600 V/1 A |
input
| type of the power supply network | DC voltage |
| voltage curve at input | DC |
| supply voltage at DC | 600 V |
| input voltage at DC | 200 ... 900 V |
| input current at DC — at rated input voltage 600 V | 0.85 A |
| fuse protection type | 3 A/1 kV DC (internal fuse, not accessible) |
| fuse protection type in the feeder | yes, switch-off capacity 20 kA; L/R < 2 ms ("+" and "-" input) |
output
| voltage curve at output | Corresponding to the DC input voltage |
| number of outputs | 1 |
| output voltage at DC rated value | 600 V |
| output voltage — at output 1 at DC rated value | 600 V |
| output voltage — at output 1 at DC | 200 ... 900 V |
| output current — rated value | 0.85 A |
| output current — maximum rated value | 2.8 A |
| output current — rated range | 2.8 A |
| supplied active power typical | 505 W |
| short-term overload current — on short-circuiting during the start-up typical | 3 A |
efficiency
| efficiency in percent | 99.5 % |
| power loss [W] — at rated output voltage for rated value of the output current typical | 1.5 W |
safety
| operating resource protection class | Class I |
| protection class IP | IP20 |
EMC
| standard — for emitted interference | Class A (also conducted) with PSU400M |
| standard — for interference immunity | EN 61000-6-2 with PSU400M |
standards, specifications, approvals
| certificate of suitability — CE marking | Yes |
| certificate of suitability — UL approval | No |
| certificate of suitability — EAC approval | Yes |
| certificate of suitability — NEC Class 2 | No |
| type of certification — CB-certificate | Yes |
| MTBF at 40 °C | 1 240 810 h |
standards, specifications, approvals hazardous environments
| certificate of suitability — IECEx | No |
| certificate of suitability — ATEX | No |
| certificate of suitability — ULhazloc approval | No |
| certificate of suitability — FM registration | No |
standards, specifications, approvals marine classification
| shipbuilding approval | No |
| Marine classification association — American Bureau of Shipping Europe Ltd. (ABS) | No |
| Marine classification association — French marine classification society (BV) | No |
| Marine classification association — Det Norske Veritas (DNV) | No |
| Marine classification association — Lloyds Register of Shipping (LRS) | No |
ambient conditions
| ambient temperature — during operation | -25 ... +70 °C |
| ambient temperature — during transport | -40 ... +85 °C |
| ambient temperature — during storage | -40 ... +85 °C |
| ambient condition relating to ambient temperature - air pressure - installation altitude | < 2000 m |
| environmental category according to IEC 60721 | Climate class 3K3, 5 ... 95% no condensation |
connection method
| type of electrical connection | screw terminal |
| type of electrical connection — at input | DC input, +, -, PE: 1 screw terminal each for 0.2 ... 6/4 mm² single-core/finely stranded |
| type of electrical connection — at output | DC input +, -, PE: 1 screw terminal for 0.2 ... 6/4 mm² single-core/finely stranded |
mechanical data

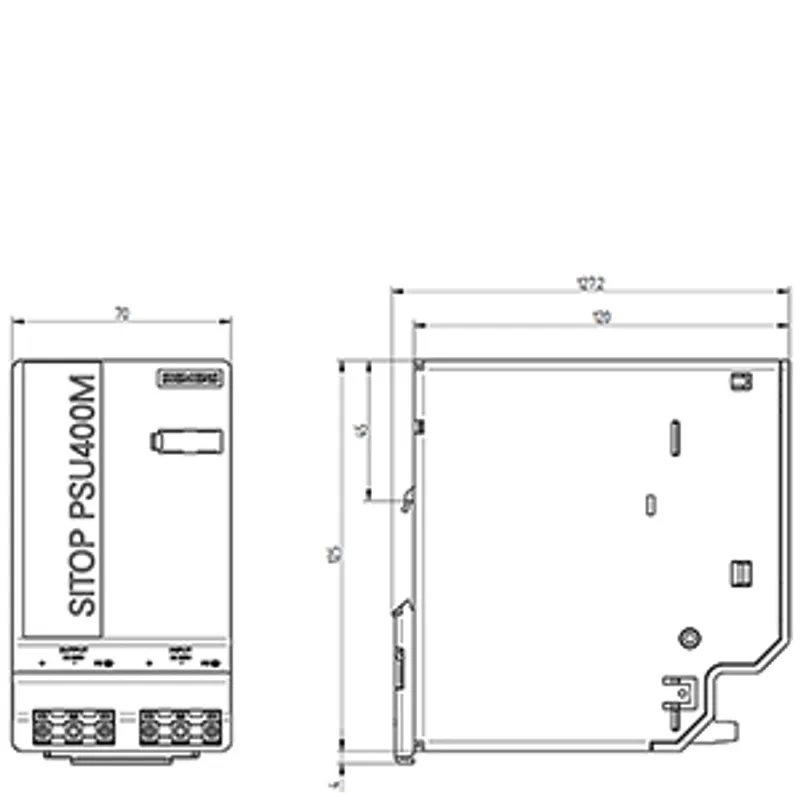

| width × height × depth of the enclosure | 70 × 125 × 120 mm |
| installation width × mounting height | 70 mm × 129 mm |
| required spacing — top | 50 mm |
| required spacing — bottom | 50 mm |
| fastening method — DIN-rail mounting | Yes |
| net weight | 0.515 kg |
further information internet links
| internet link — to website: Industry Mall | https://mall.industry.siemens.com |
| internet link — to web page: selection aid TIA Selection Tool | https://www.siemens.com/tstcloud |
| internet link — to web page: power supplies | https://siemens.com/sitop |
| internet link — to website: CAx-Download-Manager | https://siemens.com/cax |
| internet link — to website: Industry Online Support | https://support.industry.siemens.com |
security information
| security information | Siemens provides products and solutions with industrial cybersecurity functions that support the secure operation of plants, systems, machines and networks. In order to protect plants, systems, machines and networks against cyber threats, it is necessary to implement - and continuously maintain - a holistic, state-of-the-art industrial cybersecurity concept. Siemens’ products and solutions constitute one element of such a concept. Customers are responsible for preventing unauthorized access to their plants, systems, machines and networks. Such systems, machines and components should only be connected to an enterprise network or the internet if and to the extent such a connection is necessary and only when appropriate security measures (e.g. firewalls and/or network segmentation) are in place. For additional information on industrial cybersecurity measures that may be implemented, please visit www.siemens.com/cybersecurity-industry. Siemens’ products and solutions undergo continuous development to make them more secure. Siemens strongly recommends that product updates are applied as soon as they are available and that the latest product versions are used. Use of product versions that are no longer supported, and failure to apply the latest updates may increase customer’s exposure to cyber threats. To stay informed about product updates, subscribe to the Siemens Industrial Cybersecurity RSS Feed under https://www.siemens.com/cert. (V4.7) |
