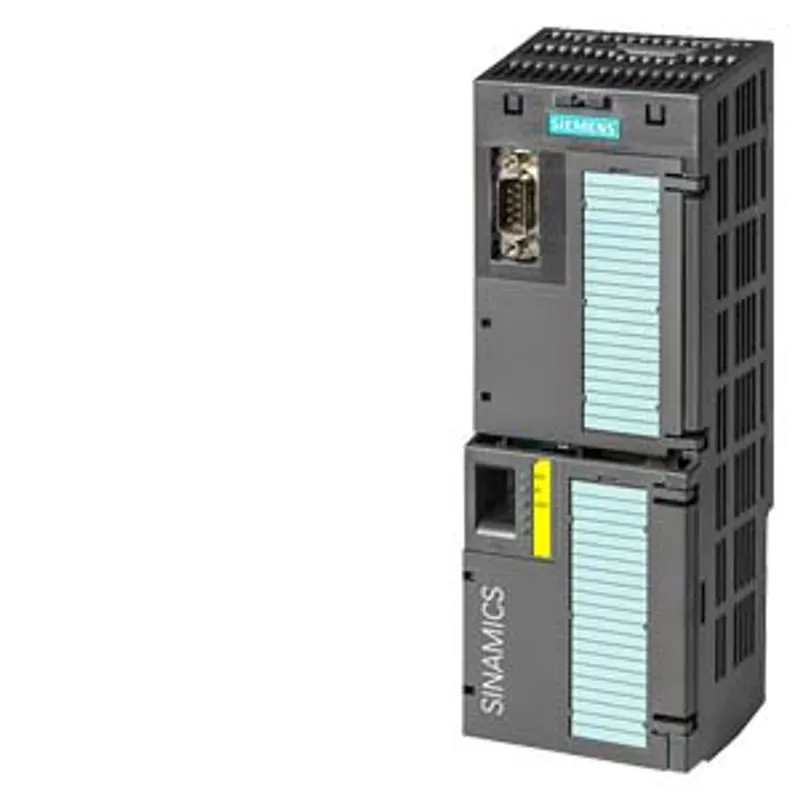

Siemens 6AG1246-0BA22-2FA0
SIPLUS G120 CU250S-2 PN based on 6SL3246-0BA22-1FA0 with conformal coating, -20…+50 °C
- MPN
- 6AG1246-0BA22-2FA0
- Category
- SIPLUS Control Units
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6AG1246-0BA22-2FA0?
SIPLUS G120 CU250S-2 PN based on 6SL3246-0BA22-1FA0 with conformal coating, -20…+50 °C, integrates PROFINET supports vector control basic positioner EPOS via license extended functions 4 configurable DI/DO modules 6 DI (3 F-DI), 5 DI 3 DQ (1 F-DQ) 2 AI, 2 AQ Safety Integrated STO, SBC, SS1 encoder interface: D-CLiQ+HTL/TTL/SSI resolver/HTL via terminal degree of protection IP20
Specifications
General information
| Product type designation | CU250S-2 PN |
| based on | 6SL3246-0BA22-1FA0 |
| Product function — V/f control with linear/square parameterization capability | Yes |
| Product function — V/f control with ECO mode linear/square | Yes |
| Product function — V/f control with flux current control | Yes |
| Product function — Vector control with encoder | No |
| Product function — Vector control without encoder | Yes |
Supply voltage
| Operating voltage from Power Module | 24 V |
| Operating voltage from external power supply, min. | 20.4 V |
| Operating voltage from external power supply, max. | 28.8 V |
Input current
| Current consumption, max. | 1.5 A |
Power loss
| Power loss, max. | 12 W |
Digital inputs
| Number of digital inputs | 11; Optically isolated, free reference potential (own potential group), NPN/PNP-logic selectable via wiring |
| Number of digital inputs — With fail-safe | 1; Use of 2x DI Standard |
Digital outputs
| Number of digital outputs — As transistor | 4 |
| Number of digital outputs — As relay change-over contact | 3 |
Analog inputs
| Number of analog inputs | 2; the differential analog inputs can be configured as supplementary digital inputs |
| Type of analog input | Differential input |
| Remark | switchable between voltage (-10 ... +10 V) and current (0 ... 20 mA) using a DIP switch |
| Input voltage with signal "0" to "1" | 4 V |
| Input voltage with signal "1" to "0" | 1.6 V |
Analog outputs
| Number of analog outputs | 2 |
Analog value generation for the inputs
| A/D resolution | 13 bit |
Interfaces
| Number of PROFINET interfaces | 2 |
| Number of RS 485 interfaces | 0 |
Protocols
| PROFIBUS | No |
Isolation
| Type of protective insulation | PELV according to EN 50178, safe disconnection from the mains by double/reinforced isolation |
Degree and class of protection
| IP degree of protection | IP20 |
Standards, approvals, certificates
| Certificate of suitability | CE / TÜV |
Ambient conditions
| Ambient temperature during operation — min. | -20 °C; = Tmin |
| Ambient temperature during operation — max. | 50 °C; = Tmax |
| Ambient temperature during operation — min. [°F] | -4 °F |
| Ambient temperature during operation — max. [°F] | 122 °F |
| Ambient temperature during operation — Remark | A derating of 3 K/1 000 m has to be applied to the Control Units from an installation altitude of 1 000 m above sea level |
| Ambient temperature during storage/transportation — Storage, min. | -40 °C |
| Ambient temperature during storage/transportation — Storage, max. | 70 °C |
| Ambient temperature during storage/transportation — Storage, min. [°F] | -40 °F |
| Ambient temperature during storage/transportation — Storage, max. [°F] | 158 °F |
| Relative humidity — With condensation, tested in accordance with IEC 60068-2-38, max. | 100 %; RH incl. condensation/frost (no commissioning when condensation present), vertical mounting position |
| Resistance — Use in stationary industrial systems — to biologically active substances according to EN 60721-3-3 | Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request |
| Resistance — Use in stationary industrial systems — to chemically active substances according to EN 60721-3-3 | Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| Resistance — Use in stationary industrial systems — to mechanically active substances according to EN 60721-3-3 | No |
| Resistance — Usage in industrial process technology — Against chemically active substances acc. to EN 60654-4 | Yes; Class 3 (excluding trichlorethylene) |
| Resistance — Usage in industrial process technology — Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04 | Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil) |
| Resistance — Remark — Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04 | * The supplied plug covers must remain in place over the unused interfaces during operation! |
| Conformal coating — Coatings for printed circuit board assemblies acc. to EN 61086 | Yes; Class 2 for high reliability |
| Conformal coating — Protection against fouling acc. to EN 60664-3 | Yes; Type 1 protection |
| Conformal coating — Military testing according to MIL-I-46058C, Amendment 7 | Yes; Discoloration of coating possible during service life |
| Conformal coating — Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830A | Yes; Conformal coating, Class A |
Connection method
| Type of electrical connection for signal line — Connectable conductor cross-section for signal line, min. | 0.05 mm² |
| Type of electrical connection for signal line — Connectable conductor cross-section for signal line, max. | 1.5 mm² |
| Type of electrical connection for signal line — Connectable conductor cross-section for AWG cables, min. | 30 |
| Type of electrical connection for signal line — Connectable conductor cross-section for AWG cables, max. | 16 |
Dimensions
| Width | 73 mm |
| Height | 199 mm |
| Depth | 63 mm |
Weights
| Weight (without packaging) | 0.49 kg |
