SIPLUS Control Units Parts
Compare SIPLUS Control Units
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product type designation | based on | Current consumption, max. | Power loss, max. | Number of digital outputs — As transistor |
|---|---|---|---|---|---|

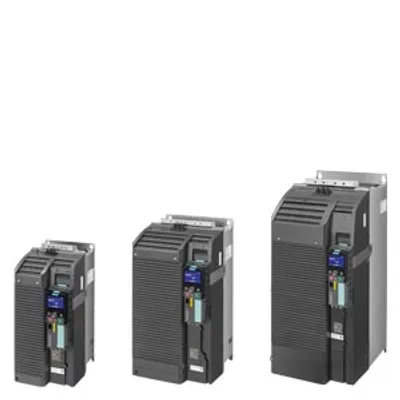

| 6AG1244-0BB12-2BA1 | CU240E-2 USS | 6SL3244-0BB12-1BA1 | 0.5 A | 5.5 W | 1 |

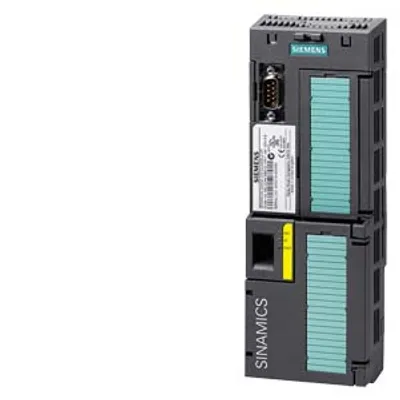

| 6AG1244-0BB12-2PA1 | CU240E-2 DP | 6SL3244-0BB12-1PA1 | 0.5 A | 5.5 W | 1 |

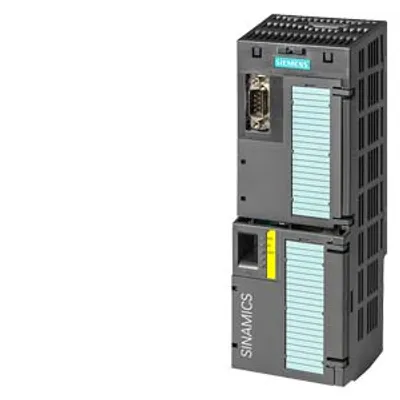

| 6AG1246-0BA22-2FA0 | CU250S-2 PN | 6SL3246-0BA22-1FA0 | 1.5 A | 12 W | 4 |
Common to all listed parts
| Product function — V/f control with linear/square parameterization capability | Yes |
| Product function — V/f control with ECO mode linear/square | Yes |
| Product function — V/f control with flux current control | Yes |
| Product function — Vector control with encoder | No |
| Product function — Vector control without encoder | Yes |
| Operating voltage from Power Module | 24 V |
| Operating voltage from external power supply, min. | 20.4 V |
| Operating voltage from external power supply, max. | 28.8 V |
