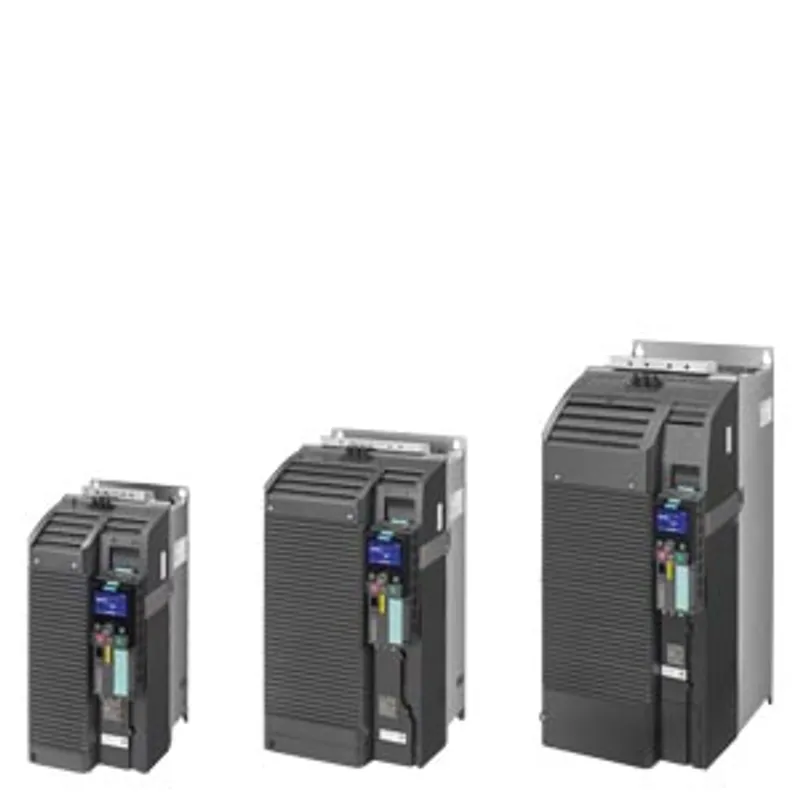

Siemens 6AG1244-0BB12-2BA1
SIPLUS G120 CU240E-2 USS based on 6SL3244-0BB12-1BA1 with conformal coating, -20…+55 °C
- MPN
- 6AG1244-0BB12-2BA1
- Category
- SIPLUS Control Units
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6AG1244-0BB12-2BA1?
SIPLUS G120 CU240E-2 USS based on 6SL3244-0BB12-1BA1 with conformal coating, -20…+55 °C, Control Unit CU240E-2 USS E-type with Safety Integrated STO RS-485 interface, USS protocol 6 DI, 3 DQ, 2 AI, 2 AQ, max. 1F-DI PTC/KTY interface USB and SD/MMC interface degree of protection IP20 without Power Module
Specifications
General information
| Product type designation | CU240E-2 USS |
| based on | 6SL3244-0BB12-1BA1 |
| Product function — V/f control with linear/square parameterization capability | Yes |
| Product function — V/f control with ECO mode linear/square | Yes |
| Product function — V/f control with flux current control | Yes |
| Product function — Vector control with encoder | No |
| Product function — Vector control without encoder | Yes |
Supply voltage
| Operating voltage from Power Module | 24 V |
| Operating voltage from external power supply, min. | 20.4 V |
| Operating voltage from external power supply, max. | 28.8 V |
Input current
| Current consumption, max. | 0.5 A |
Power loss
| Power loss, max. | 5.5 W |
Digital inputs
| Number of digital inputs | 6; Optically isolated, free reference potential (own potential group), NPN/PNP-logic selectable via wiring |
| Number of digital inputs — With fail-safe | 1; Use of 2x DI Standard |
Digital outputs
| Number of digital outputs — As transistor | 1 |
| Number of digital outputs — As relay change-over contact | 2 |
Analog inputs
| Number of analog inputs | 2; the differential analog inputs can be configured as supplementary digital inputs |
| Type of analog input | Differential input |
| Remark | Switchable between voltage (-10 ... +10 V) and current (0/4 ... 20 mA) using a DIP switch |
| Input voltage with signal "0" to "1" | 4 V |
| Input voltage with signal "1" to "0" | 1.6 V |
Analog outputs
| Number of analog outputs | 2 |
Analog value generation for the inputs
| A/D resolution | 10 bit |
Interfaces
| Number of PROFINET interfaces | 0 |
| Number of RS 485 interfaces | 1 |
Protocols
| PROFIBUS | No |
Isolation
| Type of protective insulation | PELV according to EN 50178, safe disconnection from the mains by double/reinforced isolation |
Degree and class of protection
| IP degree of protection | IP20 |
Standards, approvals, certificates
| Certificate of suitability | CE / TÜV |
Ambient conditions
| Ambient temperature during operation — min. | -20 °C; = Tmin |
| Ambient temperature during operation — max. | 55 °C; = Tmax |
| Ambient temperature during operation — min. [°F] | -4 °F |
| Ambient temperature during operation — max. [°F] | 131 °F |
| Ambient temperature during operation — Remark | A derating of 3 K/1 000 m has to be applied to the Control Units from an installation altitude of 1 000 m above sea level |
| Ambient temperature during storage/transportation — Storage, min. | -40 °C |
| Ambient temperature during storage/transportation — Storage, max. | 70 °C |
| Ambient temperature during storage/transportation — Storage, min. [°F] | -40 °F |
| Ambient temperature during storage/transportation — Storage, max. [°F] | 158 °F |
| Relative humidity — With condensation, tested in accordance with IEC 60068-2-38, max. | 100 %; RH incl. condensation/frost (no commissioning under condensation conditions) |
| Resistance — Use in stationary industrial systems — to biologically active substances according to EN 60721-3-3 | Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request |
| Resistance — Use in stationary industrial systems — to chemically active substances according to EN 60721-3-3 | Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| Resistance — Use in stationary industrial systems — to mechanically active substances according to EN 60721-3-3 | No |
| Resistance — Usage in industrial process technology — Against chemically active substances acc. to EN 60654-4 | Yes; Class 3 (excluding trichlorethylene) |
| Resistance — Usage in industrial process technology — Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04 | Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil) |
| Resistance — Remark — Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04 | * The supplied plug covers must remain in place over the unused interfaces during operation! |
| Conformal coating — Coatings for printed circuit board assemblies acc. to EN 61086 | Yes; Class 2 for high reliability |
| Conformal coating — Military testing according to MIL-I-46058C, Amendment 7 | Yes; Discoloration of coating possible during service life |
| Conformal coating — Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830A | Yes; Conformal coating, Class A |
Connection method
| Type of electrical connection for signal line — Connectable conductor cross-section for signal line, min. | 0.05 mm² |
| Type of electrical connection for signal line — Connectable conductor cross-section for signal line, max. | 1.5 mm² |
| Type of electrical connection for signal line — Connectable conductor cross-section for AWG cables, min. | 30 |
| Type of electrical connection for signal line — Connectable conductor cross-section for AWG cables, max. | 16 |
Dimensions
| Width | 73 mm |
| Height | 199 mm |
| Depth | 46 mm |
Weights
| Weight (without packaging) | 0.49 kg |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6AG1244-0BB12-2BA1: frequently asked questions
When can 6AG1244-0BB12-2BA1 be shipped?
6AG1244-0BB12-2BA1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6AG1244-0BB12-2BA1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6AG1244-0BB12-2BA1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6AG1244-0BB12-2BA1, subject to availability and destination.
