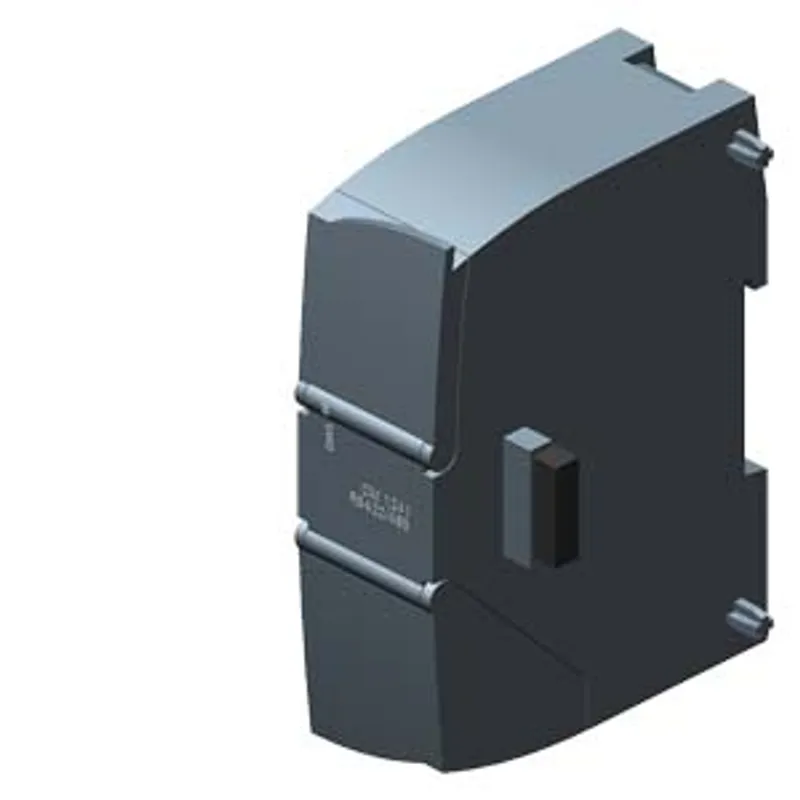

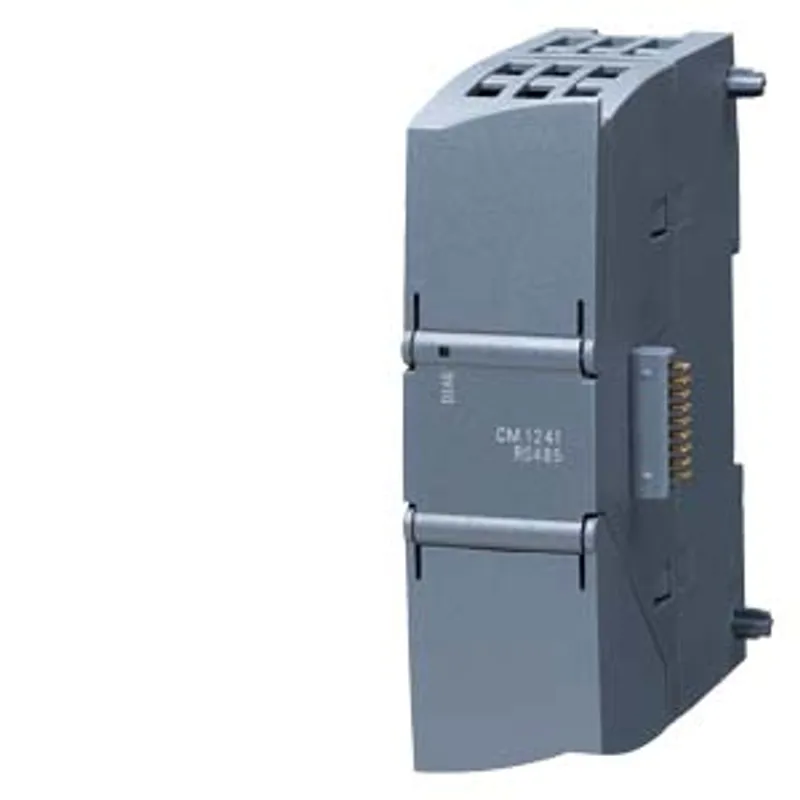

Siemens 6AG1241-1CH32-2XB0
SIPLUS S7-1200 CM 1241 based on 6ES7241-1CH32-0XB0 with conformal coating, -40…+70 °C, start up -25 °C
- MPN
- 6AG1241-1CH32-2XB0
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6AG1241-1CH32-2XB0?
SIPLUS S7-1200 CM 1241 based on 6ES7241-1CH32-0XB0 with conformal coating, -40…+70 °C, start up -25 °C, communications module CM 1241, RS-422/485, 9-pole D-sub (pin) supports Freeport
Specifications
General information
| Product type designation | CM 1241 RS 422 / 485 |
| based on | 6ES7241-1CH32-0XB0 |
Supply voltage
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 20.4 V |
| permissible range, upper limit (DC) | 28.8 V |
Input current
| Current consumption, max. | 220 mA; From backplane bus 5 V DC |
Power loss
| Power loss, typ. | 1.1 W |
Interfaces
| Interfaces/bus type | RS 422 / 485 (X.27) |
| Number of interfaces | 1 |
| Point-to-point connection — Cable length, max. | 1 000 m |
| Point-to-point connection — Integrated protocol driver — Freeport | Yes |
| Point-to-point connection — Integrated protocol driver — ASCII | Yes; Available as library function |
| Point-to-point connection — Integrated protocol driver — Modbus RTU master | Yes |
| Point-to-point connection — Integrated protocol driver — Modbus RTU device | Yes |
| Point-to-point connection — Integrated protocol driver — USS | Yes; Available as library function |
Protocols
| Integrated protocols — Freeport — Telegram length, max. | 1 kbyte |
| Integrated protocols — Freeport — Bits per character | 7 or 8 |
| Integrated protocols — Freeport — Number of stop bits | 1 (Standard), 2 |
| Integrated protocols — Freeport — Parity | No parity (standard); even, uneven, mark (parity bit always 1); space (parity bit always 0) |
| Integrated protocols — 3964 (R) — Telegram length, max. | 1 kbyte |
| Integrated protocols — 3964 (R) — Bits per character | 7 or 8 |
| Integrated protocols — 3964 (R) — Number of stop bits | 1 (Standard), 2 |
| Integrated protocols — 3964 (R) — Parity | No parity (standard); even, uneven, mark (parity bit always 1); space (parity bit always 0) |
| Integrated protocols — Modbus RTU master — Address area | 1 through 49 999 (Standard Modbus addressing) |
| Integrated protocols — Modbus RTU master — max. number of devices | 247; slave numbers 1 through 247, per MODBUS network segment maximum 32 devices, additional repeaters needed to expand the network to maximum configuration |
| Integrated protocols — Modbus RTU device — Address area | 1 through 49 999 (Standard Modbus addressing) |
Interrupts/diagnostics/status information
| Diagnostics function | Yes |
| Diagnostics indication LED — for status of the outputs | Yes |
Degree and class of protection
| IP degree of protection | IP20 |
Ambient conditions
| Free fall — Fall height, max. | 0.3 m; five times, in product package |
| Ambient temperature during operation — min. | -40 °C; = Tmin (incl. condensation/frost); start-up @ -25 °C |
| Ambient temperature during operation — max. | 70 °C; Tmax > 60 °C, derating: Max. one module may be configured; this module must be the last module on the CM bus; minimum clearance on the left side of at least 45 mm |
| Ambient temperature during storage/transportation — min. | -40 °C |
| Ambient temperature during storage/transportation — max. | 70 °C |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 5 000 m |
| Altitude during operation relating to sea level — Ambient air temperature-barometric pressure-altitude | Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m) |
| Relative humidity — With condensation, tested in accordance with IEC 60068-2-38, max. | 100 %; RH incl. condensation/frost (no commissioning under condensation conditions) |
| Resistance — Coolants and lubricants — Resistant to commercially available coolants and lubricants | Yes; Incl. diesel and oil droplets in the air |
| Resistance — Use in stationary industrial systems — to biologically active substances according to EN 60721-3-3 | Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request |
| Resistance — Use in stationary industrial systems — to chemically active substances according to EN 60721-3-3 | Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| Resistance — Use in stationary industrial systems — to mechanically active substances according to EN 60721-3-3 | Yes; Class 3S4 incl. sand, dust, * |
| Resistance — Use on ships/at sea — to biologically active substances according to EN 60721-3-6 | Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request |
| Resistance — Use on ships/at sea — to chemically active substances according to EN 60721-3-6 | Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| Resistance — Use on ships/at sea — to mechanically active substances according to EN 60721-3-6 | Yes; Class 6S3 incl. sand, dust; * |
| Resistance — Usage in industrial process technology — Against chemically active substances acc. to EN 60654-4 | Yes; Class 3 (excluding trichlorethylene) |
| Resistance — Usage in industrial process technology — Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04 | Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil) |
| Resistance — Remark — Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04 | * The supplied plug covers must remain in place over the unused interfaces during operation! |
| Conformal coating — Coatings for printed circuit board assemblies acc. to EN 61086 | Yes; Class 2 for high reliability |
| Conformal coating — Protection against fouling acc. to EN 60664-3 | Yes; Type 1 protection |
| Conformal coating — Military testing according to MIL-I-46058C, Amendment 7 | Yes; Discoloration of coating possible during service life |
| Conformal coating — Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830A | Yes; Conformal coating, Class A |
Dimensions
| Width | 30 mm |
| Height | 100 mm |
| Depth | 75 mm |
Weights
| Weight, approx. | 155 g |
