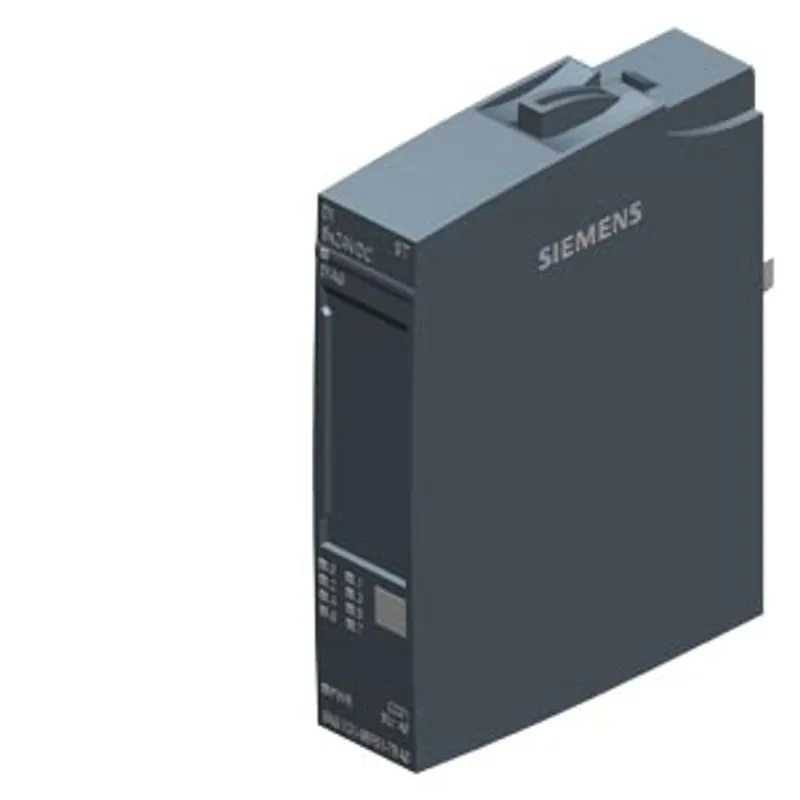

SIPLUS ET 200SP DI 8x24 V DC standard based on 6ES7131-6BF01-0BA0 with conformal coating, -40…+70 °C

MPN: 6AG1131-6BF01-7BA0
Category: SIPLUS digital inputs

Price and lead time confirmed within 1 business day

Request a Quote

12-month warranty (new) · 3-month (used/refurbished)
30-day returns, no restocking fee on unused parts
Ships via
100% positive eBay feedback

Have spare Siemens parts? We buy surplus →

What is the Siemens 6AG1131-6BF01-7BA0?

SIPLUS ET 200SP DI 8x24 V DC standard based on 6ES7131-6BF01-0BA0 with conformal coating, -40…+70 °C, digital input module, suitable for BU type A0, color code CC01, sink input, (PNP, sinking input), input type 3 (IEC 61131), input delay 0.05..20 ms module diagnostics for: short-circuit encoder supply, wire break, supply voltage

Specifications

General information

Product type designation	DI 8x24 VDC ST
Firmware version — FW update possible	No
based on	6ES7131-6BF01-0BA0
usable BaseUnits	BU type A0
Color code for module-specific color-coded label	CC01
Product function — I&M data	Yes; I&M0 to I&M3
Product function — Isochronous mode	No
Product function — suitable for operation on PROFINET R1 IMs	Yes
Engineering with — STEP 7 TIA Portal configurable/integrated from version	see entry ID: 109746275
Operating mode — DI	Yes
Operating mode — Counter	No
Operating mode — Oversampling	No
Operating mode — MSI	No

Supply voltage

Rated value (DC)	24 V
permissible range, lower limit (DC)	19.2 V
permissible range, upper limit (DC)	28.8 V
Reverse polarity protection	Yes

Input current

Current consumption, max.

50 mA; All channels are supplied from the encoder supply

Encoder supply

Number of outputs	8
Output voltage, min.	19.2 V
Short-circuit protection	Yes; per module
24 V encoder supply — 24 V	Yes
24 V encoder supply — Short-circuit protection	Yes
24 V encoder supply — Output current, max.	700 mA
24 V encoder supply — Output current per channel, max.	700 mA
24 V encoder supply — Output current per module, max.	700 mA

Power loss

Power loss, typ.

1 W; 24 V, 8 inputs supplied via encoder supply

Address area

Address space per module — Inputs

1 byte; + 1 byte for QI information

Hardware configuration

Automatic encoding	Yes
Automatic encoding — Mechanical coding element	Yes
Automatic encoding — Type of mechanical coding element	Type A
Selection of BaseUnit for connection variants — 1-wire connection	BU type A0
Selection of BaseUnit for connection variants — 2-wire connection	BU type A0
Selection of BaseUnit for connection variants — 3-wire connection	BU type A0 with AUX terminals or potential distributor module
Selection of BaseUnit for connection variants — 4-wire connection	BU type A0 + Potential distributor module

Digital inputs

Number of digital inputs	8
Digital inputs, parameterizable	Yes
Sourcing/sinking input	P-reading
Input characteristic curve in accordance with IEC 61131, type 3	Yes
Input voltage — Rated value (DC)	24 V
Input voltage — for signal "0"	-30 to +5 V
Input voltage — for signal "1"	+11 to +30V
Input current — for signal "1", typ.	2.5 mA
Input delay (for rated value of input voltage) — for standard inputs — parameterizable	Yes; 0.05 / 0.1 / 0.4 / 0.8 / 1.6 / 3.2 / 12.8 / 20 ms (in each case + delay of 30 to 500 µs, depending on line length)
Input delay (for rated value of input voltage) — for standard inputs — at "0" to "1", min.	0.05 ms
Input delay (for rated value of input voltage) — for standard inputs — at "0" to "1", max.	20 ms
Input delay (for rated value of input voltage) — for standard inputs — at "1" to "0", min.	0.05 ms
Input delay (for rated value of input voltage) — for standard inputs — at "1" to "0", max.	20 ms
Cable length — shielded, max.	1 000 m
Cable length — unshielded, max.	600 m

Encoder

Connectable encoders — 2-wire sensor	Yes
Connectable encoders — 2-wire sensor — permissible quiescent current (2-wire sensor), max.	1.5 mA

Interrupts/diagnostics/status information

Diagnostics function	Yes
Alarms — Diagnostic alarm	Yes
Diagnoses — Diagnostic information readable	Yes
Diagnoses — Monitoring the supply voltage	Yes
Diagnoses — Monitoring the supply voltage — parameterizable	Yes
Diagnoses — Monitoring of encoder power supply	Yes; Module-by-module, optional protective circuit for preventing wire-break diagnostics in the case of simple encoder contacts: 25 kOhm to 45 kOhm
Diagnoses — Wire break	Yes; module-wise
Diagnoses — short-circuit	Yes; module-wise
Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED)	Yes; green PWR LED
Diagnostics indication LED — Channel status display	Yes; green LED
Diagnostics indication LED — for channel diagnostics	No
Diagnostics indication LED — for module diagnostics	Yes; green/red DIAG LED

Potential separation

Potential separation channels — between the channels	No
Potential separation channels — between the channels and backplane bus	Yes
Potential separation channels — between the channels and the power supply of the electronics	No

Isolation

Isolation tested with

707 V DC (type test)

Standards, approvals, certificates

Suitable for safety functions	No
Ecological footprint — environmental product declaration	Yes
Ecological footprint — Global warming potential — global warming potential, (total) [CO2 eq]	15.9 kg
Ecological footprint — Global warming potential — global warming potential, (during production) [CO2 eq]	3.69 kg
Ecological footprint — Global warming potential — global warming potential, (during operation) [CO2 eq]	12.7 kg
Ecological footprint — Global warming potential — global warming potential, (after end of life cycle) [CO2 eq]	-0.495 kg

Ambient conditions

Ambient temperature during operation — horizontal installation, min.	-40 °C; = Tmin (incl. condensation/frost)
Ambient temperature during operation — horizontal installation, max.	70 °C; = Tmax
Ambient temperature during operation — vertical installation, min.	-40 °C; = Tmin
Ambient temperature during operation — vertical installation, max.	50 °C; = Tmax
Altitude during operation relating to sea level — Installation altitude above sea level, max.	5 000 m
Altitude during operation relating to sea level — Ambient air temperature-barometric pressure-altitude	Tmin ... Tmax at 1 140 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax -20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m)
Relative humidity — With condensation, tested in accordance with IEC 60068-2-38, max.	100 %; incl. condensation / frost permitted (no commissioning under condensation conditions)
Resistance — Coolants and lubricants — Resistant to commercially available coolants and lubricants	Yes; Incl. diesel and oil droplets in the air
Resistance — Use in stationary industrial systems — to biologically active substances according to EN 60721-3-3	Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request
Resistance — Use in stationary industrial systems — to chemically active substances according to EN 60721-3-3	Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
Resistance — Use in stationary industrial systems — to mechanically active substances according to EN 60721-3-3	Yes; Class 3S4 incl. sand, dust, *
Resistance — Use in stationary industrial systems — Against mechanical environmental conditions acc. to EN 60721-3-3	Yes; Class 3M8 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Resistance — Use on ships/at sea — to biologically active substances according to EN 60721-3-6	Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request
Resistance — Use on ships/at sea — to chemically active substances according to EN 60721-3-6	Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); *
Resistance — Use on ships/at sea — to mechanically active substances according to EN 60721-3-6	Yes; Class 6S3 incl. sand, dust; *
Resistance — Use on ships/at sea — Against mechanical environmental conditions acc. to EN 60721-3-6	Yes; Class 6M4 using the SIPLUS Mounting Kit ET 200SP (6AG1193-6AA00-0AA0)
Resistance — Usage in industrial process technology — Against chemically active substances acc. to EN 60654-4	Yes; Class 3 (excluding trichlorethylene)
Resistance — Usage in industrial process technology — Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04	Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil)
Resistance — Remark — Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04	* The supplied plug covers must remain in place over the unused interfaces during operation!
Conformal coating — Coatings for printed circuit board assemblies acc. to EN 61086	Yes; Class 2 for high reliability
Conformal coating — Protection against fouling acc. to EN 60664-3	Yes; Type 1 protection
Conformal coating — Military testing according to MIL-I-46058C, Amendment 7	Yes; Discoloration of coating possible during service life
Conformal coating — Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830A	Yes; Conformal coating, Class A

Dimensions

Width	15 mm
Height	73 mm
Depth	58 mm

Weights

Weight, approx.

28 g
