SIPLUS digital inputs Parts
Compare SIPLUS digital inputs
Key specifications of the parts listed on this page, taken from the manufacturer's data sheets.
| MPN | Product type designation | based on | Color code for module-specific color-coded label | Automatic encoding — Type of mechanical coding element | Number of digital inputs |
|---|---|---|---|---|---|
| 6AG1131-6BH01-7BA0 | DI 16x24VDC ST | 6ES7131-6BH01-0BA0 | CC00 | Type A | 16 |
| 6AG1131-6BF61-7AA0 | DI 8x24 VDC SRC BA | 6ES7131-6BF61-0AA0 | CC02 | type B | 8 |
| 6AG1131-6BF01-7BA0 | DI 8x24 VDC ST | 6ES7131-6BF01-0BA0 | CC01 | Type A | 8 |

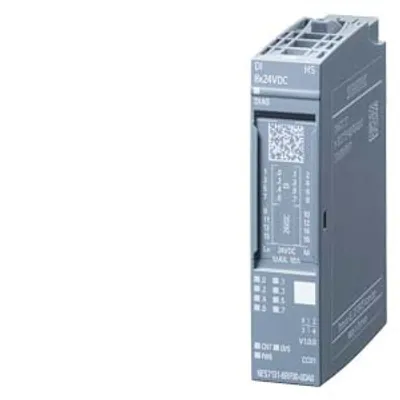

| 6AG1131-6BF00-7CA0 | DI 8x24 V DC HF | 6ES7131-6BF00-0CA0 | CC01 | Type A | 8 |

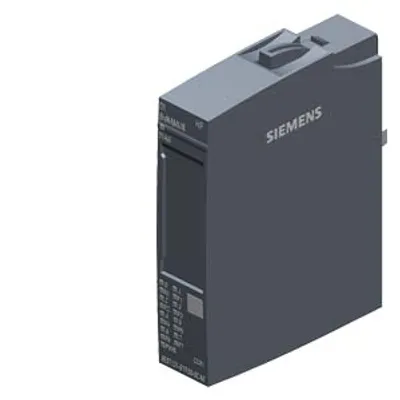

| 6AG1131-6TF00-7CA0 | DI 8xNAMUR HF | 6ES7131-6TF00-0CA0 | CC01 | Type A | 8; NAMUR |

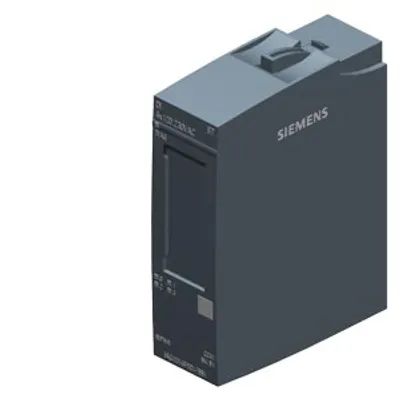

| 6AG1131-6FD01-7BB1 | DI 4x120...230VAC ST | 6ES7131-6FD01-0BB1 | CC41 | type C | 4 |
Common to all listed parts
| Product function — I&M data | Yes; I&M0 to I&M3 |
| Product function — suitable for operation on PROFINET R1 IMs | Yes |
| Engineering with — STEP 7 TIA Portal configurable/integrated from version | see entry ID: 109746275 |
| Operating mode — DI | Yes |
| Operating mode — Oversampling | No |
| Automatic encoding | Yes |
| Digital inputs, parameterizable | Yes |
| Diagnostics indication LED — Monitoring of the supply voltage (PWR-LED) | Yes; green PWR LED |
