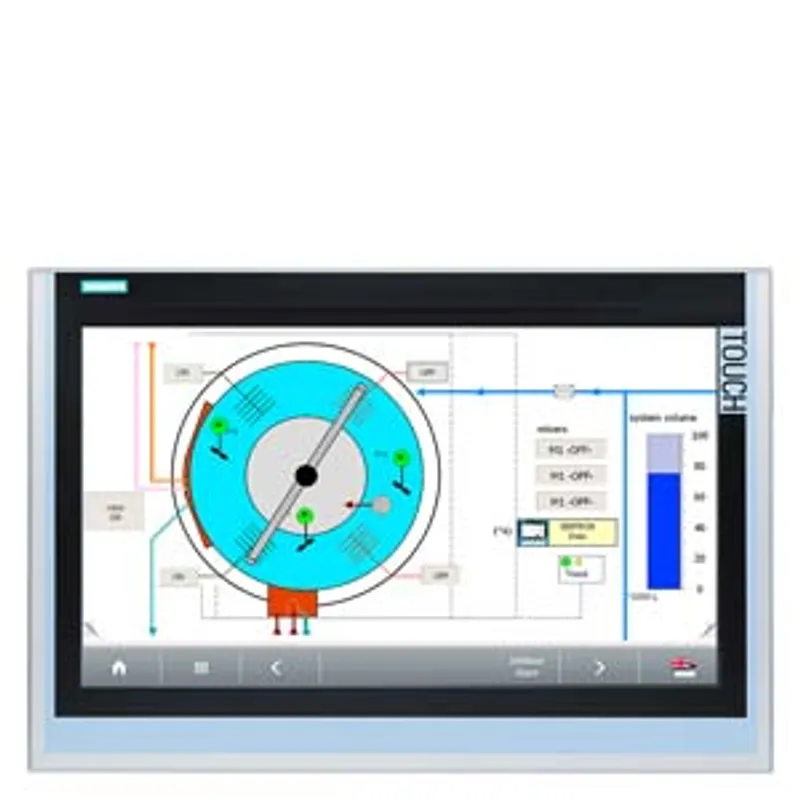

Siemens 6AG1124-0XC02-4AX1
SIPLUS HMI TP2200 Comfort based on 6AV2124-0XC02-0AX1 with conformal coating, 0…+45 °C, Comfort Panel
- MPN
- 6AG1124-0XC02-4AX1
- Category
- SIPLUS Comfort Panels Standard
Price and lead time confirmed within 1 business day
Request a Quote
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- Ships via
- 100% positive eBay feedback
What is the Siemens 6AG1124-0XC02-4AX1?
SIPLUS HMI TP2200 Comfort based on 6AV2124-0XC02-0AX1 with conformal coating, 0…+45 °C, Comfort Panel, touch operation, 22" widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 24 MB configuration memory, WEC 2013, configurable as of WinCC Comfort V14 SP1 with HSP
Specifications
General information
| Product type designation | TP2200 Comfort |
| based on | 6AV2124-0XC02-0AX1 |
Display
| Design of display | TFT |
| Screen diagonal | 21.5 in |
| Display width | 475.2 mm |
| Display height | 267.3 mm |
| Number of colors | 16 777 216 |
| Resolution (pixels) — Horizontal image resolution | 1 920 pixel |
| Resolution (pixels) — Vertical image resolution | 1 080 pixel |
| Backlighting — MTBF backlighting (at 25 °C) | 30 000 h |
| Backlighting — Backlight dimmable | Yes; 0-100 % |
Control elements
| Keyboard — Function keys — Number of function keys | 0 |
| Keyboard — Function keys — Number of function keys with LEDs | 0 |
| Keyboard — Keys with LED | No |
| Keyboard — System keys | No |
| Keyboard — Numeric keyboard | Yes; Onscreen keyboard |
| Keyboard — alphanumeric keyboard | Yes; Onscreen keyboard |
| Touch operation — Design as touch screen | Yes; Analog-resistive |
| Expansions for operator control of the process — Direct keys (touch buttons as S7 input I/O) | 40 |
Installation type/mounting
| Mounting position | vertical |
| Mounting in portrait format possible | Yes |
| Mounting in landscape format possible | Yes |
| maximum permissible angle of inclination without external ventilation | 35° |
Supply voltage
| Type of supply voltage | DC |
| Rated value (DC) | 24 V |
| permissible range, lower limit (DC) | 19.2 V |
| permissible range, upper limit (DC) | 28.8 V |
Input current
| Current consumption (rated value) | 1.7 A |
| Starting current inrush I²t | 0.5 A²·s |
Power
| Active power input, typ. | 41 W |
Processor
| Processor type | X86 |
Storage
| Flash | Yes |
| RAM | Yes |
| Memory available for user data | 24 Mbyte |
Type of output
| Info LED | No |
| Power LED | No |
| Error LED | No |
| Acoustics — Buzzer | No |
| Acoustics — Speaker | Yes |
Time of day
| Clock — Hardware clock (real-time) | Yes |
| Clock — Software clock | Yes |
| Clock — retentive | Yes; Back-up duration typically 6 weeks |
| Clock — synchronizable | Yes |
Interfaces
| Number of industrial Ethernet interfaces | 2; 2 ports (switch) + independent port |
| Number of RS 485 interfaces | 1; RS 422 / 485 combined |
| Number of RS 422 interfaces | 0; together with RS 485 |
| Number of RS 232 interfaces | 0 |
| Number of USB interfaces | 2; USB 2.0 |
| Number of 20 mA interfaces (TTY) | 0 |
| Number of parallel interfaces | 0 |
| Number of SD card slots | 2 |
| With software interfaces | No |
| Industrial Ethernet — Industrial Ethernet status LED | 3 |
| Industrial Ethernet — Number of ports of the integrated switch | 2 |
Protocols
| PROFINET | Yes |
| PROFINET IO | Yes |
| IRT | Yes |
| PROFIBUS | Yes |
| EtherNet/IP | Yes |
| MPI | Yes |
| Protocols (Ethernet) — TCP/IP | Yes |
| Protocols (Ethernet) — DHCP | Yes |
| Protocols (Ethernet) — SNMP | Yes |
| Protocols (Ethernet) — DCP | Yes |
| Protocols (Ethernet) — LLDP | Yes |
| WEB characteristics — HTTP | Yes |
| WEB characteristics — HTTPS | Yes |
| WEB characteristics — HTML | Yes |
| WEB characteristics — XML | Yes |
| WEB characteristics — CSS | Yes |
| WEB characteristics — Active X | Yes |
| WEB characteristics — JavaScript | Yes |
| WEB characteristics — Java VM | No |
| Redundancy mode — Media redundancy — MRP | Yes |
| Further protocols — CAN | No |
| Further protocols — MODBUS | Yes |
Interrupts/diagnostics/status information
| Diagnoses — Diagnostic information readable | Yes; S7 controller |
EMC
| Emission of radio interference acc. to EN 55 011 — Limit class A, for use in industrial areas | Yes |
| Emission of radio interference acc. to EN 55 011 — Limit class B, for use in residential areas | No |
Degree and class of protection
| IP (at the front) | IP65 |
| IP (rear) | IP20 |
| NEMA (front) — Enclosure Type 4 at the front | Yes |
| NEMA (front) — Enclosure Type 4x at the front | Yes |
Ambient conditions
| Suited for indoor use | Yes |
| Suited for outdoor use | No |
| Ambient temperature during operation — Operation (vertical installation) — For vertical installation, min. | 0 °C; = Tmin |
| Ambient temperature during operation — Operation (vertical installation) — For vertical installation, max. | 45 °C; = Tmax |
| Ambient temperature during operation — Operation (max. tilt angle) — At maximum tilt angle, min. | 0 °C; = Tmin |
| Ambient temperature during operation — Operation (max. tilt angle) — At maximum tilt angle, max. | 40 °C; = Tmax |
| Ambient temperature during operation — Operation (vertical installation, portrait format) — For vertical installation, min. | 0 °C; = Tmin |
| Ambient temperature during operation — Operation (vertical installation, portrait format) — For vertical installation, max. | 40 °C; = Tmax |
| Ambient temperature during operation — Operation (max. tilt angle, portrait format) — At maximum tilt angle, min. | 0 °C; = Tmin |
| Ambient temperature during operation — Operation (max. tilt angle, portrait format) — At maximum tilt angle, max. | 35 °C; = Tmax |
| Ambient temperature during storage/transportation — min. | -20 °C |
| Ambient temperature during storage/transportation — max. | 60 °C |
| Altitude during operation relating to sea level — Installation altitude above sea level, max. | 5 000 m |
| Altitude during operation relating to sea level — Ambient air temperature-barometric pressure-altitude | Tmin ... Tmax at 1 080 hPa ... 795 hPa (-1 000 m ... +2 000 m) // Tmin ... (Tmax - 10 K) at 795 hPa ... 658 hPa (+2 000 m ... +3 500 m) // Tmin ... (Tmax - 20 K) at 658 hPa ... 540 hPa (+3 500 m ... +5 000 m) |
| Relative humidity — With condensation, tested in accordance with IEC 60068-2-38, max. | 100 %; RH incl. condensation/frost (no commissioning under condensation conditions) |
| Resistance — Coolants and lubricants — Resistant to commercially available coolants and lubricants | Yes; Incl. diesel and oil droplets in the air |
| Resistance — Use in stationary industrial systems — to biologically active substances according to EN 60721-3-3 | Yes; Class 3B2 mold, fungus and dry rot spores (with the exception of fauna); Class 3B3 on request |
| Resistance — Use in stationary industrial systems — to chemically active substances according to EN 60721-3-3 | Yes; Class 3C4 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| Resistance — Use in stationary industrial systems — to mechanically active substances according to EN 60721-3-3 | Yes; Class 3S4 incl. sand, dust, * |
| Resistance — Use on ships/at sea — to biologically active substances according to EN 60721-3-6 | Yes; Class 6B2 mold and fungal spores (excluding fauna); Class 6B3 on request |
| Resistance — Use on ships/at sea — to chemically active substances according to EN 60721-3-6 | Yes; Class 6C3 (RH < 75 %) incl. salt spray acc. to EN 60068-2-52 (severity degree 3); * |
| Resistance — Use on ships/at sea — to mechanically active substances according to EN 60721-3-6 | Yes; Class 6S3 incl. sand, dust; * |
| Resistance — Usage in industrial process technology — Against chemically active substances acc. to EN 60654-4 | Yes; Class 3 (excluding trichlorethylene) |
| Resistance — Usage in industrial process technology — Environmental conditions for process, measuring and control systems acc. to ANSI/ISA-71.04 | Yes; Level GX group A/B (excluding trichlorethylene; harmful gas concentrations up to the limits of EN 60721-3-3 class 3C4 permissible); level LC3 (salt spray) and level LB3 (oil) |
| Resistance — Remark — Note regarding classification of environmental conditions acc. to EN 60721, EN 60654-4 and ANSI/ISA-71.04 | * The supplied plug covers must remain in place over the unused interfaces during operation! |
| Conformal coating — Coatings for printed circuit board assemblies acc. to EN 61086 | Yes; Class 2 for high reliability |
| Conformal coating — Protection against fouling acc. to EN 60664-3 | Yes; Type 1 protection |
| Conformal coating — Military testing according to MIL-I-46058C, Amendment 7 | Yes; Discoloration of coating possible during service life |
| Conformal coating — Qualification and Performance of Electrical Insulating Compound for Printed Board Assemblies according to IPC-CC-830A | Yes; Conformal coating, Class A |
Operating systems
| proprietary | No |
| pre-installed operating system — Windows CE | Yes; Windows Embedded Compact 2013 |
Configuration
| Message indicator | Yes |
| Alarm system (incl. buffer and acknowledgment) | Yes |
| Process value display (output) | Yes |
| Process value default (input) possible | Yes |
| Recipe management | Yes |
| Configuration software — STEP 7 Basic (TIA Portal) | No |
| Configuration software — STEP 7 Professional (TIA Portal) | No |
| Configuration software — WinCC flexible Compact | No |
| Configuration software — WinCC flexible Standard | No |
| Configuration software — WinCC flexible Advanced | No |
| Configuration software — WinCC Basic (TIA Portal) | No |
| Configuration software — WinCC Comfort (TIA Portal) | Yes; V14 SP1 HSP and higher |
| Configuration software — WinCC Advanced (TIA Portal) | Yes; V14 SP1 HSP and higher |
| Configuration software — WinCC Professional (TIA Portal) | Yes; V14 SP1 HSP and higher |
Languages
| Online languages — Number of online/runtime languages | 32 |
| Project languages — Languages per project | 32 |
Functionality under WinCC (TIA Portal)
| Libraries | Yes |
| Applications/options — Web browser | Yes |
| Applications/options — Pocket Word | Yes |
| Applications/options — Pocket Excel | Yes |
| Applications/options — PDF Viewer | Yes |
| Applications/options — Media Player | Yes |
| Applications/options — SIMATIC WinCC Sm@rtServer | Yes |
| Applications/options — SIMATIC WinCC Audit | Yes |
| Number of Visual Basic Scripts | Yes |
| Task planner — time-controlled | Yes |
| Task planner — task-controlled | Yes |
| Help system — Number of characters per info text | 320 |
| Message system — Number of alarm classes | 32 |
| Message system — Bit messages — Number of bit messages | 6 000 |
| Message system — Analog messages — Number of analog messages | 200 |
| Message system — S7 alarm number procedure | Yes |
| Message system — System messages HMI | Yes |
| Message system — System event, more (SIMATIC S7, SINUMERIK, SIMOTION, ... ) | Yes |
| Message system — Number of characters per message | 80 |
| Message system — Number of process values per message | 8 |
| Message system — Acknowledgment groups | Yes |
| Message system — Message indicator | Yes |
| Message system — Message buffer — Number of entries | 1 024 |
| Message system — Message buffer — Circulating buffer | Yes |
| Message system — Message buffer — retentive | Yes |
| Message system — Message buffer — maintenance-free | Yes |
| Recipe management — Number of recipes | 500 |
| Recipe management — Data records per recipe | 1 000 |
| Recipe management — Entries per data record | 2 000 |
| Recipe management — Size of internal recipe memory | 4 Mbyte |
| Recipe management — Recipe memory expandable | Yes |
| Variables — Number of variables per device | 4 096 |
| Variables — Number of variables per screen | 400 |
| Variables — Limit values | Yes |
| Variables — Multiplexing | Yes |
| Variables — Structures | Yes |
| Variables — Arrays | Yes |
| Images — Number of configurable images | 750 |
| Images — Permanent window/default | Yes |
| Images — Global image | Yes |
| Images — Pop-up images | Yes |
| Images — Slide-in images | Yes |
| Images — Image selection by PLC | Yes |
| Images — Image number in the PLC | Yes |
| Image objects — Number of objects per image | 600 |
| Image objects — Text fields | Yes |
| Image objects — I/O fields | Yes |
| Image objects — Graphic I/O fields (graphics list) | Yes |
| Image objects — Symbolic I/O fields (text list) | Yes |
| Image objects — Date/time fields | Yes |
| Image objects — Switches | Yes |
| Image objects — Buttons | Yes |
| Image objects — Graphic display | Yes |
| Image objects — Icons | Yes |
| Image objects — Geometric objects | Yes |
| Complex image objects — Number of complex objects per screen | 40 |
| Complex image objects — Alarm view | Yes |
| Complex image objects — Trend view | Yes |
| Complex image objects — User view | Yes |
| Complex image objects — Status/control | Yes |
| Complex image objects — Sm@rtClient view | Yes |
| Complex image objects — Recipe view | Yes |
| Complex image objects — f(x) trend view | Yes |
| Complex image objects — System diagnostics view | Yes |
| Complex image objects — Media Player | Yes |
| Complex image objects — HTML browser | Yes |
| Complex image objects — PDF display | Yes |
| Complex image objects — IP camera display | Yes |
| Complex image objects — Bar graphs | Yes |
| Complex image objects — Sliders | Yes |
| Complex image objects — Pointer instruments | Yes |
| Complex image objects — Analog/digital clock | Yes |
| Lists — Number of text lists per project | 500 |
| Lists — Number of entries per text list | 500 |
| Lists — Number of graphics lists per project | 500 |
| Lists — Number of entries per graphics list | 500 |
| Archiving — Number of archives per device | 50 |
| Archiving — Number of entries per archive | 50 000 |
| Archiving — Message archive | Yes |
| Archiving — Process value archive | Yes |
| Archiving — Archiving methods — Sequential archive | Yes |
| Archiving — Archiving methods — Short-term archive | Yes |
| Archiving — Memory location — Memory card | Yes |
| Archiving — Memory location — USB memory | Yes |
| Archiving — Memory location — Ethernet | Yes |
| Archiving — Data storage format — CSV | Yes |
| Archiving — Data storage format — TXT | Yes |
| Archiving — Data storage format — RDB | Yes |
| Security — Number of user groups | 50 |
| Security — Number of user rights | 32 |
| Security — Number of users | 50 |
| Security — Password export/import | Yes |
| Security — SIMATIC Logon | Yes |
| Logging through printer — Alarms | Yes |
| Logging through printer — Report (shift log) | Yes |
| Logging through printer — Hardcopy | Yes |
| Logging through printer — Electronic print to file | Yes; PDF, HTML |
| Character sets — Keyboard fonts — US English | Yes |
| Transfer (upload/download) — MPI/PROFIBUS DP | Yes |
| Transfer (upload/download) — USB | Yes |
| Transfer (upload/download) — Ethernet | Yes |
| Transfer (upload/download) — using external storage medium | Yes |
| Process coupling — S7-1200 | Yes |
| Process coupling — S7-1500 | Yes |
| Process coupling — S7-200 | Yes |
| Process coupling — S7-300/400 | Yes |
| Process coupling — LOGO! | Yes |
| Process coupling — WinAC | Yes |
| Process coupling — SINUMERIK | Yes; With SINUMERIK option package as from WinCC V15 or higher |
| Process coupling — SIMOTION | Yes |
| Process coupling — Allen Bradley (EtherNet/IP) | Yes |
| Process coupling — Allen Bradley (DF1) | Yes |
| Process coupling — Mitsubishi (MC TCP/IP) | Yes |
| Process coupling — Mitsubishi (FX) | Yes |
| Process coupling — OMRON (FINS TCP) | No |
| Process coupling — OMRON (Host Link) | Yes |
| Process coupling — Modicon (Modbus TCP/IP) | Yes |
| Process coupling — Modicon (Modbus RTU) | Yes |
| Process coupling — OPC UA Client | Yes |
| Process coupling — OPC UA Server | Yes |
| Service tools/configuration aids — Backup/Restore manually | Yes |
| Service tools/configuration aids — Backup/Restore automatically | Yes |
| Service tools/configuration aids — Simulation | Yes |
| Service tools/configuration aids — Device switchover | Yes |
Peripherals/Options
| Printer | Yes |
| SIMATIC HMI MM memory card: Multi Media Card | Yes; Up to 128 MB |
| SIMATIC HMI SD memory card: Secure Digital memory card | Yes; Up to 2 GB |
| SIMATIC HMI CF memory card Compact Flash Card | No |
| USB memory | Yes |
| SIMATIC IPC USB Flashdrive (USB stick) | Yes; Up to 16 GB |
| SIMATIC HMI USB stick | Yes; Up to 8 GB |
| Network camera | Yes |
Mechanics/material
| Enclosure material (front) — plastic | No |
| Enclosure material (front) — Aluminum | Yes |
| Enclosure material (front) — Stainless steel | No |
Dimensions
| Width of the housing front | 560 mm |
| Height of housing front | 380 mm |
| Mounting cutout, width | 542 mm |
| Mounting cutout, height | 362 mm |
| mounting depth | 75 mm |
Weights
| Weight (without packaging) | 6.7 kg |
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
6AG1124-0XC02-4AX1: frequently asked questions
When can 6AG1124-0XC02-4AX1 be shipped?
6AG1124-0XC02-4AX1 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 6AG1124-0XC02-4AX1 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 6AG1124-0XC02-4AX1 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 6AG1124-0XC02-4AX1, subject to availability and destination.
More Siemens parts
Siemens 6AG1124-0XC02-4AX1Price and lead time confirmed within 1 business day
Request a Quote
