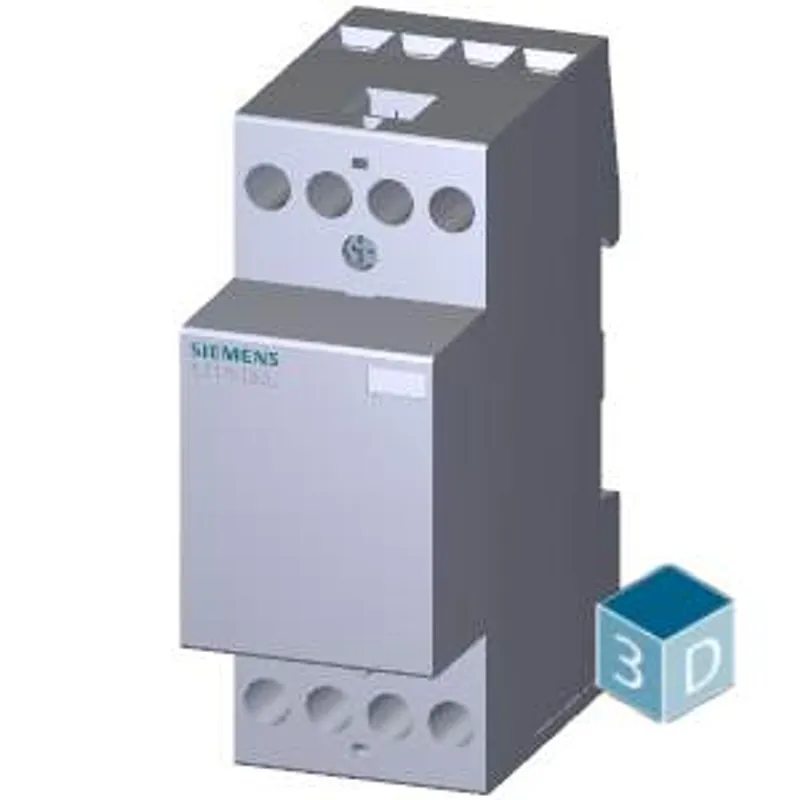

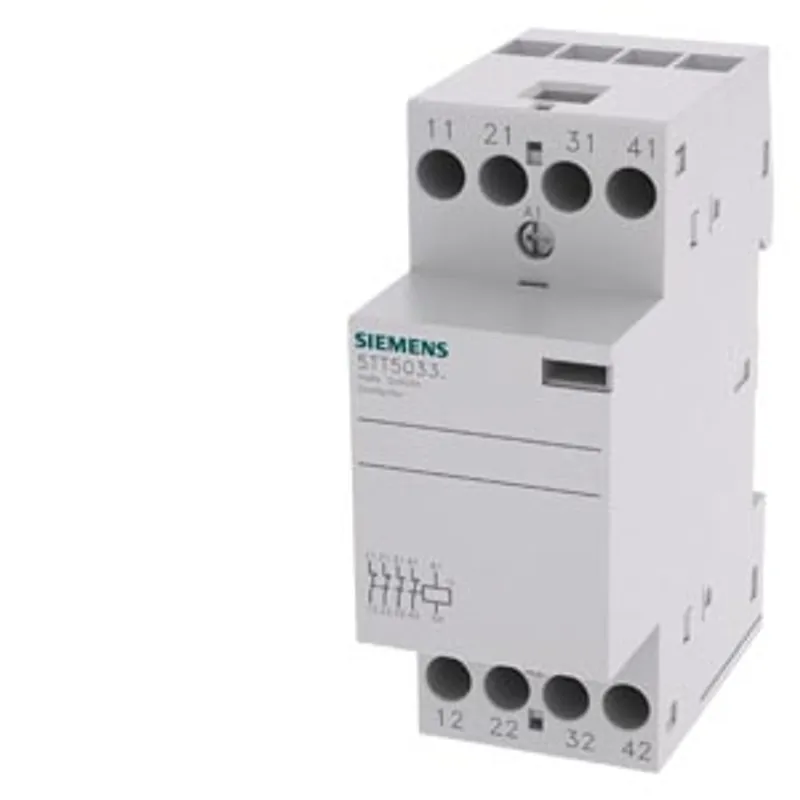

Siemens 5TT5033-2

Insta contactor with 4 NC contact for 230 V AC, 400 V 25 A control AC/24 V DC

MPN
5TT5033-2
Price and lead time confirmed within 1 business day
Request a Quote
  1. 1We check stock, condition and lead time
  2. 2You get a written quote by email
  3. 3Approve it and we ship — in-stock parts within 1 business day

A real person replies, typically within 1 business day — see our privacy policy.

  • 12-month warranty (new) · 3-month (used/refurbished)
  • 30-day returns, no restocking fee on unused parts
  • 100% positive eBay feedback
  • Ships via

Have spare Siemens parts? We buy surplus →

What is the Siemens 5TT5033-2?

insta contactor with 4 NC contact for 230 V AC, 400 V 25 A control AC/24 V DC

Specifications

Model

product brand nameSENTRON
product designationInstallation contactor
design of the product4 NC contacts

General technical data

relative ON period of magnet coil100 %
type of voltage of the operating voltageAC
type of voltage of the operating voltage for actuationAC/DC

Supply voltage

operating voltage rated value — minimum400 V
operating voltage rated value — maximum400 V

Protection class

protection class IPIP20

Dissipation

power loss [W] for rated value of the current at AC in hot operating state per pole2.2 W

Control current

control supply voltage — rated value24 V
control supply voltage — rated value maximum24 V
control supply voltage — at DC rated value24 V

Product details

product component slide for manual operationNo

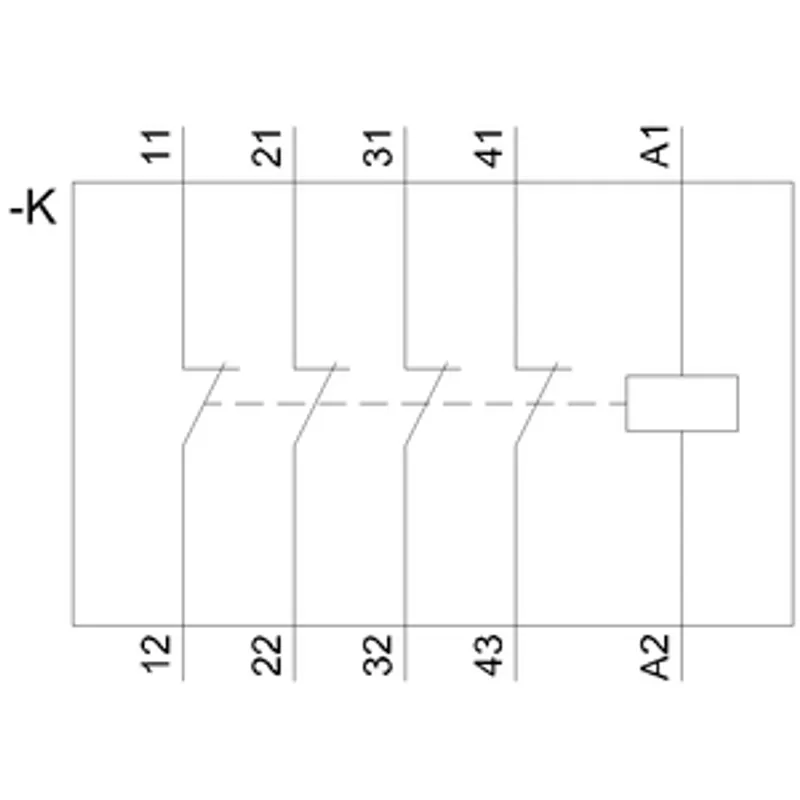

number of NC contacts4
number of NO contacts0
product extension installable supplementary devicesYes

Connections

installation or assembly noteprovision must be made for spacers to ensure heat dissipation

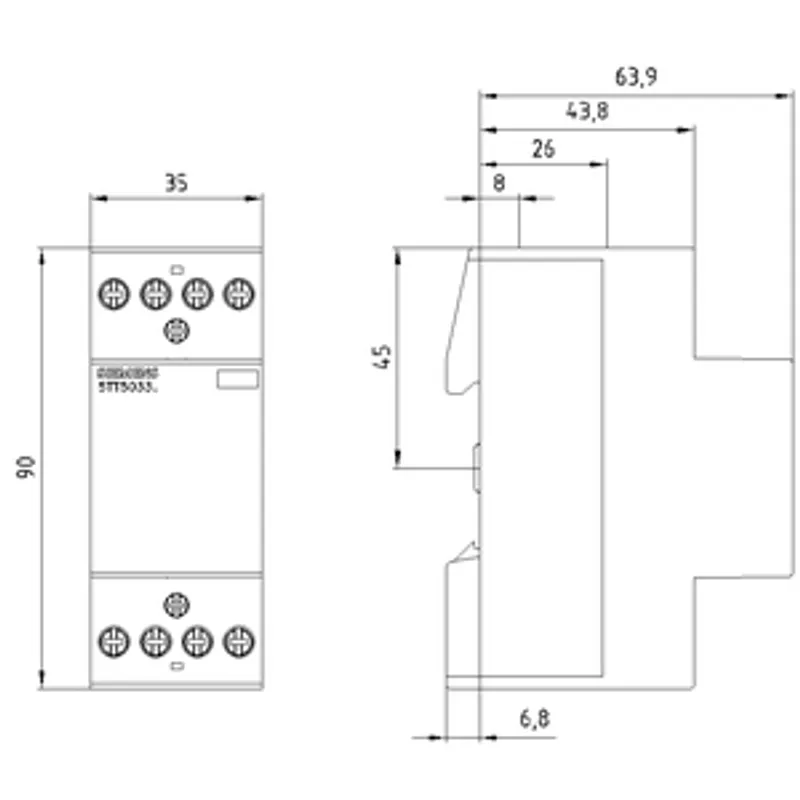

Mechanical Design

height90 mm
width35 mm
depth71 mm
installation depth70 mm
number of modular width units2
Net Weight290.5 g

Downloads & documentation

Official documents from Siemens, downloaded directly from the manufacturer.

Data sheets & manuals

5TT5033-2: frequently asked questions

When can 5TT5033-2 be shipped?

5TT5033-2 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.

Can I pick up 5TT5033-2 in person?

Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.

Is express delivery available?

Yes — mention it when you request a quote for 5TT5033-2 and we'll include express shipping options in our reply.

My factory is down and I need this urgently — can you help?

For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5TT5033-2, subject to availability and destination.
