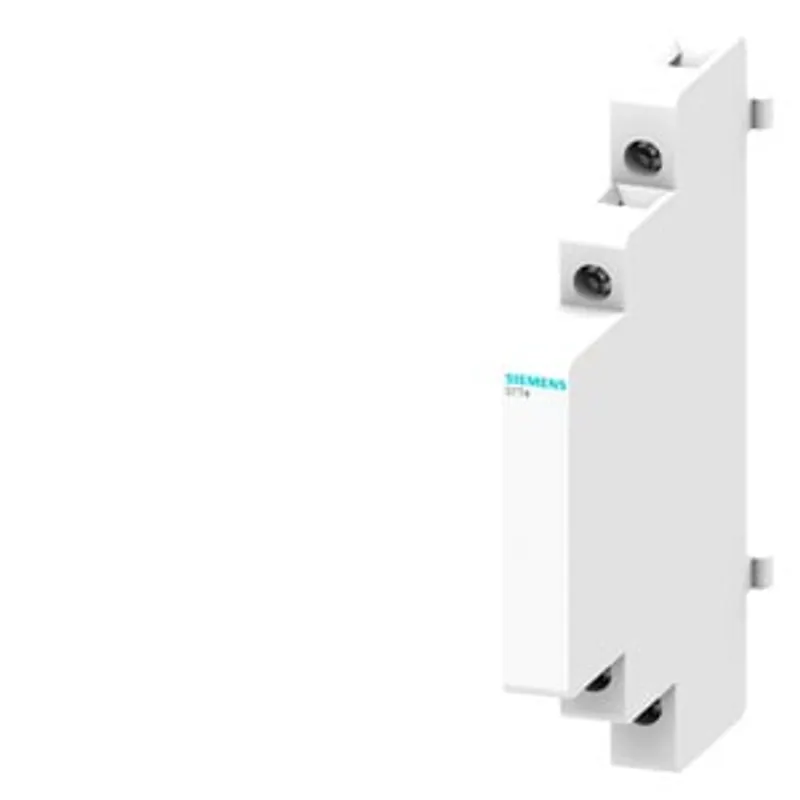

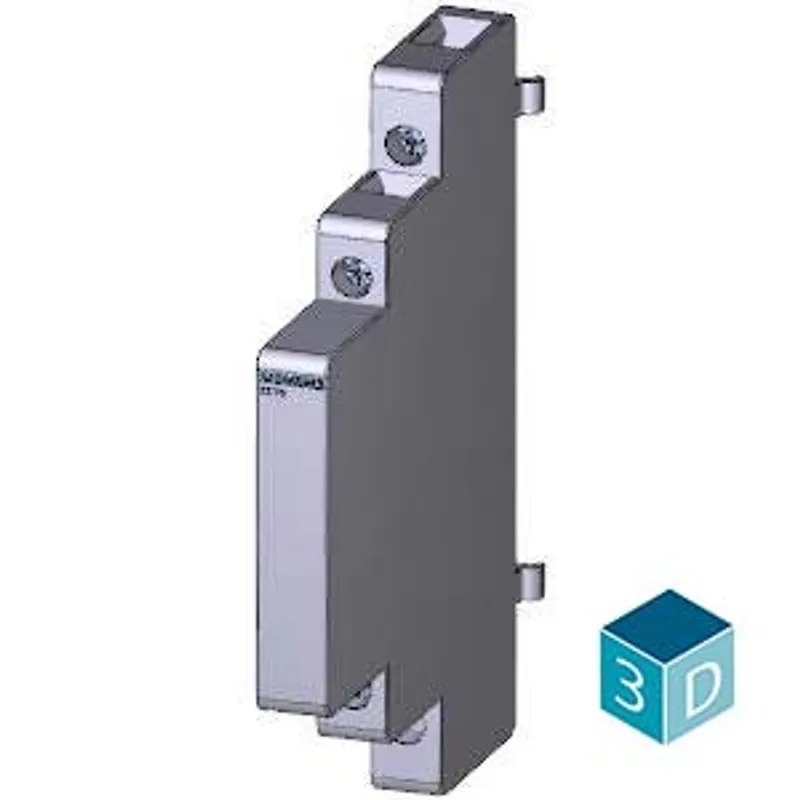

Siemens 5TT4931
Auxiliary switch, central half module
- MPN
- 5TT4931
Request a Quote
- 1We check stock, condition and lead time
- 2You get a written quote by email
- 3Approve it and we ship — in-stock parts within 1 business day
- 12-month warranty (new) · 3-month (used/refurbished)
- 30-day returns, no restocking fee on unused parts
- 100% positive eBay feedback
- Ships via
What is the Siemens 5TT4931?
auxiliary switch, central half module
Specifications
Model
| product brand name | SENTRON |
| product designation | Remote control switch |
| design of the product | auxiliary switch, central |
| latching relay design | mechanical for central control |
General technical data
| galvanic isolation between magnet coil and contact | Yes |
| switching voltage of the contacts at AC minimum | 10 V |
| switching current at AC per contact minimum | 100 mA |
| degree of pollution | 3 |
Voltage
| type of voltage of the operating voltage | AC |
Protection class
| protection class IP | IP20 |
Breaking Capacity
| switching capacity current — at cos phi 0.6 | 16 A |
Product details
| number of NC contacts | 0 |
| number of NO contacts | 0 |
| number of CO contacts | 0 |
Product function
| product function — direct operation | Yes |
| product function — communication function | No |
| product function — other measurement function | No |
| pulse duration minimum | 50 ms |

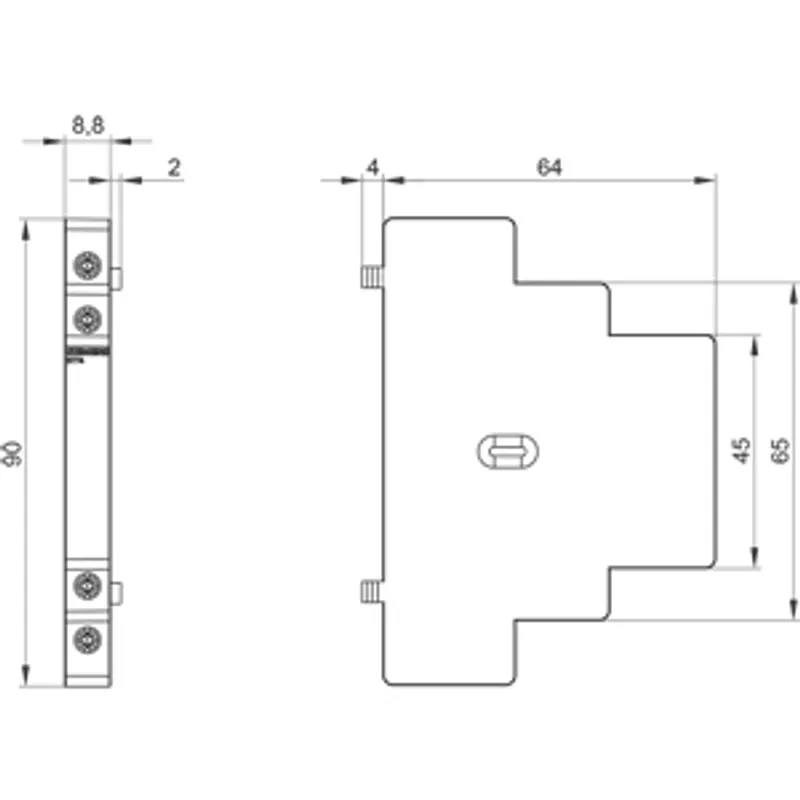

Mechanical Design
| height | 90 mm |
| width | 9 mm |
| width of opening of the contacts | 1.2 mm |
| depth | 73 mm |
| mounting height | 90 mm |
| installation depth | 70 mm |
| number of modular width units | 0.5 |
| fastening method | DIN rail |
| mounting position | Horizontal and vertical |
| Net Weight | 47 g |
Environmental conditions
| ambient temperature during operation — minimum | -25 °C |
| ambient temperature during operation — maximum | 70 °C |
| ambient temperature with relative humidity 95% according to DIN 50015 | 55 °C |
No matching specifications
Downloads & documentation
Official documents from Siemens, downloaded directly from the manufacturer.
Data sheets & manuals
5TT4931: frequently asked questions
When can 5TT4931 be shipped?
5TT4931 is sourced on request — request a quote and we'll confirm the exact availability and shipping timeline for this specific unit.
Can I pick up 5TT4931 in person?
Local pickup from our Groningen, Netherlands warehouse may be possible — contact us before ordering to check availability and arrange a collection time.
Is express delivery available?
Yes — mention it when you request a quote for 5TT4931 and we'll include express shipping options in our reply.
My factory is down and I need this urgently — can you help?
For a critical breakdown, contact us directly at +31 (0)50-7110348 or sales@partnerplc.com — we can look into same-day courier or dedicated taxi/hotshot delivery for 5TT4931, subject to availability and destination.
